PowerBoss Sweeper Armadillo SW-9XR To AM9LPG Parts Manual Wiring Diagram 4100000 2007

Size: 6.83 MB

Format: PDF

Language: English

Brand: PowerBoss

Type of Machine: Sweeper

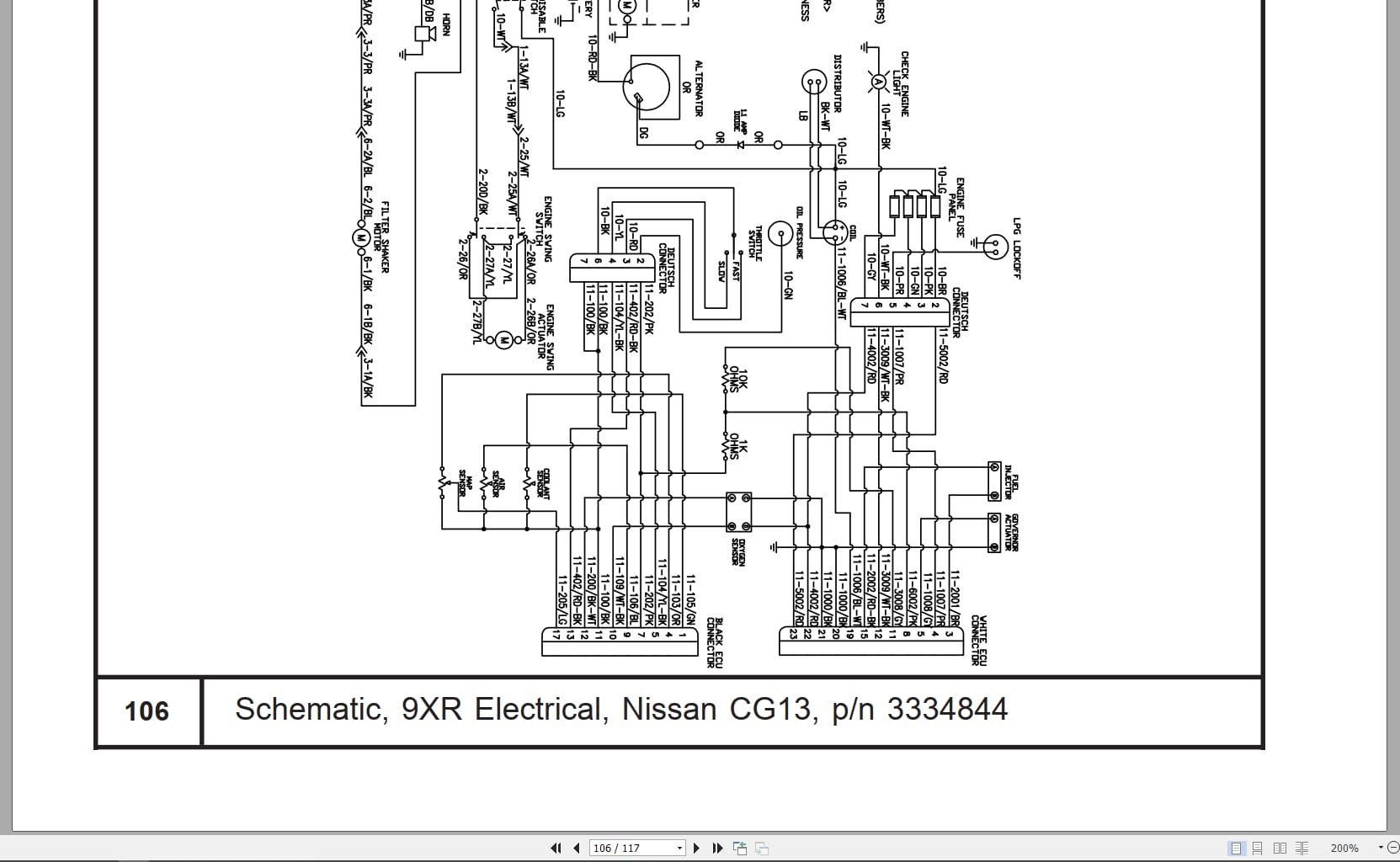

Type of Manual: Parts Manual, Hydraulic And Electrical Schematic

Model: PowerBoss Armadillo SW-9XR ; SW-9XV ; AM9D ; AM9LPG Sweeper

Part Number: 4100000

Publication Date: 2007

Number of Pages: 117 Pages

10 USD

Tags: PowerBoss Parts Manual Wiring Diagram, PowerBoss Sweeper Armadillo Manual, SW-9XR

Description

Description

Contents:
Front Brakes, Tires & Axles

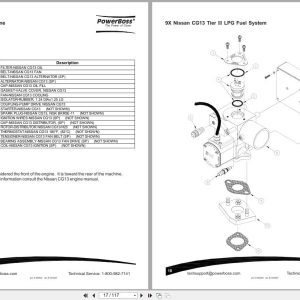

9XV Hydraulic Brakes
Nissan CG13 Gas/LP Engine

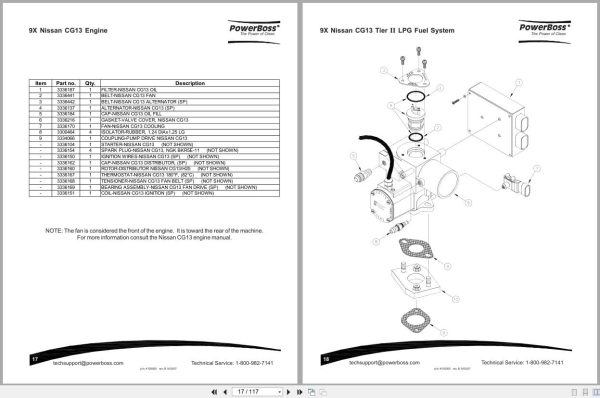

9X Nissan Tier II LPG Fuel System
9X Nissan Tier II LPG Vaporizer
9X Nissan Tier II Gasoline Fuel System
Gas/LPAir Cleaner Assembly
Gas/LP Radiator Assembly
Nissan CG13 Tier II Exhaust System
Nissan CG13 Tier I Exhaust System
Kubota Diesel Exhaust System
Kubota V1505 Diesel Engine
Diesel Air Cleaner Assembly
Diesel Radiator Assembly
Main & Axillary Hydraulic Pumps, Fwd/Rev Mechanism
Drive Motor & Steering System
9XR Instrument Panel
9XV & AM9D Instrument Panel
Hydraulic Power Steering
Side Broom Assembly
9XR Frame
9XV Frame
Rear Grill & Side Door
Seat Clip
Diesel Console
Gas/LP Console
Engine Cover
Hopper without Impeller
Hopper with Impeller
9XV/AM9D Hopper
Front Bumper
Engine Pivot, Gas/LP & Diesel
9XV PowerSwing
9XR Lift Arms
9XV Lift Arms
Hydraulic Reservoir
Hydraulic Control Valve
Main Broom
Fuel Tank, Gas & Diesel
9XR Gasket Mount
9XV Gasket Mount
Hydraulic Impeller
Directional Linkage
Brooms – Main & Side
Options:
Heavy Duty Side Broom Guard
Back Up Alarm
Ergo Cab
Strobe Light
Heavy Duty Air Cleaner
Schematics:

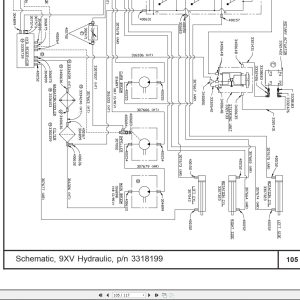

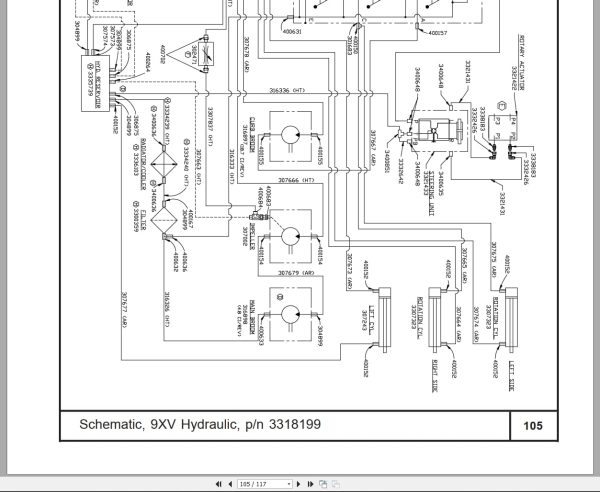

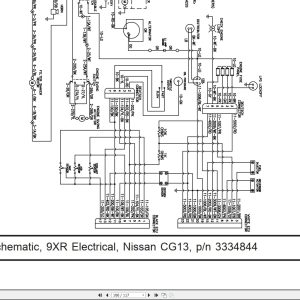

Electrical & Hydraulic
9XR Spares
9XV & AM9D Spares
