Raymond Pallet Truck 111 112 113 114 Maintenance Instructions PDMM-0050

Raymond Pallet Truck 111 112 113 114 Maintenance Instructions PDMM 0050 (1)
Raymond Pallet Truck 111 112 113 114 Maintenance Instructions PDMM 0050 (2)
Raymond Pallet Truck 111 112 113 114 Maintenance Instructions PDMM 0050 (3)
Raymond Pallet Truck 111 112 113 114 Maintenance Instructions PDMM 0050 (4)
Raymond Pallet Truck 111 112 113 114 Maintenance Instructions PDMM 0050 (1)
Raymond Pallet Truck 111 112 113 114 Maintenance Instructions PDMM 0050 (2)
Raymond Pallet Truck 111 112 113 114 Maintenance Instructions PDMM 0050 (3)
Raymond Pallet Truck 111 112 113 114 Maintenance Instructions PDMM 0050 (4)
✓

Expert Support

✓

Full Speed

✓

100% Working

Raymond Pallet Truck 111 112 113 114 Maintenance Instructions PDMM-0050

Size: 8.69 MB
Format: PDF
Language: English
Brand: Raymond
Type of Machine: Pallet Truck

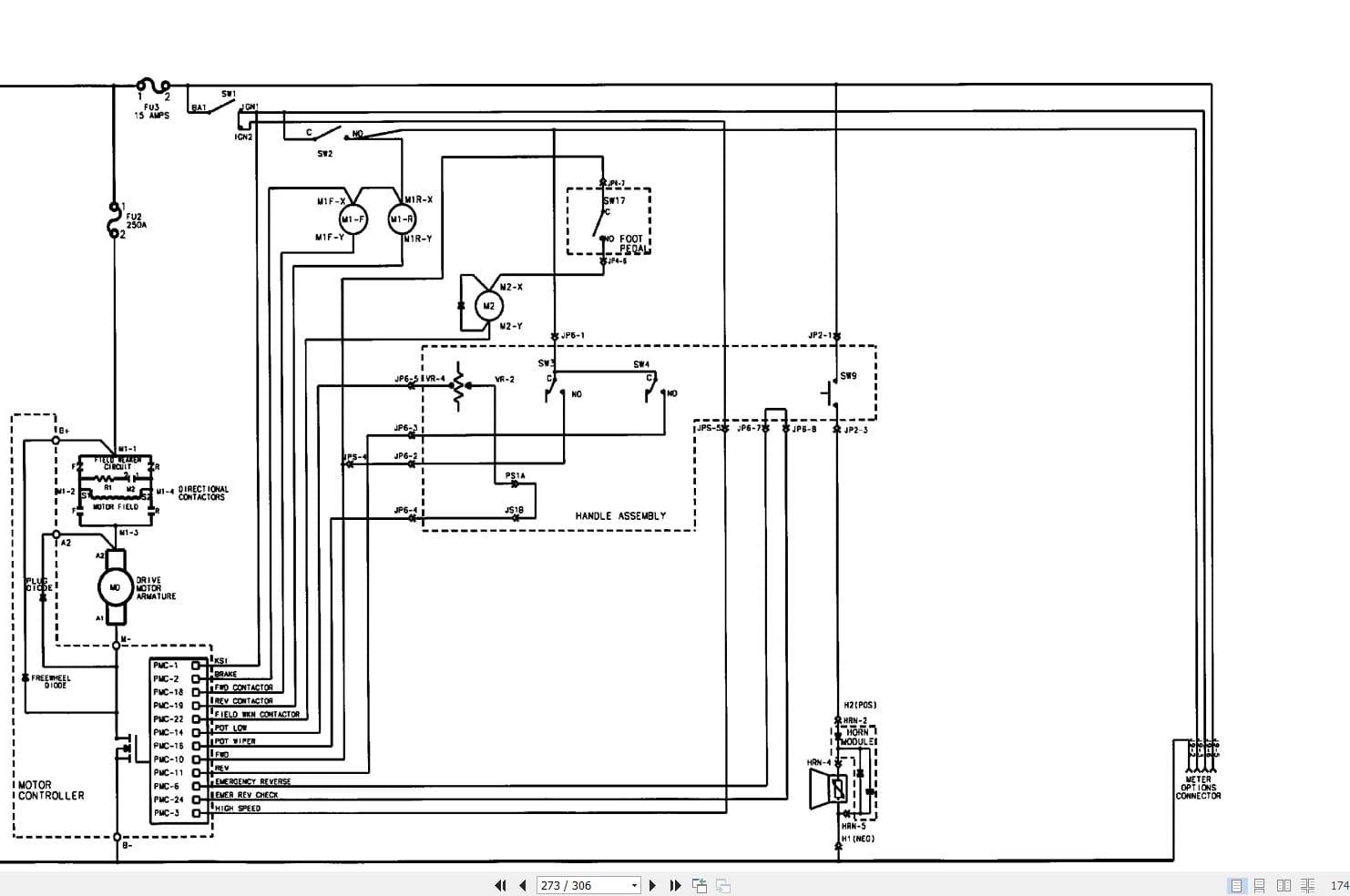

Type of Manual: Maintenance Instructions, Electrical Schematic
Model: Raymond 111, 112, 113, 114 Pallet Truck
Serial Number: 97-20000 and up
Part Number: PDMM-0050
Publication Date: 1999
Number of Pages: 306 Pages

20 USD

Tags: , , , , ,
  • Description

Description

Contents:
How to Use This Manual
Map of the Manual
Table of Contents
START Page
Safety
Definitions
General Safety
Battery Safety
Static Safety
Jacking Safety
Tie-down for Transport
Towing
Welding Safety
Systems Overview
Truck Model Identification
Vehicle Specifications
General System Data
Special Tools
Theory of Operation
Scheduled Maintenance
Maintenance Guidelines
Daily
Every Two Months or 250 Operating Hours
Annually or Every 2000 Operating Hours
Grease Fittings
Troubleshooting
How to Use This Chapter
Electrical Troubleshooting Guidelines
Hydraulic Troubleshooting Guidelines
Definitions
Electrical Connector Locator Chart
List of Troubleshooting Charts
Troubleshooting Flowcharts

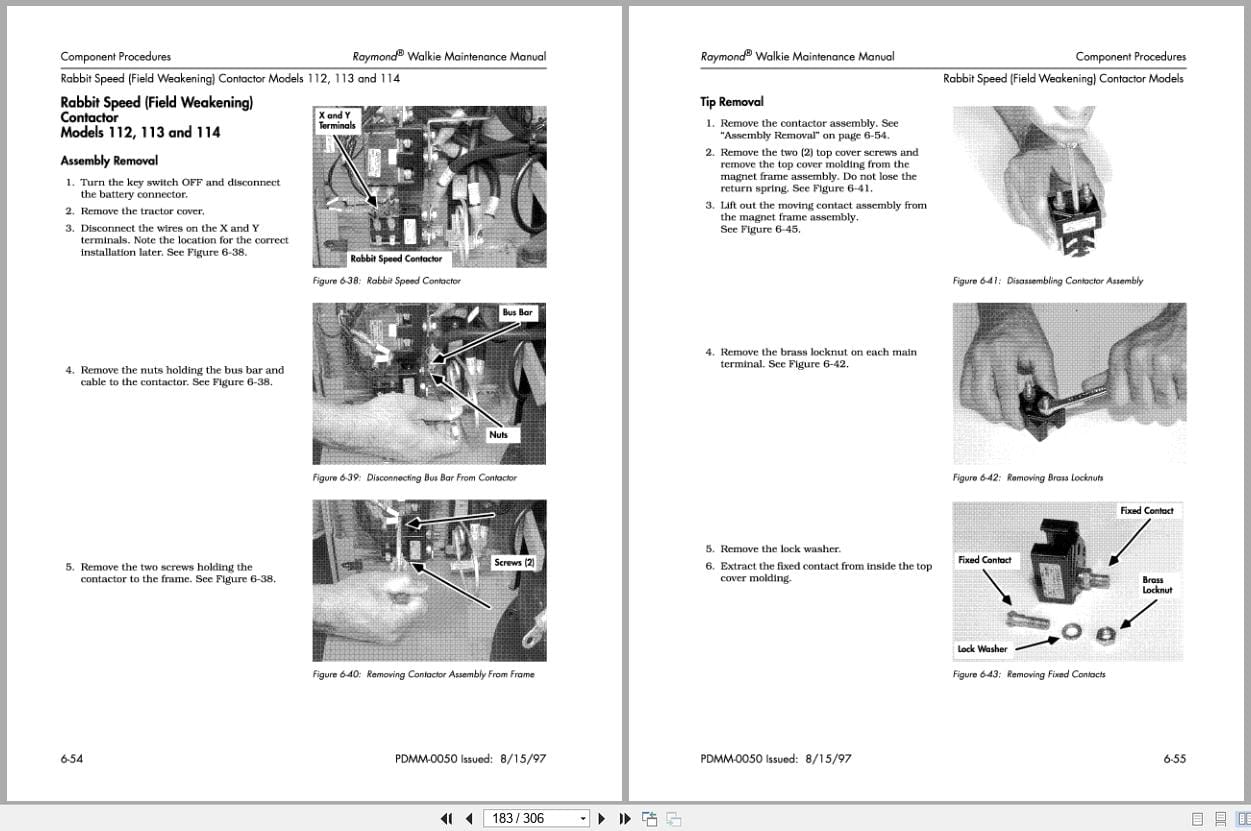

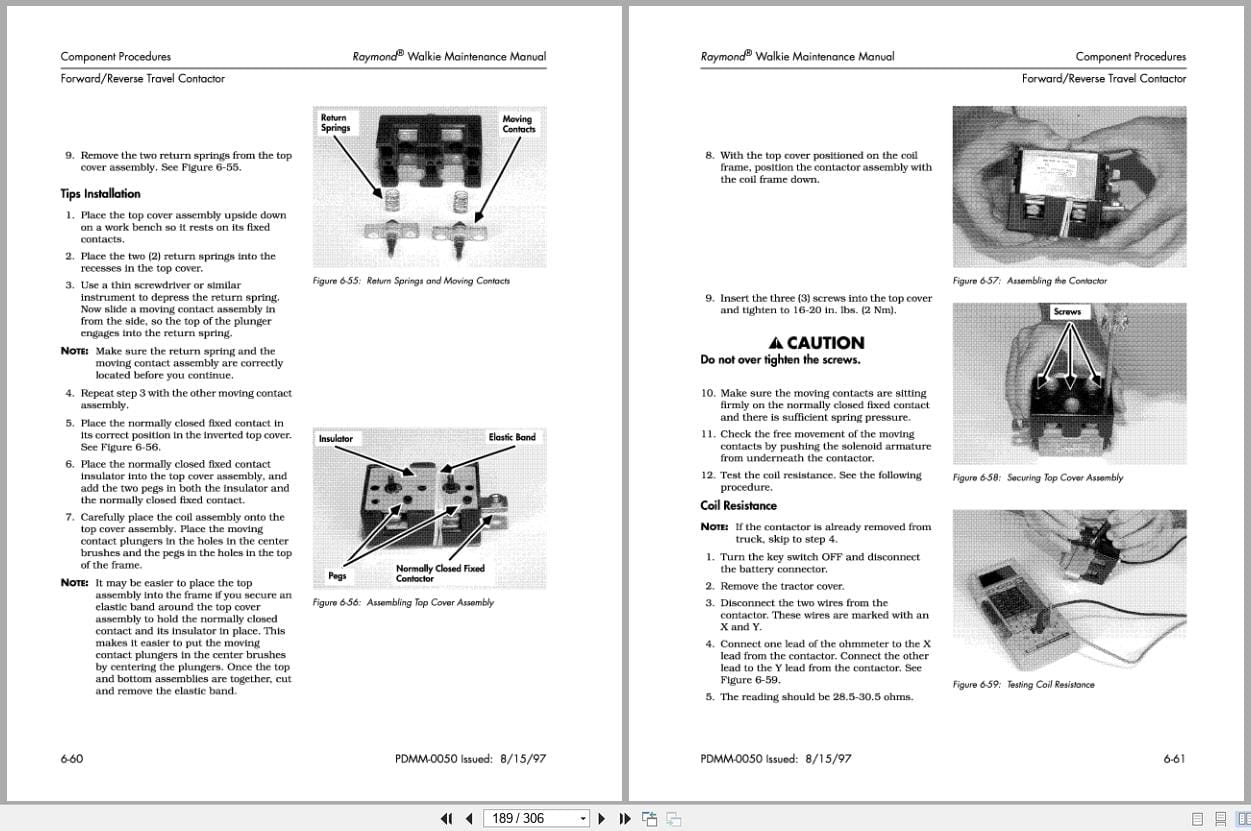

Component Procedures
Component Locator Photos
List of Component Procedures
Cold Storage Conditioning
Appendix
Lubrication Equivalency Chart
Torque Chart – Standard
Torque Chart – Metric
Decimal Equivalent Chart
Standard/Metric Conversions
Electrical Schematic
Index
RSIs
Curtis Controller
Noticeable Play in Drive Unit
Tractor Cover Fasteners
Improvements to the motor controller
Failure of coil suppressor for the lowering solenoid
Lift ram pivot pins too short
Pallet Entry Rollers
Pallet Entry and exit of 6K trucks
Trail Fork Adjustment
Increased operating arc on handle
Autocoast cannister assembly
Lift Motor Brush Replacement
Motor Controller Improvements
Walkie Transmission Radial Bearing
