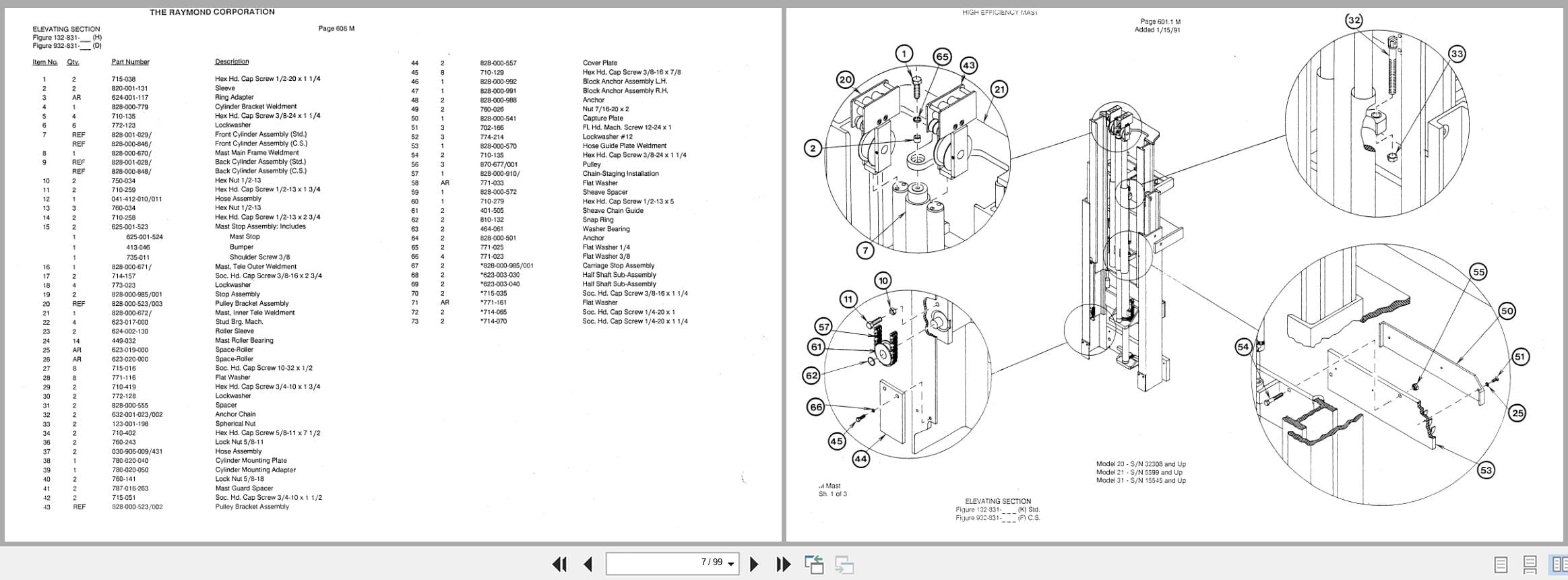

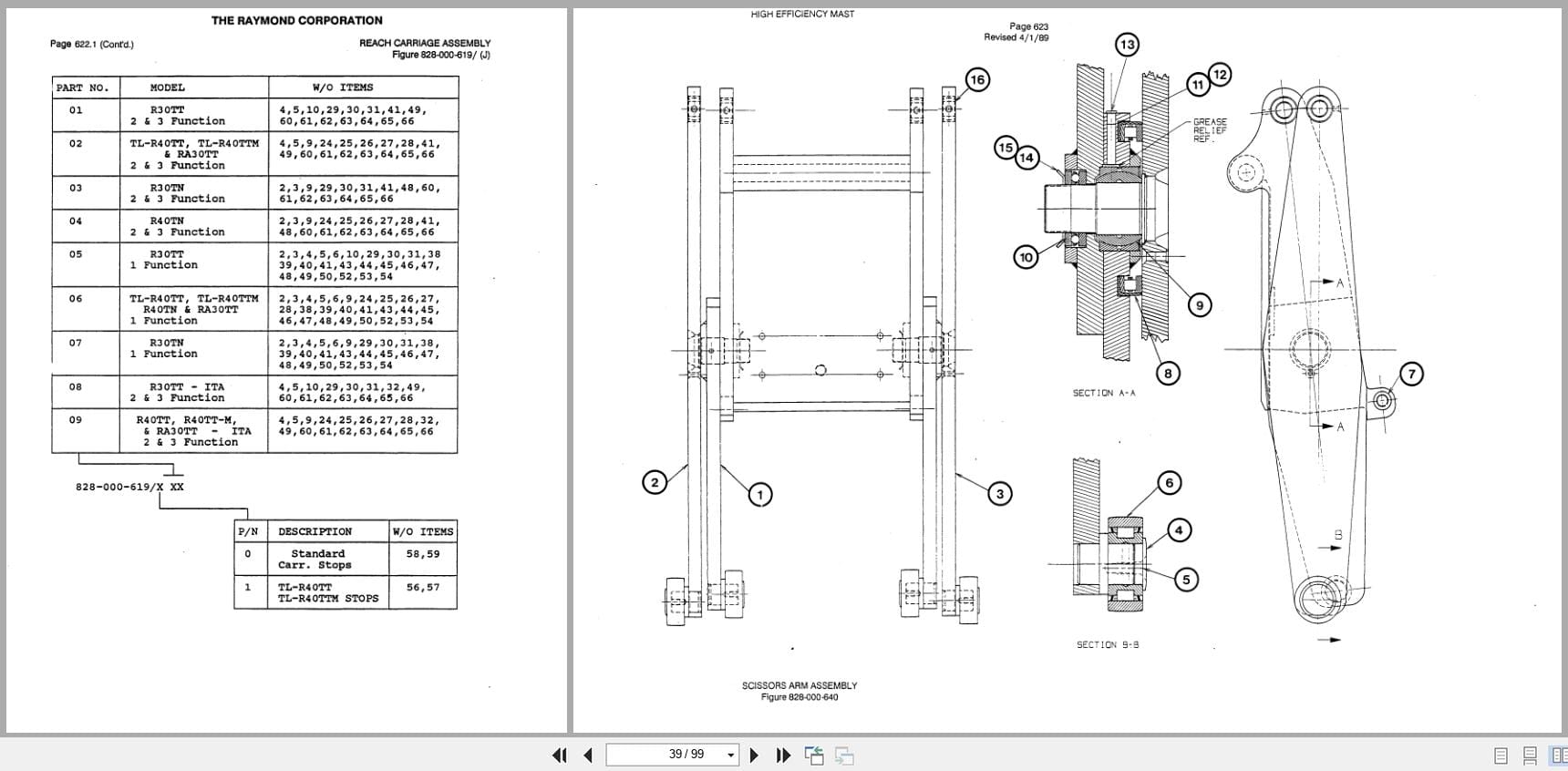

Raymond Reach R40TT-M High Efficiency Mast 3 Parts Catalog PDMM-0005

Size: 2.13 MB
Format: PDF
Language: English
Brand: Raymond
Type of Machine: Reach
Type of Manual: Parts Catalog
Model: Raymond R40TT-M W/Power Tilt Reach
Serial Number: 020-29000 & Up, 021-4000 & Up, 031-13050 & Up
Part Number: PDMM-0005
Publication Date: 1991
Number of Pages: 99 Pages

20 USD

Tags: , ,
  • Description

Description

Contents:
Elevating
Elevating Section 29000/4000/13050 To 32307/5589/15544
Elevating Section 32308/5590/15545 & Up
Pulley Bracket Assembly 29000/4000/13050 & Up
Front Cylinder Assembly (Std) 29000/4000/13050 To 32389/5639/15593
Front Cylinder Assembly (Std) 32390/5640/15594 & Up
Front Cylinder Assembly (Cs) 29000/4000/13050 To 32389/5639/15593
Front Cylinder Assembly (Cs) 32390/5640/15594 & Up
Back Cylinder Assembly (Std) 29000/4000/13050 & Up
Back Cylinder Assembly (Cs) 29000/4000/13050 & Up
Pulley Bracket Assembly 29000/4000/13050 & Up
Reach Carriage Assembly 29000/4000/13050 To
Reach Carriage Assembly
Scissors Arm Assembly 29000/4000/13050 & Up
Reach Cylinder Assembly 29000/4000/13050 To
Da Cylinder Assembly
Cylinder Assembly
Solenoid Valve Assembly 29000/4000/13050 & Up
Solenoid Valve Assembly 29000/4000/13050 & Up
Carriage Stop Assembly 29000/4000/13050 & Up
Mech Fork Carriage Installation 29000/4000/13050 To 32349/5612/15569
Mech Fork Carriage Installation 32350/5613/15570 & Up
Hydraulic Load Handler Installation 29000/4000/13050 & Up
Solenoid Valve Assembly 29000/4000/13050 & Up
Mast Guard Installation 29000/4000/13050 To 32244/5569/15504
Mast Guard Installation 32245/5570/15505 & Up
Overhead Guard Mounting (Model 20/21) 29000/4000/13050 & Up
Mech Overhead Guard Installation (Model 31) 29000/4000/13050 & Up
Limit Switch Installation 29000/4000/13050 & Up
Hose And Cable Installation 29000/4000/13050 To 31918/5407/15206
Hose And Cable Installation 31919/5408/15207 & Up
Articulating Load Wheel 4″ X 2-7/8″ 29000/4000/13050 To
Load Wheel Assembly 4″ X 2-7/8″
Articulating Load Wheel 4″ X 3-5/8″ 29000/4000/13050 To
Load Wheel Assembly 4″ X 3-5/8″
Articulating Load Wheel 5″ X 2-7/8″ 29000/4000/13050 To
Load Wheel Assembly 5″ X 2-7/8″
Articulating Load Wheel 5″ X 3-5/8″ 29000/4000/13050 To
Load Wheel Assembly 5″ X 3-5/8″
Load Wheel Kit 10-1/2″ X 4-1/2″ 29000/4000/13050 To
Load Wheel Assembly 105″ X 45″
Solenoid Guard Installation 29000/4000/13050 & Up
Elevating Section Finish Lnstructions 29000/4000/13050 & Up
