Raymond Reach S30TT High Efficiency Mast 23 Parts Catalog PDMM-0005 PDMM-0007

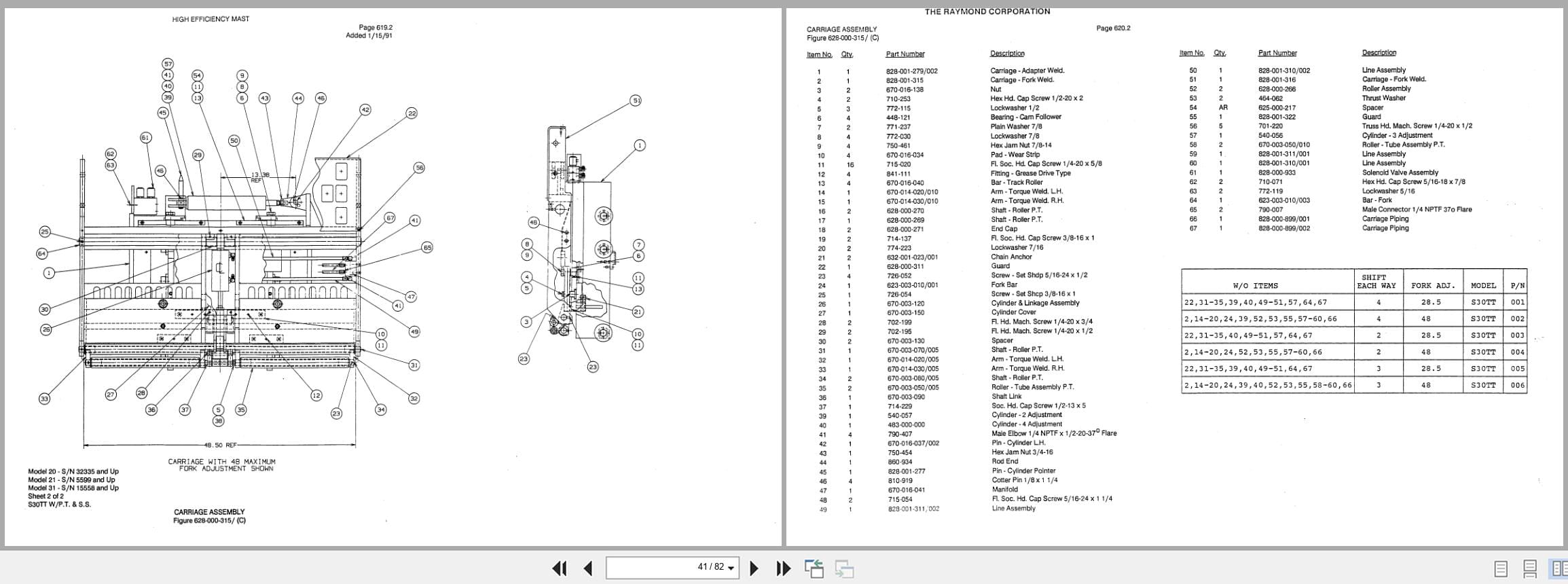

Raymond Reach S30TT High Efficiency Mast 23 Parts Catalog PDMM 0005 PDMM 0007 (1)

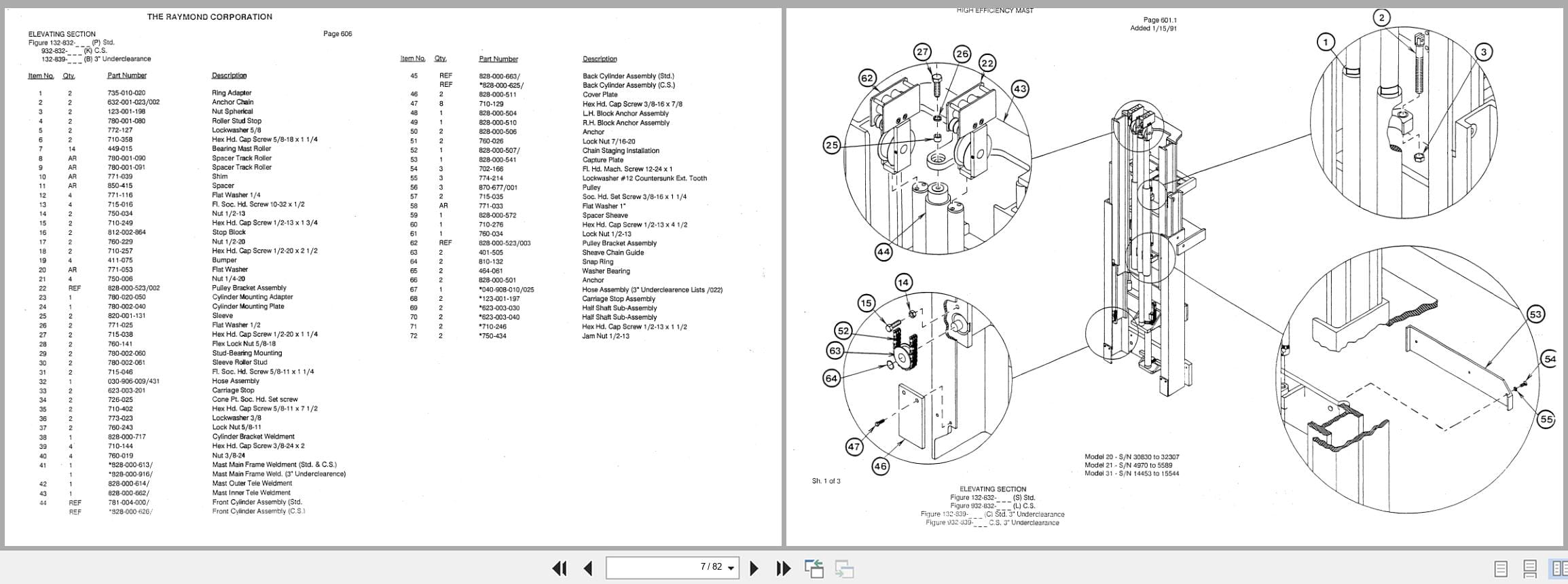

Raymond Reach S30TT High Efficiency Mast 23 Parts Catalog PDMM 0005 PDMM 0007 (2)
Raymond Reach S30TT High Efficiency Mast 23 Parts Catalog PDMM 0005 PDMM 0007 (3)
Raymond Reach S30TT High Efficiency Mast 23 Parts Catalog PDMM 0005 PDMM 0007 (1)
Raymond Reach S30TT High Efficiency Mast 23 Parts Catalog PDMM 0005 PDMM 0007 (2)
Raymond Reach S30TT High Efficiency Mast 23 Parts Catalog PDMM 0005 PDMM 0007 (3)
✓

Expert Support

✓

Full Speed

✓

100% Working

Raymond Reach S30TT High Efficiency Mast 23 Parts Catalog PDMM-0005 PDMM-0007

Size: 1.77 MB
Format: PDF
Language: English
Brand: Raymond
Type of Machine: Reach
Type of Manual: Parts Catalog
Model: Raymond S30TT W/ & W/O Power Tilt & Side Shift Reach
Serial Number: 020-29000 And Up, 021-4000 And Up, 031-13050 And Up
Part Number: PDMM-0005, PDMM-0007
Publication Date: 1991
Number of Pages: 82 Pages

20 USD

Tags: , ,
  • Description

Description

Contents:
Elevating
Elevating Section 29000/4000/13050 To 30829/4969/14452
Elevating Section 30830/4970/14453 To 32307/5589/15544
Elevating Section 32308/5590/15545 And Up
Pulley Bracket Assembly 29000/4000/13050 And Up
Front Cylinder Assembly (Std) 29000/4000/13050 To 32389/5639/15593
Front Cylinder Assembly (Std) 32390/5640/15594 And Up
Front Cylinder Assembly (Cs) 29000/4000/13050 To 32389/5639/15593
Front Cylinder Assembly (Cs) 32390/5640/15594 And Up
Back Cylinder Assembly (Std) 29000/4000/13050 And Up
Back Cylinder Assembly (Cs) 29000/4000/13050 And Up
Pulley Bracket Assembly 29000/4000/13050 And Up
Carriage Stop Assembly 29000/4000/13050 And Up
Carriage Assembly 29000/4000/13050 To 30465/4702/14202
Carriage Assembly 30466/4703/14203 To 32334/5598/15557
Carriage Assembly 32335/5599/15558 And Up
Solenoid Valve Assembly 29000/4000/13050 And Up
Double Acting Cylinder Alteration 29000/4000/13050 To 30465/4702/14202
Cylinder Assembly 30466/4703/14203 And Up
Cylinder Assembly 30466/4703/14203 And Up
Cylinder Assembly 29000/4000/13050 To 30465/4702/14202
Cylinder & Linkage Assembly 29000/4000/13050 And Up
Power Tilt Cylinder Raymond 29000/4000/13050 And Up
Power Tilt Cylinder Cessna 29000/4000/13050 And Up
Carriage Piping 29000/4000/13050 And Up
Mast Guard Installation 29000/4000/13050 To 32244/5569/15504
Mast Guard Installation 32245/5570/15505 And Up
Overhead Guard Mounting (Model 20/21) 29000/4000/13050 And Up
Mech Overhead Guard Installation (Model 31) 29000/4000/13050 And Up
Limit Switch Installation 29000/4000/13050 And Up
Hose And Cable Installation 29000/4000/13050 To 31918/5407/15206
Hose And Cable Installation 31919/5408/15207 And Up
Articulating Load Wheel 4″ X 2-7/8″ 29000/4000/13050 To _
Load Wheel Assembly 4″ X 2-7/8″ _ And Up
Elevating Section Finish Instructions 29000/4000/13050 And Up
