Name: Raymond Sit-Down Counterbalanced 4700 Parts Manual 1056909 2013
SKU: 539143
Availability: InStock

Raymond Sit Down Counterbalanced 4700 Parts Manual 1056909 2013 (1)

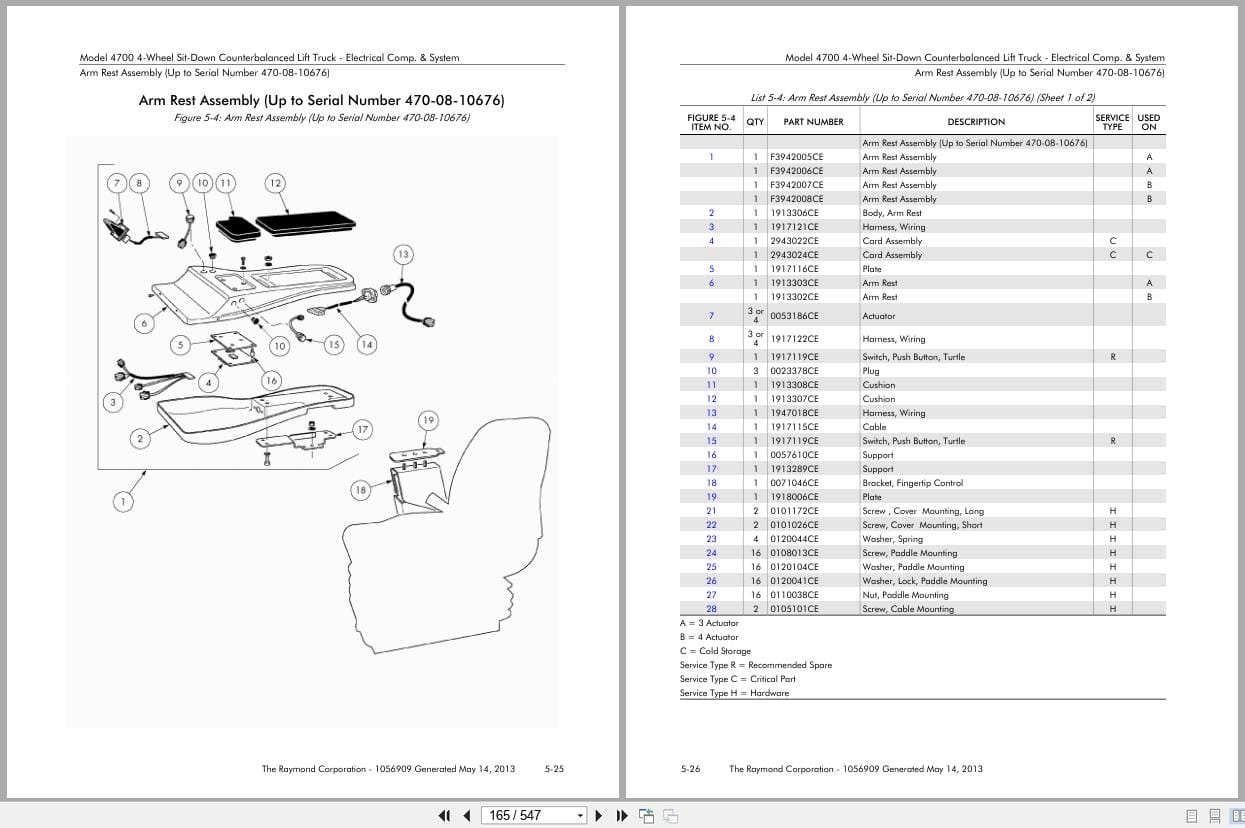

Raymond Sit Down Counterbalanced 4700 Parts Manual 1056909 2013 (2)

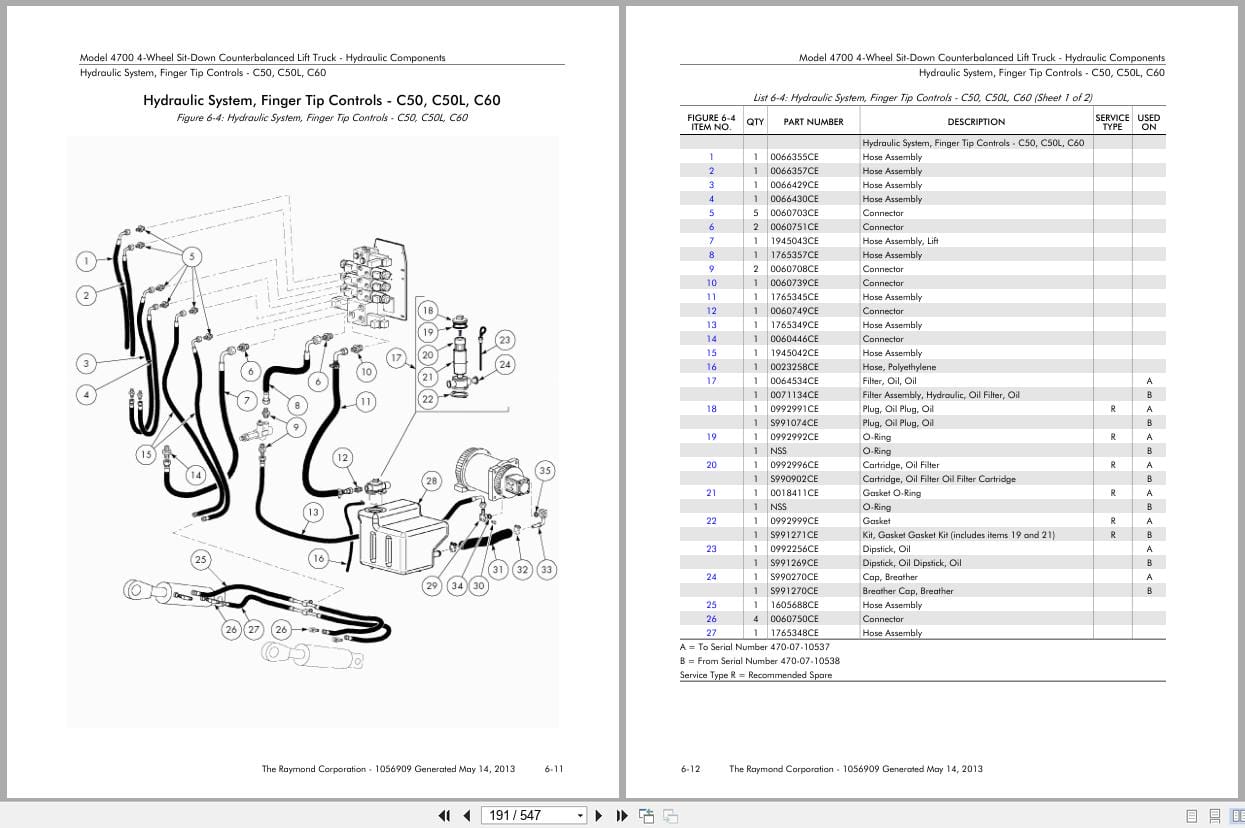

Raymond Sit Down Counterbalanced 4700 Parts Manual 1056909 2013 (3)

✓

Expert Support

✓

Full Speed

✓

100% Working

Raymond Sit-Down Counterbalanced 4700 Parts Manual 1056909 2013

Size: 20.49 MB

Format: PDF

Language: English

Brand: Raymond

Type of Machine: Sit-Down Counterbalanced

Type of Manual: Parts Manual

Model: Raymond 4700 4-Wheel Sit-Down Counterbalanced Lift Truck With The ACR System

Serial Number: All

Part Number: 1056909

Publication Date: 2013

Number of Pages: 547 Pages

20 USD

Tags: 4750 C100, Raymond Parts Manual, Raymond Sit-Down Counterbalanced Manual

Description

Description

Contents:
Section 1 General Information
Section 2 Finish & Accessories
Section 3 Steering & Controls
Section 4 Drive & Brake
Section 5 Electrical Components & System
Section 6 Hydraulic Components
Section 7 Mast
Section 8 Options & Kits
Appendix A Alphabetical Parts Index
Appendix B Numerical Parts Index
