Name: Scania Bus ILD K 320C B4x2NB 10.9 CL2 Electrical Schematic
SKU: 635575
Availability: InStock

Scania Bus ILD K 320C B4x2NB 10.9 CL2 Electrical Schematic (1)

Scania Bus ILD K 320C B4x2NB 10.9 CL2 Electrical Schematic (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Scania Bus ILD K 320C B4x2NB 10.9 CL2 Electrical Schematic

Size: 8.7 MB

Format: PDF

Language: English

Brand: Scania

Type of Machine: Bus

Type of Manual: Electrical Schematic

Model: Scania ILD K 320C B4x2NB 10.9 CL2 Bus

50 USD

Tag: Scania Wiring Diagrams

Description

Description

List of Files:

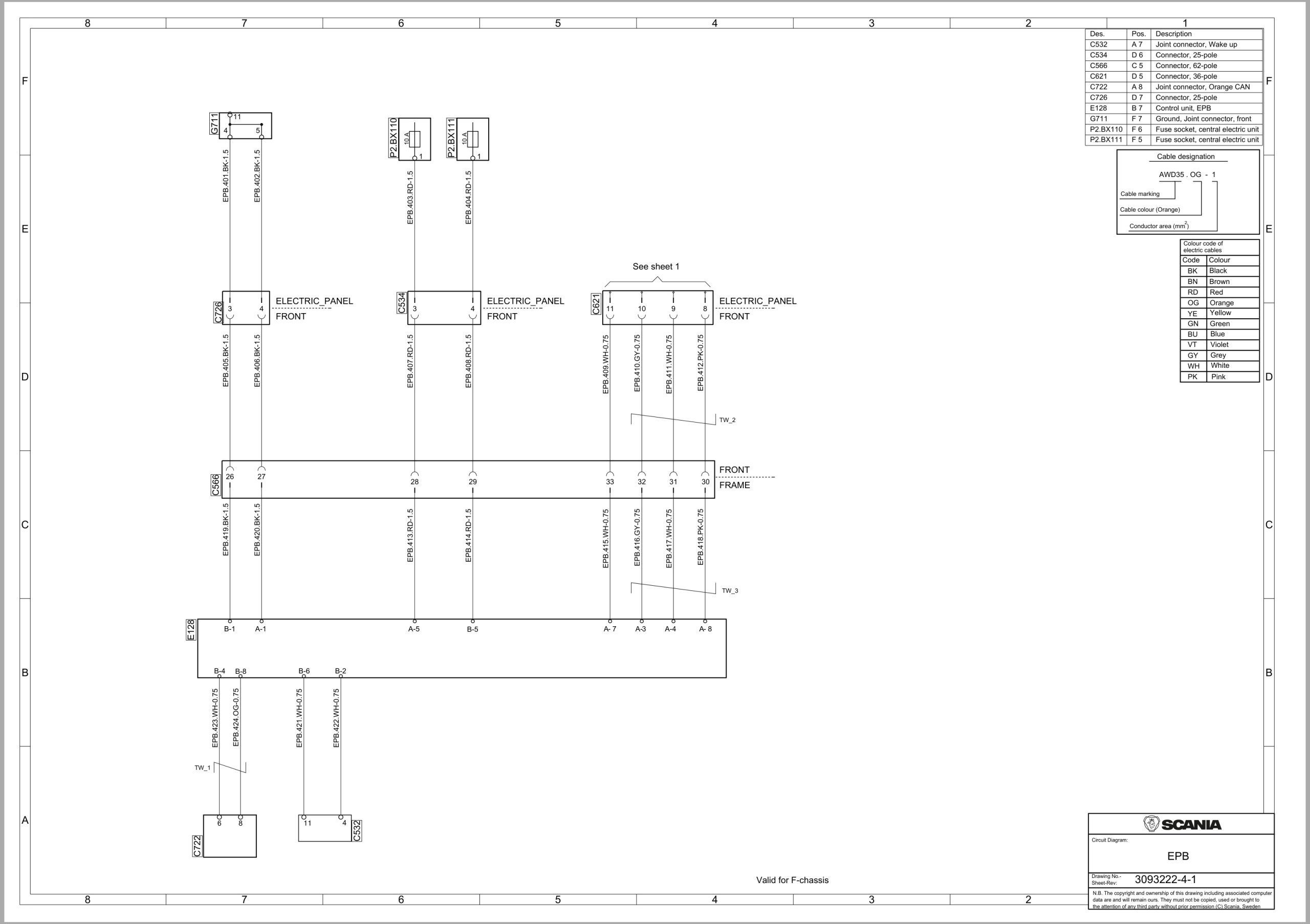

AHS Auxiliary heater [2836681-6-2].pdf (1 Pages)
AID Alcolock [2836706-2-5].pdf (1 Pages)
AID Alcolock [3093916-1-1].pdf (1 Pages)
APS Air processing system [3093796-3-1].pdf (1 Pages)
BCI Bodywork comms interface [2836708-1-6].pdf (1 Pages)
BMS Brake management system _ Electronic brake system [2934656-2-1].pdf (1 Pages)
BWE Bodywork electrical system [2710706-7-1].pdf (1 Pages)
BWE Bodywork electrical system [2710716-3-1].pdf (1 Pages)
BWE Bodywork electrical system [2710721-2-2].pdf (1 Pages)
BWE Bodywork electrical system [2710722-4-2].pdf (1 Pages)
BWE Bodywork electrical system [2710723-2-2].pdf (1 Pages)
BWE Bodywork electrical system [2710725-4-3].pdf (1 Pages)
BWE Bodywork electrical system [2710727-1-5].pdf (1 Pages)
BWE Bodywork electrical system [2710728-1-5].pdf (1 Pages)
BWE Bodywork electrical system [2836683-2-3].pdf (1 Pages)
BWE Bodywork electrical system [3092472-4-2].pdf (1 Pages)
BWE Bodywork electrical system _ Bodywork comms interface [2666561-1-3].pdf (1 Pages)
CMS Chassis management system [3081362-7-1].pdf (1 Pages)
COO Coordinator [2864579-8-1].pdf (1 Pages)
DCU Bus door control system [2710717-1-10].pdf (1 Pages)
DCU Bus door control system [2710718-1-10].pdf (1 Pages)
DIM Digit driver interact mgmt sys [2987942-4-2].pdf (1 Pages)
DIS Distance sensor system [3111033-1-3].pdf (1 Pages)
EEC Exhaust emission control syst [3091940-3-2].pdf (1 Pages)
EMS Engine management system [1929019-6-1].pdf (1 Pages)
EMS Engine management system [3093831-1-2].pdf (1 Pages)

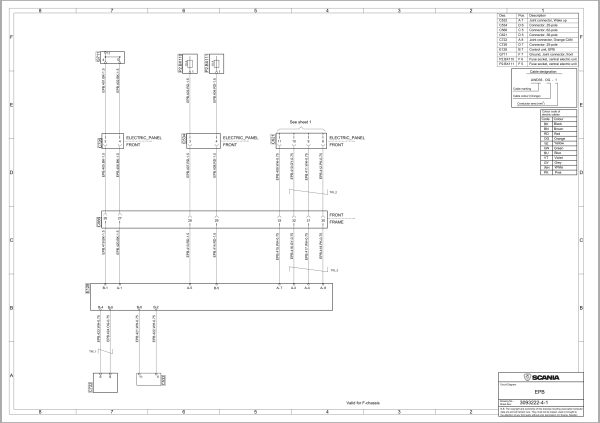

EPB Electropneum. p-brake sys [3093222-4-1].pdf (1 Pages)
FLC Forward looking camera [3110934-1-2].pdf (1 Pages)
GMS Gearbox management system [2063620-6-4].pdf (1 Pages)
GMS Gearbox management system [3093836-5-1].pdf (1 Pages)
MBS Main body system [2710707-7-11].pdf (1 Pages)
MBS Main body system _ Subordinate node [2710708-2-6].pdf (1 Pages)
MBS Main body system _ Subordinate node [2710709-2-8].pdf (1 Pages)
MBS Main body system _ Subordinate node [2710710-1-13].pdf (1 Pages)
MBS Main body system _ Subordinate node [2710711-5-2].pdf (1 Pages)
MBS Main body system _ Subordinate node [2710712-1-7].pdf (1 Pages)
MBS Main body system _ Subordinate node [2710714-3-1].pdf (1 Pages)
MBS Main body system _ Subordinate node [2710715-5-1].pdf (1 Pages)
POW Power supply system [3084160-5-5].pdf (1 Pages)
RTC Scania Communicator [2973083-1-9].pdf (1 Pages)
SMS Suspension management system [3093912-4-1].pdf (1 Pages)

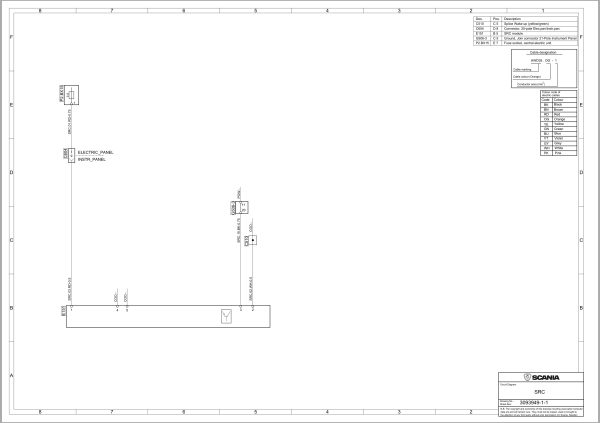

SRC Short-range communication syst [3093949-1-1].pdf (1 Pages)
TCO Tachograph [3093913-3-1].pdf (1 Pages)
VIS Visibility system [3093915-6-1].pdf (1 Pages)
