Sennebogen Material Handing 840 Electrical Circuit Diagram 840-M-923005-02 2021 EN DE

Description

Contents:
Seitenbaum

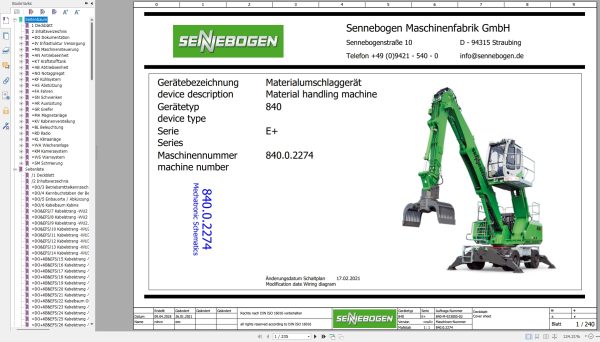

1 Deckblatt
2 Inhaltsverzeichnis
=DO Dokumentation
=IV Infrastruktur Versorgung
=MS Maschinensteuerung
=AN Antriebseinheit
=KT Kraftstofftank
=AB Abtriebseinheit
=NO Notaggregat
=KF Kühlsystem
=AS Abstützung
=FA Fahren
=SN Schwenken
=AR Ausrüstung
=GR Greifer
=MA Magnetanlage
=KV Kabinenverstellung
=BL Beleuchtung
=RD Radio
=KL Klimaanlage
=WA Wischeranlage
=KM Kamerasystem
=WS Warnsystem
=SM Schmierung
Seitenliste
/1 Deckblatt
/2 Inhaltsverzeichnis
=DO/3 Betriebsmittelkennzeichen nach DIN 81346-2
=DO/4 Kennbuchstaben der Betriebsmittelkennzeichen nach DIN 81346-2
=DO/5 Einbauorte / Abkürzungen
=DO/6 Kabelbaum Kabine

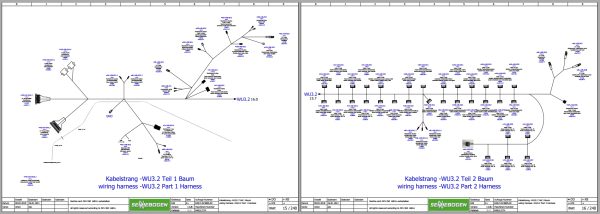

=DO&EFS/7 Kabelstrang -WU2 Baum
=DO&EFS/8 Kabelstrang -WU2 Verlegung
=DO&EFS/9 Kabelstrang -WU2.1 Baum
=DO&EFS/10 Kabelstrang -WU2.1 Verlegung
=DO&EFS/11 Kabelstrang -WU3 Baum
=DO&EFS/12 Kabelstrang -WU3 Verlegung
=DO&EFS/13 Kabelstrang -WU3.1 Baum
=DO&EFS/14 Kabelstrang -WU3.1 Verlegung
=DO+KB&EFS/15 Kabelstrang -WU3.2 Teil 1 Baum
=DO+KB&EFS/16 Kabelstrang -WU3.2 Teil 2 Baum
=DO+KB&EFS/17 Kabelstrang -WU3.2 Verlegung
=DO+KB&EFS/18 Kabelstrang -WU4 Baum
=DO+KB&EFS/19 Kabelstrang -WU4 Verlegung
=DO+KB&EFS/20 Kabelstrang -WU4.1 Baum
=DO+KB&EFS/21 Kabelstrang -WU4.1 Verlegung
=DO+KB&EFS/22 Kabelbaum Oberwagen
=DO+KB&EFS/23 Kabelstrang -WU1 Baum
=DO+KB&EFS/24 Kabelstrang -WU1 Verlegung
=DO+KB&EFS/25 Kabelstrang -WU5 Teil 1 Baum
=DO+KB&EFS/26 Kabelstrang -WU5 Teil 2 Baum
=DO+KB&EFS/27 Kabelstrang -WU5 Verlegung
=DO+KB&EFS/28 Kabelstrang -WU5 Verlegung Ventilplatte
=DO+KB&EFS/29 Kabelstrang -WU6 Elektro Baum
=DO+KB&EFS/30 Kabelstrang -WU6 Verlegung
=DO+KB&EFS/31 Steckerbelegung -XA1
=DO+KB&EFS/32 Steckerbelegung -XA1
=DO+KB&EFS/33 Steckerbelegung -XA2
=DO+KB&EFS/34 Steckerbelegung -XA2
=DO+KB&EFS/35 Steckerbelegung -XA2.1
=DO+KB&EFS/36 Steckerbelegung -XA2.1
=DO+KB&EFS/37 Steckerbelegung -XA3
=DO+KB&EFS/38 Steckerbelegung -XA3
=DO+KB&EFS/39 Steckerbelegung -XA3.1
=DO+KB&EFS/40 Steckerbelegung -XA3.1
=DO+KB&EFS/41 Steckerbelegung -XA3.2
=DO+KB&EFS/42 Steckerbelegung -XA3.2
=DO+KB&EFS/43 Steckerbelegung -XA4
=DO+KB&EFS/44 Steckerbelegung -XA4
=DO+KB&EFS/45 Steckerbelegung -XA4.1
=DO+KB&EFS/46 Steckerbelegung -XA4.1
=DO+KB&EFS/47 Steckerbelegung -XA4.2
=DO+KB&EFS/48 Steckerbelegung -XA4.2
=DO+KB&EFS/49 Steckerbelegung -XA4.3
=DO+KB&EFS/50 Steckerbelegung -XA4.3
=DO+KB&EFS/51 Steckerbelegung -XA4.4
=DO+KB&EFS/52 Steckerbelegung -XA4.4
=DO+KB&EFS/53 Steckerbelegung -XA5
=DO+KB&EFS/54 Steckerbelegung -XA5
=DO+KB&EFS/55 Steckerbelegung -XA6
=DO+KB&EFS/56 Steckerbelegung -XA6
=DO/73 Stückliste Elektrik
=DO/74 Stückliste Elektrik
=DO/75 Stückliste Elektrik
=DO/76 Stückliste Elektrik
=DO/77 Stückliste Elektrik
=DO/78 Stückliste Elektrik
=DO/79 Stückliste Elektrik
=DO/80 Stückliste Elektrik
=DO/81 Stückliste Elektrik
=DO/82 Stückliste Hydraulik
=DO/83 Stückliste Hydraulik
=IV/73 Trennblatt
=IV+OV&EFS/74 Spannungsversorgung
=IV+OV&EFS/75 Hauptsicherungen
=IV+KB&EFS/76 Zündschloss
=IV+OE&EFS/77 Zündabschaltung
=IV+KB&EFS/78 Betriebsstundenzähler
=IV+KB&EFS/79 Not-Aus
=IV+OE&EFS/80 Steckdosen 24V
=IV+OV&EFS/81 Verbindung Firma Pregler
=IV+OV&EFS/82 Kabeltrommel
=IV+OV&EFS/83 Kabeltrommel
=IV+OV&EFS/84 Reservestecker
=IV+OV&EFS/85 Reservestecker
=IV+OV&EFS/86 Reservestecker
=IV+OV&EFS/87 Reservestecker
=IV+OV&EFS/88 Reservestecker Dachkonsole
=IV+OV&EFS/89 Reservestecker Dachkonsole
=IV+OV&EFS/90 Reservestecker Dachkonsole
=IV+OV&EFS/91 Reservestecker Dachkonsole
=IV+OV&EFS/92 Reservestecker Dachkonsole
=IV+OV&EFS/93 Reservestecker Dachkonsole
=IV+OV&EFS/94 Reservestecker Dachkonsole
=IV+OV&EFS/95 Reservestecker Dachkonsole
=IV+OV&EFS/96 Reservestecker Dachkonsole
=MS/97 Trennblatt
=MS&MFS/98 Vorsteuerung
=MS&MFS/99 Hauptsteuerblock
=MS&MFS/100 Rotor
=MS&MFS/101 Trennblatt
=MS+KB&EFS/102 Steuerkonsole links
=MS+KB&EFS/103 Steuerkonsole rechts mitte
=MS+KB&EFS/104 Steuerkonsole rechts
=MS+KB&EFS/105 Steuerkonsole rechts oben
=MS+KB&EFS/106 Steuersicherung Joysticks
=MS+KB&EFS/107 Joysticks links
=MS+KB&EFS/108 Joystick links
=MS+KB&EFS/109 Joystick rechts
=MS+KB&EFS/110 Joystick rechts
=MS+OE&EFS/111 Bustopologie
=MS+OE&EFS/112 Übersicht Steuergerät KS1
=MS+OE&EFS/113 Spannungsversorgung Steuergerät KS1
=MS+OE&EFS/114 Übersicht Steuergerät KS2
=MS+OE&EFS/115 Spannungsversorgung Steuergerät KS2
=MS+OE&EFS/116 Reserve Steuergerät
=MS+OE&EFS/117 Reserve Steuergerät
=MS+OE&EFS/118 Reserve Steuergerät
=MS+OE&EFS/119 Ventile Tool Control
=MS+KB&EFS/120 Anzeigegerät
=MS+KB&EFS/121 Anzeigegerät
=MS+KB&EFS/122 CAN IO-Modul
=MS+KB&EFS/123 CAN Schnittstellen
=MS+OE&EFS/124 Abschlusswiderstand CAN-Bus
=MS+KB&EFS/125 Sicherheitshebel
=MS+OE&EFS/126 Spannungsversorgung Sicherheit
=MS+OE&EFS/127 Telemetriemodul
=MS+OE&EFS/128 Schaltschrank E-Box
=MS+OE&EFS/129 E-Box Legende
=AN/130 Trennblatt
=AN+OA&EFS/131 J3 Motorsteuergerät
=AN+OE&EFS/132 Motor starten Wiederholsperre / Motor
=AN+OE&EFS/133 Motordiagnose
=AN+KB&EFS/134 Motor Handgas, Notdrehzahl, Dieselpartikelfilter
=AN+OE&EFS/135 Dieselfilterheizung
=KT/136 Trennblatt
=KT+OV&EFS/137 Betankungspumpe
=AB/138 Trennblatt
=AB&MFS/139 Abtriebseinheit
=AB&MFS/140 Trennblatt
=AB+OE&EFS/141 Grenzlastregelung Schalter, Ventile
=AB+OE&EFS/142 Druckschalter LS
=NO/143 Trennblatt
=KF/144 Trennblatt
=KF+OV&EFS/145 Druckschalter Hydraulikfilter
=KF+OV&EFS/146 Ãœberwachung Filter HydroClean
=KF+OV&EFS/147 Niveau Hydrauliktank, Hydraulikkühler Öltemperatur
=KF+OV&EFS/148 Steuerung Lüfter
=AS/149 Trennblatt
=AS+UW&MFS/150 Abstützung
=AS+OM&EFS/151 Versorgung / Freigabe
=AS+KB&EFS/152 Betätigung vorne
=AS+KB&EFS/153 Betätigung hinten
=AS+KB&EFS/154 Betätigung Schild
=AS+KB&EFS/155 Trennblatt
=AS+UW&EFS/156 Abstützung Ansteuerung Ventile
=FA/157 Trennblatt
=FA+UW&MFS/158 Fahren
=FA+UW&MFS/159 Lenkung, Bremse, Pendelachse
=FA+UW&MFS/160 Trennblatt
=FA+KP&EFS/161 Druckschalter Speicherladung, Fahren langsam – schnell
=FA+OV&EFS/162 Freigabe Fahren
=FA+OV&EFS/163 Fahren aktiv
=FA+OV&EFS/164 Lenkung Joystick / Notsteuerung
=FA+OE&EFS/165 Pendelachse
=SN/166 Trennblatt
=SN+OM&MFS/167 Schwenken
=SN+OM&MFS/168 Trennblatt
=SN+OE&EFS/169 Ansteuerung Signalgeber
=SN+OE&EFS/170 Parkbremse Schwenken / Notbetätigung Schwenken
=SN+OM&EFS/171 Sensor Schwenken
=AR/172 Trennblatt
=AR&MFS/173 Ausrüstung
=AR&MFS/174 Trennblatt
=AR&EFS/175 Temperatursteuerung Ausleger senken
=AR+OV&EFS/176 Ausleger Schwimmstellung
=AR+KB&EFS/177 Zusatzbegrenzung Schalter
=AR+KB&EFS/178 Zusatzbegrenzung Ausleger / Stiel
=AR+KB&EFS/179 Begrenzung Ausleger / Stiel Druckschalter
=AR+KB&EFS/180 Begrenzung Stiel
=AR+KB&EFS/181 Ausleger Begrenzung
=AR+KB&EFS/182 Freigabe Ausleger
=AR+KB&EFS/183 Freigabe Stiel
=AR+KB&EFS/184 LMB Vorbereitung
=AR+KB&EFS/185 Vorbereitung Hybridsystem
=GR/186 Trennblatt
=GR&MFS/187 Greifer
=GR&MFS/188 Trennblatt
=GR&EFS/189 Greifersteuerung
=GR&EFS/190 Greifersteuerung / Greifer drehen
=GR&EFS/191 Greiferfunktion
=MA/192 Trennblatt
=MA+KB&EFS/193 Magnetanlage
=KV/194 Trennblatt
=KV+OV&MFS/195 Kabinenverstellung
=KV+OV&MFS/196 Trennblatt
=KV+KB&EFS/197 Kabine heben / senken
=KV+KB&EFS/198 Kabine ausfahren / einfahren
=BL/199 Trennblatt
=BL+KB&EFS/200 Innenbeleuchtung Kabine
=BL+KB&EFS/201 Spannungsversorgung H4 Beleuchtung
=BL+KB&EFS/202 H4 Beleuchtung
=BL+OE&EFS/203 Schlusslicht
=BL+KB&EFS/204 Warnblinkschalter
=BL+KB&EFS/205 Blinkerschaltung
=BL+KB&EFS/206 Arbeitsscheinwerfer Kabine
=BL+KB&EFS/207 Arbeitsscheinwerfer Kabine
=BL+KB&EFS/208 Arbeitsscheinwerfer Ausleger / Stiel Schalter
=BL+AR&EFS/209 Arbeitsscheinwerfer Ausleger / Stiel
=BL+KB&EFS/210 Arbeitsscheinwerfer Oberwagen Schalter
=BL+OE&EFS/211 Arbeitsscheinwerfer Oberwagen
=BL+KB&EFS/212 Zusatz Scheinwerfer Oberwagen
=RD/213 Trennblatt
=RD+KB&EFS/214 Spannungswandler, Radio
=KL/215 Trennblatt
=KL+OE&EFS/216 Klimaanlage
=KL+KB&EFS/217 Klimaanlage Bedienteil
=KL+OA&EFS/218 Klimaanlage Trockner Kompressor
=KL+KB&EFS/219 Standheizung Schaltuhr
=KL+KB&EFS/220 Standheizung
=KL+OE&EFS/221 Standheizung Relais
=KL+KB&EFS/222 Fahrersitz Heizung / Kompressor
=WA/223 Trennblatt
=WA+KB&EFS/224 Scheibenwischer Front
=WA+KB&EFS/225 Waschanlage Front
=WA+KB&EFS/226 Scheibenwischer Dach
=WA+KB&EFS/227 Waschanlage Dach
=WA+KB&EFS/228 Scheibenwischer Front unten
=WA+KB&EFS/229 Waschanlage Front unten
=KM/230 Trennblatt
=KM+KB&EFS/231 Ãœbersicht Kamerasystem
=KM+KB&EFS/232 Kamerasystem
=WS/233 Trennblatt
=WS+KB&EFS/234 Rundumkennleuchten
=WS+OE&EFS/235 Signalgeber akustisch, Intervallhupe, Warnhupe
=WS+KB&EFS/236 Ansteuerung Warnsystem
=WS+KB&EFS/237 Signal Tür Aufstieg
=SM/238 Trennblatt
=SM+OE&EFS/239 Zentralschmierung
=SM+OE&EFS/240 Ritzelzahnschmierung
Betriebsmittelbaum
RN
=IV Infrastruktur Versorgung
=MS Maschinensteuerung
=AN Antriebseinheit
=KT Kraftstofftank
=AB Abtriebseinheit
=KF Kühlsystem
=AS Abstützung
=FA Fahren
=SN Schwenken
=AR Ausrüstung
=GR Greifer
=MA Magnetanlage
=KV Kabinenverstellung
=BL Beleuchtung
=RD Radio
=KL Klimaanlage
=WA Wischeranlage
=KM Kamerasystem
=WS Warnsystem
=SM Schmierung
Betriebsmittelliste
Contents:
Page tree
1 Cover page
2 Table of contents
=DO Documentation
=IV Infrastructure Supply
=MS Machine control
=AN Drive unit
=KT Fuel tank
=AB Output unit
=NO Emergency generator
=KF Cooling system
=AS Outriggers
=FA Travel
=SN Slewing
=AR Equipment
=GR Grab
=MA Magnetic system
=KV Cab adjustment
=BL Lighting
=RD Radio
=KL Air conditioning
=WA Wiper system
=KM Camera system
=WS Warning system
=SM Lubrication
Page list
/1 Cover page
/2 Table of contents
=DO/3 Equipment designation according to DIN 81346-2
=DO/4 Equipment designation letters according to DIN 81346-2
=DO/5 Installation locations / Abbreviations
=DO/6 Cab cable harness
=DO&EFS/7 Cable harness -WU2 harness
=DO&EFS/8 Cable harness -WU2 routing
=DO&EFS/9 Cable harness -WU2.1 Harness
=DO&EFS/10 Cable Harness -WU2.1 Installation
=DO&EFS/11 Cable Harness -WU3 Harness
=DO&EFS/12 Cable Harness -WU3 Installation
=DO&EFS/13 Cable Harness -WU3.1 Harness
=DO&EFS/14 Cable Harness -WU3.1 Installation
=DO+KB&EFS/15 Cable Harness -WU3.2 Part 1 Harness
=DO+KB&EFS/16 Cable Harness -WU3.2 Part 2 Harness
=DO+KB&EFS/17 Cable Harness -WU3.2 Installation
=DO+KB&EFS/18 Cable Harness -WU4 Harness
=DO+KB&EFS/19 Cable Harness -WU4 Installation
=DO+KB&EFS/20 Cable Harness -WU4.1 Harness
=DO+KB&EFS/21 Cable Harness -WU4.1 Installation
=DO+KB&EFS/22 Uppercarriage wiring harness
=DO+KB&EFS/23 Wiring harness -WU1 harness
=DO+KB&EFS/24 Wiring harness -WU1 routing
=DO+KB&EFS/25 Wiring harness -WU5 part 1 harness
=DO+KB&EFS/26 Wiring harness -WU5 part 2 harness
=DO+KB&EFS/27 Wiring harness -WU5 routing
=DO+KB&EFS/28 Wiring harness -WU5 valve plate routing
=DO+KB&EFS/29 Wiring harness -WU6 electrical harness
=DO+KB&EFS/30 Wiring harness -WU6 routing
=DO+KB&EFS/31 Connector assignment -XA1
=DO+KB&EFS/32 Connector assignment -XA1
=DO+KB&EFS/33 Connector assignment -XA2
=DO+KB&EFS/34 Connector assignment -XA2
=DO+KB&EFS/35 Connector assignment -XA2.1
=DO+KB&EFS/36 Connector assignment -XA2.1
=DO+KB&EFS/37 Connector assignment -XA3
=DO+KB&EFS/38 Connector assignment -XA3
=DO+KB&EFS/39 Connector assignment -XA3.1
=DO+KB&EFS/40 Connector assignment -XA3.1
=DO+KB&EFS/41 Connector assignment -XA3.2
=DO+KB&EFS/42 Connector assignment -XA3.2
=DO+KB&EFS/43 Connector assignment -XA4
=DO+KB&EFS/44 Connector assignment -XA4
=DO+KB&EFS/45 Connector assignment -XA4.1
=DO+KB&EFS/46 Connector assignment -XA4.1
=DO+KB&EFS/47 Connector assignment -XA4.2
=DO+KB&EFS/48 Connector Pinout -XA4.2
=DO+KB&EFS/49 Connector Pinout -XA4.3
=DO+KB&EFS/50 Connector Pinout -XA4.3
=DO+KB&EFS/51 Connector Pinout -XA4.4
=DO+KB&EFS/52 Connector Pinout -XA4.4
=DO+KB&EFS/53 Connector Pinout -XA5
=DO+KB&EFS/54 Connector Pinout -XA5
=DO+KB&EFS/55 Connector Pinout -XA6
=DO+KB&EFS/56 Connector Pinout -XA6
=DO/73 Electrical Parts List
=DO/74 Electrical Parts List
=DO/75 Electrical Parts List
=DO/76 Electrical Parts List
=DO/77 Electrical Parts List
=DO/78 Electrical Parts List
=DO/79 Parts List Electrical System
=DO/80 Electrical Parts List
=DO/81 Electrical Parts List
=DO/82 Hydraulic Parts List
=DO/83 Hydraulic Parts List
=IV/73 Separator Sheet
=IV+OV&EFS/74 Power Supply
=IV+OV&EFS/75 Main Fuses
=IV+KB&EFS/76 Ignition Lock
=IV+OE&EFS/77 Ignition Disconnect
=IV+KB&EFS/78 Hour Meter
=IV+KB&EFS/79 Emergency Stop
=IV+OE&EFS/80 24V Sockets
=IV+OV&EFS/81 Pregler Connection
=IV+OV&EFS/82 Cable Drum
=IV+OV&EFS/83 Cable Drum
=IV+OV&EFS/84 Spare Plug
=IV+OV&EFS/85 Spare Plug
=IV+OV&EFS/86 Spare Plug
=IV+OV&EFS/87 Spare Plug
=IV+OV&EFS/88 Spare plug for roof console
=IV+OV&EFS/89 Spare plug for roof console
=IV+OV&EFS/90 Spare plug for roof console
=IV+OV&EFS/91 Spare plug for roof console
=IV+OV&EFS/92 Spare plug for roof console
=IV+OV&EFS/93 Spare plug for roof console
=IV+OV&EFS/94 Spare plug for roof console
=IV+OV&EFS/95 Spare plug for roof console
=IV+OV&EFS/96 Spare plug for roof console
=MS/97 Separator sheet
=MS&MFS/98 Pilot control
=MS&MFS/99 Main control block
=MS&MFS/100 Rotor
=MS&MFS/101 Separator sheet
=MS+KB&EFS/102 Left control console
=MS+KB&EFS/103 Right center control console
=MS+KB&EFS/104 Right control console
=MS+KB&EFS/105 Control console, top right
=MS+KB&EFS/106 Joystick control fuse
=MS+KB&EFS/107 Left joysticks
=MS+KB&EFS/108 Left joystick
=MS+KB&EFS/109 Right joystick
=MS+KB&EFS/110 Right joystick
=MS+OE&EFS/111 Bus topology
=MS+OE&EFS/112 Overview of control unit KS1
=MS+OE&EFS/113 Power supply of control unit KS1
=MS+OE&EFS/114 Overview of control unit KS2
=MS+OE&EFS/115 Power supply of control unit KS2
=MS+OE&EFS/116 Reserve control unit
=MS+OE&EFS/117 Reserve control unit
=MS+OE&EFS/118 Reserve control unit
=MS+OE&EFS/119 Tool Control valves
=MS+KB&EFS/120 Display unit
=MS+KB&EFS/121 Display unit
=MS+KB&EFS/122 CAN IO module
=MS+KB&EFS/123 CAN interfaces
=MS+OE&EFS/124 CAN bus termination resistor
=MS+KB&EFS/125 Safety lever
=MS+OE&EFS/126 Safety power supply
=MS+OE&EFS/127 Telemetry module
=MS+OE&EFS/128 E-Box Control Cabinet
=MS+OE&EFS/129 E-Box Legend
=AN/130 Separator
=AN+OA&EFS/131 J3 Engine Control Unit
=AN+OE&EFS/132 Engine Start Retry Lock / Engine
=AN+OE&EFS/133 Engine Diagnostics
=AN+KB&EFS/134 Engine Hand Throttle, Emergency Speed, Diesel Particulate Filter
=AN+OE&EFS/135 Diesel Filter Heater
=KT/136 Separator
=KT+OV&EFS/137 Fueling Pump
=AB/138 Separator
=AB&MFS/139 Output Unit
=AB&MFS/140 Separator
=AB+OE&EFS/141 Maximum Load Control Switches, Valves
=AB+OE&EFS/142 Pressure Switch LS
=NO/143 Separator
=KF/144 Separator
=KF+OV&EFS/145 Hydraulic filter pressure switch
=KF+OV&EFS/146 HydroClean filter monitoring
=KF+OV&EFS/147 Hydraulic tank level, hydraulic cooler oil temperature
=KF+OV&EFS/148 Fan control
=AS/149 Separator sheet
=AS+UW&MFS/150 Support
=AS+OM&EFS/151 Supply / Release
=AS+KB&EFS/152 Front actuation
=AS+KB&EFS/153 Rear actuation
=AS+KB&EFS/154 Shield actuation
=AS+KB&EFS/155 Separator sheet
=AS+UW&EFS/156 Support valve control
=FA/157 Separator sheet
=FA+UW&MFS/158 Driving
=FA+UW&MFS/159 Steering, brake, oscillating axle
=FA+UW&MFS/160 Separator sheet
=FA+KP&EFS/161 Pressure switch for accumulator charging, travel slow – fast
=FA+OV&EFS/162 Travel enable
=FA+OV&EFS/163 Travel active
=FA+OV&EFS/164 Steering joystick / emergency control
=FA+OE&EFS/165 Oscillating axle
=SN/166 Divider
=SN+OM&MFS/167 Swivel
=SN+OM&MFS/168 Divider
=SN+OE&EFS/169 Signal transmitter control
=SN+OE&EFS/170 Parking brake swivel / emergency swivel operation
=SN+OM&EFS/171 Swivel sensor
=AR/172 Divider
=AR&MFS/173 Equipment
=AR&MFS/174 Divider
=AR&EFS/175 Temperature control for boom lowering
=AR+OV&EFS/176 Boom floating position
=AR+KB&EFS/177 Additional limit switch
=AR+KB&EFS/178 Additional limit boom/stick
=AR+KB&EFS/179 Boom/stick limit pressure switch
=AR+KB&EFS/180 Stick limit
=AR+KB&EFS/181 Boom limit
=AR+KB&EFS/182 Boom release
=AR+KB&EFS/183 Stick release
=AR+KB&EFS/184 LMB preparation
=AR+KB&EFS/185 Hybrid system preparation
=GR/186 Separator sheet
=GR&MFS/187 Grab
=GR&MFS/188 Separator sheet
=GR&EFS/189 Grab control
=GR&EFS/190 Grab control / Rotate grab
=GR&EFS/191 Grab function
=MA/192 Separator sheet
=MA+KB&EFS/193 Magnet system
=KV/194 Divider
=KV+OV&MFS/195 Cab adjustment
=KV+OV&MFS/196 Divider
=KV+KB&EFS/197 Raise/lower cab
=KV+KB&EFS/198 Extend/retract cab
=BL/199 Divider
=BL+KB&EFS/200 Cab interior lighting
=BL+KB&EFS/201 H4 lighting power supply
=BL+KB&EFS/202 H4 lighting
=BL+OE&EFS/203 Tail light
=BL+KB&EFS/204 Hazard warning switch
=BL+KB&EFS/205 Turn signal switch
=BL+KB&EFS/206 Cab work light
=BL+KB&EFS/207 Cab work light
=BL+KB&EFS/208 Boom/stick work light switch
=BL+AR&EFS/209 Boom/stick work light
=BL+KB&EFS/210 Uppercarriage work light switch
=BL+OE&EFS/211 Uppercarriage work light
=BL+KB&EFS/212 Uppercarriage additional light
=RD/213 Divider
=RD+KB&EFS/214 Voltage converter, radio
=KL/215 Divider
=KL+OE&EFS/216 Air conditioning unit
=KL+KB&EFS/217 Air conditioning control unit
=KL+OA&EFS/218 Air conditioning dryer compressor
=KL+KB&EFS/219 Auxiliary heating timer
=KL+KB&EFS/220 Auxiliary heating unit
=KL+OE&EFS/221 Auxiliary heating relay
=KL+KB&EFS/222 Driver’s seat heater/compressor
=WA/223 Divider
=WA+KB&EFS/224 Front windshield wiper
=WA+KB&EFS/225 Front washer system
=WA+KB&EFS/226 Roof windshield wiper
=WA+KB&EFS/227 Roof washer system
=WA+KB&EFS/228 Lower front windshield wiper system
=WA+KB&EFS/229 Lower front washer system
=KM/230 Separator sheet
=KM+KB&EFS/231 Camera system overview
=KM+KB&EFS/232 Camera system
=WS/233 Separator sheet
=WS+KB&EFS/234 Rotating beacons
=WS+OE&EFS/235 Acoustic signaling device, intermittent horn, warning horn
=WS+KB&EFS/236 Warning system control
=WS+KB&EFS/237 Access door signal
=SM/238 Separator sheet
=SM+OE&EFS/239 Central lubrication system
=SM+OE&EFS/240 Pinion gear lubrication system
Resource tree
RN
=IV Infrastructure supply system
=MS Machine control system
=AN Drive unit
=KT Fuel tank
=AB Output unit
=KF Cooling system
=AS Outriggers
=FA Travel
=SN Slewing
=AR Equipment
=GR Grab
=MA Magnet system
=KV Cab adjustment
=BL Lighting
=RD Radio
=KL Air conditioning
=WA Wiper system
=KM Camera system
=WS Warning system
=SM Lubrication
