Spra-Coupe Sprayer Chassis 7450 7650 Parts Catalog 506406D1

Description

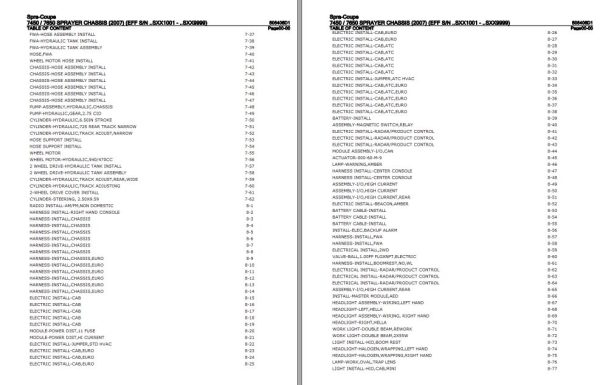

Contents:
Publication Information
Engine, Fuel, And Exhaust System
Engine Install
Compressor-A C,R134a,2 Groove

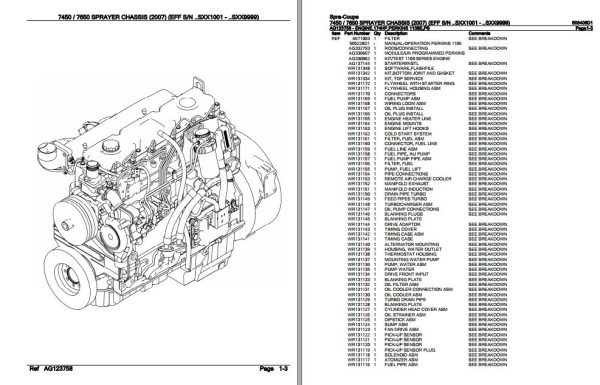

Engine,174hp,Perkins 1106e,Ps
Thermostat Housing
Thermostat Housing Assembly
Connecting Rod Assembly
Cylinder Block Assembly
Crankshaft Assembly
Piston Rings Assembly
Seal Assembly Rear End
Cylinder Head Assembly
Rocker Shaft Assembly
Oil Pump Assembly
Pump, Fuel Injection Assembly
Pump, Fuel Injection
Fuel Pipe Assembly
Atomizer Assembly
Solenoid Assembly
Pick-Up Sensor Plug
Pick-Up Sensor
Fan Drive Assembly
Sump Assembly
Dipstick Assembly
Oil Strainer Assembly
Cylinder Head Cover Assembly
Blanking Plate
Turbo Drain Pipe
Oil Cooler Assembly
Oil Cooler Connection Assembly
Oil Filter Assembly
Drive Front Input
Pump Water
Pump, Water Assembly
Mounting Water Pump
Housing, Water Outlet
Alternator Mounting
Timing Case
Timing Case Assembly
Timing Cover
Drive Adaptor
Blanking Plugs
Oil Pump Connections
Turbocharger Assembly
Feed Pipes Turbo
Drain Pipe Turbo
Manifold Induction
Manifold Exhaust
Remote Air Charge Cooler
Pipe Connections
Pump, Fuel Lift
Filter, Fuel
Fuel Pump Pipe Assembly
Fuel Pipe, Injection Pump
Fuel Line Assembly
Connector, Fuel Line
Filter, Fuel Assembly
Cold Start System
Engine Lift Hooks
Engine Mounts
Engine Heater Line
Oil Plug Install
Wiring Loom Assembly
Fuel Pump Assembly
Connectors
Flywheel Housing Assembly
Flywheel With Starter Ring
Top Service
Bottom Joint And Gasket
– Filter
Cooler Oil
Starter Install
Pump-Assembly,Hydraulic,Chassis
Pump-Hydraulic,Gear,2.75 Cid
Cooling Package
Tank-Deaeration
Switch A C High Pressure Assembly
Air Intake
Air Filter 11.00in
Filter-Fuel,Primary
Exhaust System
Fan Guard Install
Fuel Tank
Tank-Poly,65gl
Axles
Axle-Assembly, 15.07 1
Carrier-Assembly,2.92 1 R B 544076d1
Assembly Center Axle
Assembly Carrier 8.8 Inch
Chaincase-Assembly,Left Hand,1 1
Shaft, Output Planet
Shaft, Output Assembly
Brake
Assembly, Brake Disc
Parking Brake Assembly Disc Left Hand
Lining
Seal
Hydraulic
Hardware
Repair
Parking Brake Assembly Disc Right Hand
Chaincase-Assembly,Right Hand,1 1
Axle-Assembly,Low Speed,17.8 1
Chaincase-Assembly,Left Hand,1.18 1 R B 522022d1
Chaincase-Assembly,Right Hand,1.18 1 R B 522020d1
Axle-Front Narrow Track
Cylinder-Hydraulic,Track Adjust,Narrow
Cylinder-Assembly,Steering
Adapter Straight 0.37mo-R X 0.37mjic
Cylinder-Steering 2.50 X 8.65in
Carrier-Assembly,2.92 1
Assembly Carrier 9.1 Inch
Convert Kit-Carrier Assembly,2.92 1
Axle-Front,Wide
Cylinder-Hydraulic,Track Adjusting
Cylinder-Steering, 2.50×9.59
Rear Axle Assembly
Bolt Assembly-Eye
Drive Shaft W U Joint Caps,Narrow
Cylinder-Hydraulic,725 Rear Track Narrow
2-Wheel Drive Install
Hub-Spindle Assembly,W Hi Shock Bearing
Axle-Rear,Wide Track 80in-130in
Cylinder-Hydraulic,Track Adjust,Rear,Wide
Drive Shaft-W Caps,88in-128in
Axle-Assembly.Low Speed,17.8 1
Chaincase-Assembly,Left Hand,1.18 1
Chaincase-Assembly,Right Hand,1.18 1
Frame And Suspension
Assembly-Frame
Boomrest Install Euro
Tuv Light Install,Euro
Headlight Assembly-Wiring,Left Hand
Headlight-Left,Hella
Headlight Assembly-Wiring, Right Hand
Headlight-Right,Hella
Mirror Assembly-Auxillary
Steering System
Steering Column Cover Assembly
Steer Unit Install
Steer Unit Assembly
Steer Unit-Ospq,125 250
Drive Train System
Transmission-Powershift,6sp 1.94tc
Input Shaft Assembly
Valve-Clutch
Valve, Forward Hi-Lo
Cartridge, Relief
Counter Shaft Assembly
Main Shaft Assembly
Reverse Idler Shaft Assembly
Transmission-Install
Driveshaft-6c Telescoping
Tcu-Install, 6 Speed
Tcu-Install, 4 Speed
Driveshaft-W Caps,88in-128in
Brake System
Valve Assembly-Brake
Valve-Brake,Dual Slope
Valve Install-Park Brake
Valve Assembly-Park Brake
Hydraulic System
Valve Install-Hydraulic,Boom Lift Track Adjust
Valve Assembly-Hydraulic,Boom Lift Track Adjust
Valve-Hydraulic,Boom Lift Track Adjust,3 Bank
Valve-Check,Cv08200n25
Component Install-Chassis
Fitting Install-Prod Boom Valve
Valve-Product Boom Priority
Valve, Compensator
Poppet
Valve, Relief
Valve, Priority
Filter-Assembly,Chassis
Filter-Hydraulic,W 25psi By-Pass
Fitting Install-Brake Charge Valve
Valve-Brake Charge
Fwa Component Install
Fwa-Pump Assembly
Pump-Hydraulic,51cc,Load Sense
Control Kit, Load Sensing
Fwa-2 Speed Case Bypass Assembly
Valve Assembly-Solenoid,3-Way
Filter Assembly-Fwa,R2
Valve Assembly-Fwa,Main
Valve-Control,F.W.A. S D
Filter Assembly-Fwa,R3
Wheel Motor Hose Install
Kit-Hose,Fwa
Fwa-Hose Assembly Install
Fwa-Hydraulic Tank Install
Fwa-Hydraulic Tank Assembly
Hose,Fwa
Chassis-Hose Assembly Install
Cylinder-Hydraulic,6.50in Stroke
Hose Support Install
Wheel Motor
Wheel Motor-Hydraulic,940 470cc
2 Wheel Drive-Hydraulic Tank Install
2 Wheel Drive-Hydraulic Tank Assembly
2-Wheel Drive Cover Install
Electrical System
Radio Install-Am Fm,Non Domestic
Harness Install-Right Hand Console
Panel Assembly-Fnr,Console
Switch-Ignition,Keyed Different
Control Assembly-Fnr
Faceplate Assembly
Handle Assembly No Bracket No Faceplate
Reverse Switch
Axle Nut-Kit
Handle-Multifunction
Panel Assembly-Switch,Console
Harness-Install,Chassis
Headlight-Halogen,Wrapping,Left Hand
Headlight-Halogen,Wrapping,Right Hand
Assembly-Magnetic Switch,Relay
Assembly-I O,High Current
Assembly-I O,High Current,Rear
Module Assembly-I O,Can
Harness-Install,Chassis,Euro
Electric Install-Cab
Electric Install-Jumper,Std Hvac
Module-Power Dist,11 Fuse
Module-Power Dist,Hi Current
Install-Master Module,Aed
Electric Install-Cab,Euro
Electric Install-Cab,Atc
Electric Install-Jumper,Atc Hvac
Electric Install-Cab,Atc,Euro
Battery-Install
Electric Install-Radar Product Control
Valve-Ball,1.00fp Flgxnpt,Electric
Actuator-000-60-M-9
Lamp-Warning,Amber
Harness Install-Center Console
Electric Install-Beacon,Amber
Battery Cable-Install
Install-Elec,Backup Alarm
Harness-Install,Fwa
Electrical Install,2wd
Harness-Install,Boomrest,No,Wl
Electrical Install-Radar Product Control
Work Light-Double Beam,Rework
Work Light-Double Beam,2x55w
Light Install-Hid,Boom Rest
Rework-Work Light,Hid
Lamp-Work,Oval,Trap Lens
Light Install-Hid,Cab,Mini
Lamp-Rotating,Amber
Light Install-Work,Boom Rest
Light Install-Work,Cab,Mini
Cab
Console Install-Seat Right Hand
Console Assembly-Seat Right Hand
Console-Armrest Right Hand
Control Assembly-Frn
Cab Install
Cab Install-Euro
Cab Install -Euro
Pedal Install-Brake Throttle
Pedal-Throttle
Seat Assembly-Air Suspension,Right Hand Mount
Seat Assembly
Seat Suspension
Seat Install-Basic
Seat Assembly-Basic,Air
Suspension,Air,Low Profile
Assembly Suspension Air Low Profile
Seat Install-Deluxe
Seat Deluxe
Suspension Semi Active
Suspension
Service,Compressor
Cushion,Seat,Sst
Old
New
Firewall Install
Support Assembly-Hood,Rear
Panel Install-Instrument Cluster
Panel Assembly-Instrument Cluster
Floormat Install-Cab
Cab-Midsize,Challenger
Door Installation
Glass Door Assembly
Cab Glass
Outer Roof Assembly
Wiper Assembly
Wiper Blade Assembly
Motor Wiper 1 Inch
Floormats Covers Assembly
Roof Electric Assembly
Inner Roof Assembly
Controls Front Assembly
Interior Trim Assembly
Cab Electric Assembly
Key,Cam Assembly
Hvac W And W O Atc
Storage Install
Insulation Install
Cab-Midsize Atc
Cab-Midsize
Air Conditioning And Heating System
A C Install
Receiver Dehydrator
Motor Blower Assembly Pressure
Cover-Assembly
Kit-Hose,A C
Chassis
Ladder Install
Hood Install
Hood Fiber Assembly
Platform Install
Handrail Install,Ss
Handrail Install,Poly
Boomrest Domestic
Bellypan-Install,Front
Seal-Brush And Holder,10.0 X 19.5
Fender Option,7650
Fender Option,7450
Bellypan-Install,Middle
Bellypan-Install,Rear
Bellypan-Install,Tank Shields
Belting Install-Bellypan
Deflector Install-Crop
Deflector Assembly-Crop
Decals
Decal-Frame Chassis Install
Decal-Hood Install
Decal Install-Cab
Decal Install-Cab,Atc
Wheels
Tire,Titan,12.4×28-8
Rim Tire Assembly-12.4×28.8,Right Hand
Rim Tire Assembly-12.4 X 28.8,Left Hand
Tire,Titan 380 90r46
Tire,Titan 480 80r46
Rim Tire Assembly-480 80r46,Right Hand
Rim Tire Assembly-480 80r46,Left Hand
Tire Titan 320 85r38
Rim Tire Assembly-38xw10,Right Hand
Rim Tire Assembly-38xw10,Left Hand
Mounting Hardware
Hardware-Front,Wheel,28in
Hardware-Front,Wheel,38in
Option-Tire,Titan 320 90r46
Rim Tire Assembly-320 90r46,Left Hand
Rim Tire Assembly-320 90r46,Right Hand
Option-Tire,Titan 380 90r46
Rim Tire Assembly-380 90r46,Right Hand
Rim Tire Assembly-380 90r46,Left Hand
F A-Tire,Titan 320 90r46
F A-Tire,Titan 380 90r46
F A-Tire,Titan 480 80r46
Tire,620 70r42
Wheel- Tire-620 70r42,Left Hand
Wheel- Tire-620 70r42,Right Hand
Tire,Gy 620 70r42
Controller System
Console Install-Raven 4000
Console,Viper
Console Install-Gta
Guidance System
Gps Install
Antenna-Starlink,Gps Dgps
Lightbar Install
Kit-Lightbar,Rgl600t
Controller Install-Raven Viper
Console Kit-Viper W Cable,1vra
Gps,Phoenix 300
Attachments
Crop Shields,7450
Crop Shields,7650
Accessories
50hr Filter Kit
500hr Filter Kit
500hr Fwa Filter Kit
Key,Overseas
Key Rework
