Spra-Coupe Sprayer System 7460 7660 Parts Catalog 523708D1

Description

Contents:
Publication Information
Product Containment
Tank And Saddle Assembly-660 Gal Ss
Tank Assembly-660 Gal,Ss
Stubby Valve, 2 In Port, Malexfemale
Tank And Saddle Assembly-725 Gal Poly
Tank Assembly-Poly,725 Gal
Flange-Tank,Bottom Drain,2.00 Fp
Assembly 10 Inch Lid
Kit Gasket 10 Inch
Cover-Hinged
Screen Install-Tank,Product,725 Gal
Strainer
Tiedown Install
Tiedown Install-725 Gal Poly
Primary Product Distribution
Plumbing Install-System,Liq,66 Gal Ss Tank
Plumbing Assembly-Pump And Reload,1.50×1.25

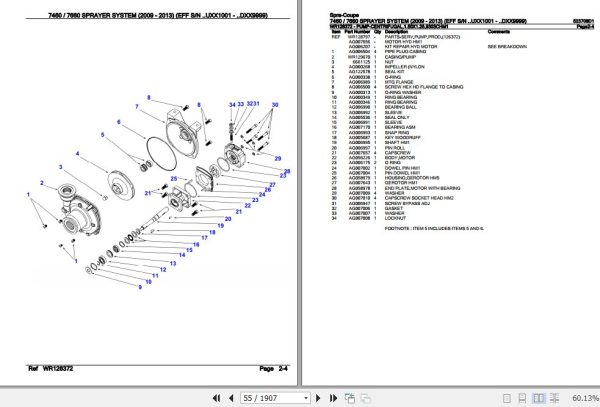

Pump-Centrifugal,1.50×1.25,9303chm1
Kit-Repair, Hydraulic Motor
Valve-Ball, Union, Poly, 1.Oonpt
Plumbing Assembly-Pressure Manifold,660gal Ss
Manifold Assembly-Str Rinse Valve,1.50
Valve-Ball,1.00fp Flangexnpt,Electric
Actuator-000-60-M-9
Plumbing Install-Pressure,660 Gal Ss
Valve Assembly-Low Rate Kit
Valve Assembly-Regulating, Pressure
Valve-Ball, 1.50 Poly Ff
Flowmeter-2.00sp Flange,Rfm60,12v
Tube Install-Hydraulic,Prod Pump
Plumbing Install-System,Liquid,725gal Poly
Plumbing Install-Pressure,725 Gal
Valve Assembly-Low Rate,Poly
Plumbing Assembly-Pressure Manifold,725gal Poly
Manifold Assembly-Y,1.00fp Flange,Electrical
Manifold Install-Ball Valve,Std
Manifold Assembly-Boom,W Ball Valve,Std
Strainer Body Assembly 1.00
Valve-Soenoidl,Nozzle Body,Arag,150psi
Parts-Service,Nozzle Valve
Valve-2.0 Flangex1.50npt,T Handle
Strainer-Line,1.50fnpt,32 Mesh
Plumbing Assembly-Eductor,Pe
Eductor Assembly-Chemical,Cleanload,Pe
Eductor-Chemical,Cleanload,Pe
Plumbing Assembly-Return,Eductor
Chemical Eductor,Pe,660 Gal Ss
Chemical Eductor,Pe,725 Gal Poly
Chemical Eductor,Pe,660 Gal,Ss 2010
Plumbing Assembly-Eductor,Pe,Sm 2010
Eductor Assembly-Chem,Pe,Sm 2010
Eductor-Chemical,Cleanload Ii,Pe,Sm 2010
Valve-Ball,-32fp -32mp,Pp
Chemical Eductor,Pe,725 Gal,Poly 2010
Option-Chemical Eductor,Pe,660 Gal
Option-Chemical Eductor,Pe,725 Gal Poly
Option-Chemical Eductor,W O
Option-Chemical Eductor,Pe,660 Gal,Ss 2010
Option-Chemical Eductor,Pe,725 Gal,Poly 2010
Secondary Product Distribution
System Install-Plumbing,Sc60180x5,Electrical
Plumbing Install-System,Servo,Poly Tank
Plumbing Install-Pressure,Servo,Poly Tank
Valve Assembly-Product Control,1.50,Raven
Valve-Butterfly,1.50,90d
Plumbing Install-System,Servo,Ss Tank
Plumbing Install-Pressure,Servo,Ss Tank
Bracket Assembly-L Lg Str,Poly Pipe Clp
Bracket Assembly-Str,Lg,2ips Clp,1.00u
Bracket Assembly-Str,Lg,2ips,P Clp
Bracket Assembly-Str,Sh,So,Ips P Clp
Bracket Assembly-L,So,Stauff,Rev P Clp
Bracket Assembly-Str,Lg,So,2ips,P Clp
Bracket Assembly-Str,Lg,Ips,P Clp,1.0u
Bracket Assembly-Str,Lg,3ips Clp
Nozzle Assembly-Fence Row,60 80
Pipe Assembly-.5×20,Poly,Endrow
Bracket Assembly-Str,Sh,Ips Clp,1.00u
Nozzle,Fence Row,60 80 90
Switch Install-Er
Panel Assembly-Switch,Console
Pipe Assembly-X W 3 1.00hb,11×10,Poly
Pipe Assembly-90d W 1.00hb,9×10,Poly
Pipe Assembly-T W 2 1.00hb,11×10,Poly
Pipe Assembly-T W 2 1.00hb,9×10,Poly
Pipe Assembly-90d W 1.00hb,5×10,Poly
Pipe Assembly-T W 2 1.00hb,6×10,Poly
Nozzle Assembly-Option 10×90 Triple
Nozzle Holder-Triple 1.00 Ips
Pipe Assembly-90d W 1.00hb,11×10,Poly
Nozzle Assembly-Option 10×80 Triple
Bracket Assembly-Str,Sh,Ips Clp,P Clp
Bracket Assembly-L,Poly Stauff
Bracket Assembly-Str,Sh,Ips Clp
Bracket Assembly-L,Poly Stauff,Rev P Clp
Bracket Assembly-L,Poly Stauff,Ctr
Pipe Assembly-X W 3 1.00hb,6×20,Poly
Pipe Assembly-90d W 1.00hb,6×20,Poly
Pipe Assembly-90d W 1.00hb,5×20,Poly
Pipe Assembly-T W 2 1.00hb,5×20,Poly
Pipe Assembly-T W 2 1.00hb,3×20,Poly
Pipe Assembly-90d W 1.00hb,2×20,Poly
Bracket Assembly-L,Poly Stauff,1.00u
Reload Install-2.00
Valve 2 In. Mnpt X 2 In. Madap
Reload Install-3.00
Valve-3.00fnptx3.00m Adapter
Nozzle Assembly-Option,20×80,Tpl
Nozzle-Spray,Varitarget,1.5gpm
Kit-Nozzle,Varitarget,Clr,25
Kit-Nozzle,Spray,Varitarget,Clr,5
Kit-Nozzle Xrc11003vp, 50
Kit-Nozzle Xrc11003vp, 60
Kit-Nozzle Xrc11003vp, 75
Option-Poly Plumbing,Sc6080x5x20,Off
Option-Poly Plumbing,Sc6080x5x10,On
Option-Poly Plumbing,Sc6090x5x10,On
Option-Poly Plumbing,Sc6090x5x20,Off
Option-Nozzle,Varitaret,Clr,80×20
Option-Nozzle,Varitarget,Clr,90×20
Booms
Boom Install-Center,H Frame Tilt Rack 2011
Rack Install-Tilt,Boom,60 80
Rack Assembly-Tilt,Boom,60 90
Frame Install-H,Rear,Boom,60 80
Frame Assembly-H,Rear,Boom,60 80
Cylinder Assembly-Hydraulic,Boom Swing, 60 80
Cylinder-Hydraulic,2.75x11x1.38
Lift Install-Boom,Par Link
Cylinder-Hydraulic, 1.75×16.84×1.25
Hydraulic Install-H Frame,60 80 90
Valve Install-Hydraulic,6 Bank,Boom
Valve Assembly-Hydraulic,6 Bank,Boom
Valve-Hydraulic,Boom,6 Bank
Valve-Check,Cv08200n25
Adapter Straight 0.37mo-R X 0.37mjic
Plug 0.37mo-R Hex
Hose Install-Hydraulic, H Frame
Tube Install-Hydraulic,H Frame
Hose Install-Hydraulic,Boom Lift,Par Link
Accumulator Install-Par Links
Light Install-Tail
Harness Install-Taillight
Lamp Cluster Rear Right Hand
Lamp Cluster Rear Left Hand
Boom Assembly-60 80,Left Hand
Cylinder Assembly-Boom Tip Fold
Cylinder-Hydraulic,2.00×16.00×1.25
Boom Assembly-60 80
Cam Assembly-Breakaway,60 80
Cam Assembly-Boom Breakaway
Cylinder-Hydraulic,2.25 X 1.00 X 6.5
Boom Assembly-60 90,Left Hand
Boom Assembly-60 90,Left Hand Right Hand
Cylinder Assembly-W Accumulator,Boom Tilt,Rh
Cylinder-Hydraulic,2.50×12.00×1.12
Adapter-Straight,.50mo-R X .50mo-R
Boom Assembly-60 90,Right Hand
Cylinder Assembly-W Accumulator,Boom Tilt,Lh
Boom Assembly-60 80,Right Hand
Boom Install-Center,H Frame W O Tilt Rack
Frame Install-H,W O Tilt Rack
Hydraulic Install-H Frame,60 80
Valve Install-Hydraulic,Boom,6 Bank
Valve Assembly-Hydraulic,Boom,6 Bank
Light Install-Tail,W O Tilt Rack
Boom Install-Center,H Frame,W O Tilt Rack
Frame Assembly-H,Rear,B00m,60 80
Boom Assembly-60 90, Left Hand
Boom Assembly-60 90, Right Hand
Tube Assembly-Rack Tilt
Hinge Assembly-60 80 90,Right Hand
Hinge Assembly-60 80 90,Left Hand
Hinge Assembly-60 80,Right Hand
Hinge Assembly-60 80,Left Hand
Block Install-Boomrest
Block Assembly-Boom Rest,7xxx
Cap Install-W O H Frame
Cap Install-H Frame W O Boom
Boom Assembly-Sc6080,Left Hand Right Hand
Hose Install-Boom Tilt,60 80 90
Hardware-Mounting,Boom,60 80 90
Option-Boom 60 80
Hose Install-Boom Tilt,60 80
Hose Install-Boom Tip 60 80,4xxx
Option-Boom,90 Ft
Hose Install-Boom Tip,60 80
Option-Boom,60 90
Option-Hinge,Boom,60 80ft
Option-Hinge,Boom,60 80 90
Option-Boom,60 80
Foam Marker
Foam Marker Install-Boom Parts,60 80
Bracket Asm-Mounting,Foam Marker Mixing Chamber
Chamber-Mixing,Richway
Bracket Assembly-Drop Hose,Right Hand
Bracket Assembly-Drop Hose,Left Hand
Foam Marker Install-Tank Pump,25 Gal
Tank Pump Assembly-Foam Marker,25 Gal,Richway
Parts-Service,Foam Marker
Manifold Assembly W Actuators
Airline Install-Foam Marker
Hydraulic System
Cylinder-Hydraulic,1.75×16.84×1.25
Tube Install-Hydraulic,H Frame Npd
Valve Assembly,Orifice Check,-12mor
Electrical System
Electrical Install-System,Raven
Node-Boom Speed, Raven
Flowmeter-2.00sp Flange,Rfm60p,12v
Electrical Install-System,Raven,Pwm, 2010
Electrical Install-System,Gta,Sc7000
Electrical Install-System,Raven ,Servo
Electrical Install-System,Raven,Servo, 2010
Electrical Install-System,Gta,Servo
Electrical Install-Boom
Module Assembly-I O,Can
End Row Switch Install
Harness Install-Tllt,No,Worklight
Light Install-Hid,System
Light-Work,Hid
Light Install-Work,System
Work Light
Work Light,Liquid System
Hid Light,Liquid System
Controller System
Pressure Washer And Rinse System
Tank Install-Rinse,65 Gal
Tank Assembly-Rinse,65 Gal
Tank-Poly,65 Gal,Right Hand
Valve, 0.50 Npt Ball Union Poly
Decals
Decal Install-725 Gal(Na)
Decal Install-725 Gal(Int)
Decal Install-2498 Liter,Ss(Na)
Decal Install-2498 Liter,Ss(Int)
Decal Install-660 Gal(Na)
Decal Install-660 Gal(Int)
Sign Install-Smv
Sign Install-Sis,30mph
Sign Install-Sis,50kph
