Name: Sunflower Two Section Folding Drill 9421 Parts Catalog 79023730
SKU: 456256
Price: 10.00 USD
Availability: InStock

Sunflower Two Section Folding Drill 9421 Parts Catalog 79023730 1

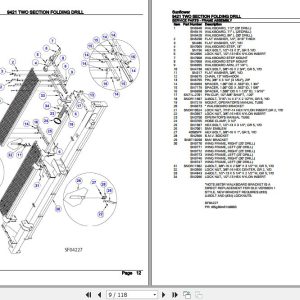

Sunflower Two Section Folding Drill 9421 Parts Catalog 79023730 2

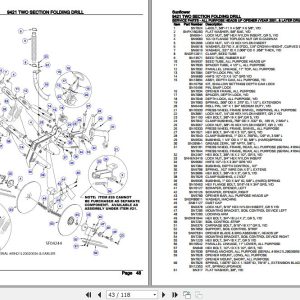

Sunflower Two Section Folding Drill 9421 Parts Catalog 79023730 3

✓

Expert Support

✓

Full Speed

✓

100% Working

Sunflower Two Section Folding Drill 9421 Parts Catalog 79023730

Size: 7.22 MB

Format: PDF

Language: English

Brand: Sunflower

Type of Machine: Two Section Folding Drill

Type of Manual: Parts Catalog

Model: Sunflower 9421 Two Section Folding Drill

Part Number: 79023730

Number of Pages: 118 Pages

10 USD

Tag: Sunflower Parts Manual

Description

Description

Contents:
Publication Information
Service Parts – 7 1 2′ Hopper Assembly
Service Parts – 10′ & 12 1 2′ Hopper Assembly
Service Parts – Frame Assembly
Service Parts – Wing Frame & Hopper Assembly
Service Parts – Seed Meter & Shaft Assembly
Service Parts – Lift & Main Frame Assembly
Service Parts – Lift Assembly
Service Parts – Tongue Assembly
Service Parts – Transport Lock & Wing Hinges
Service Parts – Slide Lock Roller Assembly
Service Parts – Fold Arms & Cylinder Assembly
Service Parts – Dual Wheel Wing Lift Assembly
Service Parts – Center Lift Spindle & Tire Assembly
Service Parts – Wing Lift Spindle & Tire Assembly
Service Parts – Gauge Wheel Assembly
Service Parts – Lower Gauge Wheel Assembly
Service Parts – Turnbuckle & Upper Gauge Wheel Drive
Service Parts – All Purpose Opener Assembly (Year 2000 &, Earlier Drills)
Service Parts – All Purpose Opener Press Wheel Assy, (Year 2000 & Earlier Drills)
Service Parts – All Purpose Heads Up Opener (Year 2001, & Later Drills)
Service Parts – Heads Up Opener Press Wheel Assembly, (Year 2001 & Later Drills)
Service Parts – Press Wheel & Tire Assembly, (Prior To July 2006)
Service Parts – Tongue Hydraulics
Service Parts – 3 X 8 Tongue Cylinder 4446r (Version, 1, Prior To 10 16 03)
Service Parts – 3 X 8 Tongue Cylinder 12049r (Version, 2, 10 16 03 & Later)
Service Parts – Main Lift Hydraulic Assembly
Service Parts – 4 1 2 X 12 Main Lift Cylinder 9704r, (Version 1, Prior To 7 28 03)
Service Parts – 4 1 2 X 12 Main Lift Cylinder 12010r, (Version 2, 7 28 03 & Later)
Service Parts – Left Wing Lift Hydraulics
Service Parts – 4 1 4 X 12 Wing Lift Cylinder 9703r, (Version 1, Prior To 7 8 03)
Service Parts – 4 1 4 X 12 Main Lift Cylinder 12008r, (Version 2, 7 8 03 & Later)
Service Parts – Fold Hydraulic Assembly (Version 1)
Service Parts – Fold Hydraulic Assembly (Version 2)
Service Parts – 2 1 2 X 8 Wheel Lock Cylinder Dr55002, (Version 1, Prior To 6 23 03)
Service Parts – 2 1 2 X 8 Wheel Lock Cylinder, 12051r (Version 2, 6 23 03 & Later)
Service Parts – 4 X 16 Fold Cylinder 9725r, (Version 1, Prior To 8 22 03)
Service Parts – 4 X 16 Fold Cylinder 12012r, (Version 2, 8 22 03 & Later)
Service Parts – Row Marker Assembly
Service Parts – Row Marker Mount Assembly
Service Parts – Main Frame Row Marker Hydraulics
Service Parts – Wing Frame Row Marker Hydraulics
Service Parts – 3 X 20 Hydraulic Cylinder 6633r, (Version 1, Prior To 8 28 03)
Service Parts – 3 X 20 Hydraulic Cylinder 6633r, (Version 2,8 28 03 & Later)
Service Parts – Opener Shield Assembly
Service Parts – Electric Clutch Kit
Service Parts – Electric Clutch Kit Assembly
Service Parts – Light Kit Assembly (Version 1)
Service Parts – Light Kit Assembly (Version 2)
Service Parts – Grass Seeder Hopper Assembly (Optional)
Service Parts – Grass Seeder Shaft Assembly
Service Parts – Grass Seeder Agitator Assembly
Service Parts – Drill Shaft Assembly When Using Grass, Seeder
Service Parts – Sunflower Decal Placement
Service Parts – North America Safety Sign Placement
Service Parts – Non-North America Safety Sign Placement
Recommended Dealer List – Recommended Dealer Stock
