Name: Tesla Model Y 2025-02-17 To Present Electric Diagrams SOP7
SKU: 565624
Price: 80.00 USD
Availability: InStock

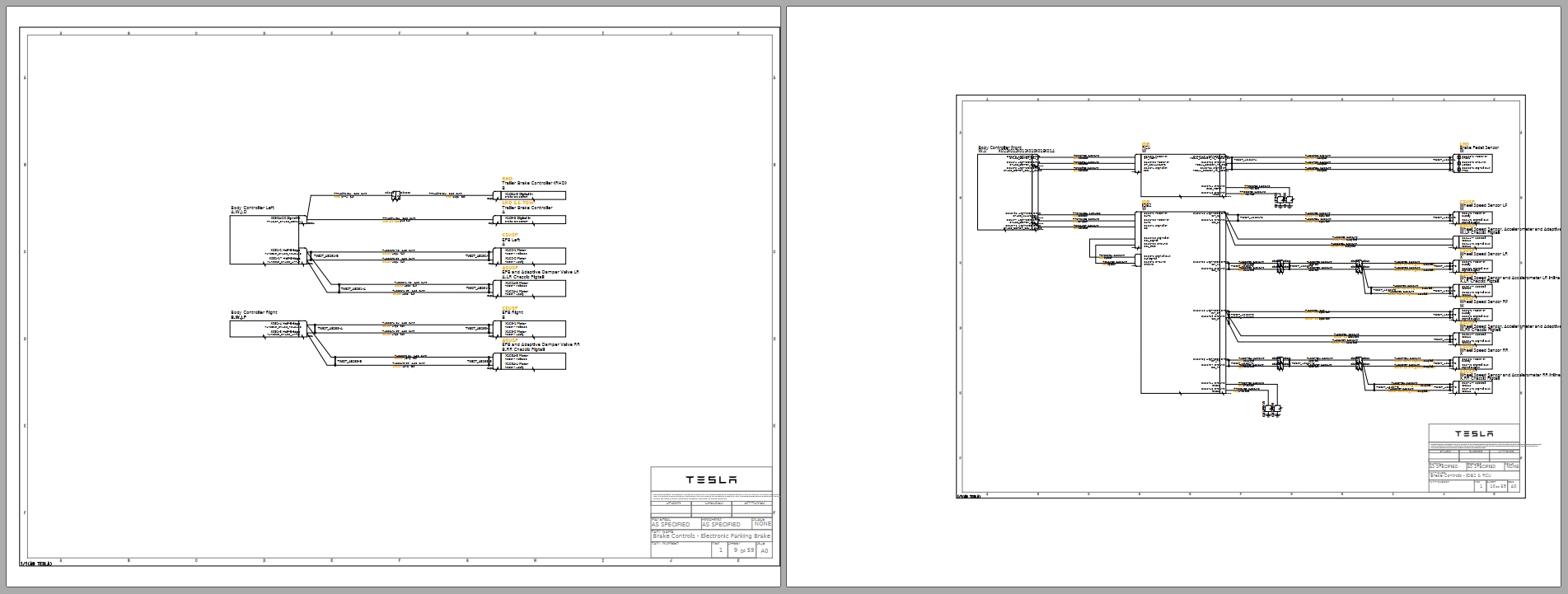

Tesla Model Y 2025 02 17 To Present Electric Diagrams SOP7 (1)

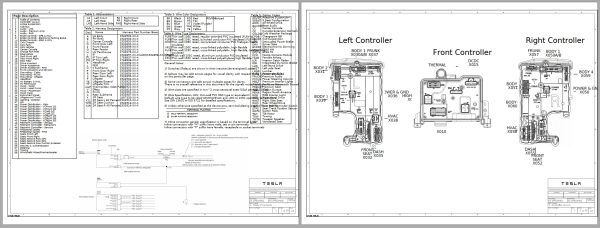

Tesla Model Y 2025 02 17 To Present Electric Diagrams SOP7 (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Tesla Model Y 2025-02-17 To Present Electric Diagrams SOP7

Size: 1.26 MB

Format: PDF

Language: English

Brand: Tesla

Type of Machine: Automotive

Type of Manual: Electric Diagrams

Model: Tesla Model Y 2025-02-17 To Present

Publication Number: SOP7

80 USD

Tags: Model Y, Tesla Electric Diagrams, Tesla Model Y Manual

Description

Description

List of Files:
2 controller layout
active suspension
audio a2b bus
audio lhd
audio premium amp
audio rhd
brake controls dpb hcu
brake controls electronic parking brake
brake controls idb2 rcu
can chassis
can party
can vehicle
center console
charge port inlet
diagnostics
door front left
door front right
door rear
driver assistance
driver assistance rhd
drive inverters
frunk actuator and sensors
grounding cabin
grounding frunk
grounding liftgate
headliner
hvac cabin
hvac case
hvac heat pump
hvac powertrain
hv battery and hvil
hv penthouse
index
instrument panel
liftgate and trunk
lighting exterior
lin
Name Take.bat
Name Take.txt
power distribution main
power distribution vcfront 1 2
power distribution vcfront 2 2
power distribution vcleft 1 2
power distribution vcleft 2 2
power distribution vcright 1 3
power distribution vcright 2 3
power distribution vcright 3 3
restraints control module airbags
restraints control module retractors
restraints control module sensors
rf special cables
rf special cables rhd
Schematics Navigation
seats front left
seats front right
seats second row 40
seats second row 60
seats second row cushion 5 seater
security authentication
steering
towing
windshield wiper washer heater
