Tigercat Harvester Control System D5 Hardware Manual
Size: 1.87 MB
Format: PDF
Language: English
Brand: Tigercat
Type of Machine: Harvester Control System
Type of Manual: Hardware Manual
Model: Tigercat D5 Harvester Control System
Number of Pages: 19 Pages
10 USD
- Description
Description

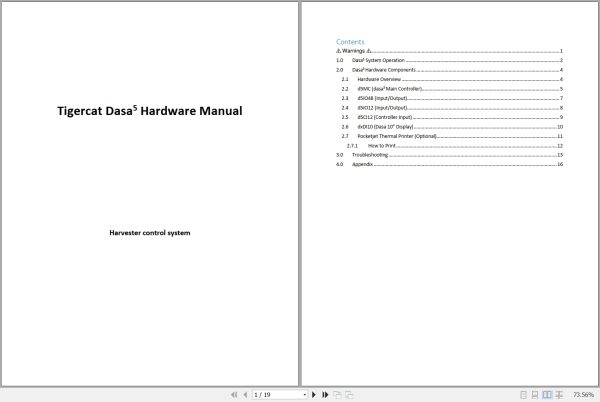

Contents:
A Warnings A
1.0 Dasa5 System Operation
2.0 Dasa5 Hardware Components
2.1 Hardware Overview
2.2 dSMC (dasa5 Main Controller)

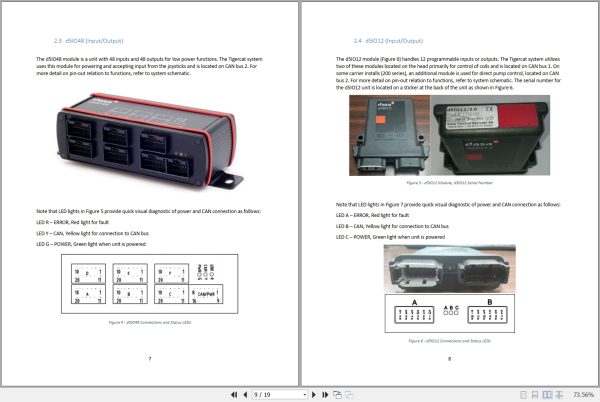

2.3 d5lO48 (Input/Output)
2.4 d5|012 (Input/Output)
2.5 d5C|12 (Controller Input)
2.6 dellO (Dasa 10″ Display)
2.7 Pocketjet Thermal Printer (Optional)
2.7.1 How to Print
3.0 Troubleshooting
4.0 Appendix
