Name: Timberjack FS20 FS22 FS24 Felling Heads Technical Manual TMF382053
SKU: 618517
Availability: InStock

Timberjack FS20 FS22 FS24 Felling Heads Technical Manual TMF382053 (1)

Timberjack FS20 FS22 FS24 Felling Heads Technical Manual TMF382053 (2)

Timberjack FS20 FS22 FS24 Felling Heads Technical Manual TMF382053 (3)

Timberjack FS20 FS22 FS24 Felling Heads Technical Manual TMF382053 (4)

✓

Expert Support

✓

Full Speed

✓

100% Working

Timberjack FS20 FS22 FS24 Felling Heads Technical Manual TMF382053

Format: PDF

Language: English

Brand: Timberjack

Type Of Manual: Technical Manual

Type of Machine: Felling Head

Model: Timberjack FS20, FS22, FS24

Serial Number: 002001-, 003001-, 004001-

Part Number: TMF382053

50 USD

Tags: FS20, FS22, FS24, Timberjack Felling Head Manual, Timberjack Technical Manual, TMF382053

Description

Description

Contents:
Revision Log
Customer Feedback
Contents
Introduction
Introduction
Felling Head Frame
Felling Head Frame

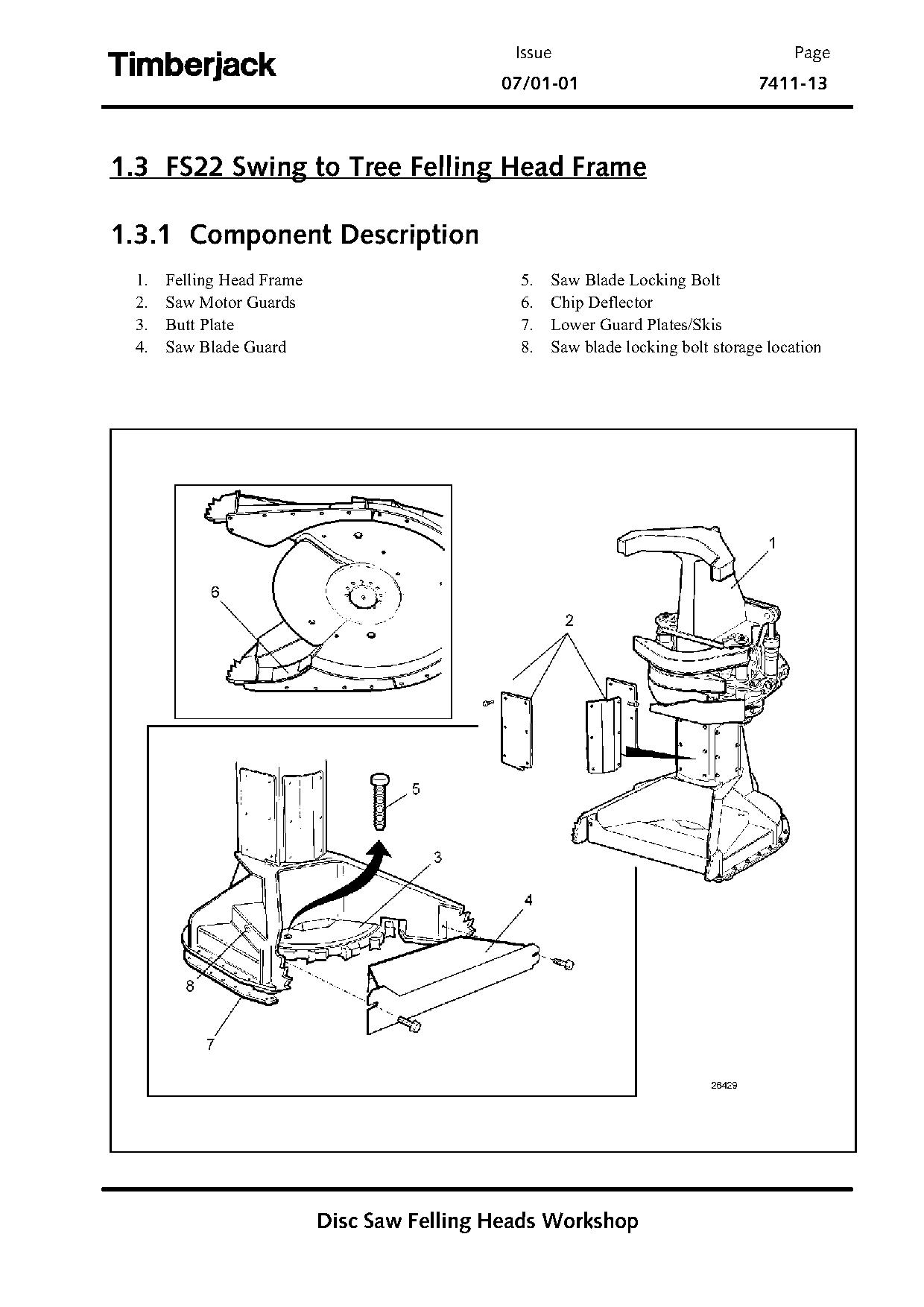

FS20 Swing to Tree Felling Head Frame
FS22 Swing to Tree Felling Head Frame
FS24 Swing to Tree Felling Head Frame
Clamp Arms
Clamp Arms
FS20 Clamp Arms
FS22 Clamp Arms
FS24 Clamp Arms
Wrist/Boom Adapter
Wrist and Boom Adapter
FS20 Wrist and Boom Adapter
FS22 Wrist and Boom Adapter
FS24 Wrist and Boom Adapter
Disc Saw Group
Disc Saw Group
FS20/FS22/FS24 Disc Saw Group
Disc Saw Driveshaft
Disc Saw Driveshaft
Disc Saw Driveshaft Repair
Hydraulic Group
Hydraulic Group
FS20 Hydraulic Group
FS22 Hydraulic Group
FS24 Hydraulic Group
Troubleshooting
Hydraulic Motors
Hydraulic Motors
Hydraulic Cylinders
Hydraulic Cylinders
Electrical Group
Saw Speed Sense Equipment
