Name: Valtra AutoControl System AC18.4 AC19.4 Electrical Diagram
SKU: 353306
Price: 30.00 USD
Availability: InStock

-40%

Valtra AutoControl System AC18.4 AC19.4 Electrical Diagram 1

Valtra AutoControl System AC18.4 AC19.4 Electrical Diagram 2

✓

Expert Support

✓

Full Speed

✓

100% Working

Valtra AutoControl System AC18.4 AC19.4 Electrical Diagram

Size: 1.71 MB

Format: PDF

Language: English

Brand: Valtra

Type of Machine: AutoControl System

Type of Manual: Electrical Diagram

Model: Valtra AC18.4 AC19.4(N3h3, N3h5) AutoControl System

30$ USD

Tag: Valtra

Description

Description

List Of Files:

Valtra AutoControl System AC18.4 AC19.4 Electrical Diagram 2014 (25 Pages)

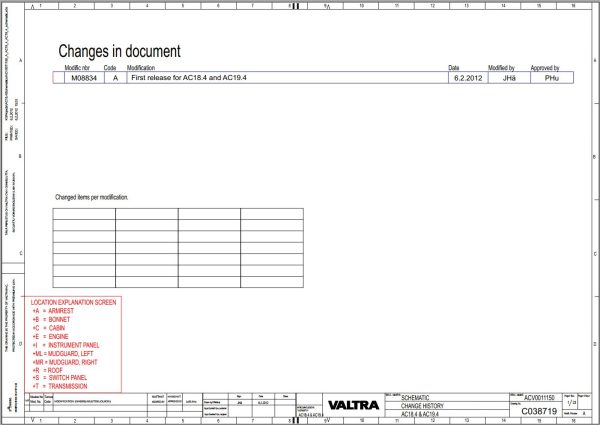

1 CHANGE HISTORY
2 MAINS & IGN SWITCH, STARTER, ALTERNATOR
3 SPECIAL AND RESERVE FUSES AND RELAYS
4 ENGINE CONTROL
5 ENGINE SENSORS AND ACTUATORS

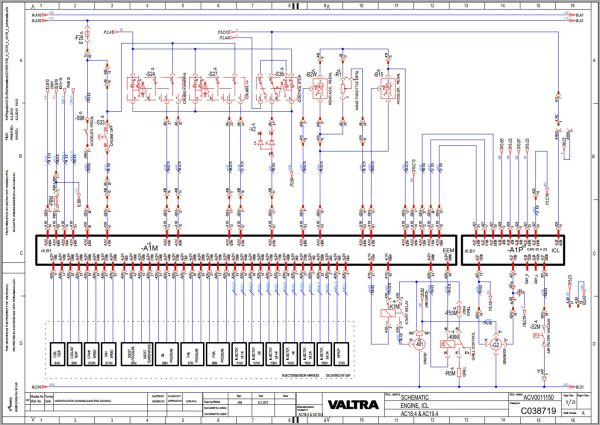

6 ICL LCD-DISPLAYS, ICL-SENSORS
7 AFTERTREATMENT
8 DRIVING UGHTS
9 WORKING UGHTS, CABIN LIGHTS
10 FANS, WIPERS, WASHERS
11 RADIO, WINDOW HEATER, POWER OUTLETS
12 MANUAL HVAC AND AUTO HVAC
13 TC1 (SRC) CONTROL
14 TC1(SRC) DRIVING
15 TC1(SRC) SENSORS
16 DL 4WD, PTO
17 REAR LINKAGE CONTROL (EHR)
18 FRONT LOADER
19 FRONT PTO, FRONT LINKAGE
20 AUTOCOMFORT, FRONT SUSPENSION
21 ISOBUS, IMPLEM.(11786/11783), AGCOMMAND
22 SEAT, TWIN-TRAC, ELECTRIC MIRRORS
23 AUTO-STEERING
24 CAN-BUS STRUCTURE
25 ISOBUS- AND AUTO-STEERING-BUS
Valtra AutoControl System AC18.4 AC19.4 Electrical Diagram 2012 (23 Pages)
1 CHANGE HISTORY
2 EL. SUPPLY
3 MAIN SWITCH
4 ENGINE
5 ENGINE, ICL
6 ICL (cont.)
7 WORK LIGHTS
8 LIGHTS
9 FANS, WIPERS, WASHERS etc.
10 TC1(SRC) SENSORS
11 TC1(SRC) DRIVING
12 DL, 4WD, PTO
13 POWER LIFT
14 WORKING HYDR. AUX VALVES
15 TC2 ,FRONT PTO. POWER SOCKETS, LCD DISP
16 1S011786/11783
17 TWIN-TRAC, EL. MIRRORS
18 AUTO A/C
19 FOREST ROOF & GEAR LEVER
20 AUTO-GUIDE
21 AUTO COMFORT, FRONT SUSPENSION
22 CAN-BUS STRUCTURE
23 CAN-BUS STRUCTURE
