Name: Valtra AutoControl System AC52.5 Electrical Diagram
SKU: 353920
Price: 30.00 USD
Availability: InStock

-40%

Valtra AutoControl System AC52.5 Electrical Diagram

Valtra AutoControl System AC52.5 Electrical Diagram 1

✓

Expert Support

✓

Full Speed

✓

100% Working

Valtra AutoControl System AC52.5 Electrical Diagram

Size: 1.51 MB

Format: PDF

Language: English

Brand: Valtra

Type of Machine: AutoControl System

Type of Manual: Electrical Diagram

Model: Valtra AC52.5 AutoControl System

(A74 SH 1C7)

Number Of Pages: 23 Pages

30$ USD

Tag: Valtra

Description

Description

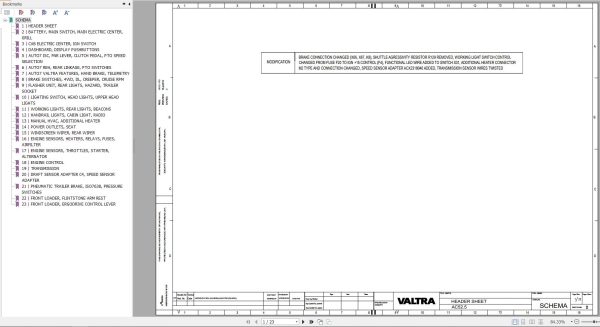

1 HEADER SHEET
2 BATTERY, MAIN SWITCH, MAIN ELECTRIC CENTER, GRILL
3 CAB ELECTRIC CENTER, IGN SWITCH
4 DASHBOARD, DISPLAY PUSHBUTTONS
5 AUTO7 ISC, FNR LEVER, CLUTCH PEDAL PTO SPEED SELECTION
6 AUTO7 REH, REAR UNKAGE, PTO SWITCHES

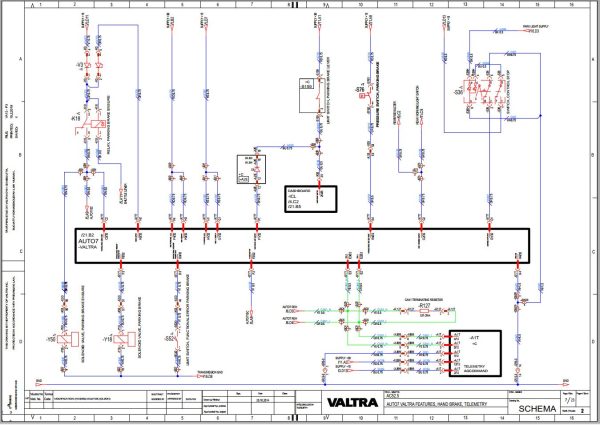

7 AUTO7 VALTRA FEATURES, HAND BRAKE, TELEMETRY
8 BRAKE SWITCHES, 4WD, DL CREEPER, CRUISE RPM
9 FLASHER UNIT, REAR UGHTS, HAZARD, TRAILER SOCKET
10 UGHTING SWITCH, HEAD UGHTS, UPPER HEAD UGHTS
11 WORKING LIGHTS, REAR LIGHTS, BEACONS
12 HANDRAIL LIGHTS, CABIN LIGHT, RADIO
13 MANUAL HVAC, ADDITIONAL HEATER
14 POWER OUTLETS, SEAT
15 WINDSCREEN WIPER, REAR WIPER
16 ENGINE SENSORS, HEATERS, RELAYS, FUSES, AIRFILTER
17 ENGINE SENSORS, THROTTLES, STARTER, ALTERNATOR
18 ENGINE CONTROL
19 TRANSMISSION
20 DRAFT SENSOR ADAPTER C4, SPEED SENSOR ADAPTER
21 PNEUMATIC TRAILER BRAKE, ISO7638, PRESSURE SWITCHES
22 FRONT LOADER, FUNTSTONE ARM REST
23 FRONT LOADER, ERGODRIVE CONTROL LEVER
