Name: Vogele Asphalt Paver SUPER 1103-2 SUPER 1303-2 09.11 2069333 Spare Parts Catalog
SKU: 518354
Price: 20.00 USD
Availability: InStock

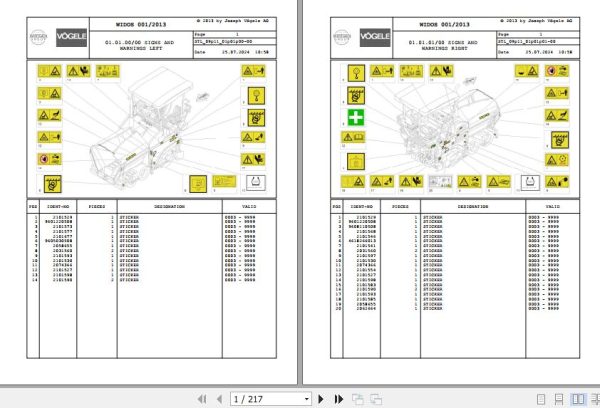

Vogele Asphalt Paver SUPER 1103 2 SUPER 1303 2 09.11 2069333 Spare Parts Catalog (1)

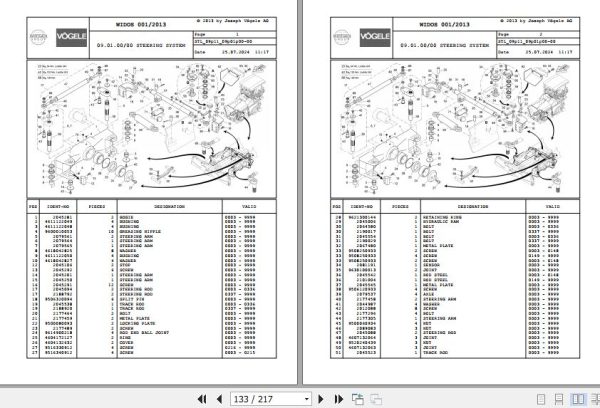

Vogele Asphalt Paver SUPER 1103 2 SUPER 1303 2 09.11 2069333 Spare Parts Catalog (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Vogele Asphalt Paver SUPER 1103-2 SUPER 1303-2 09.11 2069333 Spare Parts Catalog

Size: 29.5 MB

Format: PDF

Language: English

Brand: Vogele

Type of Machine: Asphalt Paver

Type of Document: Parts Manual

Model: Vogele SUPER 1103-2, SUPER 1303-2 Asphalt Paver

Year: 2013

Number of Pages: 217 Pages

20 USD

Tags: Vogele Asphalt Paver PDF, Vogele Parts Catalog

Description

Description

Contents:
Warnings Left
Signs And
Signs And Warnings Right
Signs And Warnings Front
Signs And Warnings Rear
Signs And Warnings Left USA
Signs And Warnings Right USA
Signs And Warnings Front USA
Warnings Rear USA
Signs And
Panel, Left Side
Panel, Right Side
Panel, Right Side
Engine Hood
Cover Plate
Lighting, Halogen With Roof
Lighting With Roof
Lighting, Halogen Lamps
Lighting Without Roof
Additional Lighting
Rotary Beacon
Horn
Chock
Footstep
Chassis
Operator Console Electrics
Control Desk
Console Slide
Console Rail Power Cable
Steering Unit
Brake Unit
Platform
Mount For Seat With Guard Rail
Driver’s Seat
Lateral Operator’s Console
Poles Canopy
Canopy
Roof With Awning
Rear View Mirror With Fixation
Toolbox, Right
Toolbox, Left
Set Of Tools
Power Unit Tier2
Power Unit Tier3
Fuel Supply
Exhaust System
Air Intake
Air Intake
Air Intake
Cooling System
Hydraulic Tank
Panolin Partial Flow Filter
Pump Splitter Gearbox
Pump Hydraulic Rams
Leakage
Conveyor, Hydraulic
Reverse Motion
Switching System
Crown Adjustment
Electrical System Crown
Valve Block Hydraulic Rams
Valve Block Tamper
Valve Block Vibrators
Valve Block Switching Sys.
Valve Block Crown
Battery Bracket 24 V
Power Supply,
Control Box
Mechanical
Control Unit
Control Box
Wire Harness
Control Box
Complete
Heating Box
Mechanical
Heating Box
Control Unit
Heating Box
Three-Phase A.C. Generator
Front Wheels, Not Powered
Front Wheels, Powered
Front-Wheel Drive, Hydr.
Valve Block
Traction Drive, Mech, Left
Traction Drive, Left Side
Traction Drive, Mech, Right
Raction Drive, Hydr, Right
Ater-Filled Tyres
Feed,Traction Drive(Hydraulic)
Brake (Hydraulic)
Alve Block Brakee
Differential Pawl, Hydr.
Control Block
Road Travel Hydraulic
Owing Attachment Hydr.
Reverse Motion Horn
Steering System
Steering (Hydr.)
Steering, Front
Direction Indicator
Push-Roller
Material Hopper
Hopper Side, Left (Hydraulic)
Hopper Side, Sight (Hydraulic)
Hopper Front (Hydraulic)
Return Pulley
Bottom Plate
Driving Shaft Conveyor
Conveyor Chain
Drive Conveyor
Drive Conveyor, Left Side
Drive Conveyor(R) Hyd
Control Mechanical Sensor
Suspension Augers
Auger Drive
Auger Drive Chain Adjuster
Auger, Left (Hydraulic)
Auger, Right (Hydraulic)
Height Adjustment, Mechanical
Height Adjustment, Auger Hydr.
Auger Shaft With Searing
Control Sensor For Auger
Sonic Sensor Auger
Limiting Plate Auger Tunnel
Auger Extension 4, 2m
Auger Extension 4, 5m
Niveltronic Plus, Basic
Bracket 2nd Sensor
Mechanical Sonic Sensor
Sonic Sensor
Ultrasonic Sensor
Slope Sensor
Laser Sensor
Accessories For Stringline
Cleaning Pump
Cleaning Pump With Tank
Spray Hose
Spray Pump
Rewinder
Screed Arms
Hydraulic Ram, Left Side
Hydraulic Ram, Right Side
Screed Lift-Lower
Screed Assist (Hydraulic)
Valve Block
Width Control Screed
Tamper Hydraulics
Vibration Hydraulics
Service Kit 50 Hours
Service Kit 500 Hours
Service Kit 1000 Hours
Vss Material Hopper
Return Pulley
Vss Drive Shaft, Left Side
Vss Drive Shaft, Right Side
Vss Auger
Shop Kit
Accessories
