Name: Vogele Asphalt Paver SUPER 1900-2 SUPER 2100-2 07.19 2043371 Spare Parts Catalog
SKU: 518367
Price: 20.00 USD
Availability: InStock

Vogele Asphalt Paver SUPER 1900 2 SUPER 2100 2 07.19 2043371 Spare Parts Catalog (1)

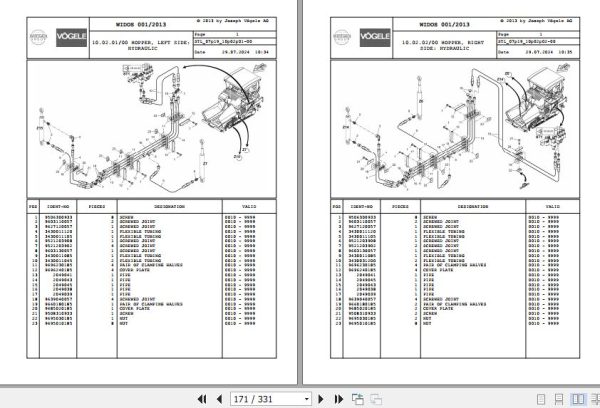

Vogele Asphalt Paver SUPER 1900 2 SUPER 2100 2 07.19 2043371 Spare Parts Catalog (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Vogele Asphalt Paver SUPER 1900-2 SUPER 2100-2 07.19 2043371 Spare Parts Catalog

Size: 45.0 MB

Format: PDF

Language: English

Brand: Vogele

Type of Machine: Asphalt Paver

Type of Document: Parts Manual

Model: Vogele SUPER 1900-2, SUPER 2100-2 Asphalt Paver

Year: 2013

Number of Pages: 331 Pages

20 USD

Tags: Vogele Asphalt Paver PDF, Vogele Parts Catalog

Description

Description

Contents:
Signs And Warnings Left
Signs And Warnings Right
Signs And Warnings Rear
Signs And Warnings Left USA
Signs And Warnings Right USA
Signs And Warnings Rear USA
Cover Panel
Sound Proofing Covers
Engine Hood
Lighting, Xenon In Roof
Lighting, Halogen Lamps
Lighting Balloon With Support
Lighting Balloon With Bracket
Working Light
Rotary Beacon
Collision Protection,Mech.
Collision Protection,Elec.
Chassis
Additional Weight
Control Desk
Console Rail Power Cable
Mount For Seat With Guard Rail
Lateral Operator’s Console
Poles Canopy
Front Window
Canopy
Cover Panel
Front Cover
Power Unit
Diesel Engine
Power Unit
Silencer
Air Intake
Cooling System
Refuelling System
Hydraulic Tank
Panolin Partial Flow Filter
Pump Hydraulic Rams
Leakage
Conveyor,Left Side (Hydraulic)
Conveyor,Right Side(Hydraulic)
Return Pipe
Belt Up Down Ip
Valve Block Hydraulic Rams 2
Valve Block
Power Supply, 24 V
Plug Socket,Schuko
Control Box Compl.
Control Box Mechanical
Control Box Mounting Plate
Control Box Control Unit
Control Box Plug Sockets
Wire Harness
Can Node
Heating Box Complete
Heating Box Mechanical
Heating Box Connecting Plate
Heating Box Control Unit2
Heating Box Plug Socket
Generator Power
Crawler Track, Right Side
Tension Adjuster
Traction Transmission
Traction Drive, Hydr, Right
Control,Traction Drive
Adjusting Pressure
Deflector, Left Side
Deflector, Right Side
Direction Indicator
Automatic Steering Control
Tube
Material Hopper
Hopper, Right Side Hydraulic
Hopper Front (Mechanical)
Hopper Front (Hydraulic)
Operating Instructions Warning
Accessories Reservoir
Return Pulley Compl.
Return Pulley
Bottom Plate
Bottom Plate Crushed Stone
Conveyor Chain
Guard For Conveyor
Drive Conveyor, Right Side
Drive Conveyor(R) Hyd
Suspension Augers
Auger Drive
Gearbox Auger, Left Side
Gearbox Auger,Lh Crushed Stone
Gearbox Auger,Rh Crushed Stone
Auger Drive Right Side
Vertical Adjustment
Height Adjustment, Auger Hydr.
Auger
Shaft With Bearing 1110mm
Shaft With Bearing 2370mm
Mechanical Sensor
Limiting Plate Auger Tunnel
Auger Fin, Left Side
Auger Fin, Left Side
Auger Fin, Right Side
Auger Extension 2×0,65m
Auger Extension 2×1,0m
Auger Extension 2×1,2m
Auger Width 4,6m
Auger Width 7,1m
Auger Width 9,7m
Auger Fin 1,2m Crushed Stone
Niveltronic Plus, Basic
Bracket 2nd Sensor
Levelling Sensor
Sonic Sensor
Ultrasonic Sensor
Slope Sensor
Laser Sensor
Big-Multiplex-Ski
Ski 2m
Averaging Beam 7m
Cleaning Pump
Washdown System With Tank
Spray Hose
Rewinder
Screed Arms
Hydraulic Ram, Left Side
Hydraulic Ram, Right Side
Screed Assist
Valve Block
Screed Lock (Hydraulic)
Hydraulics For Screed Lock
Tamper
Tamper 80l
Vibration Pressure Bar1
Screed, High Compaction
Control Block
Hydraulic Elements
Grease Lubrication Unit
Grease Pump
Service Kit 50 Hours
Service Kit 500 Hours
Service Kit 1000 Hours
Vss Hopper Front, Hydraulic
Vss Return Pulley
Vss Auger Blade
Vss Auger
Accessories
