Name: Vogele Asphalt Paver SUPER 1900 SUPER 2100 06.19 5000000003 Spare Parts Catalog
SKU: 518366
Price: 20.00 USD
Availability: InStock

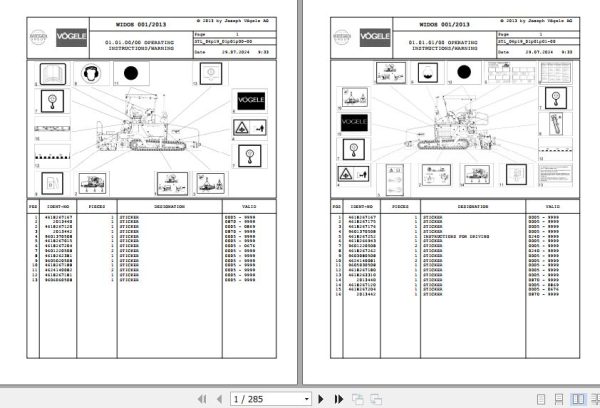

Vogele Asphalt Paver SUPER 1900 SUPER 2100 06.19 5000000003 Spare Parts Catalog (1)

Vogele Asphalt Paver SUPER 1900 SUPER 2100 06.19 5000000003 Spare Parts Catalog (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Vogele Asphalt Paver SUPER 1900 SUPER 2100 06.19 5000000003 Spare Parts Catalog

Size: 30.0 MB

Format: PDF

Language: English

Brand: Vogele

Type of Machine: Asphalt Paver

Type of Document: Parts Manual

Model: Vogele SUPER 1900, SUPER 2100 Asphalt Paver

Year: 2013

Number of Pages: 285 Pages

20 USD

Tags: Vogele Asphalt Paver PDF, Vogele Parts Catalog

Description

Description

Contents:
Operating Instructions Warning
Panel, Left Side (Super 1900)
Sound Insulation, Left (S1900)
Sound Insulation, Left Side
Panel, Left Side (Super 2100)
Sound Insulation, Left (S2100)
Panel, Right Side
Insulation Sound Heat
Covering
Footstep
Control Desk
Control Desk Electrics-1
Platform
Lifting Gear Platform
Driver’s Seat With Guardrail
Remote Control
Canopy Rear View Mirror
Protection Roof
Windscreen With Wiper
Canopy With Sides, Rear, Front
Rear View Mirror
Tools
Power Unit (Super 1900)
Additional Parts Engine
Silencer
Air Intake (Super 2100)
Engine Throttle Control
Refuelling System
Tank Hydraulic Pump
Pump Hydraulic Rams
Oil Supply Traction Drive
Pump Conveyor, Left Side
Pump Conveyor, Right Side
Return Pipe
Voltage Supply
Plug Sockets
Plug Sockets (Additional)
Switch Box
Control Box Screed Heating
Three-Phase A.C. Generator
Crawler Track, Right Side
Crawler Track, Left Side
Roller Crawler Track
Spring Assembly
Traction Drive, Right Side
Brake
Deflector, Right Side
Reverse Motion Horn
Automatic Steering Control
Push-Roller
Material Hopper
Hopper Side, Left (Hydraulic)
Hopper Side, Right (Hydraulic)
Hopper Front (Mechanical)
Return Pulley
Bottom Plate
DrIVing Shaft Conveyor
Guard For Conveyor
Drive Conveyor, Right Side
Drive Conveyor, Left Side
Monitoring Conveyor
Auger Bearing (Super 1900)
Auger Bearing (Super 2100)
Gearbox Auger, Left (S 1900)
Gearbox Auger, Left (S 2100)
Gearbox Auger, Right (S 1900)
Drive Auger (Super 1900)
Drive Auger (Super 2100)
Auger Drive Left Side
Speed Control Auger
Sonic Sensor Auger
Monitoring Unit Auger
Auger Extension 2×1,0m
Auger Extension 4, 6m
Auger Extension 4, 6-7,1m
Auger Extension 7, 1-9,7m
Bearing Block, Left Side S1900
Adjustment Auger Height
NIVeltronic Basics
Handset
Bracket 2nd Sensor
Sonic Sensor
Slope Sensor
Roadscan System
Ski 2m
Accessories For Stringline
Washdown System With Tank
Switch
Spray Assembly
Rewinder
Screed Arms (Super 1900)
Screed Arms (Super 2100)
Hydraulic Ram, Left Side
Hyd Ram Screed Up Down
Screed Assist
Screed Lock (Mechanical)
Tamper 40l
Tamper 80l
Pump Screed Up Down
Grease Lubrication Unit
Lubrication System Auger
Pump
Filling Grease Reservoir
Service Kit 50 Hours
Service Kit 500 Hours
Service Kit 1000 Hours
Service Package
Accessories Super 1900
Accessories Super 2100
