Name: Wacker Neuson Trench Roller RT 56SC RT 82SC-2 Operating Manual 369808986
SKU: 446380
Price: 10.00 USD
Availability: InStock

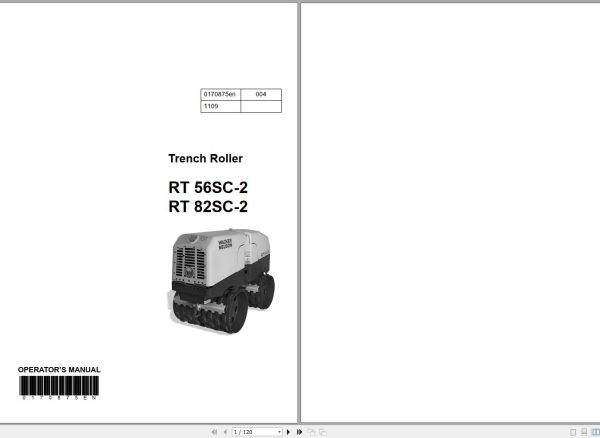

Wacker Neuson Trench Roller RT 56SC RT 82SC 2 Operating Manual 369808986 1

Wacker Neuson Trench Roller RT 56SC RT 82SC 2 Operating Manual 369808986 2

Wacker Neuson Trench Roller RT 56SC RT 82SC 2 Operating Manual 369808986 3

✓

Expert Support

✓

Full Speed

✓

100% Working

Wacker Neuson Trench Roller RT 56SC RT 82SC-2 Operating Manual 369808986

Size: 13.18 MB

Format: PDF

Language: English

Brand: Wacker Neuson

Type of Machine: Trench Roller

Type of Manual: Operating Manual

Model: Wacker Neuson RT 56SC, RT 82SC-2 Trench Roller

Part Number: 369808986

Number of Pages: 120 Pages

10 USD

Tag: Wacker Neuson Heavy Equipment Manual

Description

Description

Contents:
Foreword
1 Safety Information
1.1 Laws Pertaining to Spark Arresters
1.2 Operating Safety
1.3 Operator Safety while using Internal Combustion Engines
1.4 Service Safety
1.5 Warning and Informational Labels
2 Operation
2.1 Operation and Service Locations
2.2 Application
2.3 Control Features
2.4 Accessing the Engine or Hydraulic Compartment
2.5 Accessing the Control Compartment
2.6 Control Panel
2.7 SmartControlâ„¢ SC-2 Transmitter
2.8 Infra-red System and Control Channels
2.9 Before Starting
2.10 Starting
2.11 Stopping
2.12 Light Ring Color Codes
2.13 Operation
2.14 Position of Operator
2.15 Range Limits
2.16 Operating Characteristics
2.17 NiMH Battery
2.18 Replacing the Battery Pack
2.19 Charging Transmitter Battery
2.20 Operation on Slopes
2.21 Articulated Joint Locking Bar
2.22 Tip-Overs
2.23 Overview of the ECM and the Diagnostic Tool
2.24 ECM Stages of Engine Start Up
2.25 ECM Monitoring of Solenoids
2.26 Connecting the Diagnostic Tool
2.27 ECM Tip-Over Modes
2.28 Programming the ECM Tip-Over Mode
2.29 Entering the ECM Diagnostic Mode
2.30 ECM Fault and Error Codes
2.31 Resetting the ECM Diagnostic Data and the Tip-Over Light
2.32 Calibrating the Joysticks
3 Maintenance
3.1 Transporting Machine
3.2 Lifting Machine
3.3 Job Site Storage
3.4 Storage
3.5 New Machines
3.6 Periodic Maintenance Schedules
3.7 Hydraulic Oil Requirements
3.8 Hydraulic Oil Level
3.9 Changing Hydraulic Oil & Filter
3.10 Articulated Joint, Steering Cylinder, and Hood Hinges
3.11 Cleaning SmartControlâ„¢ Transmitter
3.12 Drive Gearcase
3.13 Exciter Lubrication
3.14 Scrapers
3.15 Shockmounts
3.16 Changing Drums
3.17 Battery
3.18 Engine Oil System
3.19 Engine Oil and Filter
3.20 Air Cleaner
3.21 Engine Fuel Delivery System Maintenance
3.22 Fuel Filter
3.23 Priming the Fuel System
3.24 Engine Coolant
3.25 Valve Clearances
3.26 Adjusting Engine Fan Belt
3.27 Basic Troubleshooting
4 Technical Data
4.1 Engine
4.2 Roller
4.3 Lubrication
4.4 Sound and Vibration Measurements
4.5 Dimensions
4.6 Electrical Schematic
4.7 Electrical Components
4.8 Hydraulic Schematic
4.9 Hydraulic Components
