White Planters 8516 8523 8524 8531 Parts Catalog 00727143

Description

Contents:
Publication Information

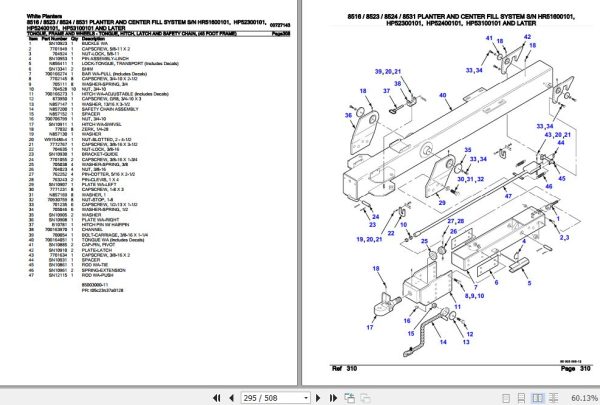

Drives – Upper Drive (30 And 40 Foot Frame)
Drives – Upper Drive (45 Foot Frame)
Drives – Driveline Assembly, (700722933 Driveline Assembly), (Prior To S.N. Hr)
Drives – Driveline Assembly, (700724804 Driveline Assembly), (S.N. Hr And Later)
Drives – Upper Drive (60 Foot Frame)
Drives – Row Unit Drive-Center, L (30 Foot Frame)
Drives – Row Unit Drive-Center, R (30 Foot Frame)
Drives – Wing Row Unit Drive-L (30 Foot Frame)
Drives – Wing Row Unit Drive-R (30 Foot Frame)
Drives – Wing Drive Idler (8523 And 8531)
Drives – Row Unit Drive (30 40 45 Foot Frame)
Drives – Row Unit Drive-Center, L (40 Foot Frame)
Drives – Row Unit Drive-Center, R (40 Foot Frame)
Drives – Wing Row Unit Drive-L (40 Foot Frame)
Drives – Wing Row Unit Drive-R (40 Foot Frame)
Drives – Row Unit Drive-Shield (8516)
Drives – Row Unit Drive-Center (45 Foot Frame)
Drives – Wing Row Unit Drive-L (45 Foot Frame)
Drives – Wing Row Unit Drive-R (45 Foot Frame)
Drives – Wing Idler (40 And 45 Foot Frame)
Drives – Row Unit Drive-Center, L (60 Foot Frame)
Drives – Row Unit Drive-Center, R (60 Foot Frame)
Drives – Wing Row Unit Drive-Left (60 Foot Frame)
Drives – Wing Row Unit Drive-Right(60 Foot Frame)
Drives – Row Unit Drive (60 Foot Frame)
Drives – Row Unit Drive Tightener (60 Foot Frame)
Drives – Drive Chains

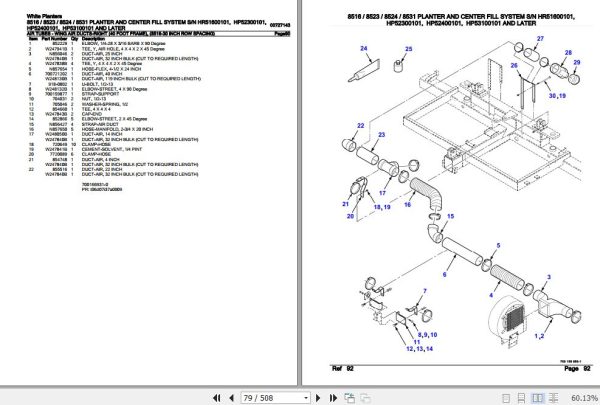

Air Tubes – Air Ducts-Center, Left (40 Foot Frame), (8516-30 Inch Row Spacing)
Air Tubes – Air Ducts-Center, Right (40 Foot Frame), (8516-30 Inch Row Spacing)
Air Tubes – Wing Air Ducts-Left (40 Foot Frame), (8516-30 Inch Row Spacing)
Air Tubes – Wing Air Ducts-Right (40 Foot Frame), (8516-30 Inch Row Spacing)
Air Tubes – Air Ducts-Center, Left (30 Foot Frame), (8523-15 Inch Row Spacing)
Air Tubes – Air Ducts-Center, Right (30 Foot Frame), (8523-15 Inch Row Spacing)
Air Tubes – Air Ducts-Center, Left (30 Foot Frame), (8523 8531-15 Inch Row Spacing)
Air Tubes – Air Ducts-Center, Right (30 Foot Frame), (8523 8531-15 Inch Row Spacing)
Air Tubes – Wing Air Ducts-Left (30 Foot Frame), (8523-15 Inch Row Spacing)
Air Tubes – Wing Air Ducts-Right (30 Foot Frame), (8523-15 Inch Row Spacing)
Air Tubes – Air Ducts-Center, Left (40 Foot Frame), (8524-20 Inch Row Spacing), (8531-15 Inch Row Spacing)
Air Tubes – Air Ducts-Center, Right (40 Foot Frame), (8524-20 Inch Row Spacing), (8531-15 Inch Row Spacing)
Air Tubes – Air Ducts-Center, L R (40 Foot Frame), (8524-20 Inch Row Spacing)
Air Tubes – Wing Air Ducts-Left (40 Foot Frame), (8524-20 Inch Row Spacing)
Air Tubes – Wing Air Ducts-Right (40 Foot Frame), (8524-20 Inch Row Spacing)
Air Tubes – Air Ducts-Center, Left (45 Foot Frame), (8524-22 Inch Row Spacing)
Air Tubes – Air Ducts-Center, Right (45 Foot Frame), (8524-22 Inch Row Spacing)
Air Tubes – Air Ducts-Center, L R (45 Foot Frame), (8524-22 Inch Row Spacing)
Air Tubes – Wing Air Ducts-Left (45 Foot Frame), (8524-22 Inch Row Spacing)
Air Tubes – Wing Air Ducts-Right (45 Foot Frame), (8524-22 Inch Row Spacing)
Air Tubes – Air Ducts-Center, Left (60 Foot Frame), (8524-30 Row Spacing)
Air Tubes – Air Ducts-Center, Right (60 Foot Frame), (8524-30 Inch Row Spacing)
Air Tubes – Air Ducts-Center, Left (60 Foot Frame), (8524-30 Inch Row Spacing)
Air Tubes – Wing Air Ducts-Left (60 Foot Frame), (8524-30 Inch Row Spacing)
Air Tubes – Wing Air Ducts-Right (60 Foot Frame), (8524-30 Inch Row Spacing)
Air Tubes – Air Pressure Gauges And Mounting
Electrical – Transport Lights-Front (30 Foot Frame)
Electrical – Transport Lights-Rear (30 Foot Frame)
Electrical – Transport Lights-Front(40 45 Foot Frame)
Electrical – Transport Lights-Rear (40 45 Foot Frame)
Electrical – Transport Lights-Front (60 Foot Frame)
Electrical – Transport Lights-Rear (60 Foot Frame)
Electrical – Valve Driver Harness-Front
Electrical – Valve Driver Harness-Rear
Electrical – Control Box Assembly, (Sn12321 Control Box Assembly)
Electrical – Marker Tongue Fold Valve Harness-Front
Electrical – Lift And Lower Valve Harness-Rear
Electrical – Switch Assembly
Electrical – Rate Controller And Mounting (Pc4000)
Electrical – Rate Controller Harness
Electrical – Radar Y Harness
Electrical – Radar Distance Sensor And Mounting
Electrical – Monitor Assembly-Up To 32 Row (Sm4000)
Electrical – Sm4000 Harness-32 Row (High Rate)
Electrical – Monitor Harness Asm-16 Row (High Rate), (30 Inch Row Spacing)
Electrical – Monitor Harness-23 Row (High Rate), (15 Inch Row Spacing)
Electrical – Monitor Harness Asm-24 Row (High Rate), (20 Inch Row Spacing)
Electrical – Monitor Harness Asm-24 Row (High Rate), (22 Inch Row Spacing)
Electrical – Monitor Harness Asm-24 Row (High Rate), (30 Inch Row Spacing)
Electrical – Monitor Harness Asm-31 Row (High Rate), (15 Inch Row Spacing)
Electrical – Sensor And Tube (High Rate)
Electrical – Harness-Sm4000 (Seed Smart)
Electrical – Harness-Adapter, Sm4000 (Seed Smart)
Electrical – Sensor Harness-Extensions (Seed Smart)
Electrical – Sensor And Tube (Seed Smart)
Electrical – Speed Sensor (30, 40 And 45 Foot Frame)
Electrical – Speed Sensor (60 Foot Frame)
Electrical – Electrical Service Parts
Row Units – Row Unit
Row Units – Row Unit-With Extension
Row Units – Tightener
Row Units – Row Unit-Lower
Row Units – Disc Assembly, (700155037 Disc Assembly)
Row Units – Row Unit Lockup
Row Units – Seed Meter
Row Units – Seed Disc Identification Chart
Row Units – Gauge Wheel Mounting
Row Units – Depth Adjustment
Row Units – Gauge Wheel Assembly-Left
Row Units – Gauge Wheel Assembly-Right
Row Units – Gauge Wheel Assembly, (N859182 Gauge Wheel Assembly)
Row Units – Closing Wheel Assembly (Rubber), (S.N. Hl——– Thru Hp——–)
Row Units – Closing Wheel Assembly (Rubber), (854262 Closing Wheel Assembly)
Row Units – Closing Wheel Assembly (Rubber), (S.N. Hr——- And Later)
Row Units – Closing Wheel Assembly (Cast), (S.N. Hl——– Thru Hp——–)
Row Units – Closing Wheel Assembly (Cast), (854077 Closing Wheel Assembly), (Left Side Shown, Right Side Opposite)
Row Units – Closing Wheel Kit (Cast), (S.N. Hr——- And Later)
Row Units – Single Closing Wheel Assembly
Row Units – Seed Module And Mounting
Row Units – Seed Tubes And Manifolds
Row Units – Seed Tubes And Mounting
Row Units – Seed Tube Dividers And Mounting (8531), (40 Foot Frame)
Row Units – Meter Cover
Row Units – Seed Module Blower Assembly, (700724688 Blower Assembly)
Row Units – 2 Bushel Hopper And Mounting
Row Units – 3 Bushel Hopper And Mounting
Row Units – Seed Meter Funnel
Markers – Marker Assembly-Left (30 Foot Frame)
Markers – Marker Assembly-Right (30 Foot Frame)
Markers – Marker Mounting-L R (30 Foot Frame)
Markers – Marker-Left (40 Foot Frame)
Markers – Marker-Left, Continued (40 Foot Frame)
Markers – Marker-Right (40 Foot Frame)
Markers – Marker-Right, Continued (40 Foot Frame)
Markers – Marker-Left (45 Foot Frame)
Markers – Marker-Left, Continued (45 Foot Frame)
Markers – Marker-Right (45 Foot Frame)
Markers – Marker-Right, Continued (45 Foot Frame)
Markers – Marker Disc-Notched And Mounting
Markers – Markers-Left And Right (60 Foot Frame)
Markers – Markers-L R, Continued (60 Foot Frame), (Left Shown, Right Opposite)
Markers – Marker Gauge Wheel Assembly-Left Right, (45 And 60 Foot Frame), (Right Side Shown, Left Side Opposite)
Markers – Marker Hub Assembly-Left And Right, (700157278 Marker Hub Assembly)
Tongue, Frame And Wheels – Hitch And Tongue Braces
Tongue, Frame And Wheels – Tongue, Hitch, Latch And Safety Chain, (30 Foot Frame)
Tongue, Frame And Wheels – Tongue, Hitch, Latch And Safety Chain, (40 Foot Frame)
Tongue, Frame And Wheels – Tongue, Hitch, Latch And Safety Chain, (45 Foot Frame)
Tongue, Frame And Wheels – Tongue, Hitch, Latch And Safety Chain, (60 Foot Frame)
Tongue, Frame And Wheels – Mainframe And Wings (30 40 Foot Frame)
Tongue, Frame And Wheels – Mainframe And Wings (45 Foot Frame)
Tongue, Frame And Wheels – Mainframe And Wings (60 Foot Frame)
Tongue, Frame And Wheels – Wings-Left And Right (30 Foot Frame)
Tongue, Frame And Wheels – Wings-Left And Right (40 Foot Frame)
Tongue, Frame And Wheels – Wings-Left And Right (45 Foot Frame)
Tongue, Frame And Wheels – Wings-Left And Right (60 Foot Frame)
Tongue, Frame And Wheels – Lift Wheel And Mounting
Tongue, Frame And Wheels – Hub Assembly
Tongue, Frame And Wheels – Center Frame And Row Unit Mounting, (8516-30 Inch Row Spacing)
Tongue, Frame And Wheels – Center Frame And Row Unit Mounting, (8524-20 Inch Row Spacing), (8531-15 Inch Row Spacing)
Tongue, Frame And Wheels – Center Frame And Row Unit Mounting(8524), (8524-22 Inch Row Spacing)
Tongue, Frame And Wheels – Wing Frame & Row Unit Mounting-L R(8516), (8516-40 Foot Frame,30 Inch Row Spacing)
Tongue, Frame And Wheels – Wing Frame & Row Unit Mounting-L R(8523), (8523-30 Foot Frame,15 Inch Row Spacing)
Tongue, Frame And Wheels – Wing Frame & Row Unit Mounting-L R(8524), (8524-20 Inch Row Spacing)
Tongue, Frame And Wheels – Wing Frame & Row Unit Mounting-L R(8524), (8524-22 Inch Row Spacing)
Tongue, Frame And Wheels – Wing Frame & Row Unit Mounting-L R(8531), (8531-40 Foot Frame,15 Inch Row Spacing)
Tongue, Frame And Wheels – Tube Mounting Supports
Tongue, Frame And Wheels – Seed Module Frame, Rails And Mounting
Hydraulics – Hydraulic Pto Drive And Pump Mounting, (30, 40 And 45 Foot Frame)
Hydraulics – Hydraulic Pto Drive And Pump Mounting, (60 Foot Frame)
Hydraulics – Pto Hydraulic Drive And Pump Mounting
Hydraulics – Hydraulics-Rear (30 Foot Frame)
Hydraulics – Hydraulics-Rear (40 Foot Frame)
Hydraulics – Hydraulics-Rear (45 Foot Frame)
Hydraulics – Hydraulics-Rear (60 Foot Frame)
Hydraulics – Hydraulic Valve Assembly, (N858339 Hydraulic Valve Assembly)
Hydraulics – Hydraulic Valve Assembly, (700724543 Hydraulic Valve Assembly)
Hydraulics – Blower
Hydraulics – Hydraulic Blower Motor Assembly, (W247830b Hydraulic Blower Motor Asm.)
Hydraulics – Hydraulic Drive Motor And Mounting, (30, 40 And 45 Foot Frame)
Hydraulics – Hydraulic Drive Motor And Mounting, (60 Foot Frame)
Hydraulics – Row Unit Hydraulic Drive Motor Assembly, (854428 Hydraulic Motor Assembly)
Hydraulics – Center Fill Blower Hydraulics, (30 Foot Frame)
Hydraulics – Center Fill Blower Hydraulics, (40, 45 And 60 Foot Frame)
Hydraulics – Blower Hydraulic Control Valve Assembly, (700723571 Blower Control Valve Asm.)
Hydraulics – Tongue Lift Hydraulics
Hydraulics – Tongue Lift Hydraulic Cylinder Assembly, (N857145 Hydraulic Cylinder Assembly)
Hydraulics – Lift And Lower Hydraulics, (30 Foot Frame)
Hydraulics – Lift And Lower Hydraulics, (40, 45 And 60 Foot Frame)
Hydraulics – Hydraulic Flow Divider Assembly, (Sn12354 Hydraulic Flow Divider Asm.), (30 Foot Frame)
Hydraulics – Hydraulic Flow Divider Assembly, (Sn10977 Hydraulic Flow Divider Asm.), (40, 45 And 60 Foot Frame)
Hydraulics – Lift And Lower Hydraulics-Left, (30 Foot Frame)
Hydraulics – Lift And Lower Hydraulics-Right, (30 Foot Frame)
Hydraulics – Lift And Lower Hydraulics-Left, (40 Foot Frame)
Hydraulics – Lift And Lower Hydraulics-Right, (40 Foot Frame)
Hydraulics – Lift And Lower Hydraulics-Left, (45 Foot Frame)
Hydraulics – Lift And Lower Hydraulics-Right, (45 Foot Frame)
Hydraulics – Lift And Lower Hydraulics-Left, (60 Foot Frame)
Hydraulics – Lift And Lower Hydraulics-Right, (60 Foot Frame)
Hydraulics – Fold Hydraulics-Left, (30 Foot Frame)
Hydraulics – Fold Hydraulics-Right, (30 Foot Frame)
Hydraulics – Fold Hydraulics-Left, (40 Foot Frame)
Hydraulics – Fold Hydraulics-Right, (40 Foot Frame)
Hydraulics – Fold Hydraulics-Left, (45 Foot Frame)
Hydraulics – Fold Hydraulics-Right, (45 Foot Frame)
Hydraulics – Fold Hydraulics-Center, (30, 40 And 45 Foot Frame)
Hydraulics – Hydraulic Cylinder Assembly-Fold, (N857064 Hydraulic Cylinder Assembly), (30, 40 And 45 Foot Frame)
Hydraulics – Fold Hydraulics-Left, (60 Foot Frame)
Hydraulics – Fold Hydraulics-Right, (60 Foot Frame)
Hydraulics – Fold Hydraulics-Center, (60 Foot Frame)
Hydraulics – Hydraulic Cylinder Assembly-Fold, (700723886 Hydraulic Cylinder Assembly), (60 Foot Frame)
Hydraulics – Wheel Lift Hydraulics-Center, Left, (30 Foot Frame)
Hydraulics – Wheel Lift Hydraulics-Center, Right, (30 Foot Frame)
Hydraulics – Wheel Lift Hydraulics-Center, Left, (40, 45 And 60 Foot Frame)
Hydraulics – Wheel Lift Hydraulics-Center, Right, (40, 45 And 60 Foot Frame)
Hydraulics – Wing Wheel Lift Hydraulics-Left Right, (30 Foot Frame)
Hydraulics – Wing Wheel Lift Hydraulics-Left Right, (40, 45 And 60 Foot Frame)
Hydraulics – Hydraulic Cylinder Assembly-Wheel Lift, (N857162 Cylinder Assembly-Hydraulic)
Hydraulics – Hydraulic Flow Divider Asm.-Wheel Lift, (N857568 Hydraulic Flow Divider Asm.)
Hydraulics – Marker Hydraulics-Front (30 40 45 Frame)
Hydraulics – Marker Hydraulics-Front (60 Foot Frame)
Hydraulics – Sequencing Valve Assembly, (Ba0282 Hydraulic Sequencing Valve Asm.), (30, 40 And 45 Foot Frame)
Hydraulics – Sequencing Valve Assembly, (700157702 Hydraulic Valve Assembly), (60 Foot Frame)
Hydraulics – Hydraulic Valve Assembly-Marker Fold, (Sn12313 Hydraulic Valve Assembly)
Hydraulics – Marker Hydraulics-Left (30 Foot Frame)
Hydraulics – Marker Hydraulics-Right (30 Foot Frame)
Hydraulics – Marker Hydraulics-Left (40 Foot Frame)
Hydraulics – Marker Hydraulics-Right (40 Foot Frame)
Hydraulics – Marker Hydraulics-Left (45 Foot Frame)
Hydraulics – Marker Hydraulics-Right (45 Foot Frame)
Hydraulics – Marker Hydraulics-Left (60 Foot Frame)
Hydraulics – Marker Hydraulics-Right (60 Foot Frame)
Hydraulics – Marker Hydraulics-Mounting, Left Right, (30 Foot Frame)
Hydraulics – Marker Hydraulic Cylinder Assembly, (855104 Hydraulic Cylinder Assembly), (30 Foot Frame)
Hydraulics – Marker Mounting Hydraulics, (40 And 45 Foot Frame)
Hydraulics – Marker Hydraulic Cylinder Assembly, (N857082 Hydraulic Cylinder Assembly), (40 And 45 Foot Frame)
Hydraulics – Marker Mounting Hydraulics, (60 Foot Frame)
Hydraulics – Marker Hydraulic Cylinder Assembly, (Sn12427 Hydraulic Cylinder Assembly), (60 Foot Frame)
Decals And Kits – Decals-Frame And Tongue (8523), (30 Foot Frame)
Decals And Kits – Decals-Frame And Tongue (8524 8531), (40 And 45 Foot Frame)
Decals And Kits – Decals-Tongue And Frame (8524), (60 Foot Frame)
Decals And Kits – Decals-Center Fill System
Decals And Kits – Decals-Hoppers (Center)
Decals And Kits – Decals-Hopper (Wings)
Decals And Kits – Decals-Center Fill System (Center)
Decals And Kits – Decals-Center Fill System (Wings)
Decals And Kits – Decals-Marker (8523), (Left Shown, Right Opposite)
Decals And Kits – Decals-Marker (8524), (40 And 45 Foot Frame)
Decals And Kits – Decals-Marker (8524), (60 Foot Frame)
Decals And Kits – Seed Meter Funnel Kit, (6000628 Seed Meter Funnel Kit)
Decals And Kits – Pto Coupler Kit-1000 Rpm, 1-3 8 Inch, (6000748 Pto Coupler Kit-1000 Rpm)
Decals And Kits – Pto Coupler Kit-1000 Rpm, 1-3 4 Inch, (6000747 Pto Coupler Kit-1000 Rpm)
Decals And Kits – Seed Disc Identification Chart
Recommended Dealer Stock – Recommended Dealer Stock
