Name: White Seed Boss Planter 5100 5700 Series Parts Catalog W438257
SKU: 441936
Availability: InStock

White Seed Boss Planter 5100 5700 Series Parts Catalog W438257 1

White Seed Boss Planter 5100 5700 Series Parts Catalog W438257 2

White Seed Boss Planter 5100 5700 Series Parts Catalog W438257 3

✓

Expert Support

✓

Full Speed

✓

100% Working

White Seed Boss Planter 5100 5700 Series Parts Catalog W438257

Size: 6.34 MB

Format: PDF

Language: English

Brand: White

Type of Machine: Seed Boss Planter

Type of Manual: Parts Catalog

Model:

White 5100 Series Seed Boss Planter

White 5700 Series Seed Boss Planter

Part Number: W438257

Number of Pages: 180 Pages

20 USD

Tag: White Parts Catalog

Description

Description

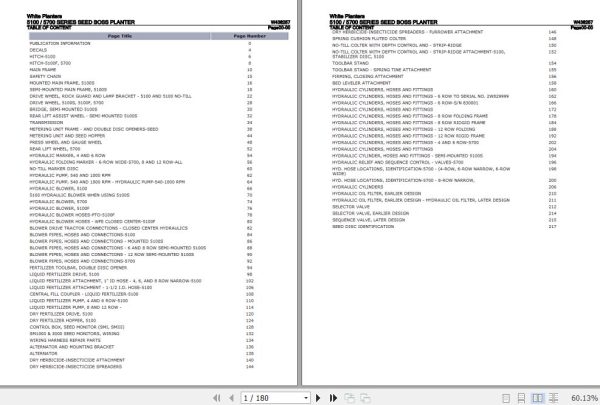

Contents:
Publication Information
Decals
Hitch-5100
Hitch-5100f, 5700

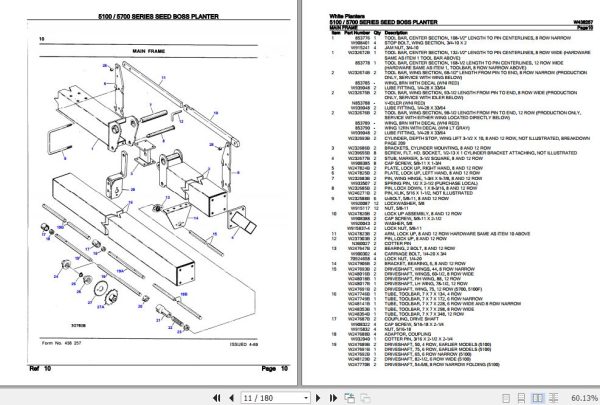

Main Frame
Safety Chain
Mounted Main Frame, 5100s
Semi-Mounted Main Frame, 5100s
Drive Wheel, Rock Guard And Lamp Bracket – 5100 And 5100 No-Till
Drive Wheel, 5100s, 5100f, 5700
Bridge, Semi-Mounted 5100s
Rear Lift Assist Wheel – Semi-Mounted 5100s
Transmission
Metering Unit Frame – And Double Disc Openers-Seed
Metering Unit And Seed Hopper
Press Wheel And Gauge Wheel
Rear Lift Wheel, 5700
Hydraulic Marker, 4 And 6 Row
Hydraulic Folding Marker – 6-Row Wide-5700, 8 And 12 Row-All
No-Till Marker Disc
Hydraulic Pump, 540 And 1000 Rpm
Hydraulic Pump, 540 And 1000 Rpm – Hydraulic Pump-540-1000 Rpm
Hydraulic Blower, 5100
5100 Hydraulic Blower When Using 5100s
Hydraulic Blower, 5700

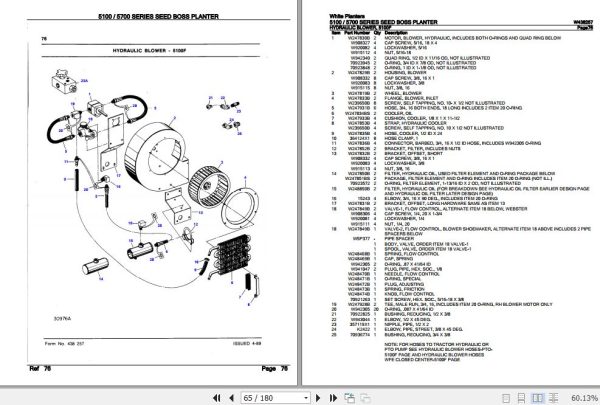

Hydraulic Blower, 5100f
Hydraulic Blower Hoses-Pto-5100f
Hydraulic Blower Hoses – Wfe Closed Center-5100f
Blower Drive Tractor Connections – Closed Center Hydraulics
Blower Pipes, Hoses And Connections-5100
Blower Pipes, Hoses And Connections – Mounted 5100s
Blower Pipes, Hoses And Connections – 6 And 8 Row Semi-Mounted 5100s
Blower Pipes, Hoses And Connections – 12 Row Semi-Mounted 5100s
Blower Pipes, Hoses And Connections-5700
Fertilizer Toolbar, Double Disc Opener
Liquid Fertilizer Drive, 5100
Liquid Fertilizer Attachment, 1 Id Hose – 4, 6, And 8 Row Narrow-5100
Liquid Fertilizer Attachment – 1-1 2 I.D. Hose-5100
Central Fill Coupler – Liquid Fertilizer-5100
Liquid Fertilizer Pump, 8 And 12 Row –
Dry Fertilizer Drive, 5100
Dry Fertilizer Hopper, 5100
Control Box, Seed Monitor (Smi, Smiii)
Sm1000 & 3000 Seed Monitors, Wiring
Wiring Harness Repair Parts
Alternator And Mounting Bracket
Alternator
Dry Herbicide-Insecticide Attachment
Dry Herbicide-Insecticide Spreaders
Dry Herbicide-Insecticide Spreaders – Furrower Attachment
Spring Cushion Fluted Colter
No-Till Colter With Depth Control And – Strip-Ridge
No-Till Colter With Depth Control And – Strip-Ridge Attachment-5100, Stabilizer Disc, 5100
Toolbar Stand
Toolbar Stand – Spring Tine Attachment
Firming, Closing Attachment
Bed Leveler Attachment
Hydraulic Cylinders, Hoses And Fittings
Hydraulic Cylinders, Hoses And Fittings – 6 Row To Serial No. 2w829999
Hydraulic Cylinders, Hoses And Fittings – 6 Row-S N 830001
Hydraulic Cylinders, Hoses And Fittings – 8 Row Folding Frame
Hydraulic Cylinders, Hoses And Fittings – 8 Row Ridgid Frame
Hydraulic Cylinders, Hoses And Fittings – 12 Row Folding
Hydraulic Cylinders, Hoses And Fittings – 12 Row Rigid Frame
Hydraulic Cylinder, Hoses And Fittings – Semi-Mounted 5100s
Hydraulic Relief And Sequence Control – Valves-5700
Hyd. Hose Locations, Identification-5700 – (4-Row, 6-Row Narrow, 6-Row Wide)
Hyd. Hose Locations, Identification-5700 – 8-Row Narrow,
Hydraulic Cylinders, Hoses And Fittings – 4 And 6 Row-5700
Hydraulic Cylinders
Hydraulic Oil Filter, Earlier Design
Hydraulic Oil Filter, Earlier Design – Hydraulic Oil Filter, Later Design
Selector Valve
Selector Valve, Earlier Design
Sequence Valve, Later Design
Seed Disc Identification
