Name: Wirtgen Cold Milling W 100 Fi W 120 Fi W 130 Fi 13.10 2183860 Spare Parts Catalog
SKU: 518422
Availability: InStock

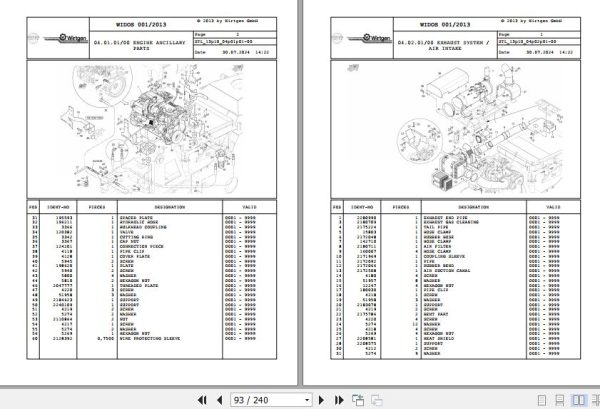

Wirtgen Cold Milling W 100 Fi W 120 Fi W 130 Fi 13.10 2183860 Spare Parts Catalog (1)

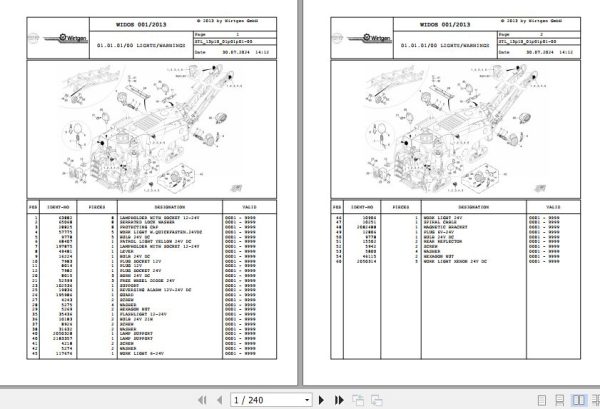

Wirtgen Cold Milling W 100 Fi W 120 Fi W 130 Fi 13.10 2183860 Spare Parts Catalog (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Wirtgen Cold Milling W 100 Fi W 120 Fi W 130 Fi 13.10 2183860 Spare Parts Catalog

Size: 27.7 MB

Format: PDF

Language: English

Brand: Wirtgen

Type of Machine: Cold Milling

Type of Document: Parts Manual

Model: Wirtgen W 100 Fi, W 120 Fi, W 130 Fi Cold Milling

Year: 2013

Number of Pages: 240 Pages

20 USD

Tags: Wirtgen Cold Milling PDF, Wirtgen Parts Catalog

Description

Description

Contents:
Lights Warnings
Covers Left Fb1000
Covers Left Fb1200-1300
Cover Top
Covers Rear
Lock Box
Additional Weight
Footstep
Platform
Driver’s Seat
Handrail
Mirror
Control Unit Rh
Control Panel Le. Cover
Control Panel, Lh
Electrical Cabinet Door
Connecting Plate
Protection Roof
Canopy Up Down
Camera System
Milling Drum Housing
Drum Bearing
Drive Milling Drum
Clutch ActIVator
Coupling
Belt Tensioner Unit
Belt-Drive Case
Scraper Bracket
Scraper
Scraper Raise Lower
Edge Protection
Side Plate Up Down
Foot Protector
Drum Fb1200 Ht11 La15
Drum Fb1300 Ht11 La15 Aw3
Fcs Drum Bearing
Fcs – Scraper Basic
Fcs-Drum Fb1000 Ht11 La15
Fcs-Drum Fb1000 Ht11 La8
Fcs Drum Fb1000 Ht11 La25
Fcs-Drum Fb1000 Ht5 La6x2
Fcs-Drum Fb1200 Ht11 La15
Fcs-Drum Fb1200 Ht11 La8
Fcs-Drum Fb1200 Ht11 La25
Fcs-Drum Fb1200 Ht5 La6x2
Fcs-Drum Fb1300 Ht11 La15
Fcs-Drum Fb1300 Ht11 La8
Fcs-Drum Fb1300 Ht5 La6x2
Fcs – Milling Unit Fb900
Fcs – Milling Unit Fb600
Fcs – Milling Unit Fb500
Fcs – Milling Unit Fb300
Fcs – Assembling
Pick Extractor
Engine Ancillary Parts
Exhaust System Air Intake
Turbo-Charge Cooling
Fuel Supply
Combined Cooler
Cooling System
Fan Drive
Gearbox Clutch
Pump Splitter Gearbox
Oil Cooling Gearbox
Functions – Hydr. Pumps
Pump Splitter Gearbox
Cyl. Functions-Pump Connectors
Cyl.Functions – Valve Blocks
Return Lines
Hydraulic Oil Tank
Battery Alternator Starter
Emergency Stop
Height Adjustment Front
Height Adjustment Rear Left
Height Adjustment Rear Right
Guide Column Re-Ri Slewable
Guide Column Re-Ri Slewing
Wheels
Crawler Units
Crawler Unit Re. Ri. Steerable
Hose Guide
Pump Connectors
Flow DIVider
Advance Drive (Wheels) Front
Advance Drive (Wheels) Rear
Switching System (Wheels)
Brake System (Wheels)
Advance Drive (Crawlers) Front
Advance Drive (Crawlers) Rear
Switching System (Crawler)
Brake System (Crawler)
Chain Tensioner
Hauling Device
Operator Platform
Steering, Front
Steering System Front
Steering, Rear
Steering System Rear
Conveyor Drive
Primary Conveyor
Primary Conveyor-Convers
Material Guiding
Primary Conveyor – Up Down
Discharge Conveyor-Support
Discharge Bin
Discharge Conveyor
Discharge Conveyor Sealings
Disch.Conv. Raise-Lower Sleving
Folding Conveyor
Folding Conveyor Sealings
Folding Conveyor
Fold.Conv.Short Sealings
Folding The Hydr. Folding Conv.
Vcs Dischrge.Conv. Suspension
Vcs Dischrge.Conv. Raise Lower
Vcs Discharge Conveyor
Vcs Ventilator Drive
Levelling Unit – Standard
Auto. Grade & Slope Control
Slope Sensor
Sonic-Ski Scanning
Water Tank
Water Pump
Drive – Water Pump
Control Unit
Sprinkling
Jet Cleaner
Compressed Air System
Pneumatic Punch
Filter Inserts-Engine(500h,..)
Filter Inserts-Hydr. (500h,..)
Filter Inserts-Hydr.(1000h,..)
Tools
Key For Slotted Round Nut Km8
Dresser Unit-Movable Bearing
Oil Diagnostic Set No.3
Keys Set
Service Set – Belt Repair
Hydraulic Instrument Case
Service Master Test Kit
Hydraulic Accessories
O-Ring Set
Electrical Service Kit
Service Case I
Service Case II
Service Case III
Service Case IV
Electr. Measuring Tools Case
Vacuum-Pump
