Name: Wirtgen Paver TCM 850 TCM 1600 02.BA 103767 Spare Parts Catalog
SKU: 518447
Availability: InStock

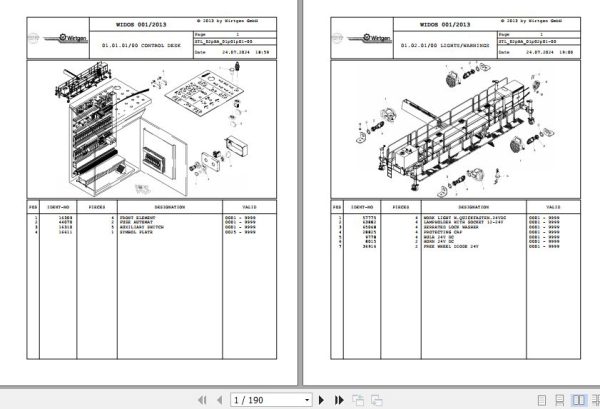

Wirtgen Paver TCM 850 TCM 1600 02.BA 103767 Spare Parts Catalog (1)

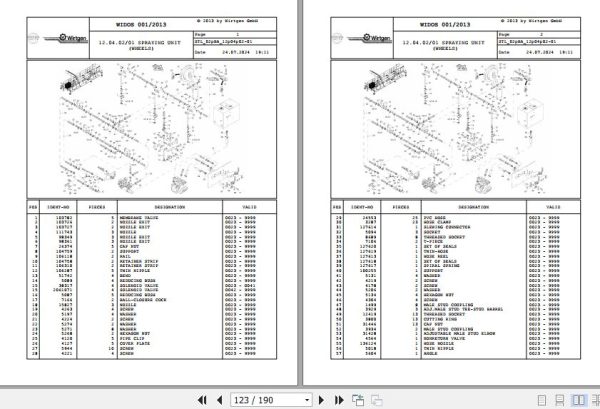

Wirtgen Paver TCM 850 TCM 1600 02.BA 103767 Spare Parts Catalog (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Wirtgen Paver TCM 850 TCM 1600 02.BA 103767 Spare Parts Catalog

Size: 15.2 MB

Format: PDF

Language: English

Brand: Wirtgen

Type of Machine: Paver

Type of Document: Parts Manual

Model: Wirtgen TCM 850, TCM 1600 Paver

Year: 2013

Number of Pages: 190 Pages

20 USD

Tags: Wirtgen Parts Catalog, Wirtgen PaverPDF

Description

Description

Contents:
Control Desk
Lights Warnings
Basic Equipment (Wheels)
Basic Equipment (Crawler)
Extension
Extension Opt.
Control Desk
Elec.Cabinet Ventilation
Protection Roof
Control Desk
Power Unit
Air Intake Exhaust Silencer
Fuel Supply
Control Desk
Hydraulic Pump Drive
Oil Feed – Pumps
Oil Feed – Valve Blocks
Fan Drive (Oil cooler)
Return Lines
Control Desk
Battery Starter Alternator
Emergency Stop Control Valve
Control Desk
Height Adjustment Front Left
Height Adjustment Front Right
Height Adjustment Rear Left
Height Adjustment Rear Right
Height Adjustment Crawler
Control Desk
Advance Drive (Wheels) Left
Advance Drive (Wheels) Right
Advance Drive (Crawlers) Left
Advance Drive (Crawlers) Right
Brake System (Wheels)
Brake System (Crawler)
Crawler Unit
Impulse Generator Unit
Control Desk
Steering Left
Steering Right
Control Desk
Levelling Unit
Slab Tracer
Control Panel Edge Spraying
Control Panel Sprayer Trolley
Emulsion-Tank
Tank Filling
Tank Filling Flushing
Spraying Unit (Wheels)
Spraying Unit (Crawler)
Drive – Spraying Unit
Terminal Box-Spraying Unit
Drive – Stiring Unit
Sliding Spraying Unit
Extension
Signs And Warnings
Stickers – Spraying Unit
Control Desk
Texture Unit
Element
Drive Controls-Brush Unit
Extension
Extension With Camber 1500mm
Extension
Crane Unit
Filter Inserts-Engine
Filter Inserts – Hydraulics
Tools
Oil Diagnostic Set No.3
Keys Set
Hydraulic Instrument Case
Instrument Case-Service Master
Hydraulic Accessories
O-Ring Set
Service Case Electr.
Electr. Measuring Tools Case
Vacuum-Pump
