Name: Wirtgen Slipform Paver SP 1200 11.SP 198318 Spare Parts Catalog
SKU: 518455
Availability: InStock

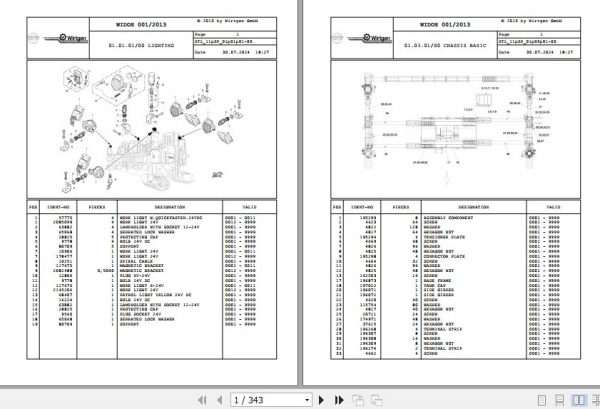

Wirtgen Slipform Paver SP 1200 11.SP 198318 Spare Parts Catalog (1)

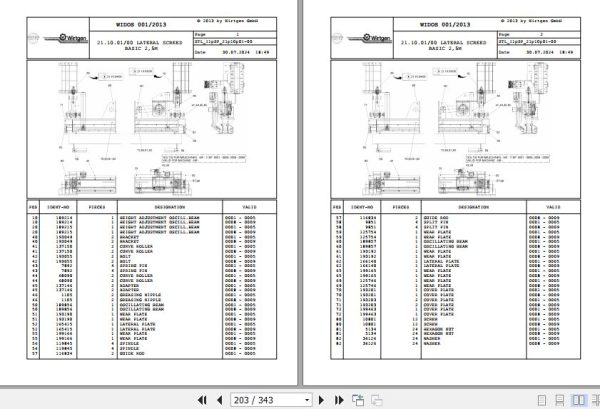

Wirtgen Slipform Paver SP 1200 11.SP 198318 Spare Parts Catalog (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Wirtgen Slipform Paver SP 1200 11.SP 198318 Spare Parts Catalog

Size: 25.4 MB

Format: PDF

Language: English

Brand: Wirtgen

Type of Machine: Slipform Paver

Type of Document: Parts Manual

Model: Wirtgen SP 1200 Slipform Paver

Year: 2013

Number of Pages: 343 Pages

20 USD

Tags: Wirtgen Parts Catalog, Wirtgen Slipform Paver PDF

Description

Description

Contents:
Lighting
Chassis Basic
Crossbeam 3,50m – 9,00m
Chassis Telescoping Left
Chassis Telescoping Right
Handrail Gangway
Stickers Left
Stickers Right
Stickers Operator’s Stand
Stickers Front I
Stickers Front II
Stickers Front III
Stickers Rear
Stickers Dowel-Bar Unit (Dbu)
Electrical Cabinet
Electrical Cabinet-Pl Control
Elec.Cabinet Ventilation
Control Panel I
Control Panel II
Control Panel III
Control Panel IV
Control Panel V
Protection Roof
Engine Ancillary Parts
Power Unit
Radiator
Turbo-Charge Cooling
Cooling System
Engine Oil + Cool. Liqu. Drain
Exhaust Silencer + Air Filter
Soundproofing I
Soundproofing II
Soundproofing III
Diesel Tank
Fuel Supply
Clutch Pump Splitter Gearbox
Hydraulic Tank
Cyl.Funct. Pump Connectors
Valve Blocks Left
Valve Blocks
Fan Drive Oil
Return Lines
Generator Group 80kva
Generator-Drive 80kva
Vibrator Connection Box,Lh
Vibrator Connection Box,Rh
Electrical Cabinet 110v
El.Power Supp. -Battery Altern.
Connector Box Engine
Plug Box 24v Single
Height Adjustment Front Left
Height Adjustment Front Right
Height Adjustment Rear Left
Height Adjustment Rear Right
Terminal Box – Crawler Front
Terminal Box – Crawler Rear
Emergency Stop Horn
Height Adjustment Front
Height Adjustment Rear
Undercarriage, Front, Lh
Undercarriage, Front, Rh
Crawler Unit Rear Left
Undercarriage, Rear, Rh
Crawler Unit
Pump Connectors-Drive Sys.Left
Pump Connect. -Drive Sys. Right
Advance Drive Left I
Advance Drive Left II
Advance Drive Right I
Advance Drive Right II
Switching System
Brake System
Steering, Front Lh
Steering, Front Rh
Steering Rear Lh
Steering Rear Rh
Steering, Front
Steering, Rear
Spreader Plough – Basic
Spreader Plough
Spreader Plough – Course Cart
Spreader Plough-Extension
Spreader Plough – Drive
Spreader Plough – Up Down
Levelling Unit
Tracer – Steer. Height Adjust.
Wire Tension System
Tension-Cycle
Water Tank
Jet Cleaner
Jet Cleaner
Drive High Press. Cleaner I
Drive High Press. Cleaner II
Concrete Mould Basic 2,5m
Front Panel Lh.Rh. -Up Down
Concr.Mould Without Crown Prof
Front Panel Central-Up Down
Concr.Mould With Crown Profile
Control Unit – Crown
Concrete Mould Options
Vibrator D76 Bent
Slipform
Slipform, Lh
Slipform, Rh
Slipform Suspension
Trail.Side Header Traverse Lh.
Trail.Side Header Traverse Rh.
Trailing Side Header W O Dbi
Trailing Side Header With Dbi
Trail.Side Header Dbi450-500mm
Depthform Dbi 350mm
Tamper
Tamper Drive
Lateral Screed Basic 2,5m
Oscillating Beam 1,50m Camber
Oscillating Beam Height Adjust
Oscillating Beam Extension
Oscill.Beam Drive
Oscillating Beam Drive
Oscillat.Beam Crown Profil
Super Smoother Basic
Super Smoother – Course Cart
Super Smoother – Guide Rail
Oil Feed Longitudinal Smoother
Super Smoother Drive
Longitudinal Smoother-Sliding
Scraper Blade
Scraper Blade – Course Cart
Scraper Blade – Guide Rail
Rope Drum
Oil Feed Scraper
Drive Spreader Plough
Spreader Plough Up Down
Scraper Blade – Control Unit
Basic Unit Stbi
Side Tie-Bar Inserter-Sliding
Dbi-Basic 3.50m
Dbi-Distr.Trolley Left
Dbi Setting Beam Left
Dbi-Distr.Trolley Right
Dbi Setting Beam Right
Dbi-Chain Drive Left
Dbi-Chain Drive Right
Dbi Oil Feed
Chaine Drive
Retracting Dbi
Dbi-Extensions
Dbi-Extension 1, 0m Cp
Crown Raise Lower
Doul Bar Feeder
Dowel Store
Dbi-Lifting Device
Lifting Device
Vibration Frame
Vibration Frame Up Down
Modular System For Dbi
Base Group – Dbi
Base Group Spare Parts
Longitudinal Tie-Bar Inserter
Ancillary Parts Ltbi
Electrical Cabinet – Dbi Ltbi
Control Panel – Dbi Tbi I
Control Panel – Dbi Tbi II
Control Panel – Dbi Tbi III
110v Electr. Power Supply-Dbi
Vibrator Connection Box Dbi
Remote Control Dbi Ltbi
Terminal Box-Longitudinal Dbi
Contr.Units Tie-Bar Inserter
Terminal Boxes Dbi
Control Dbi
Control Stroke System
Impulse Generator Unit
Controls Impulse Transm.Unit
Electrical Cabinet Dbi 110v
Filter Inserts-Engine(250h,..)
Filter Inserts-Hydr. (500h,..)
Filter Inserts-Hydr.(1000h,..)
Tools
Additional Tools
Keys Set
Service Case Electr.
Electrical Service Kit
Service Case I
Service Case II
Service Case III
Service Case
