Name: Wirtgen Slipform Paver SP 25 13.SP 2165583 Spare Parts Catalog
SKU: 518460
Availability: InStock

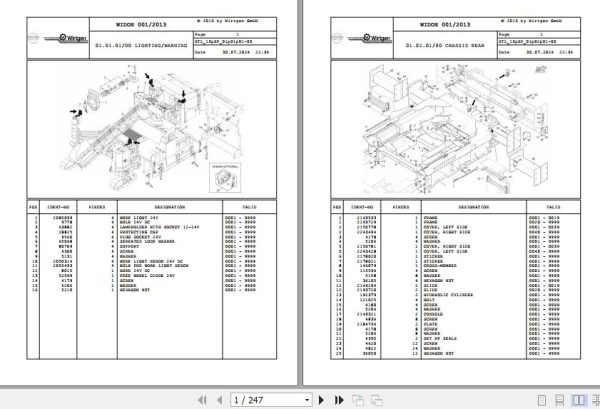

Wirtgen Slipform Paver SP 25 13.SP 2165583 Spare Parts Catalog (1)

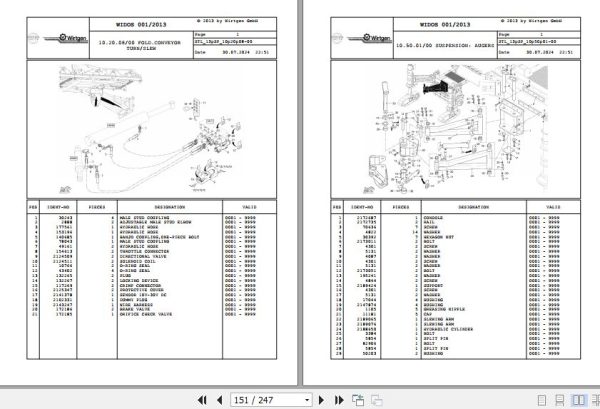

Wirtgen Slipform Paver SP 25 13.SP 2165583 Spare Parts Catalog (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Wirtgen Slipform Paver SP 25 13.SP 2165583 Spare Parts Catalog

Size: 31.1 MB

Format: PDF

Language: English

Brand: Wirtgen

Type of Machine: Slipform Paver

Type of Document: Parts Manual

Model: Wirtgen SP 25 Slipform Paver

Year: 2013

Number of Pages: 247 Pages

20 USD

Tags: Wirtgen Parts Catalog, Wirtgen Slipform Paver PDF

Description

Description

Contents:
Lighting Warning
Chassis Rear
Chassis Front
Crawler Unit Suspension
Chassis Telescoping (Hydr.)
Crawler Unit Suspension
Stickers Left
Stickers Right
Stickers Operator’s Stand I
Stickers Operator’s Stand II
Stickers Front Rear
Stickers Conveyor
Stickers Left (USA)
Stickers Right (USA)
Stickers Operat. Stand I (USA)
Stickers Operat. Stand II (USA)
Stickers Front Rear (USA)
Stickers Conveyor (USA)
Handrail Gangway
Control Desk
Control Panel Mounting Plate
Control Panel, Center
Electrical Cabinet
Mounting Plate I
Mounting Plate II
Cover Panels Operator’s Stand
Covers Operator’s Stand
Protection Roof
Conopy Up Down
Umbrella
Trimmer Base Frame Le Ri
Trimmer Left
Trimmer Right
Trimmer Extension Le Ri
Drive Trimmer
Height Adjustment Trimmer
Trimmer Raise Lower
Trimmer Traverse
Engine Ancillary Parts
Exhaust Silencer + Air Filter
Fuel Tank
Fuel Supply
Radiator
Cooling System
Cover Top
Covers Rear
Covers I
Covers II
Soundproofing I
Soundproofing II
Gearbox Clutch
Functions – Hydr. Pumps
Pump Splitter Gearbox
Cyl. Functions-Pump Connectors
Cyl.Funct. Valve Blocks I
Cyl.Funct. Valve Blocks II
Return Lines
Hydraulic Tank
Battery Alternator Starter
Control Unit Horn Emerg.-Stop
Terminal Box 3d-Control Unit
Connecting Plate
Crawler Units Front
Crawler Units Rear
Height Adjustment
Height Adjustment
Crawler Unit Front
Crawl.Units Front (4-Crawlers)
Crawler Units Rear
Crawler Unit
Drive System Pump Connectors
Advance Drive System, Front
Advance Drive System, Rear
Switching System
Gearshift 2nd Gear
Advance Drive – Leakage
Brake System
Release Brake
Slewing Arm
Front Crawler Unit Slewing
Front Crawler Unit Fixed
Steering, Front
Steering, Rear
Steering System
Conveyor Suspension
Support For Conveyor Belt
Conveyor Frame
Conveyor Chute Hutch
Conveyor Redirection Drive
Conveyor Drive
Conveyor Displace Incline
Conveyor Turn Slew
Chute Conveyor Auger
Funnel
Folding Conveyor – Suspension
Folding Conveyor Support
Folding Conveyor I
Folding Conveyor II
Folding Conveyor Chute
Folding The Hydr. Folding Conv.
Fold.Conveyor Displace Incline
Fold.Conveyor Turn Slew
Suspension Augers
Charging Auger I
Charging Auger II
Charging Auger III
Charging Auger Suspension
Auger Displace Incline
Auger Turn Slew
Screw Conveyor – Drive
Lateral Spreader Auger I
Lateral Spreader Auger II
Lateral Spread. Auger Travers.
Lateral Spreader Auger Drive
Auger
Spreading Auger Extension
Spreader Auger Drive
Levelling Unit
Tracer – Steer. Height Adjust.
Slab Tracer
Wire Tension System
Water Tank
Additional Water Tank
Jet Cleaner
Drive High Pressure Cleaner
Vibrator Connection Box
Vibration Cabinet Mount.Plate
Generator 10 Kva
Drive Generator
Vibrators D66 Strait Electr.
Vibrators D66 Bent Electr.
Vibrators Hydrailical
Drive Vibrator
Drive Vibrator Left
Drive Vibrator Right
Return Lines
Concrete Mould Suspension
Mould Bracket Double-Sided
Offset Mould Suspension Hydr.
Offset Mould Height Adjustment
Offset Mould Rapid Change Syst
Changing System With Adapter
Offset Rapid Change Syst.Hydr.
Offset Mould Height Adapter
Offset Mould Height Adj.Hydr.
Trough Suspension
Mould Boards Base
Mould Boards Extension
Metering Gate Raise Lower
Slipform, Lh
Slipform, Rh
Slipform Lh Up Down
Slipform Rh Up Down
Filter Inserts-Engine
Filter Inserts-Hydr. (500h,..)
Tools
Additional Tools
Oil Diagnostic Set No.3
Keys Set
Service Set – Belt Repair
Hydraulic Test Kit
Service Master Test Kit
Hydraulic Accessories
O-Ring Set
Electrical Service Kit
Service Case I
Service Case II
Service Case III
Service Case IV
Electr. Measuring Tools Case
Vacuum-PUMP
