Name: XCMG Road Cold Milling Machine XM100 XM101 Parts Book P1004
SKU: 660514
Availability: InStock

XCMG Road Cold Milling Machine XM100 XM101 Parts Book P1004 1

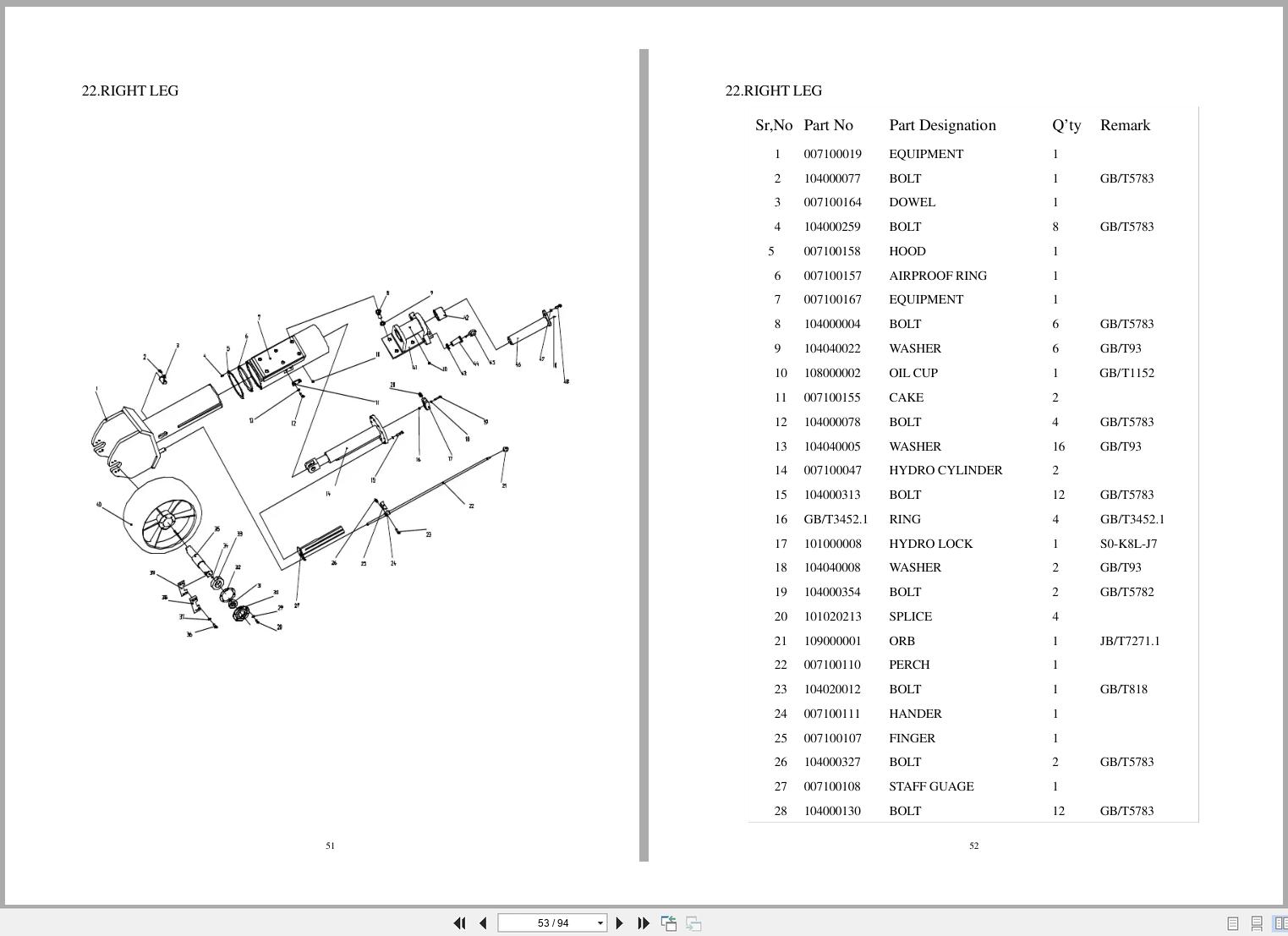

XCMG Road Cold Milling Machine XM100 XM101 Parts Book P1004 2

✓

Expert Support

✓

Full Speed

✓

100% Working

XCMG Road Cold Milling Machine XM100 XM101 Parts Book P1004

Size: 4.18 MB

Format: PDF

Language: English

Brand: XCMG

Type of Machine: Road Cold Milling Machine

Type of Manual: Parts Book

Model: XCMG XM100 XM101 Road Cold Milling Machine

Part Number: P1004

Number of Pages: 94 Pages

20 USD

Description

Description

Contents:
1.Engine Mount
2.Airfilter Unit
3.Exhaust Unit
4.Coolingsystem
5.Fuelsystem
6.Clutch Unit One
7.Clutch Unit Two
8. Fuel Tank
9.Gear Box
10.Chain Box
11.Gear Box And Axles Mount
12. Drive System
13.Shift And Milling Wheel Fluctuate System
14.Turning System
15.Conveyer Belt Fluctuate System
16.Hydraulic Pressure Oil Box
17.Electricity System
18.Panelassembly
19.Control Panel Assembly
20. Relay Module
21.Left Leg
22.Right Leg
23.Chassis
24.Block
25.Direction Indication
26.The Mantle Of Gear Box
27.Engine Cover
28.Front Cover
29.Discharge Conveyor One
30.Discharge Conveyor Two
31.Scraper Blade
32.Apply The Brake Parking
33.Battery Box
34.Milling Wheel Tank
35.Watering System
36.Water Tank
37.Driving Sail
38.Sign One
39.Signtwo
