Name: ZF Marine Transmission 2000 Series Operating Instructions 3100758101
SKU: 602311
Availability: InStock

ZF Marine Transmission 2000 Series Operating Instructions 3100758101 (1)

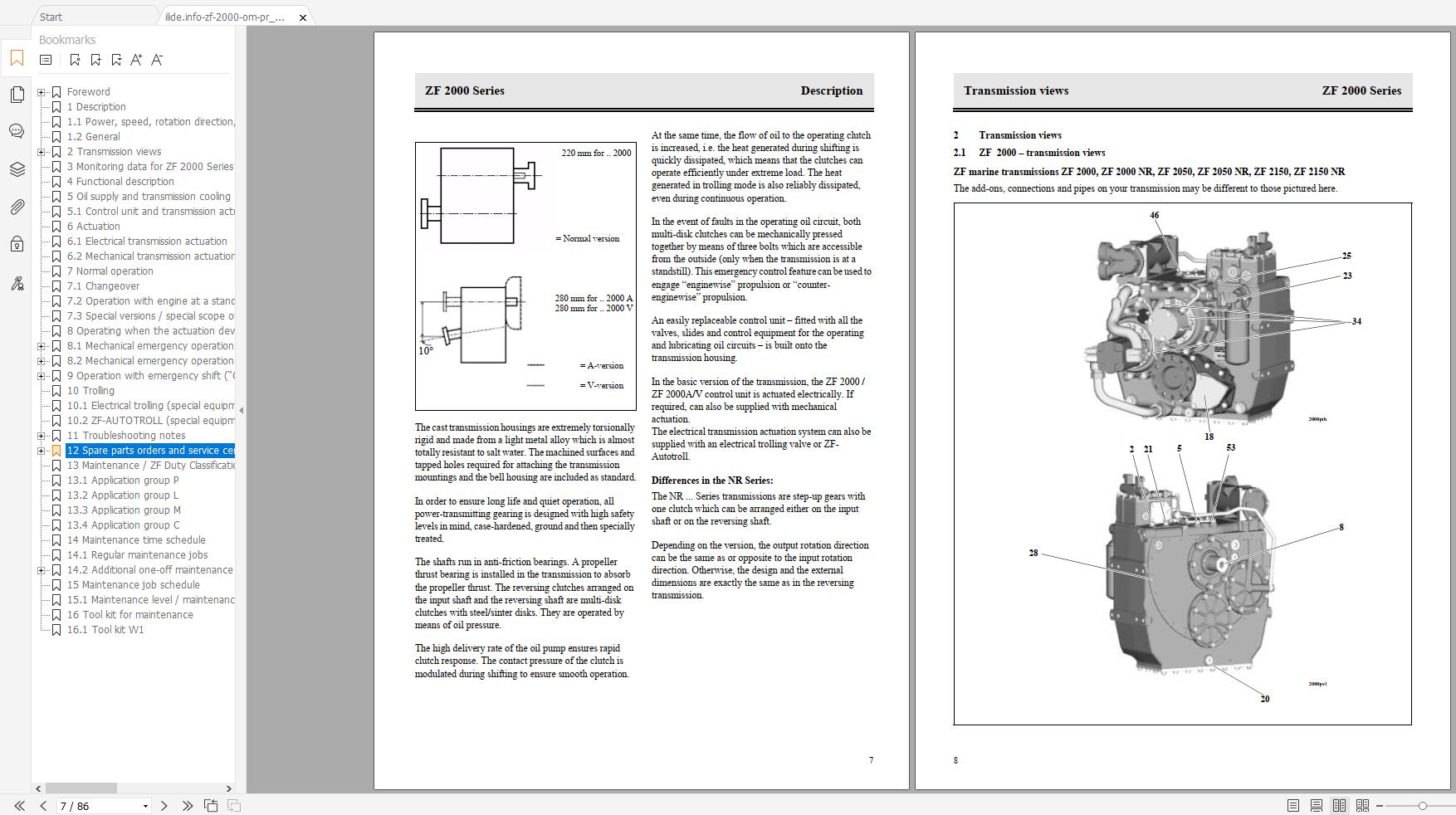

ZF Marine Transmission 2000 Series Operating Instructions 3100758101 (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

ZF Marine Transmission 2000 Series Operating Instructions 3100758101

Size: 1.72 MB

Format: PDF

Language: English

Brand: ZF

Type of Machine: Marine Transmission

Type of Manual: Operators Instructions

Model: ZF Marine Transmission 2000 Series

ZF 2000; ZF 2050; ZF 2150

ZF 2000 NR; ZF 2050 NR; ZF 2150 NR

ZF 2000 A; ZF 2050 A; ZF 2150 A

ZF 2000 NRA; ZF 2050 NRA; ZF 2150 NRA

ZF 2000 V; ZF 2050 V; ZF 2150 V

ZF 2000 NRV; ZF 2050 NRV; ZF 2150 NRV

Part Number: 3100 758 101

Number of Pages: 86 Pages

10 USD

Description

Description

Contents:
Foreword
The operating instructions apply to the standard version of the transmission. Variations are poss…
Ensure that these operating instructions are always kept to hand. Carefully read the operating in…
1 Description
1.1 Power, speed, rotation direction, ratio, type plate
1.2 General
2 Transmission views
2.1 ZF 2000 – transmission views
2.2 ZF 2000 A – transmission views
2.3 ZF2000 V – transmission views
3 Monitoring data for ZF 2000 Series
4 Functional description
5 Oil supply and transmission cooling
5.1 Control unit and transmission actuation
6 Actuation
6.1 Electrical transmission actuation
6.2 Mechanical transmission actuation
7 Normal operation
7.1 Changeover
7.2 Operation with engine at a standstill and propeller driven by the current (trailing operation)
7.3 Special versions / special scope of supply
8 Operating when the actuation device is faulty
8.1 Mechanical emergency operation of the electrical actuation valve

Switch off the engine.
Set the shift position on the pilot valve.
Start the engine and check the correct direction of travel. Repeat points 1 to 3 to correct th…
8.2 Mechanical emergency operation of the mechanical actuation valve
Switch off the engine.
Make sure the pull/push cable or linkage for the removed mechanical actuation is unhooked.
By hand, move the lever of the pilot valve to the required shift position until it engages.
Use appropriate measures (e.g. wire, cord, etc.) to secure the selector lever in the selected …
Start the engine and check the correct direction of travel. Repeat points 1 to 3 to correct th…
9 Operation with emergency shift (“Come home screws”)
Switch off the engine.
Disable the activation function for the pilot valve (section 6), e.g. by removing the plugs fr…
Determine which clutch to engage. To do this, you need to know the direction of rotation of th…
Unscrew and remove the screw plugs (use the 8 mm Allen screw).
Slowly turn the engine using a barring gear on the engine end and shine a torch through the ho…
Screw in the screw plugs to close the housing apertures.
Switch off the engine.
Determine which clutch to engage.
Unscrew and remove the screw plugs (use the 8 mm Allen screw).
Slowly turn the engine using a barring gear on the engine end and shine a torch through the ho…
Screw in the screw plugs to close the housing aperture.
Restore the activation function for the pilot valve (section 6), e.g. by connecting the plugs …
10 Trolling
10.1 Electrical trolling (special equipment)
10.2 ZF-AUTOTROLL (special equipment)
11 Troubleshooting notes

ee monitoring data, Section3 as well as transmission views, Section2.
12 Spare parts orders and service centers
If a transmission fault cannot be remedied using the troubleshooting notes in section11, please …
Only use genuine ZF spares when carrying out repairs.
13 Maintenance / ZF Duty Classification Definitions
13.1 Application group P
13.2 Application group L
13.3 Application group M
13.4 Application group C
14 Maintenance time schedule
14.1 Regular maintenance jobs
14.2 Additional one-off maintenance jobs on new or overhauled transmission (also see maintenance …
14.3 Anti-corrosion protection measures after long periods of downtime (see “Corrosion-proofing” …
15 Maintenance job schedule
15.1 Maintenance level / maintenance jobs
16 Tool kit for maintenance
16.1 Tool kit W1
