Name: ZF Transmission 5 WG-261 5 WG-311 Operating Instructions 5872.368.002 en
SKU: 501473
Price: 20.00 USD
Availability: InStock

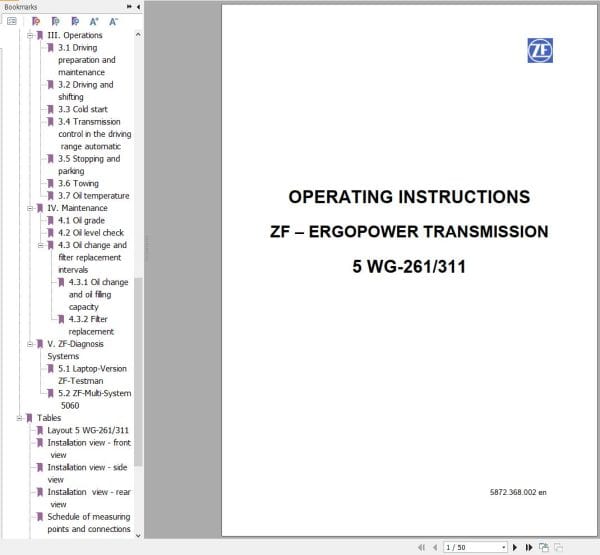

ZF Transmission 5 WG 261 5 WG 311 Operating Instructions 5872.368.002 en (1)

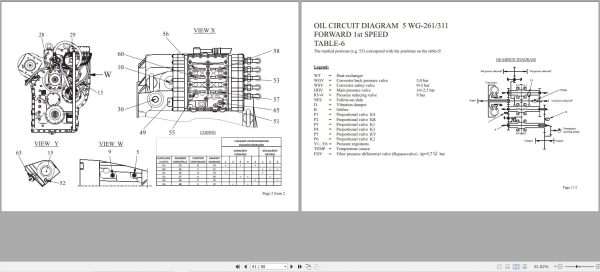

ZF Transmission 5 WG 261 5 WG 311 Operating Instructions 5872.368.002 en (2)

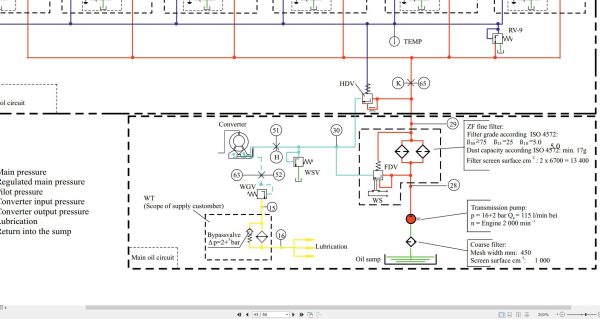

ZF Transmission 5 WG 261 5 WG 311 Operating Instructions 5872.368.002 en (3)

✓

Expert Support

✓

Full Speed

✓

100% Working

ZF Transmission 5 WG-261 5 WG-311 Operating Instructions 5872.368.002 en

Size: 1.67 MB

Format: PDF

Language: English

Brand: ZF

Type of Machine: Transmission

Type of Manual: Operating Instructions, Hydraulic Diagram

Model: ZF 5 WG-261 5 WG-311 Transmission

Part Number: 5872.368.002 en

Publication Date: 2011

Number of Pages: 50 Pages

20$ USD

Tag: ZF Transmission Manual

Description

Description

Contents:
I. DESCRIPTION 11
1.1 Function of the Converter
1.2 Powershift transmission
1.3 Transmission control
1.4 Controllers
1.4.1 General
1.4.2 Controller DW-3
1.4.3 Controller ERGO II
1.5 Display
1.5.1 General
1.5.2 Possible Indications on the Display
1.5.3 Error code definition
1.6 Electronic control unit TCU
1.7 Electronic control for the ZF-Powershift transmission
1.7.1 General
1.7.2 Description of the Basic functions
1.7.3 AEB
1.7.4 Downshifting functions (Down-Shift Button)
1.7.5 Pressure cut-off
1.7.6 Inching device
1.7.7 Special functions
II. INSTALLATION SPECIFICATION 25
III. OPERATION 26
3.1 Driving preparation and Maintenance
3.2 Driving and Shifting
3.3 Cold start
3.4 Transmission control in the Driving range Automatic
3.5 Stopping and Parking
3.6 Towing
3.7 Oil temperature
IV. MAINTENANCE 29
4.1 Oil grade
4.2 Oil level check
4.3 Oil change and Filter replacement intervals
4.3.1 Oil change and Oil filling capacity
4.3.2 Filter replacement
V. ZF-Diagnostic SYSTEMS 32
5.1 Laptop-Version ZF-Testman
5.2 ZF-Multi-System 5060
