Name: ZF Transmission 6 WG-110 Operating Instructions 5872.146.002 en
SKU: 501475
Price: 20.00 USD
Availability: InStock

ZF Transmission 6 WG 110 Operating Instructions 5872.146.002 en (1)

ZF Transmission 6 WG 110 Operating Instructions 5872.146.002 en (2)

ZF Transmission 6 WG 110 Operating Instructions 5872.146.002 en (3)

✓

Expert Support

✓

Full Speed

✓

100% Working

ZF Transmission 6 WG-110 Operating Instructions 5872.146.002 en

Size: 1.48 MB

Format: PDF

Language: English

Brand: ZF

Type of Machine: Transmission

Type of Manual: Operating Instructions, Hydraulic and Connection Circuit

Model: ZF 6 WG-110 Transmission

Part Number: 5872.146.002 en

Publication Date: 2002

Number of Pages: 56 Pages

20$ USD

Tag: ZF Transmission Manual

Description

Description

Contents:
I. DESCRIPTION
1.1 Function of the Converter
1.2 Powershift transmission
1.3 Transmission control
1.4 Controllers
1.4.1 General

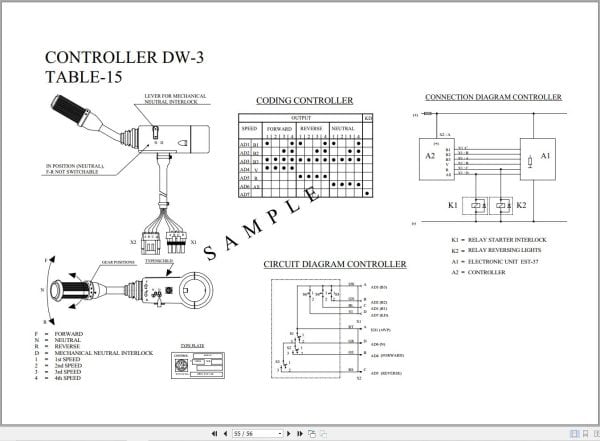

1.4.2 Controller DW-3
1.4.3 Controller VST-3
1.5 Display
1.5.1 General
1.5.2 Possible Indications on the Display
1.5.3 Error code definition
1.6 Electronic control unit TCU
1.7 Electronic control for the ZF-Powershift transmission
1.7.1 General
1.7.2 Description of the Basic functions
1.7.3 AEB
1.7.4 Kickdown function
1.7.5 Special function

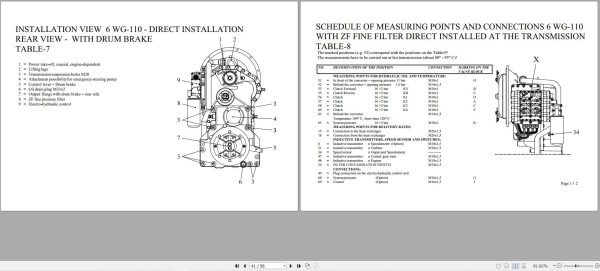

II. INSTALLATION SPECIFICATION 25
III. OPERATION 27
3.1 Driving preparation and Maintenance
3.2 Driving and Shifting
3.3 Cold start
3.4 Transmission control in the Driving range Automatic
3.5 Stopping and Parking
3.6 Towing
3.7 Oil temperature
IV. MAINTENANCE 31
4.1 Oil grade
4.2 Oil level check
4.3 Oil change and filter replacement intervals
4.3.1 Oil change and oil filling capacity
4.3.2 Filter replacement
V. DIAGNOSTIC SYSTEMS 35
5.1 Laptop-Version ZF-Testman
5.2 ZF-Multi-System 5060
