Name: ZF Transmission ERGOPOWER 2 WG-94 EC Repair Manual
SKU: 501504
Availability: InStock

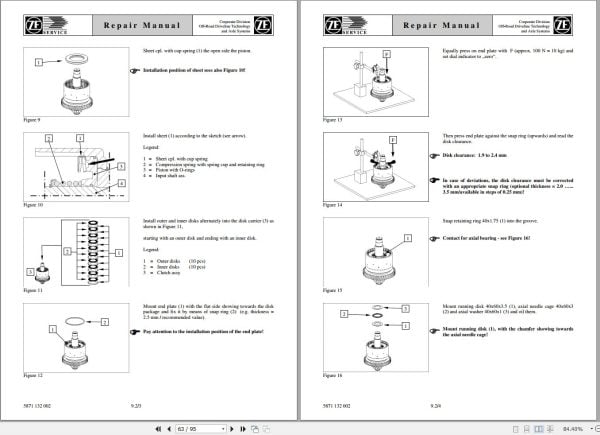

ZF Transmission ERGOPOWER 2 WG 94 EC Repair Manual (1)

ZF Transmission ERGOPOWER 2 WG 94 EC Repair Manual (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

ZF Transmission ERGOPOWER 2 WG-94 EC Repair Manual

Size: 2.00 MB

Format: PDF

Language: English

Brand: ZF

Type of Machine: Transmission

Type of Manual: Repair Manual

Model: ZF ERGOPOWER 2 WG-94 EC Transmission

Number of Pages: 95 Pages

20 USD

Tag: ZF Transmission Manual

Description

Description

Contents:
ZF – ERGOPOWER 2 WG-94 EC
Note
Table of contents
Preface
General
Denomination of standard dimensions
Conversion table
Tightening torques for screws
Labeling of identification plate and information on spare parts ordering
Configuration of transmission
Measuring points and connections
Notes on oil grade and oil fill quantity
Special tools
Commercial tools
1. Disassembly
2. Disassembly of proportional valves, inductive sensor, hall sensor, temperature sensor and breather
3.Disassembly of PTO
4. Disassembly of output flange
5. Disassembly of main pressure valve and converter safety valve
6. Disassembly of engine connection
7. Removal of clutches and disassembly of oil pressure pump
8. Disassembly of clutches
9. Reassembly of clutches
10. Reinstallation of clutches and reassembly of oil pressure pump
11. Reassembly of converter safety valve and main pressure valve
12. Reassembly of output flange
13. Reassembly of PTO
14. Reassembly of engine connection
15. Reassembly of proportional valves, inductive sensor, hall sensor, temperature sensor, breather and screws plugs
16. Reassembly of filter, closing components for oil filler and oil drain plug
