Name: Atlas Copco Diamond Core Drill DIAMEC U6 PHC Parts List 6991508462 2010
SKU: 647484
Availability: InStock

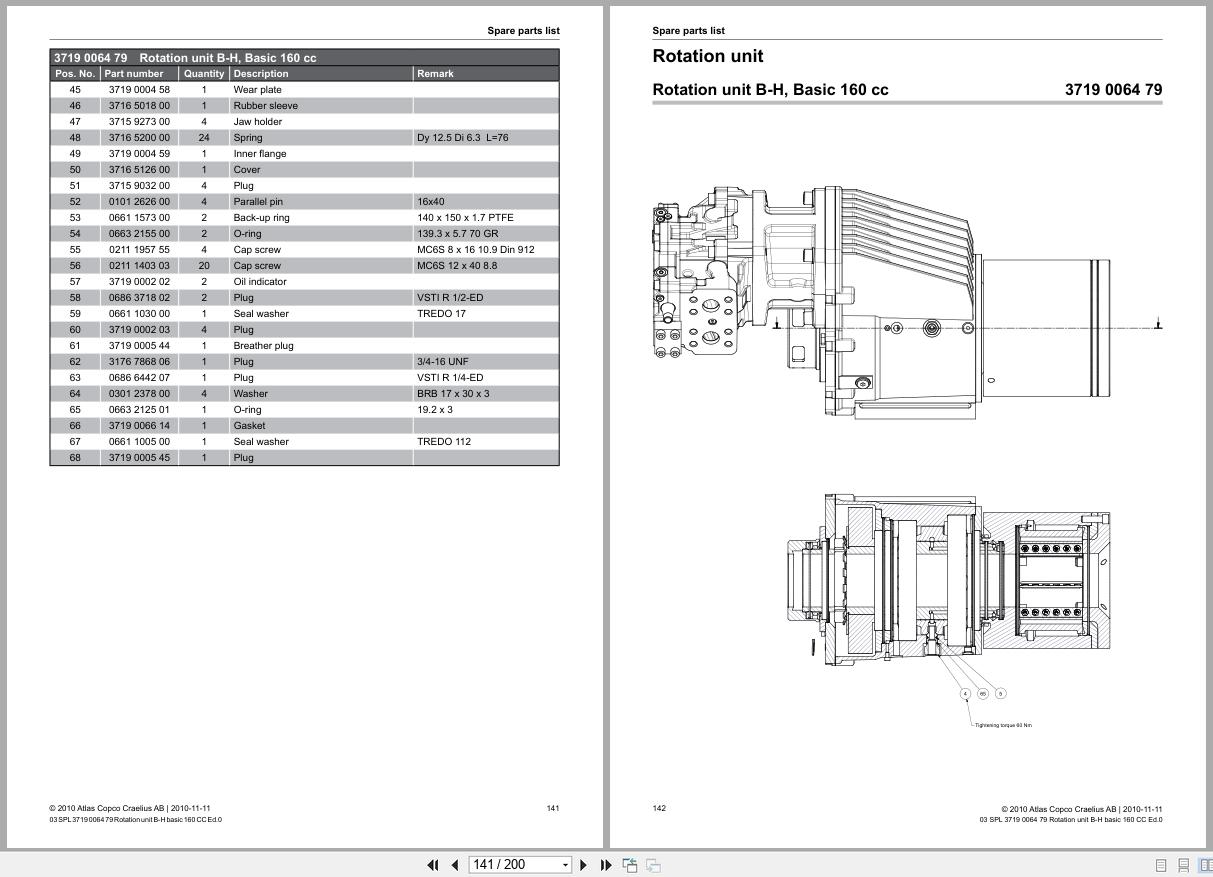

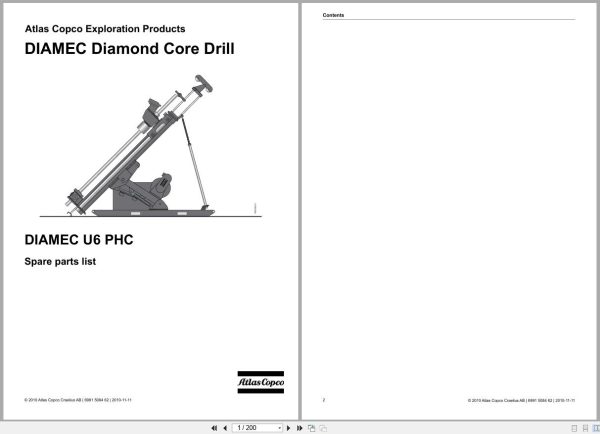

Atlas Copco Diamond Core Drill DIAMEC U6 PHC Parts List 6991508462 2010 1

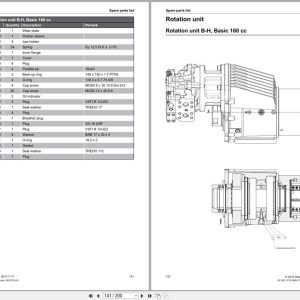

Atlas Copco Diamond Core Drill DIAMEC U6 PHC Parts List 6991508462 2010 2

✓

Expert Support

✓

Full Speed

✓

100% Working

Atlas Copco Diamond Core Drill DIAMEC U6 PHC Parts List 6991508462 2010

Size: 22.28 MB

Format: PDF

Language: English

Brand: Atlas Copco

Type of Machine: Diamond Core Drill

Type of Manual: Parts List

Model: Atlas Copco DIAMEC U6 PHC Diamond Core Drill

Part Number: 6991508462

Publication Date: 2010

Number of Pages: 200 Pages

15 USD

Tag: ATLAS

Description

Description

Contents:
Diamec U6
Carrier complete
Turn table kit
Feed frame holder assembly
Positioner assembly
Positioner assembly fitting kit
Cylinder
Valve, counter balance block
Skid frame
Backstay leg
Feed frame
Feed frame complete 850 mm
Feed frame 850 assembly
Feed frame fitting kit 850 mm
Feed cylinder 850 mm
Packing kit, feed cylinder 850 mm
Overhauling kit, feed frame 850 mm
Hose ladder assembly 850 mm
Hose ladder 850 mm
Hose ladder 850 mm hose kit A-N
Hose ladder fitting kit 850 mm
Guard assembly 850 mm A-N
Guard assembly 850 mm B-H
Feed frame complete 1800 mm
Feed frame 1800 assembly
Feed frame fitting kit 1800 mm
Cylinder 1800 mm
Packing kit, feed cylinder 1800 mm
Overhauling kit, feed frame 1800 mm
Hose ladder assembly 1800 mm
Hose ladder 1800 mm
Hose ladder 1800 mm hose kit
Hose ladder fitting kit 1800 mm
Guard assembly 1800 mm
Feed frame complete 1800 mm DH
Feed frame 1800 DH assembly
Cylinder 1800 mm DH
Packing kit, feed cylinder 1800 mm DH
Overhauling kit, feed frame 1800 mm DH
Hose ladder assembly 1800 mm DH
Hose ladder 1800 mm DH V14 hose kit
Guard assembly 1800 mm DH
Hose ladder 850-1800 mm B-H hose kit
Cradle assembly cast
Overhaul kit cradle cast
Rod holder assembly
Rod holder insert
Rod holder fitting kit
Gas spring kit
E-stop kit
Top pulley
Standard wall bracket assembly
Rotation unit
Rotation unit A-N Basic 60cc complete
Rotation unit A-N Basic 60 cc
Rotation unit A-N Basic 80 cc complete
Rotation unit A-N, Basic 80 cc
Overhaul kit bushing rotation unit A-N
Packing kit bushing rotation unit A-N
Upgrade kit bushing rotation unit A-N
Rotation unit B-H Basic 110 cc complete
Rotation unit B-H, Basic 110 cc
Rotation unit B-H Basic 160 cc complete
Rotation unit B-H, Basic 160 cc
Control system
Hydraulic pilot system STD
Pilot panel PHC U6
Hydraulic pilot system DH
Pilot panel PHC U6 DH
Joystick 4-ports
Joystick 2-ports
Valve assembly U6 PHC
Pressure filter, spare parts kit
PU – Rig hose kit
Water control kit, PHC
Winch
W-L winch 1300 kit, JIC
Wire Line DH hoist assembly
W/L 1000 hose kit
Option
Bracing device (support jacks)
Option
Bracing device kit
Keyhole wall bracket A-N rotation
Keyhole wall bracket B-H rotation
Water collector
Bracket for casing clamp
Wireline sheave for steep uphole
Wheel kit rig
Dimension rel kits
A jaw & guide kits
A jaw & guide kit 43mm, A-N rot
A jaw & guide kit 44mm, A-N rot
Jaw & guide kit 45mm, A-N rot
Jaw & guide kit 50mm, A-N rot
B jaw & guide kit 53mm, A-N rot
B jaw & guide kit 55mm, A-N rot
Jaw & guide kit 64mm, A-N rot
N Jaw & guide kit 70mm, A-N rot
B jaw & guide kit 54mm, N-H rot Unit
N jaw & guide kit 70mm, N-H rot Unit
H jaw & guide kit 89mm, N-H rot Unit
