Name: Atlas Copco Diamond Core Drill DIAMEC U8 PHC Parts List 6991505862 2010
SKU: 647481
Availability: InStock

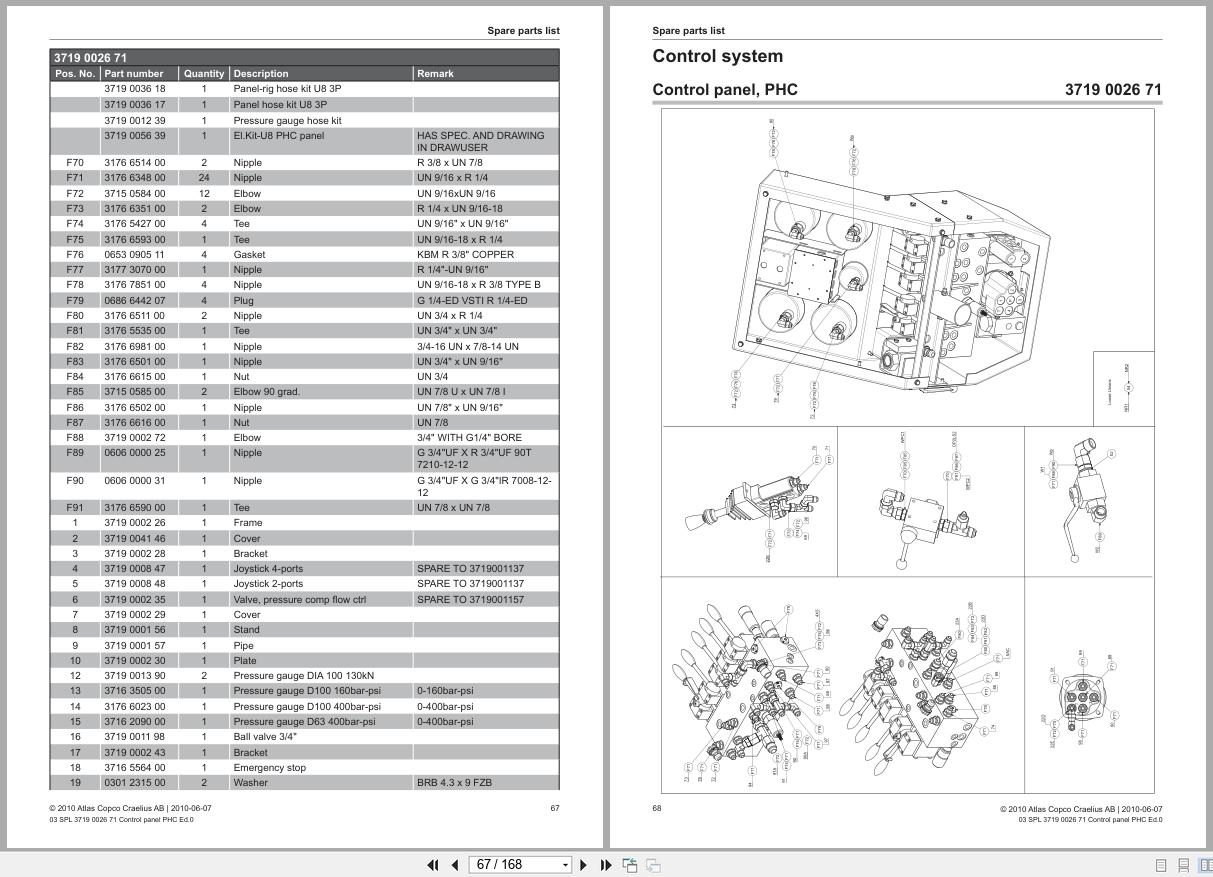

Atlas Copco Diamond Core Drill DIAMEC U8 PHC Parts List 6991505862 2010 1

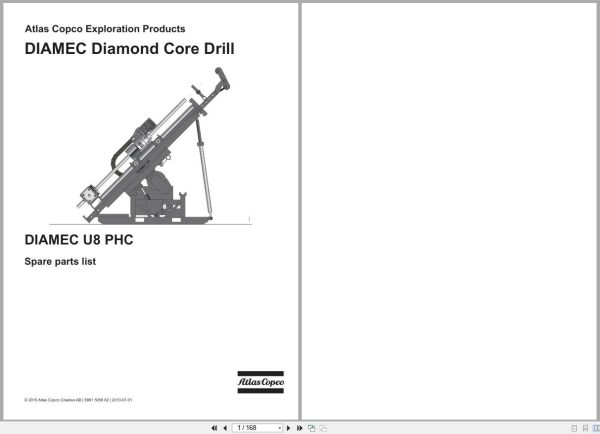

Atlas Copco Diamond Core Drill DIAMEC U8 PHC Parts List 6991505862 2010 2

✓

Expert Support

✓

Full Speed

✓

100% Working

Atlas Copco Diamond Core Drill DIAMEC U8 PHC Parts List 6991505862 2010

Size: 22.65 MB

Format: PDF

Language: English

Brand: Atlas Copco

Type of Machine: Diamond Core Drill

Type of Manual: Parts List

Model: Atlas Copco DIAMEC U8 PHC Diamond Core Drill

Part Number: 6991505862

Publication Date: 2010

Number of Pages: 168 Pages

15 USD

Tag: ATLAS

Description

Description

Contents:
Skid
Skid assembly
Hydraulic cylinder
Hydraulic cylinder
Positioner assembly (Fitting kit)
Positioner hose kit
Stay assembly
Stay bracket
Feed frame
Feed frame complete PHC HCC
Hose ladder assembly
Hose ladder fitting kit
Feed frame – Common parts
Feed frame assembly
Feed cylinder
Feed cylinder seal kit
Cradle assembly Diamec head
Hose ladder hose kit
Rod holder assembly
Rod holder insert
Standard wall bracket
E-stop kit
Feed frame fitting kit
Rotation unit
Rot Unit HCC, 160cc
Rot Unit HCC, basic 160cc
Hydraulic motor 160cc
Strengthening kit
Rot unit 160 CC HCC fitting kit
Control system
Pilot hydraulic system 3-P HCC
Control panel, PHC
Panel hose kit 3P
Panel-rig hose kit 3P
Pressure gauge hose kit
Joystick 4-ports
Joystick 2-ports
Tachometer kit
Valve assy PHC
Valve assembly hose kit PHC-3P
Guard
Guard assembly U8
Guard bracket kit
W/L-hoist kit
W/l- hoist kit 2000 surface
Wireline winch levelwind
W/l free wheeling kit
W/l hoist base
W/l hoist guide
W/l hoist base bracket
W/l hose kit
W/l bracket assy (for rpm sensor)
W/l- winch kit 1300, JIC
Wireline winch with levelwind 1300
W/l fitting kit
W/l hose kit
Mast extension
Mast extension UG
Top pulley UG
Mast extension surface
Top pulley surface
Rod pulley
Rod pulley UG
Rod pulley kit UG
Rod pulley surface
Wall bracket
Key hole wall bracket
Casing clamp bracket U8 assembly
B jaw & guide kit 54mm, N-H rot Unit
Chuck jaw kit 54 mm
N jaw & guide kit 70mm, N-H rot Unit
Chuck jaw kit 70 mm
Rodholder jaw kit 70mm TC (NQ)
H jaw & guide kit 89mm, N-H rot Unit
Chuck jaw kit 89 mm
Rodholder jaw kit 89mm TC (HQ)
N jaw & guide kit B20
Tools
Tool kit basic
Signs
General signs skid
