Grove Crane RT530E-2 607451 Parts Manual 2016

Description

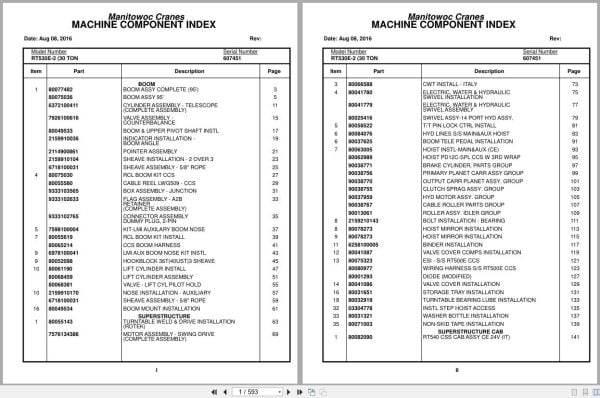

Contents:
Boom Assy Complete (95′)
Boom Assy 95′
Cylinder Assembly – Telescope (Complete Assembly)
Valve Assembly – Counterbalance
Boom & Upper Pivot Shaft Install
Indicator Installation – Boom Angle
Pointer Assembly
Sheave Installation – 2 Over 3
Sheave Assembly – 5/8″ Rope
Rcl Boom Kit Ccs
Cable Reel Lwg509 – Ccs
Box Assembly – Junction
Flag Assembly – A2b Retainer
Connector Assembly Dummy Plug, 2-Pin
Kit-Lmi Auxiliary Boom Nose
Rcl Boom Kit Install
Ccs Boom Harness
Lmi Aux Boom Nose Kit Install
Hook Block 36t(40ust)3 Sheave
Lift Cylinder Install
Lift Cylinder Assembly
Valve – Lift Cyl Pilot Hold
Nose Installation – Auxiliary
Boom Mount Installation
Turntable Weld & Drive Installation (Rotek)
Motor Assembly – Swing Drive (Complete Assembly)
Cwt Install – Italy
Electric, Water & Hydraulic Swivel Installation
Electric, Water & Hydraulic Swivel Assembly
Swivel Assy-14 Port Hyd Assy.
T/T Pin Lock Ctrl Install
Hyd Lines S/S Main&Aux Hoist
Boom Tele Pedal Installation
Hoist Install-Main&Aux (Ce)
Hoist Pd12c-Spl Ccs W 3rd Wrap
Brake Cylinder, Parts Group
Primary Planet Carr Assy Group
Output Carr Planet Assy. Group
Clutch Sprag Assy. Group
Hyd Motor Assy. Group
Cable Roller Parts Group
Roller Assy. Idler Group
Bolt Installation – Bearing
Hoist Mirror Installation
Binder Installation
Valve Cover Comps Installation
Esi – S/S Rt500e Ccs
Wiring Harness-S/S Rt500e Ccs
Diode (Modified)
Valve Cover Installation
Storage Tray Installation
Turntable Bearing Lube Installation
Install Step Hoist Access
Washer Bottle Installation
Non-Skid Tape Installation
Rt540 Css Cab Assy Ce 24v (It)
Heater& A/C Install S/S Cab-24v
24v Heater/Cool Kit
Acoustics Installation
Cab Install-Misc Components
Cab Brackets Installation
Cab Crane Star Installation
Seat Install – Dual Axis
Assy Seat – Dual Axis
Seat Assembly
Mounting Plate Pre- Assembly
Console-Left
Console-Right
Harness Assembly -Seat
Plastics Covers Installation
Ccs Steer Install
Steering Column (W/3 Speeds)
Valve Assembly – Steering Control (Complete Assembly)
Hyd Lines Install-Cab
Esi Installation , Cab
Assy, Panel-Fuse & Relay
Wiring Harness,Fuse & Relay
Panel Assy Overhead Console
Harness Assembly Overhead Panel – Cab
Cab Display Installation
Cab Display Assembly
Display Console
Electr Parts Display Console
Harness Assembly -Cab
Handle Installation Hoist Access
Switch Installation (Auxiliary Hoist)
Rear Cab Cover Installation
Crane Star Installation
Rt550e Brake Pedal Install
Cab Installation -Components
Heater Lines Installation -Cab
Carrier Frame Complete Italy
Frame Weldment & Assembly
Outrigger Beam Installation

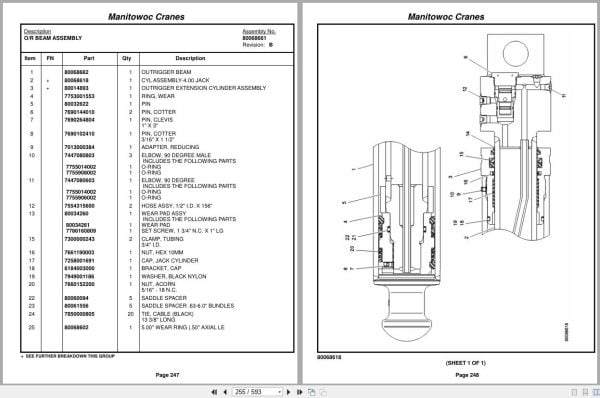

O/R Beam Assembly
Cyl Assembly -4.00 Jack
Outrigger Extension Cylinder Assembly
Cylinder Assembly Modified
Cylinder Assembly – 2 1/2″ O/R Extension (Complete Assembly)
Fender & Decking Installation
Ladder Assembly
Engine Hood Installation
Install, O/R Float
Outrigger Float Assembly
Exterior Lights Installation -Dom 24v
Control Valve Install
Directional Control Val(4sect)
Valve Assy. Inlet Section
Valve Assy. Work Section
Solenoid & Cap Assy. 12v
Accessory Manifold W/Swing
Tie Down Installation – Hook Block
Battery Cover Installation
Mirror Installation – Rear View
Esi Carrier Rt500ccs
Hardware Kit – Decal
Hydraulic Tank Installation
Hydraulic Tank Assembly
Return Filter Assy.
Hyd Valve Install Ca
Valve Assembly – Outrigger Control 4 Section
Park Brake Range Shift Valve
Valve-Axle Lockout
O/R Rear Steer Valve
Install, Hyd Lines
Solenoid Valve Assembly
Install Rear Axle W/O Diff Lock
Axle Assy, Drive Steer
Diff. Carrier Group
Hub Assembly
Planetary Hub Group
Steer Cylinder Group
Brake Assembly
Cylinder Assembly – 5″ Lockout (Complete Assembly)
Install Front Axle
Tire & Wheel Installation 20.5 X 25 Mitas
Tire & Wheel Assembly 20.5 X 25 Mitas
Driveline Installation
Driveline Assembly With Center Bearing
Driveline Assembly (Complete Assembly)
Engine Install Rt540e3 Ccs Italy
Brake-Park Assy W/O Spacer
Filter Assembly (Complete Assembly)
Radiator Installation
Radiator Assembly
Fuel Tank Installation
Fuel Tank
Mounting Kit – Oil Cooler
Battery Box Installation
Battery Box Assembly – Russian
Fuse Panel Assembly
Harness Assembly Relay Panel Battery Box
Exhaust System Installation
Hydraulic Oil Cooler Install
Hydraulic Oil Cooler
Air Cleaner Installation
Air Cleaner Assembly
Idler Pulley Installation
Idler Pulley Assembly -Modified
Idler Pulley Assy
Engine Hood Grill Installation
Supplemental Esi
Box Assembly
Block Heater Installation -Qsb 240v
Trans Oil Cooler Install
Control Panel Htr Install-24v
Heat Control 12v/24v Grove
16mm Dia Hoisting Wire Rope –
Socket Assembly – 5/8″ Wedge
Decal Installation -Frgn Stnd
Decal Install
Supplemental Decal Installation
Decals Hoist & T/T Brg Rework
