Grove Crane RT58C 73776 Parts Manual 2005

Description

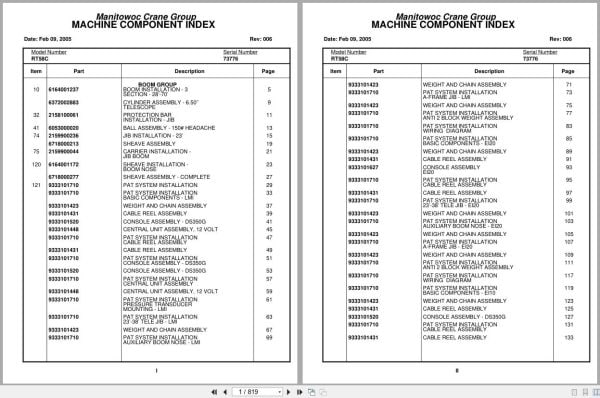

Contents:
Boom Installation – 3 Section – 28’-70’
Cylinder Assembly – 6.50’’ Telescope
Protection Bar Installation – Jib
Ball Assembly – 150# Headache
Jib Installation – 23’
Sheave Assembly
Carrier Installation – Jib Boom
Sheave Installation – Boom Nose
Sheave Assembly – Complete
Pat System Installation
Pat System Installation Basic Components – Lmi
Weight And Chain Assembly
Cable Reel Assembly
Console Assembly – Ds350g
Central Unit Assembly , 12 Volt
Pat System Installation Cable Reel Assembly
Pat System Installation Console Assembly – Ds350g
Pat System Installation Central Unit Assembly
Pat System Installation Pressure Transducer
Pat System Installation 23’-38’ Tele Jib – Lmi

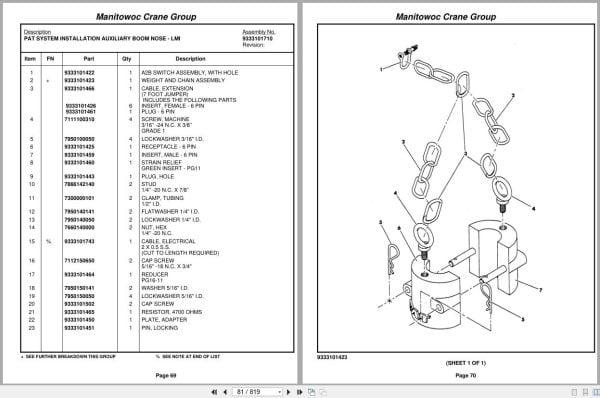

Pat System Installation Auxiliary Boom Nose – Lmi
Pat System Installation A-Frame Jib – Lmi
Pat System Installation Anti 2 Block Weight Assembly
Pat System Installation Wiring Diagram
Pat System Installation Basic Components – Ei20
Console Assembly Ei20
Pat System Installation 23’-38’ Tele Jib – Ei20
Pat System Installation Auxiliary Boom Nose – Ei20
Pat System Installation A-Frame Jib – Ei20
Pat System Installation Basic Components – Ei10
Pat System Installation Console Assembly – E110
Console Assembly Ei10
Pat System Installation 23’-38’ Tele Jib – Ei10
Pat System Installation Auxiliary Boom Nose – Ei10
Pat System Installation A-Frame Jib – Ei10
Pat System Installation Wiring Diagrams
Pat System Installation Basic Components – A2b
Console Assembly Anti 2 Block
Pat System Installation Console Assembly – A2b
Pat System Installation 23’-38’ Tele Jib – A2b
Pat System Installation Auxiliary Boom Nose – A2b
Pat System Installation A-Frame Jib – A2b
Console Installation – Front
Shift Installation – Axle And Range
Shift Installation – Transmission
Transmission Kit – Shift
Control Lever Assembly
Power Steering And Horn Installation
Valve Assembly – Steering Control
Brake And Accelerator Pedal Installation
Pedal Assembly – Accelerator
Park Brake Installation
Seat And Seat Belt Installation
Seat Assembly – Industrial
Instruments And Lights Installation
Valve Assembly – 4 Stack Outrigger Solenoid
Valve Bank Assembly
Valve Assembly – Selector
Fire Extinguisher Installation
Cab Installation
Cab Section
Door Assembly – Cab
Cover Installation
Fan Installation – Cab Circulating
Fan Assembly – 12 Volt Cab Complete Assembly
Windshield Wiper Installation
Windshield Washer Installation
Mirror Installation – Rear
Circular Level Installation
Cover Installation – Seat Support
Handrail Installation
Control Valve And Linkage Installation
Valve Assembly – 2 Section
Valve Assembly – 4 Section
Valve Assembly – Outlet
Valve Assembly – 1 Section
Valve Assembly – Solenoid
Valve Assembly – Flow Divider
Hydraulic Lines Installation – Swing
Hydraulic Lines Installation – Lift
Hydraulic Lines Installation – Mid-Telescope
Hydraulic Lines Installation – Main Hoist
Hydraulic Lines Installation – Lever Lockout
Hose Clamps Installation – Main Hoist
Hoist Installation – Main
Hoist Assembly – Low Profile
Hoist Assembly
Valve Assembly – Motor Control
Brake Assembly
Gear Reduction Assembly
Motor Assembly – Hydraulic Vane Type
Rotation Indicator Installation
Driver Assembly Driver Assembly
Indicator Assembly
Transmitter Assembly
Idler Drum And Cable Follower Installation
Cable Follower
Idler Drum Assembly
Turntable Installation
Counterweight Installation
Cylinder Installation – Lift
Cylinder Assembly – Lift
Swivel Installation – Electric/Hydraulic
Ring Assembly – Slip
Swivel Assembly – 7 Port Hydraulic
Turntable Lock Installation
Pivot Shaft Installation – Boom
Turntable Drive And Swing Box Installation
Swing Box Installation
Box Assembly – Swing
Swing Box And Brake Assembly
Brake Assembly – Swing
Motor Assembly – Orbit
Engine Installation – Cummins 6bt5.9
Filter Assembly – Oil
Pump Assembly – Steering
Hood Installation – Engine
Door Assembly – Right Hand
Door Assembly – Left Hand Side
Pump Cover Installation
Electrical System Installation
Indicator Installation – Air Restriction
Warning System Installation
Light Installation – Red Indicator
Switch Installation – Engine Distress
Transmission Installation
Transmission Assembly
Transmission Assembly Case And Cover Group
Transmission Assembly Idler Shaft And Front Cover
Transmission Assembly Forward Shaft Group
Transmission Assembly Reverse Idler Group
Transmission Assembly Reverse And Second Shaft
Transmission Assembly Low Speed Shaft Group
Transmission Assembly Third Shaft Clutch Group
Transmission Assembly Idler Shaft Group
Transmission Assembly Output Shaft Group
Transmission Assembly Hi And Low Range Shift
Transmission Assembly Control Valve
Bottom Cable Entry Kit
Driveline Installation
Driveline Assembly
Hydraulic Lines Converter And Transmission
Axle Installation – Front
Axle Assembly
Axle Assembly Differential Carrier Parts
Axle Assembly Housing Parts
Axle Assembly Wheel End Parts
Axle Assembly Brake Parts
Axle Assembly Wheel Cylinder Assembly
Cylinder Assembly – 3″ Steer
Axle Installation – Rear
Cylinder Assembly -Lockout
Power Boost And Brake Lines Installation
Cylinder Assembly – Master With Power Head
Power Brake Assembly
Cylinder Assembly – Brake Master
Valve Assembly – Flow Control
Valve Assembly – Relief
Valve Installation – Rear Axle Lockout
Valve Assembly
Indicator Installation – Rear Steer
Switch Assembly – Limit
Hydraulic Lines Installation – Front Steer
Hydraulic Lines Installation – Rear Steer
Hydraulic Lines Installation – Axle Lockout With Override
Lug Nut And Washer Installation
Tire And Wheel Assembly
Outrigger Installation
Cylinder Assembly – 7″ Outrigger Jack
Battery Installation
Hydraulic Lines Installation – Outrigger
Valve Installation – Selector
Valve Assembly – Outrigger Selector
Fifth Wheel Installation
Decal Installation
Reservoir Installation – Hydraulic
Tank Installation – Fuel
Electrical System Installation – Carrier
Harness Assembly – Carrier
Tool Box Step And Handle Installation – W/Fenders
Cover Installation – Front
Lights Installation – Front And Rear
Fender Installation
Pintle Hook Installation
Pintle Hook
Alarm Installation – Back-Up
Tie-Down Installation – Hook Block
Hydraulic Lines Installation – Supply, Pressure And Return
