Hesston Windrower 500SP Parts Catalog 883249

Size: 3.26 MB

Format: PDF

Language: English

Brand: Hesston

Type of Machine: Windrower

Type of Manual: Parts Catalog

Model: Hesston 500SP Windrower

Part Number: 883249

Number of Pages: 74 Pages

10 USD

Tag: Hesston Parts Manual

Description

Description

Contents:

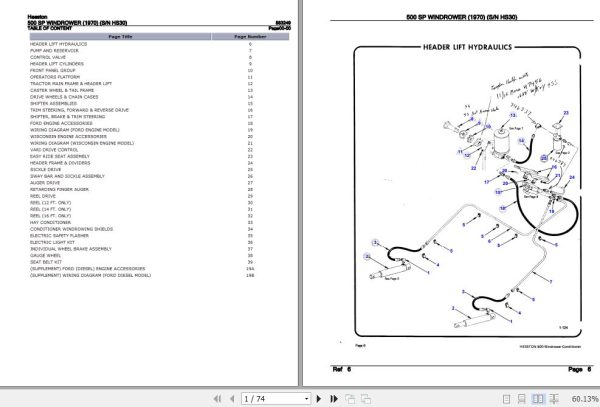

Header Lift Hydraulics
Pump And Reservoir
Control Valve
Header Lift Cylinders
Front Panel Group
Operators Platform
Tractor Main Frame & Header Lift
Caster Wheel & Tail Frame

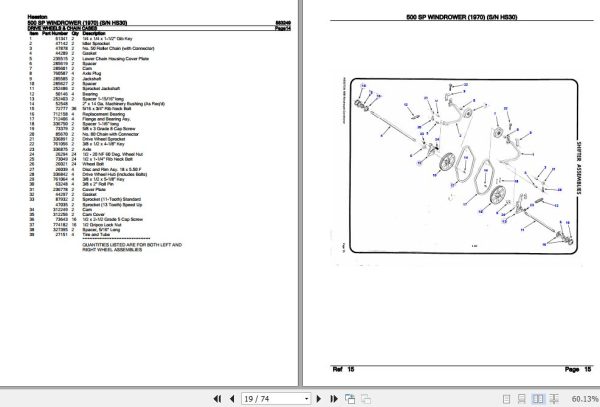

Drive Wheels & Chain Cases
Shifter Assemblies
Trim Steering, Forward & Reverse Drive
Shifter, Brake & Trim Steering
Ford Engine Accessories

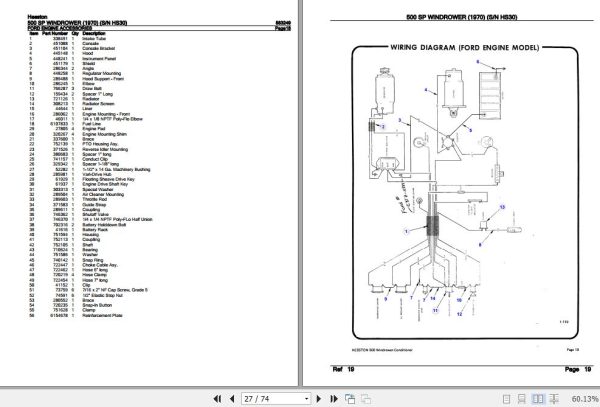

Wiring Diagram (Ford Engine Model)
(Supplement) Ford (Diesel) Engine Accessories
(Supplement) Wiring Diagram (Ford Diesel Model)
Wisconsin Engine Accessories
Wiring Diagram (Wisconsin Engine Model)
Vari-Drive Control
Easy Ride Seat Assembly
Header Frame & Dividers
Sickle Drive
Sway Bar And Sickle Assembly
Auger Drive
Retarding Finger Auger
Reel Drive
Reel (12 Ft. Only)
Reel (14 Ft. Only)
Reel (16 Ft. Only)
Hay Conditioner
Conditioner Windrowing Shields
Electric Safety Flasher
Electric Light Kit
Individual Wheel Brake Assembly
Gauge Wheel
Seat Belt Kit
