Name: Nichiyu Forklift FB7P-50 Parts Manual
SKU: 494230
Availability: InStock

✓

Expert Support

✓

Full Speed

✓

100% Working

Nichiyu Forklift FB7P-50 Parts Manual

Size: 9.24 MB

Format: PDF

Language: English

Brand: Nichiyu

Type of Machine: Forklift

Type of Manual: Parts Manual

Model: FB7P-50

Number of Pages: 157 Pages

10 USD

Tag: Nichiyu Forklift Truck Manual

Description

Description

Contents:

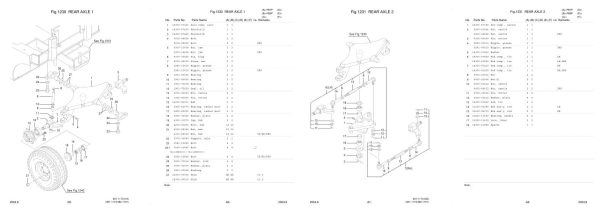

Fig.1010 FRAME
Fig.1011 COVER
Fig.1012 PANEL
Fig.1014 PAD & FLOOR PLATE
Fig.1015 BATTERY COVER
Fig.1030 BATTERY CASE
Fig.1040 COUNTER BALANCE WEIGHT
Fig.1050 SEAT
Fig.1060 OVERHEAD GUARD
Fig.1093A NAME PLATE
Fig.1093B NAME PLATE
Fig.1094 NAME PLATE
Fig.1095 KNOB PLATE
Fig.1130A FRONT AXLE 1
Fig.1130B FRONT AXLE 1
Fig.1131A FRONT AXLE 2
Fig.1131B FRONT AXLE 2
Fig.1132A FRONT AXLE 3
Fig.1132B FRONT AXLE 3
Fig.1133B FRONT AXLE 4
Fig.1140A FRONT WHEEL
Fig.1140B FRONT WHEEL
Fig.1150 FRONT AXLE FIT.
Fig.1230 REAR AXLE 1
Fig.1231 REAR AXLE 2
Fig.1240A REAR WHEEL
Fig.1240B REAR WHEEL
Fig.1310A STEERING LINKAGE 1
Fig.1310B STEERING LINKAGE 1
Fig.1311 STEERING LINKAGE 2
Fig.1312 STEERING LINKAGE 3
Fig.1313 STEERING LINKAGE 4
Fig.1320 FOOT BRAKE LINKAGE 1
Fig.1321 FOOT BRAKE LINKAGE 2
Fig.1330 PARKING BRAKE LINKAGE
Fig.1340A VALVE LINKAGE
Fig.1340B VALVE LINKAGE
Fig.1340C VALVE LINKAGE
Fig.1340D VALVE LINKAGE
Fig.1350 ACCELERATOR LINKAGE
Fig.1500 OIL TANK
Fig.1510 OIL PUMP
Fig.1520A CONTROL VALVE
Fig.1520B CONTROL VALVE
Fig.1520C CONTROL VALVE
Fig.1520D CONTROL VALVE
Fig.1551A FRAME PIPING 1
Fig.1551B FRAME PIPING 1
Fig.1551C FRAME PIPING 1
Fig.1552A FRAME PIPING 2
Fig.1552B FRAME PIPING 2
Fig.1552C FRAME PIPING 2
Fig.1556 BRAKE PIPING
Fig.2053A LIFT CYLINDER[Pm]
Fig.2053B LIFT CYLINDER[Pm]

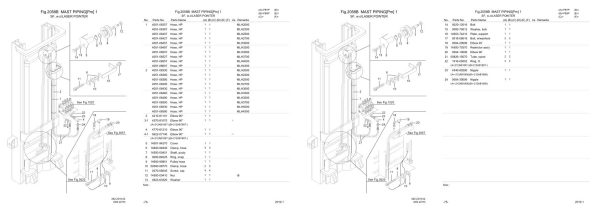

Fig.2058A MAST PIPING[Pm] 1
Fig.2058B MAST PIPING[Pm] 1
Fig.2059 MAST PIPING[Pm] 2
Fig.2061 OUTER MAST[Pm]
Fig.2063 INNER MAST[Pm]
Fig.2064 CHAIN WHEEL[Pm]
Fig.2252A LIFT CYLINDER(1st)[Fm]
Fig.2252B LIFT CYLINDER(1st)[Fm]
Fig.2253A LIFT CYLINDER(2nd)[Fm]
Fig.2253B LIFT CYLINDER(2nd)[Fm]
Fig.2254A TILT CYLINDER[Fm]
Fig.2254B TILT CYLINDER[Fm]
Fig.2259 MAST PIPING[Fm]
Fig.2261 OUTER MAST[Fm]
Fig.2263 INNER MAST[Fm]
Fig.2264 CHAIN WHEEL[Fm]
Fig.3620A LIFT BRACKET [Pm]
Fig.3620B LIFT BRACKET [Fm]
Fig.3620C LIFT BRACKET
Fig.3620D LIFT BRACKET
Fig.3630A FORK
Fig.3630B FORK
Fig.3640 BACKREST
Fig.3650 SIDESHIFT
Fig.3657 SIDE SHIFT CYLINDER
Fig.4071 TRACTION MOTOR
Fig.4072 HYDRAULIC MOTOR
Fig.4073 EPS MOTOR
Fig.4400 CONTROL UNIT 1
Fig.4401 CONTROL UNIT 2
Fig.4402 CONTROL UNIT 3
Fig.4403 CONTROL UNIT 4
Fig.4420 ACCELERATOR
Fig.4500 EPS CONTROLLER
Fig.4800A BATTERY (24V)
Fig.4800B BATTERY (24V)
Fig.4810A CHARGER(BC) 1
Fig.4810B CHARGER(BC) 1
Fig.4810C CHARGER(BC) 1
Fig.4811A CHARGER(BC) 2
Fig.4811B CHARGER(BC) 2
Fig.4820 INDICATOR PANEL
Fig.4825 DIRECTIONAL SWITCH
Fig.4851 WIRE HARNESS (BODY)
Fig.4857 WIRE HARNESS (BATTERY)
Fig.4860 ELECTRIC PARTS
Fig.4865 MICROSWITCH
Fig.5000C ACCESSORY
Fig.5000D ACCESSORY
Fig.5000E ACCESSORY
Fig.5000F ACCESSORY
Fig.5000G ACCESSORY
Fig.5000H ACCESSORY
Fig.5000I ACCESSORY
Fig.5000J ACCESSORY
Fig.5100A å°åž‹ç‰¹æ®Šè»Šæ¤œä»•æ§˜ 1
Fig.5100B å°åž‹ç‰¹æ®Šè»Šæ¤œä»•æ§˜ 1
Fig.5101A å°åž‹ç‰¹æ®Šè»Šæ¤œä»•æ§˜ 2
Fig.5101B å°åž‹ç‰¹æ®Šè»Šæ¤œä»•æ§˜ 2
Fig.5102 å°åž‹ç‰¹æ®Šè»Šæ¤œä»•æ§˜ 3
Fig.5580 CYLINDER BOOT
Fig.6000 ICHIGIMEKUN 1
Fig.6010B ICHIGIMEKUN 2
Fig.6011A ICHIGIMEKUN 3
Fig.6011B ICHIGIMEKUN 3
Fig.6011C LASER POINTER 3
Fig.6012 ICHIGIMEKUN 4
