Nichiyu Forklift FBR20-E70 Parts Manual

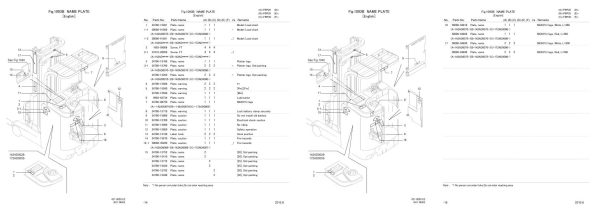

Nichiyu Forklift FBR20 E70 Parts Manual 1

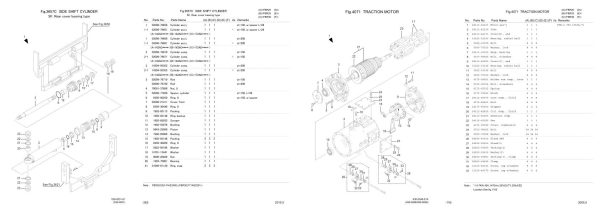

Nichiyu Forklift FBR20 E70 Parts Manual 2
Nichiyu Forklift FBR20 E70 Parts Manual 1
Nichiyu Forklift FBR20 E70 Parts Manual 2
✓

Expert Support

✓

Full Speed

✓

100% Working

Nichiyu Forklift FBR20-E70 Parts Manual

Size: 19.26 MB
Format: PDF
Language: English
Brand: Nichiyu
Type of Machine: Forklift
Type of Manual: Parts Manual
Model: FBR20-E70
Number of Pages: 242 Pages

10 USD

Tag:
  • Description

Description

Contents:
Fig.1010 FRAME
Fig.1011 SIDE COVER
Fig.1012 TOP COVER
Fig.1014 BATTERY PARTS
Fig.1015 PAD & FLOOR PLATE
Fig.1018 PANEL
Fig.1020 BAND
Fig.1040 BATTERY BOX
Fig.1050 BATTERY TABLE
Fig.1055 BATTERY CARRIER
Fig.1060 OVERHEAD GUARD
Fig.1093A NAME PLATE
Fig.1093B NAME PLATE
Fig.1094 NAME PLATE
Fig.1100 DRIVE 1
Fig.1101 DRIVE 2
Fig.1102 DRIVE 3
Fig.1110 DRIVE WHEEL
Fig.1200 CONTROL LINKAGE 1
Fig.1201 CONTROL LINKAGE 2
Fig.1205 CASTER WHEEL
Fig.1206 LUBRICATION SYSTEM
Fig.1220 LOAD WHEEL
Fig.1300A STEERING
Fig.1300B STEERING
Fig.1301 STEERING SENSOR
Fig.1320 BRAKE LINKAGE 1
Fig.1321 BRAKE LINKAGE 2
Fig.1325A DISK BRAKE
Fig.1325B DISK BRAKE
Fig.1340A VALVE LINKAGE
Fig.1340B VALVE LINKAGE
Fig.1341A VALVE LINKAGE
Fig.1341B VALVE LINKAGE
Fig.1350 ACCEL LINKAGE
Fig.1500 OIL TANK
Fig.1510 OIL PUMP
Fig.1520A CONTROL VALVE
Fig.1520B CONTROL VALVE
Fig.1551 FRAME PIPING
Fig.1552A FRAME PIPING
Fig.1552B FRAME PIPING
Fig.1552C JOINT PIPING [SF]
Fig.1552D JOINT PIPING [SF]
Fig.2053A LIFT CYLINDER[Pm]
Fig.2053B LIFT CYLINDER[Pm]
Fig.2054 TILT CYLINDER[Pm]
Fig.2055A REACH CYLINDER[Pm]
Fig.2055B REACH CYLINDER[Pm]
Fig.2058A MAST PIPING[Pm] 1
Fig.2058B MAST PIPING[Pm] 1
Fig.2058C MAST PIPING[Pm] 1
Fig.2059A1 MAST PIPING[Pm]
Fig.2059A2 MAST PIPING[Pm]
Fig.2059B1 MAST PIPING[Pm]
Fig.2059B2 MAST PIPING[Pm]
Fig.2061A OUTER MAST[Pm]
Fig.2061B OUTER MAST[Pm]
Fig.2063A INNER MAST[Pm]
Fig.2064A CHAIN WHEEL[Pm]
Fig.2064B CHAIN WHEEL[Pm]
Fig.2152A LIFT CYLINDER(1st)[Mm]
Fig.2153A LIFT CYLINDER(2nd)[Mm]
Fig.2153B LIFT CYLINDER(2nd)[Mm]
Fig.2153C LIFT CYLINDER(2nd)[Mm]
Fig.2154 TILT CYLINDER[Mm]
Fig.2156A MAST PIPING[Mm] 1
Fig.2156B MAST PIPING[Mm] 1
Fig.2156C MAST PIPING[Mm] 1
Fig.2157A MAST PIPING[Mm] 2
Fig.2157B MAST PIPING[Mm] 2
Fig.2158A1 MAST PIPING[Mm] 1
Fig.2158A2 MAST PIPING[Mm] 1
Fig.2159A1 MAST PIPING[Mm] 2
Fig.2159A2 MAST PIPING[Mm] 2
Fig.2159B1 MAST PIPING[Mm] 2
Fig.2159B2 MAST PIPING[Mm] 2
Fig.2161A OUTER MAST[Mm]
Fig.2161B OUTER MAST[Mm]
Fig.2162A MIDDLE MAST[Mm]
Fig.2162B MIDDLE MAST[Mm]
Fig.2163A INNER MAST[Mm]
Fig.2164A CHAIN WHEEL(MAST)[Mm]
Fig.2164B CHAIN WHEEL(MAST)[Mm]
Fig.2256A1 MAST PIPING[Fm] 1
Fig.2256A2 MAST PIPING[Fm] 1
Fig.2257A1 MAST PIPING[Fm] 2
Fig.2257A2 MAST PIPING[Fm] 2
Fig.2258A1 MAST PIPING[Fm] 1
Fig.2258A2 MAST PIPING[Fm] 1
Fig.2259A1 MAST PIPING[Fm] 2
Fig.2259A2 MAST PIPING[Fm] 2
Fig.2261A OUTER MAST[Fm]
Fig.2263A INNER MAST[Fm]
Fig.2263B INNER MAST[Fm]
Fig.3620A1 LIFT BRACKET [Pm]
Fig.3620A2 LIFT BRACKET [Pm]
Fig.3620B1 LIFT BRACKET [Pm]
Fig.3620B2 LIFT BRACKET [Pm]
Fig.3620C1 LIFT BRACKET [Mm_Fm]
Fig.3620C2 LIFT BRACKET [Mm_Fm]
Fig.3620D1 LIFT BRACKET [Mm_Fm]
Fig.3620D2 LIFT BRACKET [Mm_Fm]
Fig.3621A1 TILT BAR
Fig.3621A2 TILT BAR
Fig.3621B1 TILT BAR
Fig.3621B2 TILT BAR
Fig.3621B3 TILT BAR
Fig.3630A FORK
Fig.3630B FORK
Fig.3630C FORK
Fig.3640A1 BACKREST
Fig.3640A2 BACKREST
Fig.3640A3 BACKREST
Fig.3640B1 BACKREST
Fig.3640B2 BACKREST
Fig.3640C1 BACKREST
Fig.3640C2 BACKREST
Fig.3650A1 SIDE SHIFT
Fig.3650A2 SIDE SHIFT
Fig.3657A1 SIDE SHIFT CYLINDER
Fig.3657A2 SIDE SHIFT CYLINDER
Fig.3657B SIDE SHIFT CYLINDER
Fig.3657C SIDE SHIFT CYLINDER
Fig.4071 TRACTION MOTOR
Fig.4072 HYDRAULIC MOTOR
Fig.4073 EPS MOTOR
Fig.4400A CONTROL UNIT 1
Fig.4400B CONTROL UNIT 1
Fig.4401A CONTROL UNIT 2
Fig.4401B CONTROL UNIT 2
Fig.4402A CONTROL UNIT 3
Fig.4402B CONTROL UNIT 3
Fig.4403A CONTROL UNIT 4
Fig.4403B CONTROL UNIT 4
Fig.4420 ACCELERATOR
Fig.4470 CONTROL BOX 1
Fig.4471 CONTROL BOX 2
Fig.4472 CONTROL BOX 3
Fig.4473 CONTROL BOX 4
Fig.4475 CONTROL BOX 5
Fig.4500 EPS CONTROLLER
Fig.4600 CONTROL PANEL
Fig.4800 BATTERY
Fig.4840A TERMINAL BOX
Fig.4840B TERMINAL BOX
Fig.4860 ELECTRIC PARTS
Fig.4865 MICROSWITCH
Fig.5000A ACCESSORY
Fig.5000B ACCESSORY
Fig.5000C ACCESSORY
Fig.5000D ACCESSORY
Fig.5000E ACCESSORY
Fig.5000F ACCESSORY
Fig.5000G ACCESSORY
Fig.5000H ACCESSORY
Fig.5000I ACCESSORY
Fig.5000J ACCESSORY
