NIFTYLIFT Articulating Boom Lifts HR12N 22057 Operating Parts Manual And Diagram 2011 EN FR

NIFTYLIFT Articulating Boom Lifts HR12N 22057 Operating Parts Manual And Diagram 2011 EN FR (1)
NIFTYLIFT Articulating Boom Lifts HR12N 22057 Operating Parts Manual And Diagram 2011 EN FR (2)
NIFTYLIFT Articulating Boom Lifts HR12N 22057 Operating Parts Manual And Diagram 2011 EN FR (3)
NIFTYLIFT Articulating Boom Lifts HR12N 22057 Operating Parts Manual And Diagram 2011 EN FR (4)
NIFTYLIFT Articulating Boom Lifts HR12N 22057 Operating Parts Manual And Diagram 2011 EN FR (1)
NIFTYLIFT Articulating Boom Lifts HR12N 22057 Operating Parts Manual And Diagram 2011 EN FR (2)
NIFTYLIFT Articulating Boom Lifts HR12N 22057 Operating Parts Manual And Diagram 2011 EN FR (3)
NIFTYLIFT Articulating Boom Lifts HR12N 22057 Operating Parts Manual And Diagram 2011 EN FR (4)
✓

Expert Support

✓

Full Speed

✓

100% Working

NIFTYLIFT Articulating Boom Lifts HR12N 22057 Operating Parts Manual And Diagram 2011 EN FR

Size: 17.14 MB
Format: PDF
Language: English, French
Brand: NIFTYLIFT
Type of Machine: Articulating Boom Lifts
Type of Manual: Operating Manual, Parts Manual, Electrical Schematic, Hydraulic Schematic, Hose Diagram
Model: NIFTYLIFT HR12N Articulating Boom Lifts
Serial Number: 22057
Publication Date: 2011

30 USD

Tags: , ,
  • Description

Description

List of Files:
01_HOSE DIAGRAM HR12 ECO SOM D80525 (issue 004) 22057.pdf (1 Pages)

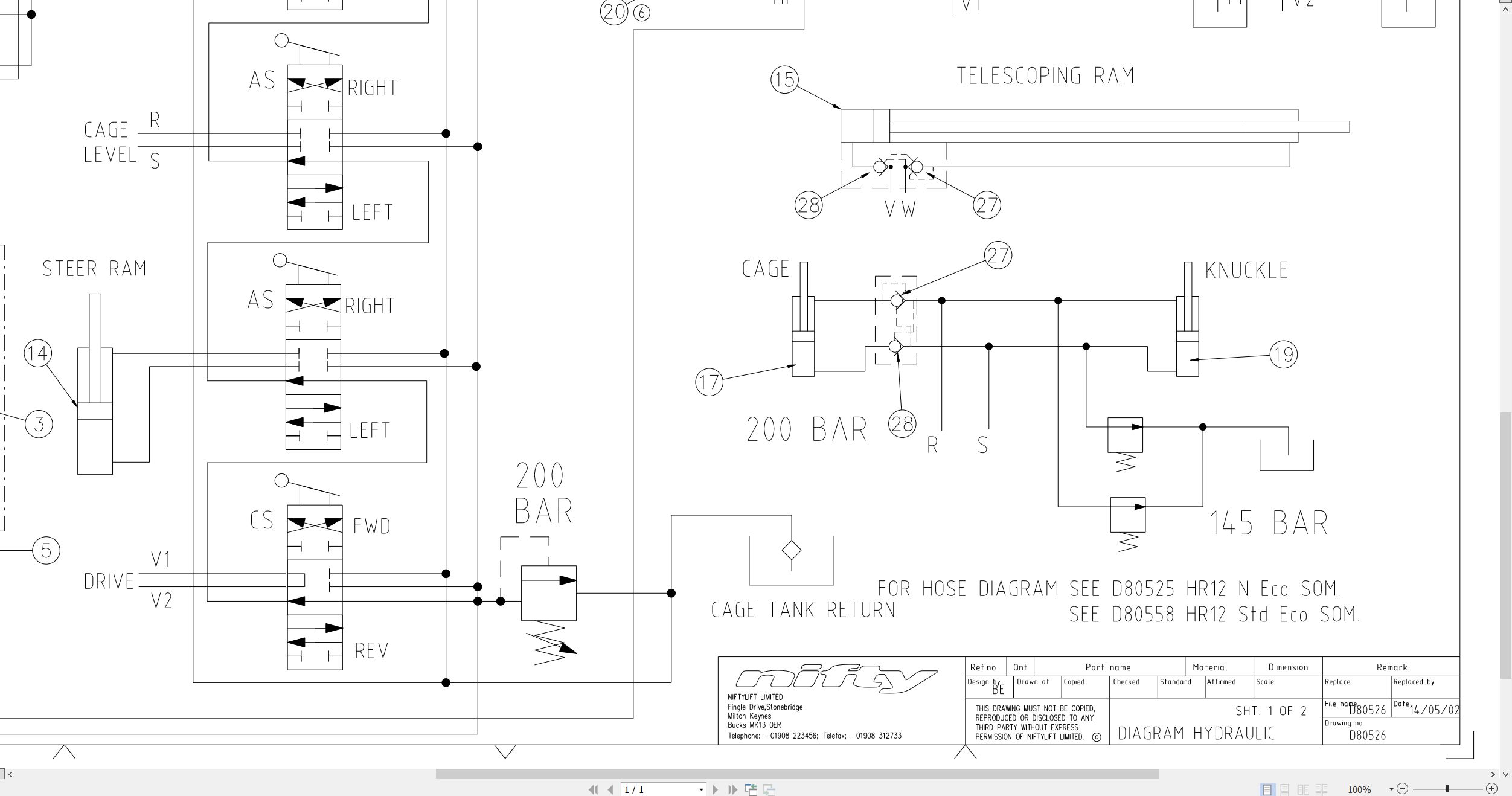

02_HYDRAULIC DRG HR12 D80526 (issue 006) 22057.pdf (1 Pages)

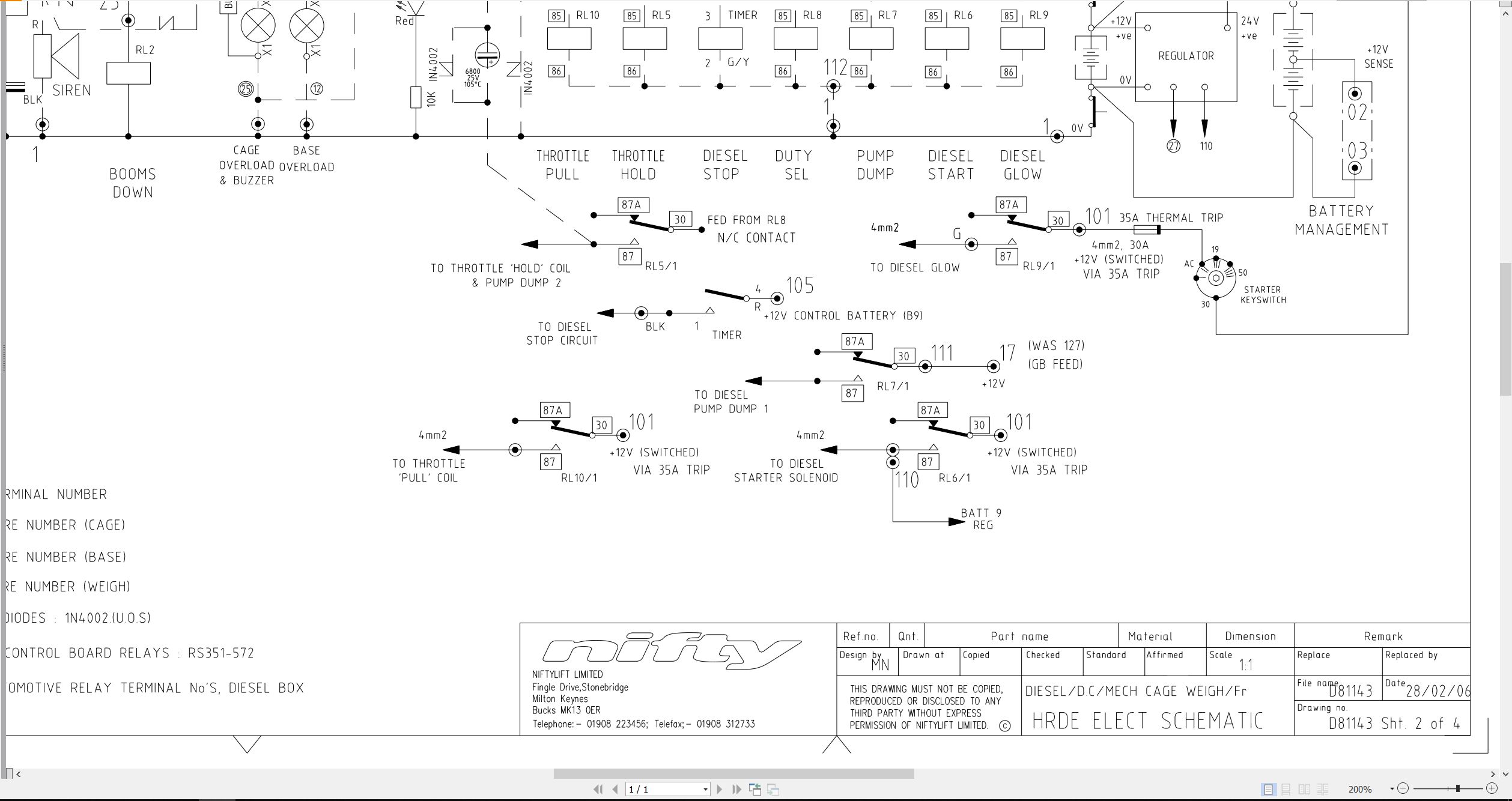

03_HR10DE,HR12DE,HR12NDE 12v French Mech. c D81143 (issue 003) 22057.pdf (1 Pages)
04_HR10 12 SP26 34 2×4 PARTS MANUAL M50190 (issue 009) 22057.pdf (116 Pages)
Contents:
Introduction
Parts Order Form
Contents
chassis assembly
1.1 Base assembly
1.2 Bonnets/Covers/Guards
1.3 Steering assembly
1.4 Front hub assembly
1.5 Power pack
1.6 Drive control valve
1.7 Diesel engine (Part 1)
1.8 Diesel engine (Part 2)
1.9 Diesel box
1.10 Anderson connector
superstructure
2.1 Control station – Base
2.2 Slew assembly
2.3 Control valve assembly (3 spool)
2.4 Control valve assembly (4 spool)
2.5 Button box assembly
2.6 Control box
2.7 Dual voltage charger box
2.8 Battery charger
boom assemblies
3.1 HR10/SP26 Booms assembly
3.2 HR12/SP34 Booms assembly
3.3 HR10/SP26 Lift cylinder
3.4 HR12/SP34 Lift cylinder
3.5 Levelling cylinder
3.6 Telescope cylinder
3.7 Energy chain
cage assembly
4.1 Cage assembly
4.2 Cage weigh assembly – Spring (HR10)
4.3 Cage weigh assembly – Load Cell (HR10)
4.4 Cage weigh assembly – Spring (HR12)
4.5 Cage weigh assembly – Load Cell (HR12)
4.6 Control box – Cage
4.7 Control valve – Cage
labelling
5.1 Label locations HR10/12
5.2 Label locations SP26/34 (USA)
Labels (1-32)
Labels (33-43)
hydraulic hoses
6.1 Hose kit HR10 (SP26)
6.2 Hose kit HR12 (SP34)
05_HR10 12 OPERATING MANUAL FRENCH M50195 (issue 011) 22057.pdf (43 Pages)

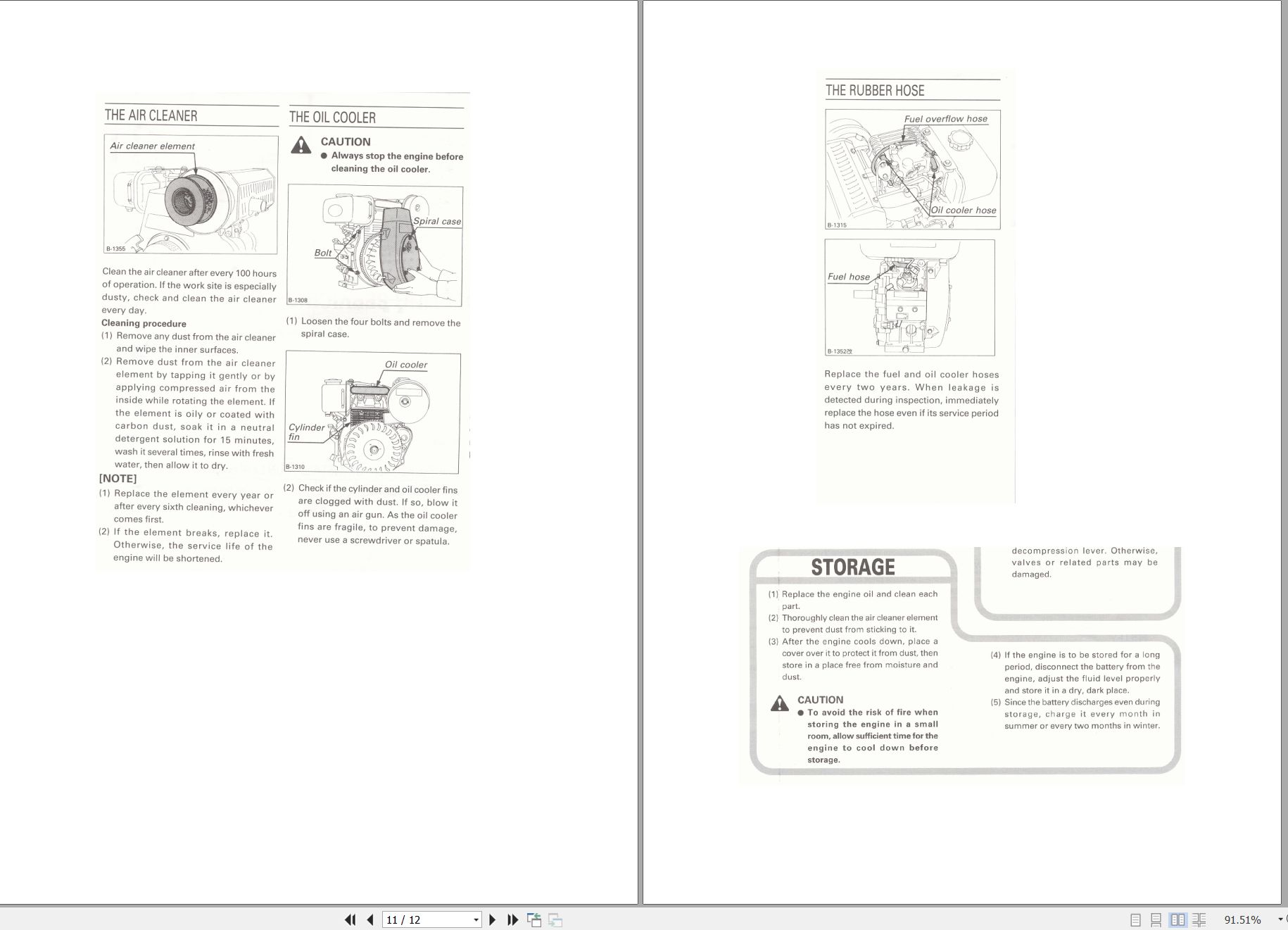

06_Kubota OC60 95 Operators Manual M50290 (issue 001) 22057 11551-8915-6.pdf (12 Pages)
Contents:
Safe Operation
Battery
Specifications
Periodic Service
Wiring
Pre-start Checks
Starting (Electric)
Fuel Filter
Crankcase Oil
Air Cleaner
Oil Cooler
Fuel & Oil hoses
Storage
