NIFTYLIFT Articulating Boom Lifts SD50 55660 Operating Parts Manual And Diagram 2024

Size: 13.73 MB
Format: PDF
Language: English
Brand: NIFTYLIFT
Type of Machine: Articulating Boom Lifts
Type of Manual: Operating Manual, Parts Manual, Electrical Schematic, Hydraulic Schematic,
Model: NIFTYLIFT SD50 Articulating Boom Lifts
Serial Number: 55660
Publication Date: 2024

30 USD

Tags: , ,
  • Description

Description

List of Files:
01_LIFTING POINTS, SD170 D80891 (issue 005) 55660.pdf (2 Pages)
Contents:
Sheet 1
Views
Main_View
Rear_View
A
Sheet 2
Views
LEFT
REAR
B
02_HYDRAULIC DRAWING SD170D & DE D81745 (issue 005) 55660.pdf (4 Pages)

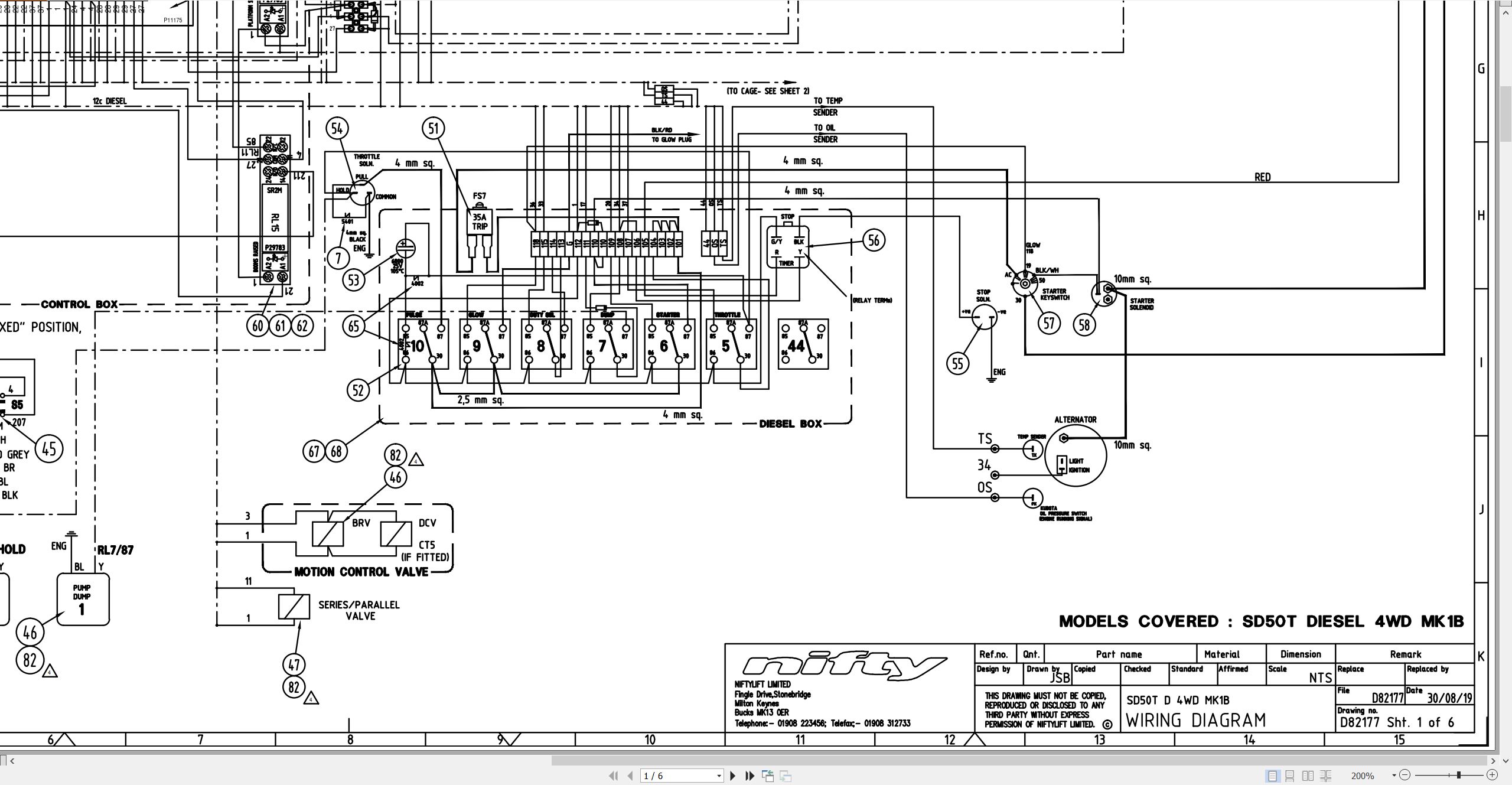

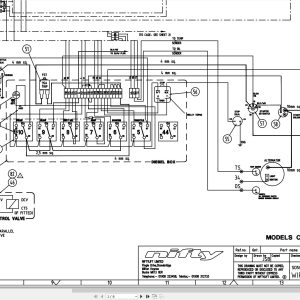

03_ELECTRICAL SCHEMATIC, SD50TD MK1B D82177 (issue 004) 55660.pdf (6 Pages)
04_170SD SD50 PARTS MANUAL M50160 (issue 025) 55660.pdf (108 Pages)
Contents:
Front cover
Parts Order Form
chassis assembly
1.1 Base assembly
1.2 Stabiliser assembly
1.3 Steering/Drive assembly
1.4 Slew assembly
1.5 Dual voltage charger box
power tray
2.1 Power tray
2.2 DC Power pack
2.3 Diesel engine – Part 1
2.4 Diesel engine – Part 2
2.5 Control box
2.6 Diesel box
2.7 Battery charger
2.8 Covers and guards
boom assemblies
3.1 Upper boom assembly
3.2 Lower boom assembly
3.3 Lift cylinder
3.4 Levelling cylinder
3.5 Telescope cylinder
3.6 Levelling valve
3.7 Drive/Jacks control station
3.8 Ground controls
3.9 Button box assembly
3.10 Control valve assembly (3 spool)
3.11 Control valve assembly (4 spool)
cage assemblies
4.1 Swivel cage assembly – Part 1
4.2 Swivel cage assembly – Part 2
4.3 Non-swivel cage assembly
4.4 Swivel cage weigh assembly (Load Cell)
4.5 Non- swivel cage weigh assembly (Load Cell)
4.6 Cage control box
4.7 Control valve
labelling
5.1 Label locations
Labels 1 to 30
Labels 31 to 46
hydraulic hoses
6.1 Hose Kit (4WD)
05_Kubota D722 Z482 Operators Manual M50291 (issue 002) 55660 1J090-8916-1.pdf (39 Pages)
Contents:
E.pdf
SAFE OPERATION
SERVICING OF THE ENGINE
NAMES OF PARTS
PRE-OPERATION CHECK
BREAK-IN
DAILY CHECK
To prevent trouble from occurring, it is important to know the conditions of the engine well. Che…
OPERATING THE ENGINE
STARTING THE ENGINE(NORMAL)
COLD WEATHER STARTING
STOPPING THE ENGINE
CHECKS DURING OPERATION
REVERSED ENGINE REVOLUTION AND REMEDIES
MAINTENANCE
SERVICE INTERVALS
PERIODIC SERVICE
FUEL
ENGINE OIL
RADIATOR
AIR CLEANER
ELECTRIC WIRING
FAN BELT
CARRIAGE AND STORAGE
CARRIAGE
STORAGE
TROUBLESHOOTING
If the engine does not function properly, use the following chart to identify and correct the cause.
SPECIFICATIONS
WIRING DIAGRAMS

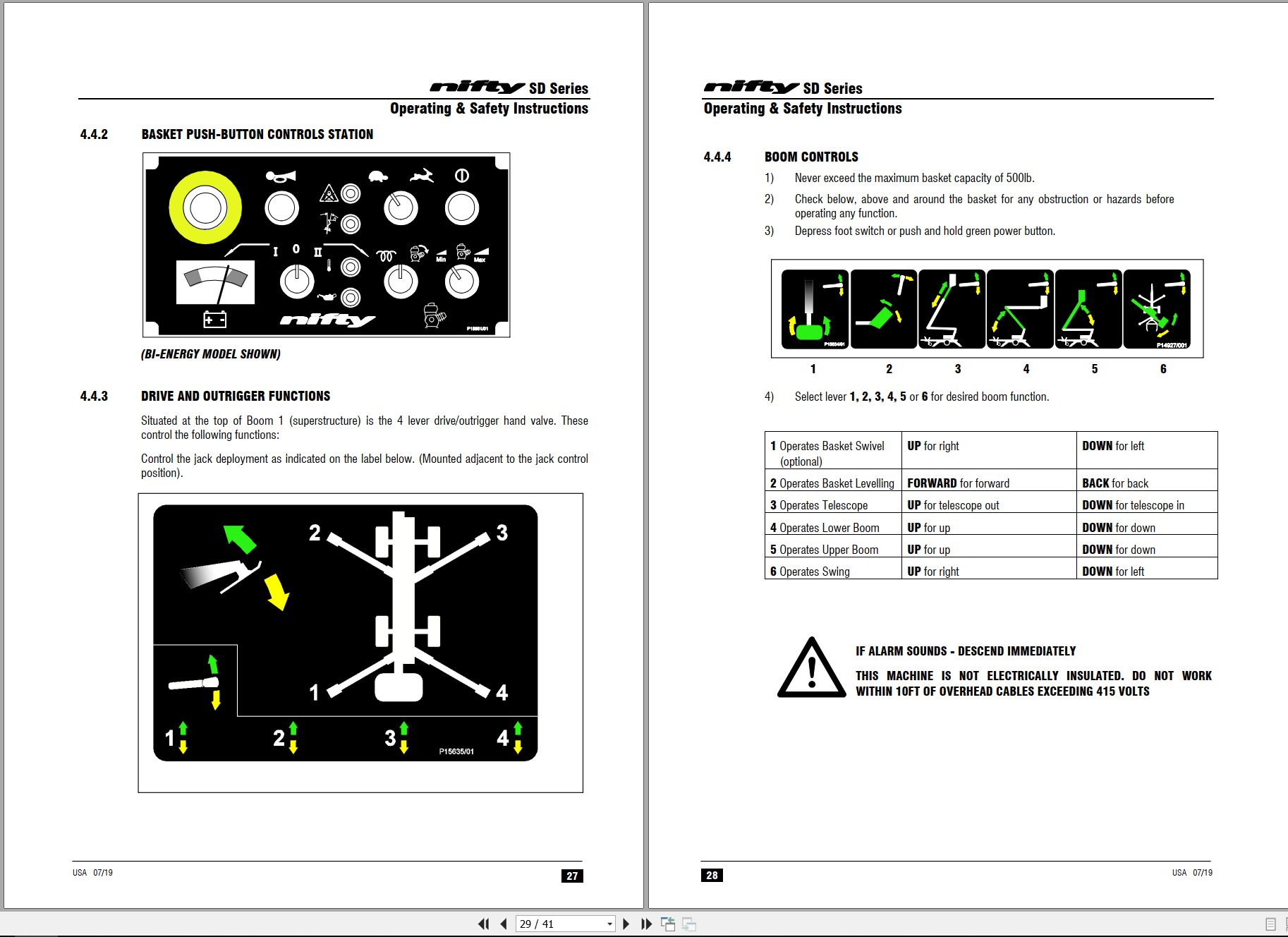

06_SD50 OPERATING MANUAL (USA) M50906 (issue 001) 55660.pdf (41 Pages)
