NIFTYLIFT Towable Boom Lifts TM50 29650 Operating Parts Manual And Diagram 2015

NIFTYLIFT Towable Boom Lifts TM50 29650 Operating Parts Manual And Diagram 2015 (1)
NIFTYLIFT Towable Boom Lifts TM50 29650 Operating Parts Manual And Diagram 2015 (2)
NIFTYLIFT Towable Boom Lifts TM50 29650 Operating Parts Manual And Diagram 2015 (3)
NIFTYLIFT Towable Boom Lifts TM50 29650 Operating Parts Manual And Diagram 2015 (4)
NIFTYLIFT Towable Boom Lifts TM50 29650 Operating Parts Manual And Diagram 2015 (1)
NIFTYLIFT Towable Boom Lifts TM50 29650 Operating Parts Manual And Diagram 2015 (2)
NIFTYLIFT Towable Boom Lifts TM50 29650 Operating Parts Manual And Diagram 2015 (3)
NIFTYLIFT Towable Boom Lifts TM50 29650 Operating Parts Manual And Diagram 2015 (4)
✓

Expert Support

✓

Full Speed

✓

100% Working

NIFTYLIFT Towable Boom Lifts TM50 29650 Operating Parts Manual And Diagram 2015

Size: 17.88 MB
Format: PDF
Language: English
Brand: NIFTYLIFT
Type of Machine: Towable Boom Lifts
Type of Manual: Operating Manual, Parts Manual, Electrical Schematic, Hydraulic Schematic, Hose Diagram
Model: NIFTYLIFT TM50 Towable Boom Lifts
Serial Number: 29650
Publication Date: 2015

30 USD

Tags: , ,
  • Description

Description

List of Files:

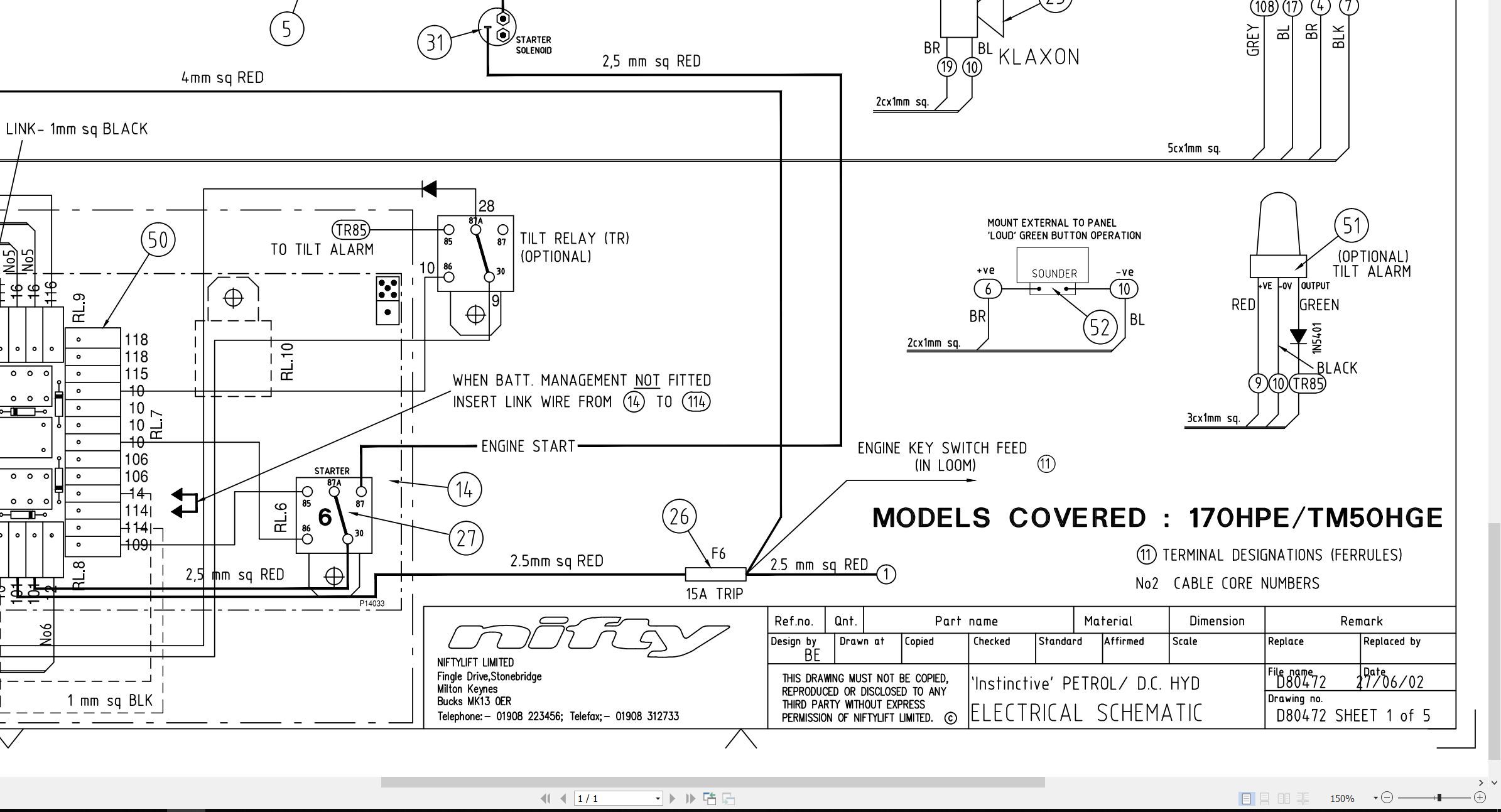

01_ELECTRICAL – SCHEMATIC 170HPE – INST. D80472 (issue 011) 29650.pdf (1 Pages)
02_HYDRAULIC DIAGRAM 170H INST D80483 (issue 008) 29650.pdf (1 Pages)
03_HOSE DIAGRAM 170H INSTINCTIVE D80571 (issue 004) 29650.pdf (1 Pages)
04_LIFTING POINTS, 170H D80906 (issue 004) 29650.pdf (2 Pages)
05_170 TM50 PARTS MANUAL M50150 (issue 010) 29650.pdf (130 Pages)
Contents:
Chassis Assembly
1.1 Base assembly (Hydraulic)
1.2 Traction drive assembly
1.3 Stabiliser assembly
1.4 Tow coupling assembly
1.5 Heavy duty jockey wheel
1.6 Lighting assemblies
1.7 Wheel hub assembly
1.8 Wheel hub assembly (Traction drive)
1.9 Valve block (Traction drive)
1.10 auto power inlet unit (UK)
superstructure
2.1 Power tray (Petrol/Diesel/Bi-energy)
2.2 Power tray (AC/Mains)
2.3 Slew assembly
2.4 Control valve assembly (3 spool)
2.5 Control valve assembly (4 spool)
2.6 Button box assemblies (Base)
2.7 Control box
2.8 Diesel box
2.9 AC transformer box
2.10 DC Power pack
2.11 DC Power pack (Traction Drive)
2.12 AC Power pack
2.13 Diesel engine (Kubota OC60)
2.14 Anderson connector
boom assemblies
3.1 Upper boom assembly
3.2 Lower boom assembly
3.3 Lift cylinder
3.4 Levelling cylinder
3.5 Telescope cylinder
3.6 Levelling valve
cage assembly
4.1 Swivel cage assembly
4.2 Non-swivel cage assembly
4.3 Cage assembly (Fibreglass)
4.4 Swivel cage weigh assembly (Spring)
4.5 Swivel cage weigh assembly (Load Cell)
4.6 Non-swivel cage weigh assembly – (Spring)
4.7 Non- swivel cage weigh assembly (Load Cell)
4.8 Control valve assembly
4.9 Button box assemblies (Cage)
labelling
5.1 Label locations 170
5.2 Label locations TM50 (USA)
Labels 1 to 27
Labels 28 to 44
hydraulic hoses
6.1 Hose kit 170H (TM50)
06_Honda GX160 Operators Manual M50294 (issue 001) 29650.pdf (60 Pages)
Contents:
INTRODUCTION
SAFETY MESSAGES
CONTENTS
SAFETY INFORMATION
SAFETY LABEL LOCATION
COMPONENT & CONTROL LOCATION
FEATURES
OIL ALERT® SYSTEM (APPLICABLE TYPES)
CIRCUIT PROTECTOR (APPLICABLE TYPES)
BEFORE OPERATION CHECKS
IS YOUR ENGINE READY TO GO?
OPERATION
SAFE OPERATING PRECAUTIONS
STARTING THE ENGINE
STOPPING THE ENGINE
SETTING ENGINE SPEED
SERVICING YOUR ENGINE
THE IMPORTANCE OF MAINTENANCE
MAINTENANCE SAFETY
SAFETY PRECAUTIONS
MAINTENANCE SCHEDULE
REFUELING
RECOMMENDED FUEL
ENGINE OIL
RECOMMENDED OIL
OIL LEVEL CHECK
OIL CHANGE
REDUCTION CASE OIL (APPLICABLE TYPES)
RECOMMENDED OIL
OIL LEVEL CHECK
OIL CHANGE
AIR CLEANER
INSPECTION
CLEANING
SEDIMENT CUP
CLEANING
SPARK PLUG
RECOMMENDED SPARK PLUGS
SPARK ARRESTER (APPLICABLE TYPES)
REMOVAL
CLEANING & INSPECTION
IDLE SPEED
ADJUSTMENT
HELPFUL TIPS & SUGGESTIONS
STORING YOUR ENGINE
STORAGE PREPARATION
CLEANING
FUEL
DRAINING THE FUEL TANK AND CARBURETOR
ENGINE OIL
STORAGE PRECAUTIONS
REMOVAL FROM STORAGE
TRANSPORTING
TAKING CARE OF UNEXPECTED PROBLEMS
FUSE REPLACEMENT (APPLICABLE TYPES)
TECHNICAL & CONSUMER INFORMATION
TECHNICAL INFORMATION
SERIAL NUMBER LOCATION
BATTERY CONNECTIONS FOR ELECTRIC STARTER (APPLICABLE TYPES)
REMOTE CONTROL LINKAGE
CARBURETOR MODIFICATIONS FOR HIGH ALTITUDE OPERATION
OXYGENATED FUELS
EMISSION CONTROL SYSTEM INFORMATION
AIR INDEX
SPECIFICATIONS
QUICK REFERENCE INFORMATION
WIRING DIAGRAMS
CONSUMER INFORMATION
DISTRIBUTOR/DEALER LOCATOR INFORMATION
CUSTOMER SERVICE INFORMATION
FRANÇAIS
ESPAÑOL
07_TM50 OPERATING MANUAL (USA) M50401 (issue 002) 29650.pdf (41 Pages)
Contents:
Blank Page
