Name: Ransomes Mower HR-9016T Dealer Manual 2812169-ML1 2001
SKU: 646912
Availability: InStock

Ransomes Mower HR 9016T Dealer Manual 2812169 ML1 2001 (1)

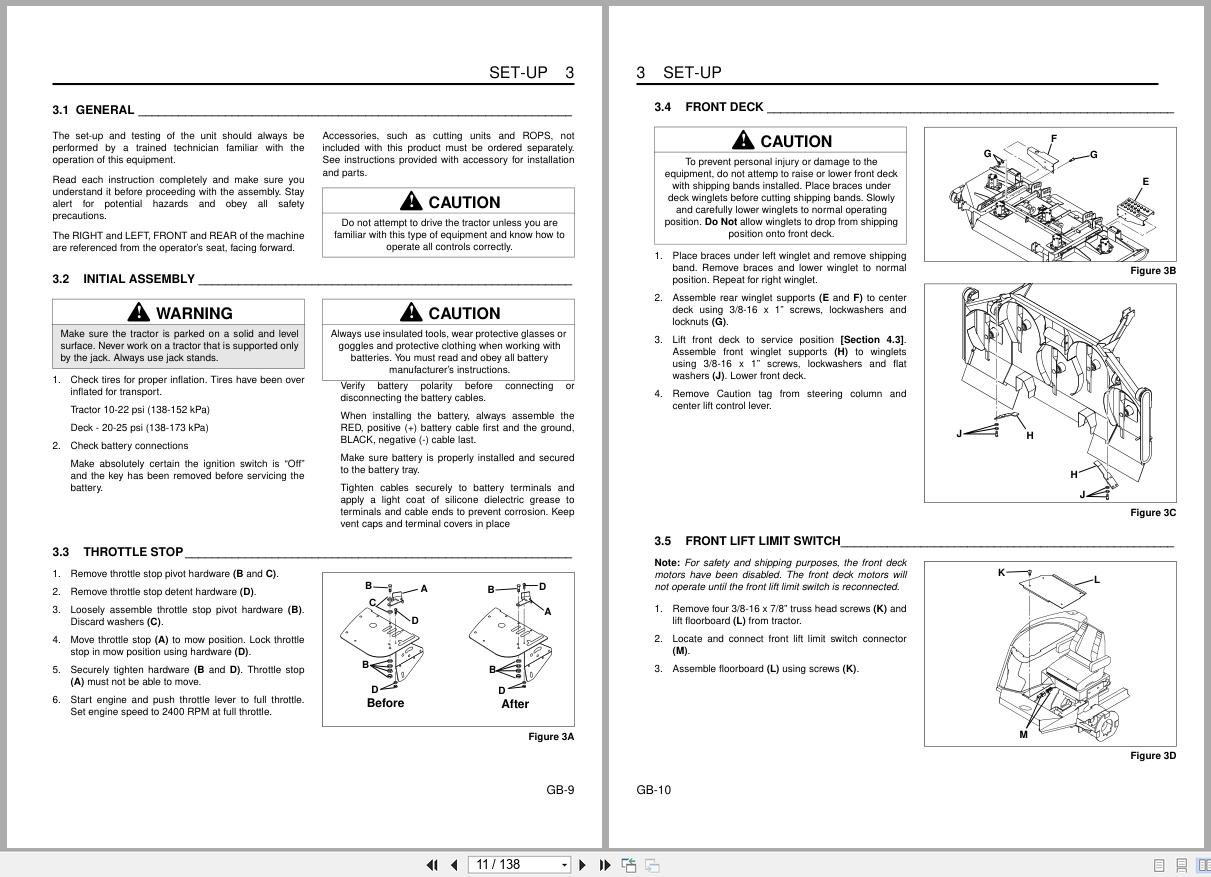

Ransomes Mower HR 9016T Dealer Manual 2812169 ML1 2001 (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Ransomes Mower HR-9016T Dealer Manual 2812169-ML1 2001

Size: 4.32 MB

Format: PDF

Language: French, German, Italian, English

Brand: Ransomes

Type of Machine: Mower

Type of Manual: Dealer Manual

Model: Ransomes HR-9016 Turbo Mower

4WD 70526, 4WD 70527 with ROPS

Engine: Detroit Diesel D704LT

Part Number: 2812169-ML1

Publication Date: 2001

Number of Pages: 138 Pages

10 USD

Tags: HR-9016T, Ransomes Dealer Manual, Ransomes Mower Manual

Description

Description

Contents:
Safety
1.1 Operating Safety
1.2 Important Safety Notes
Controls
2.1 Icons
2.2 Controls
Set-up
3.1General9
3.2 Initial Assembly
3.3 Throttle Stop
3.4 Front Deck
3.5 Front Lift Limit Switch
3.6 Initial Inspection
3.7 Operating Checks
3.8 Interlock System
3.9 Traction Pedal Speed Limiter
Adjustments
4.1 General
4.2 Leveling Decks
4.3 Servicing Front Deck
4.4 Winglet Adjustment
4.5 Cutting Height
4.6 Parking Brake
4.7 Neutral Adjustment
4.8 Neutral Sensing Switch
4.9 Forward Sensing Switch
4.10 Lift Limit Switches
4.11 Traction Pedal
4.12 Torque Specification
Lubrication
5.1 Lubrication Chart
Troubleshooting
6.1 General
