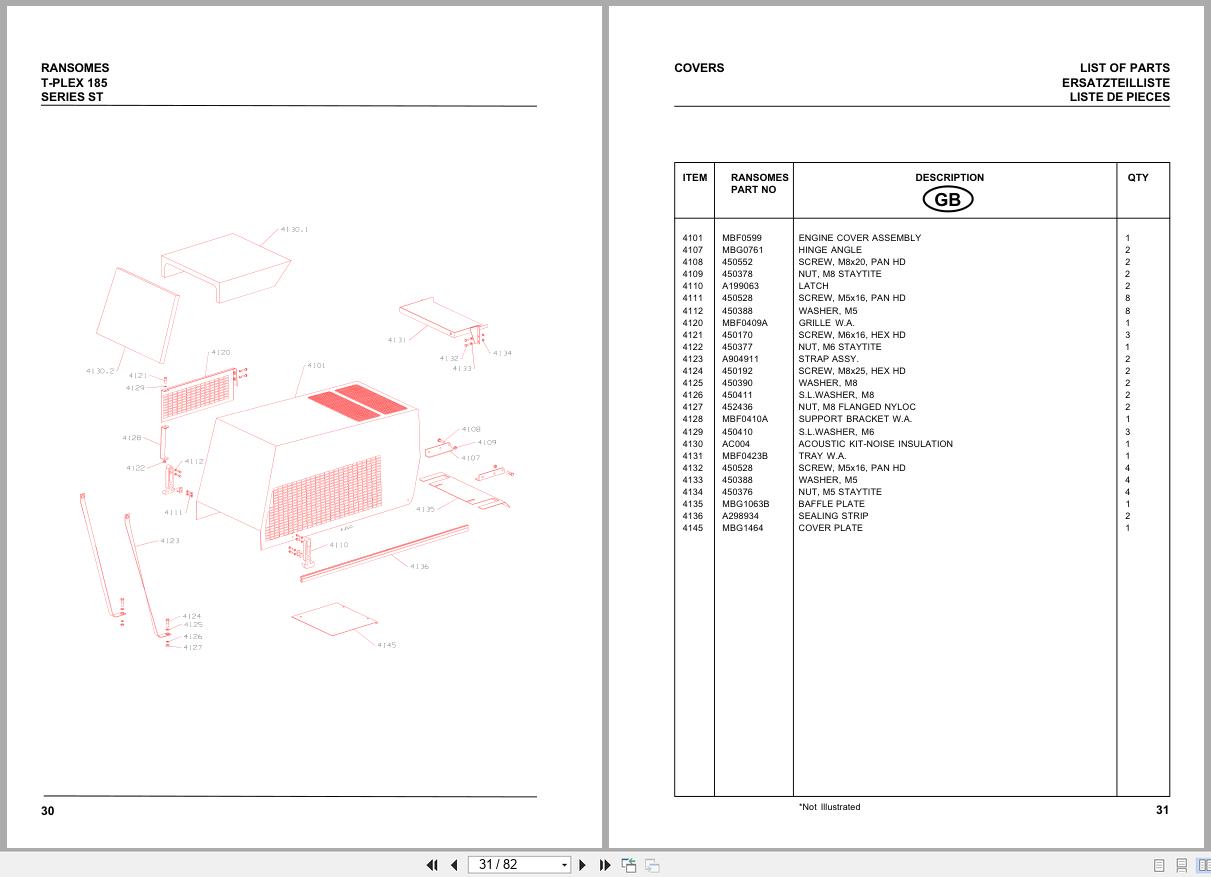

Ransomes Ride-on Mower T-Plex 185 Parts List 24002G
Size: 1.86 MB
Format: PDF
Language: English
Brand: Ransomes
Type of Machine: Ride-on Mower
Type of Manual: Parts List
Model: Ransomes T-Plex 185 Ride-on Mower
Engine: kubota D722-E
Part Number: 24002G
Number of Pages: 82 Pages
10 USD
- Description
Description
Contents:
Mainframe
Fuel Tank
Hydraulic Tank
Steering And Rear Axle
Electrical System
Traction Circuit
Cooler Charge Circuit
Cutter Circuit
Lift Lower / Power Steer Circuit
Engine And Transmission
Covers
Wheels
Rear Cutting Unit Lift
Front Cutting Unit Lift
Decals
Brake System
Operator’s Platform
Seat And Frame
Control System
Seat Breakdown
Seat Suspension Breakdown
Radiator & Oil Cooler Breakdown
Triple Pump Assy
Transmission Pump
Tandem Gear Pump
Hydraulic Lift Valve
Weight Transfer Valve
Hydraulic Traction Motor
Caliper Brake Assembly
Hydraulic Lift Ram
Hydraulic Steering Ram
Hydraulic Steering Unit
Numerical Index
