Skyjack DC Electric Scissors SJ3215 SJ3219 Parts Manual 243778ABA 2023

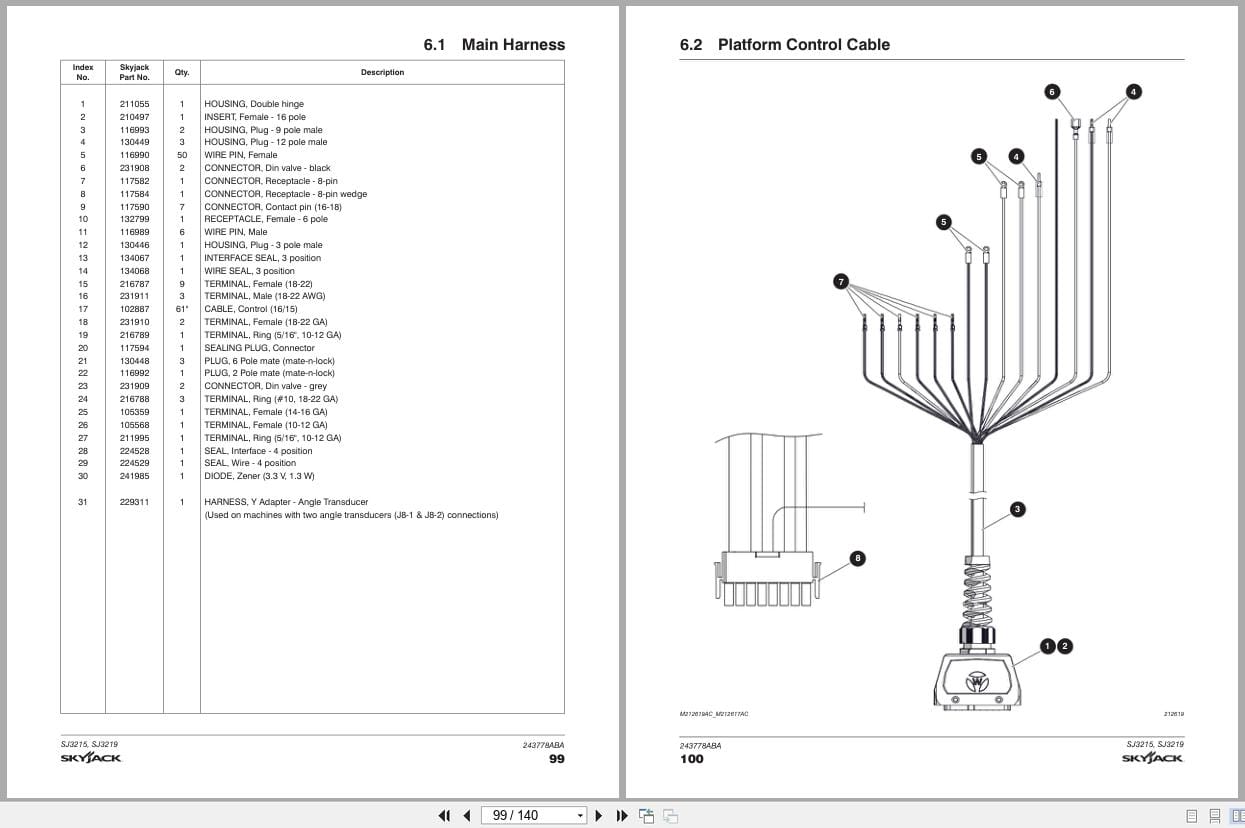

Skyjack DC Electric Scissors SJ3215 SJ3219 Parts Manual 243778ABA 2023 (1)
Skyjack DC Electric Scissors SJ3215 SJ3219 Parts Manual 243778ABA 2023 (2)
Skyjack DC Electric Scissors SJ3215 SJ3219 Parts Manual 243778ABA 2023 (3)
Skyjack DC Electric Scissors SJ3215 SJ3219 Parts Manual 243778ABA 2023 (1)
Skyjack DC Electric Scissors SJ3215 SJ3219 Parts Manual 243778ABA 2023 (2)
Skyjack DC Electric Scissors SJ3215 SJ3219 Parts Manual 243778ABA 2023 (3)
✓

Expert Support

✓

Full Speed

✓

100% Working

Skyjack DC Electric Scissors SJ3215 SJ3219 Parts Manual 243778ABA 2023

Size: 8.64 MB
Format: PDF
Language: English
Brand: Skyjack
Type of Machine: DC Electric Scissors
Type of Manual: Parts Manual
Model: Skyjack SJ3215, SJ3219 DC Electric Scissors
Serial Number: SJ3215 C100000001 to C100039999, SJ3219 C100000001 to C100039999
Part Number: 243778ABA
Publication Date: 2023
Number of Pages: 140 Pages

15 USD

Tags: , ,
  • Description

Description

Contents:
Foreword
General
Parts Ordering Information
Method of Listing
Quantities
How To Order Repair Parts
Recommended Service Parts
Section 1 – Platform
1.1 Main Platform
1.2 Extension Platform
1.3 Main Railings – Hinged (CE only)
1.4 Main Railings – Solid (AS & KC)
1.5 Extension Railing – Hinged Rails (CE only)
1.6 Extension Railing – Solid Rails (AS & KC)
1.7 Half Gate – Solid
1.8 Half Gate – Hinged
1.9 Gate Latch
1.10 Platform Control Box
1.11 Platform Control Box with Footswitch (KC Only)
1.12 Control Box Cover
1.13 Control Box Cover with Footswitch (KC Only)
1.14 Joystick
1.15 Power To Platform
Section 2 – Scissors
2.1 Scissors – SJ3215
2.2 Scissors – SJ3219
2.3 Scissors Hardware
2.4 Lift Cylinder
2.5 Horn
2.6 Angle Transducer
2.7 Pressure Transducer
2.8 Flashing Light (AS & CE)
2.9 Beeper
2.10 White Noise Alarm (KC, AS & CE)
Section 3 – Base
3.1 Base
3.2 Cover and Counterweight
3.3 Wheel Motors
3.4 Disc Brakes
3.5 Steer Cylinder
3.6 Free Wheeling Manifold
3.7 Brake Release Manifold
3.8 Pothole Protection
3.9 Ladder
3.10 Wheels
3.11 Base Controls – Plastic
3.12 Skycoded Control Module
Section 4 – Hydraulic Tray
4.1 Hydraulic Tray and Counterweight
4.2 Hydraulic Tank
4.3 Main Manifold
4.4 Motor, Pump and Contactor
4.5 Skycoded Display Module
4.6 Emergency Lowering Switch
Section 5 – Battery Tray
5.1 Battery Tray
5.2 Batteries
5.3 Battery Charger and Mount
Section 6 – Electrical Harnesses
6.1 Main Harness
6.2 Platform Control Cable
6.3 Platform Control Cable – SGLE
6.4 Holding Valve Harness
6.5 Control Cable – Base to Platform
6.6 Base Control Harness – Plastic Box
6.7 Power Cable
6.8 Elevation Limiting Harnesses (KC Only)
6.9 Elevation Limiting Harnesses (KC Only)
6.10 Elevate Telematics Harness
Section 7 – Hose Connections
7.1 Standard Hose Numbering System
7.2 Hose Connections
7.3 Hose Connections – Hydraulic Tray
Section 8 – Options
8.1 Dual Flashing Light Group
8.2 Residual Current Device (CE Only)
8.3 Elevate Telematics & Keypad
8.4 Elevation Limiting Posts (KC Only)
8.5 Wire Locking Pin (CE Only)
8.6 Tray Locking Plates
Section 9 – Labels
9.1 Label Kits
9.2 Labels – Platform Controls
9.3 Labels – Miscellaneous
9.4 Labels – Sides
9.5 Labels – Front Back & Top
9.6 Labels – Hose Layout (KC Only)
9.7 Labels – Anti-Overrising Posts (KC Only)
