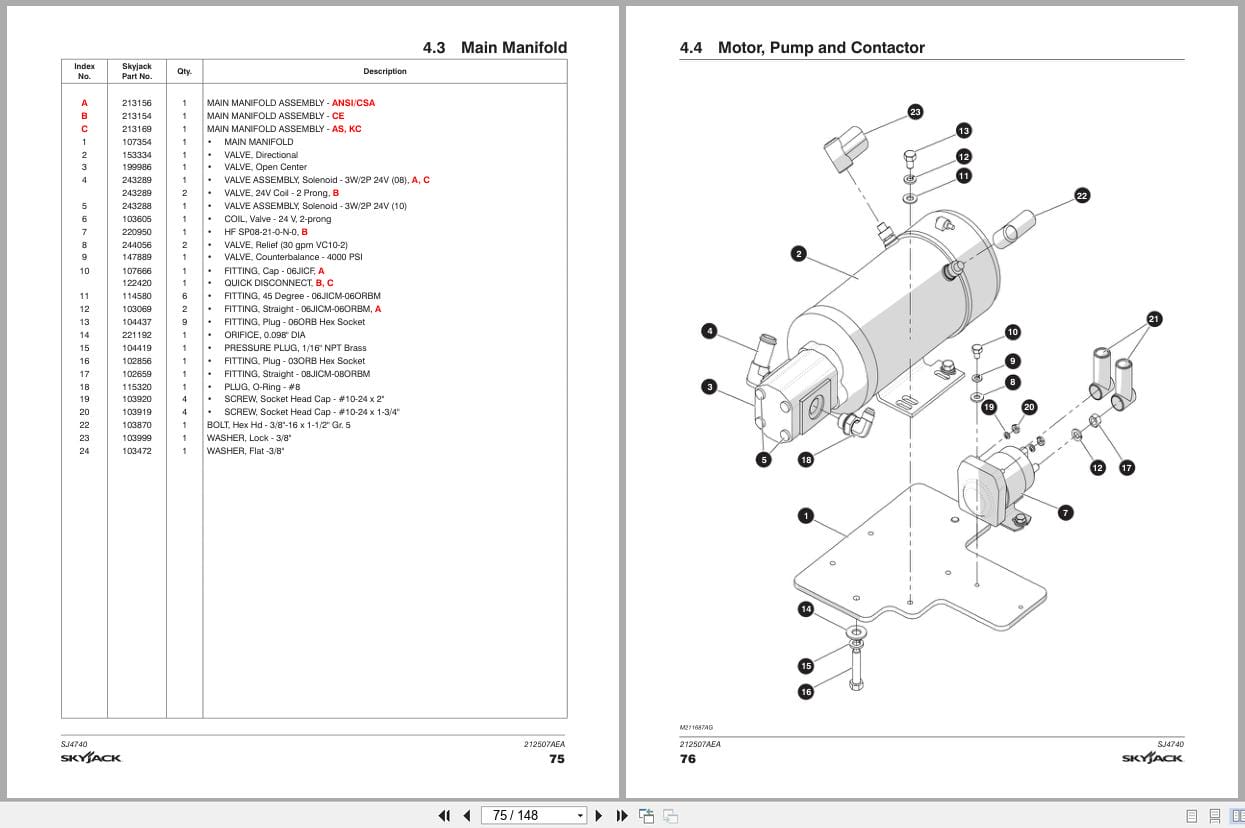

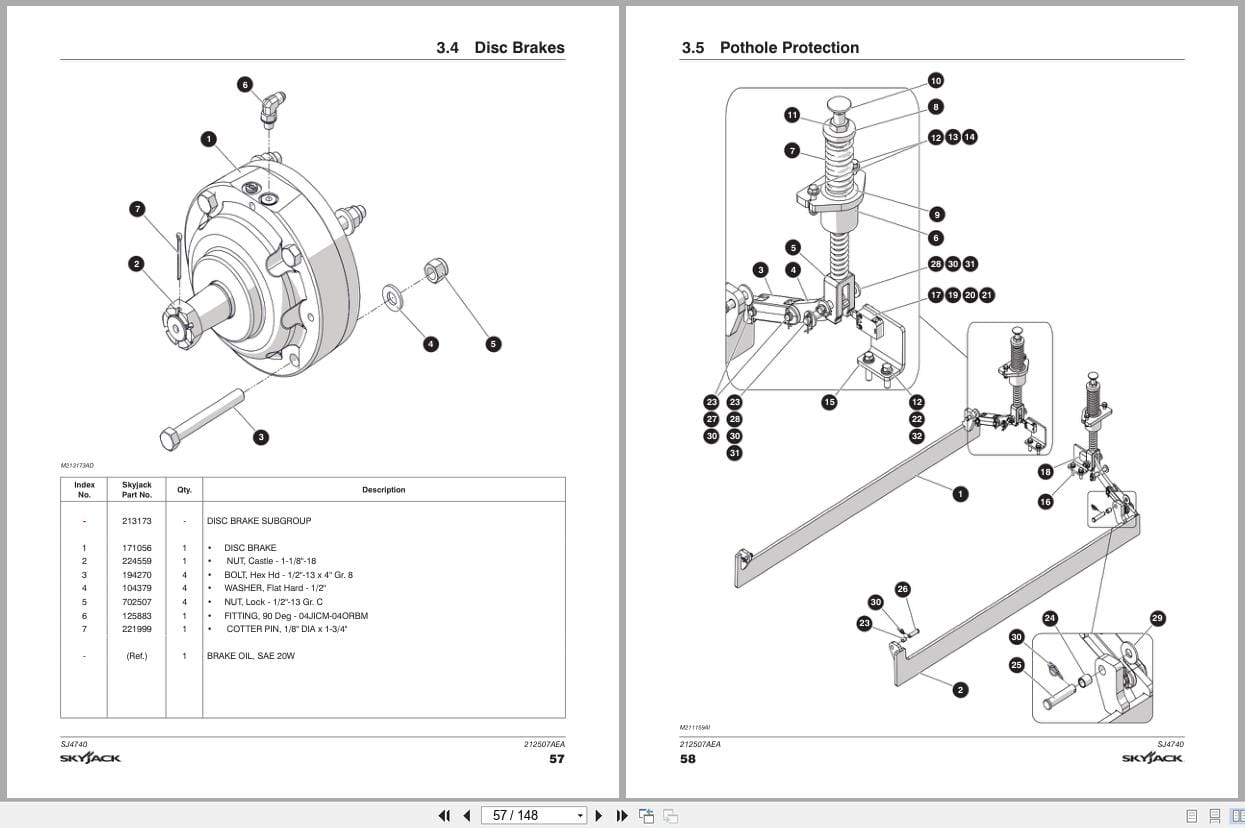

Skyjack DC Electric Scissors SJ4740 Parts Manual 212507AEA 2023

Skyjack DC Electric Scissors SJ4740 Parts Manual 212507AEA 2023 (1)
Skyjack DC Electric Scissors SJ4740 Parts Manual 212507AEA 2023 (2)
Skyjack DC Electric Scissors SJ4740 Parts Manual 212507AEA 2023 (3)
Skyjack DC Electric Scissors SJ4740 Parts Manual 212507AEA 2023 (1)
Skyjack DC Electric Scissors SJ4740 Parts Manual 212507AEA 2023 (2)
Skyjack DC Electric Scissors SJ4740 Parts Manual 212507AEA 2023 (3)
✓

Expert Support

✓

Full Speed

✓

100% Working

Skyjack DC Electric Scissors SJ4740 Parts Manual 212507AEA 2023

Size: 8.30 MB
Format: PDF
Language: English
Brand: Skyjack
Type of Machine: DC Electric Scissors
Type of Manual: Parts Manual
Model: Skyjack SJ4740 DC Electric Scissors
Serial Number: A103000001 to A103999999
Part Number: 212507AEA
Publication Date: 2023
Number of Pages: 148 Pages

15 USD

Tags: , ,
  • Description

Description

Contents:
Foreword
General
Parts Ordering Information
Method of Listing
Quantities
How To Order Repair Parts
Recommended Service Parts
Section 1 – Platform
1.1 Main Platform
1.2 Extension Platform
1.3 Main Railings
1.4 Extension Railing
1.5 Full Gate
1.6 Half Gate
1.7 Gate Latch
1.8 Platform Control Box
1.9 Control Box Cover
1.10 Joystick
1.11 Platform A/C Outlet
1.12 Outdoor Switch (ANSI/CSA Only)
Section 2 – Scissors
2.1 Scissors
2.2 Scissors Hardware
2.3 Lift Cylinder
2.4 Holding Valve Manifold
2.5 Pressure Transducer
2.6 Hydraulic Hoses – Scissors
2.7 Horn
2.8 Angle Transducer
2.9 Flashing Light
2.10 Beeper
Section 3 – Base
3.1 Base
3.2 Wheel Motors
3.3 Steer Cylinder
3.4 Disc Brakes
3.5 Pothole Protection
3.6 Wheels
3.7 Drive Manifold
3.8 Hydraulic Hoses – Base
3.9 Skycoded Control Module
3.10 Base Control – Plastic
3.11 Base Control – Metal
Section 4 – Hydraulic Tray
4.1 Hydraulic Tray and Counterweight
4.2 Hydraulic Tank
4.3 Main Manifold
4.4 Motor, Pump and Contactor
4.5 Skycoded Display Module
4.6 Emergency Lowering Switch
4.7 Hydraulic Hoses – Hydraulic Tray
Section 5 – Battery Tray
5.1 Battery Tray
5.2 Batteries
5.3 Charger
Section 6 – Electrical Harnesses
6.1 Main Harness
6.2 Platform Control Cable
6.3 Platform Control Cable – SGLE
6.4 Control Cable
6.5 Base Control Harness – Plastic Box
6.6 Base Control Harness – Metal Box
6.7 Dual Holding Valve Harness
6.8 Hydraulic Tray Power Cables
6.9 Dual Flashing Light Harness
6.10 Anti-Overrising Posts Limit Switches
6.11 Anti-Overrising Post Harnesses
6.12 Telematics Harness
6.13 Outdoor Switch Harness
Section 7 – Options
7.1 Inverter Group (ANSI/CSA Only)
7.2 Inverter (ANSI/CSA Only)
7.3 White Noise Alarm
7.4 Dual Flashing Light
7.5 Light Duty Pipe Racks (ANSI/CSA, CE & AS)
7.6 Universal Heavy-Duty Pipe Rack
7.7 Universal Board Carrier
7.8 Elevate Telematics, Keypad & BMS
7.9 Residual Current Device (CE Only)
7.10 Anti-Overrising Posts – KC Only
7.11 Tray Locking Plates
7.12 Tool Caddy
7.13 ECOTray
7.14 Wire Locking Pin
Section 8 – Labels
8.1 Label Kits
8.2 Labels – Platform Controls
8.3 Labels – Miscellaneous
8.4 Labels – Sides
8.5 Labels – Front, Back and Top
8.6 Labels – Hose Layout (KC Only)
8.7 Label – Anti-Overrising Posts (KC Only)
