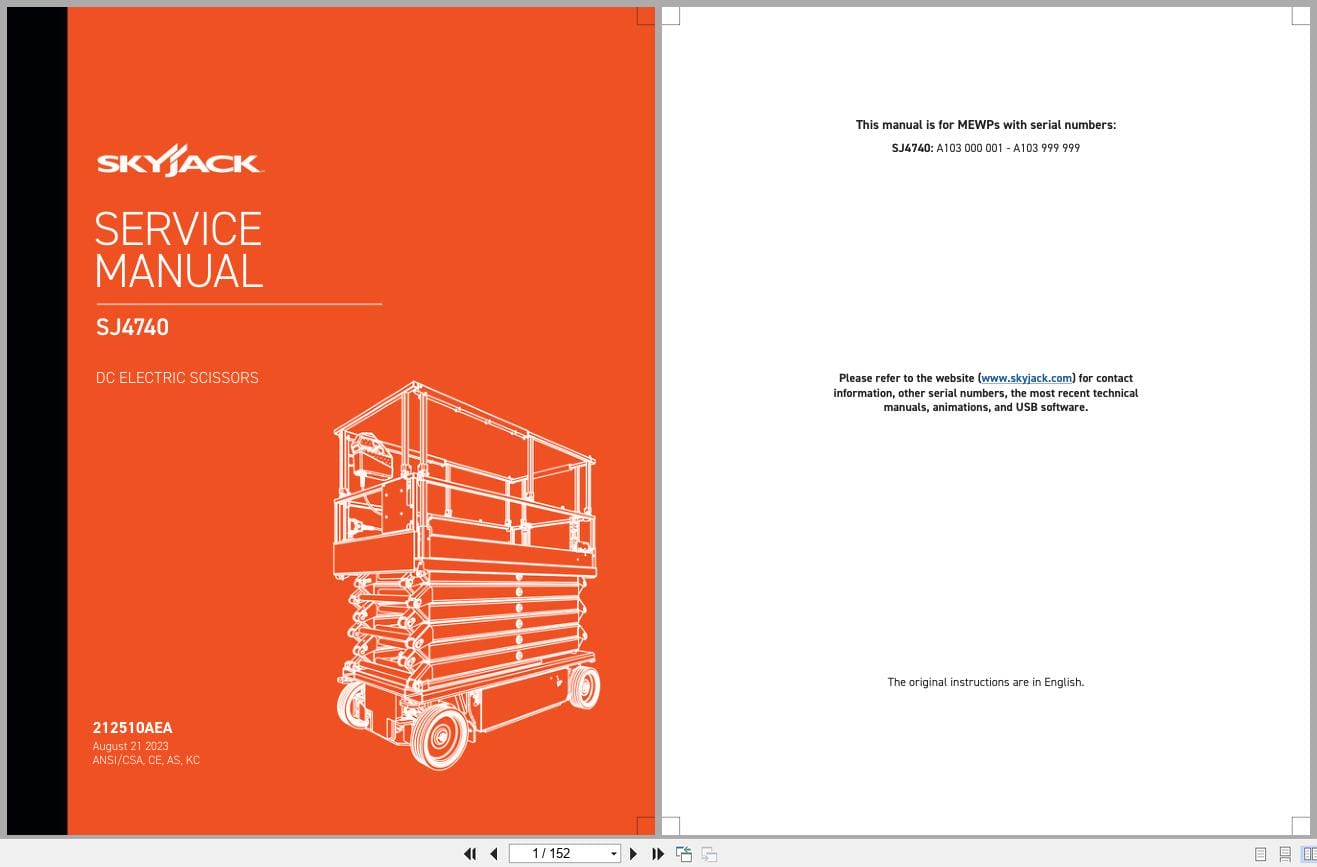

Skyjack DC Electric Scissors SJ4740 Service Manual 212510AEA 2023

Skyjack DC Electric Scissors SJ4740 Service Manual 212510AEA 2023 (1)
Skyjack DC Electric Scissors SJ4740 Service Manual 212510AEA 2023 (2)
Skyjack DC Electric Scissors SJ4740 Service Manual 212510AEA 2023 (3)
Skyjack DC Electric Scissors SJ4740 Service Manual 212510AEA 2023 (4)
Skyjack DC Electric Scissors SJ4740 Service Manual 212510AEA 2023 (1)
Skyjack DC Electric Scissors SJ4740 Service Manual 212510AEA 2023 (2)
Skyjack DC Electric Scissors SJ4740 Service Manual 212510AEA 2023 (3)
Skyjack DC Electric Scissors SJ4740 Service Manual 212510AEA 2023 (4)
✓

Expert Support

✓

Full Speed

✓

100% Working

Skyjack DC Electric Scissors SJ4740 Service Manual 212510AEA 2023

Size: 6.80 MB
Format: PDF
Language: English
Brand: Skyjack
Type of Machine: DC Electric Scissors
Type of Manual: Service Manual, Electrical Schematic, Hydraulic Schematic
Model: Skyjack SJ4740 DC Electric Scissors
Serial Number: A103000001 – A103999999
Part Number: 212510AEA
Publication Date: 2023
Number of Pages: 152 Pages

20 USD

Tags: , ,
  • Description

Description

Contents:
Section 1 – Scheduled Maintenance
1.1 Read and Heed
1.2 General information
1.3 Scheduled maintenance and inspections
1.4 Owner’s Annual Inspection Record

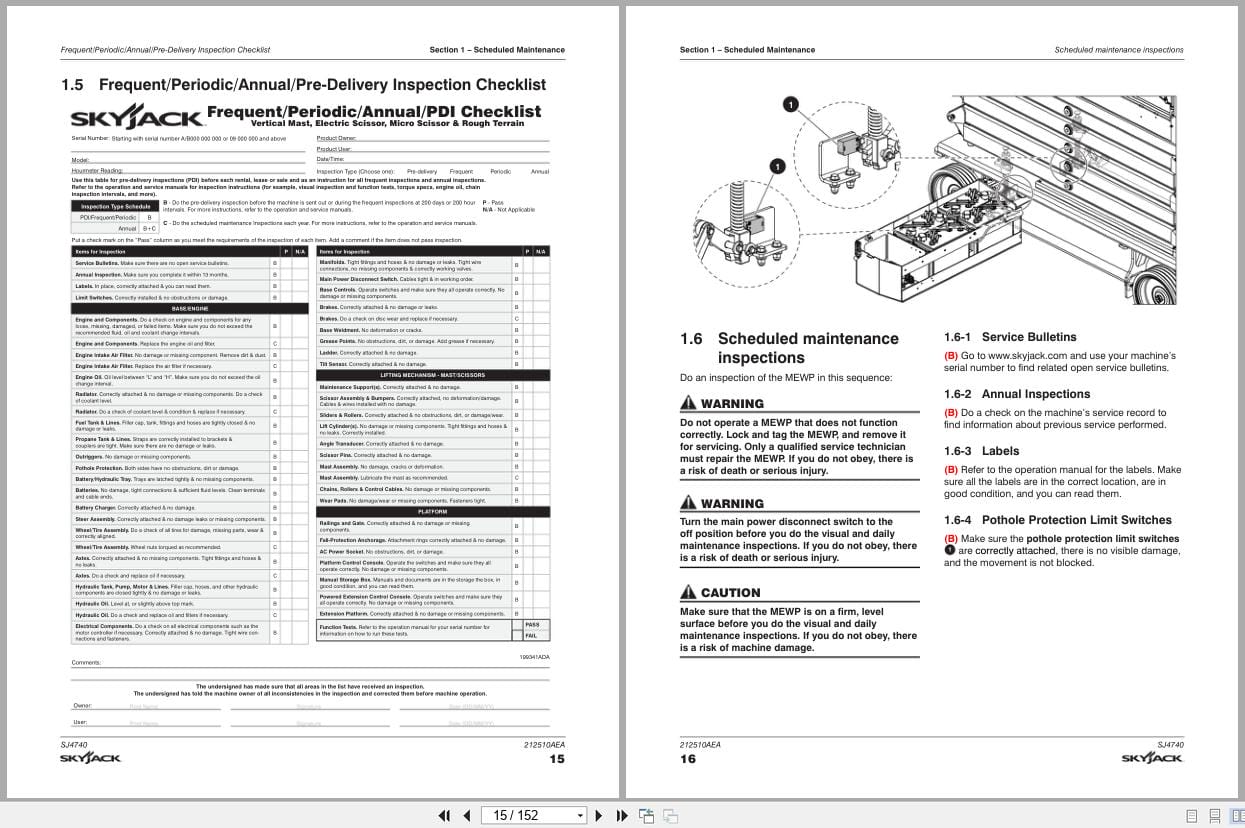

1.5 Frequent/Periodic/Annual/Pre-Delivery Inspection Checklist
1.6 Scheduled maintenance inspections
1.7 Base Inspection
1.8 Scissors Inspection
1.9 Platform Inspection
1.10 Function Tests
Section 2 – Maintenance Tables and Diagrams
2.1 Standard Hose Numbering System
2.2 Torque Specifications for Fasteners (US)
2.3 Torque Specifications for Fasteners (Metric)
2.4 Torque Specifications for Hydraulic Couplings & Hoses
2.5 MEWP Torque Specifications
2.6 Specifications & Features
2.7 Maximum Platform Capacities (Evenly Distributed)
2.8 Floor Loading Pressure
Section 3 – System Component Identification and Schematics
3.1 Electrical Symbol Chart
3.2 Hydraulic Symbol Chart
3.3 Wire Number and Color Code
3.4 Hydraulic Parts List
3.5 Electrical Parts List
3.6 Platform Control Box Wiring
3.7 Platform Control Box Wiring – SGLE
3.8 Base to Platform Control Cable
3.9 Base Control Wiring
3.10 Emergency Lowering Switch Wiring
3.11 Limit Switch Wiring – Pothole Protection
3.12 Limit Switch Wiring – Anti-Overrising Posts (KC Only)
3.13 Anti-Overrising Harnesses (KC Only)
3.14 Electrical Harnesses
3.15 Outdoor Switch Wiring and Harness (ANSI/CSA Only)
3.16 Battery Cable Connections
3.17 Drive Manifold – MB5
3.18 Brake Manifold – MB2
3.19 Dual Lift Cylinder Manifold – MB3 & MB4
3.20 Major Component Identification
3.21 Main Manifold
3.22 Hydraulic Schematics – ANSI/CSA, AS, KC
3.23 Hydraulic Schematics – CE
3.24 Telematics Harness

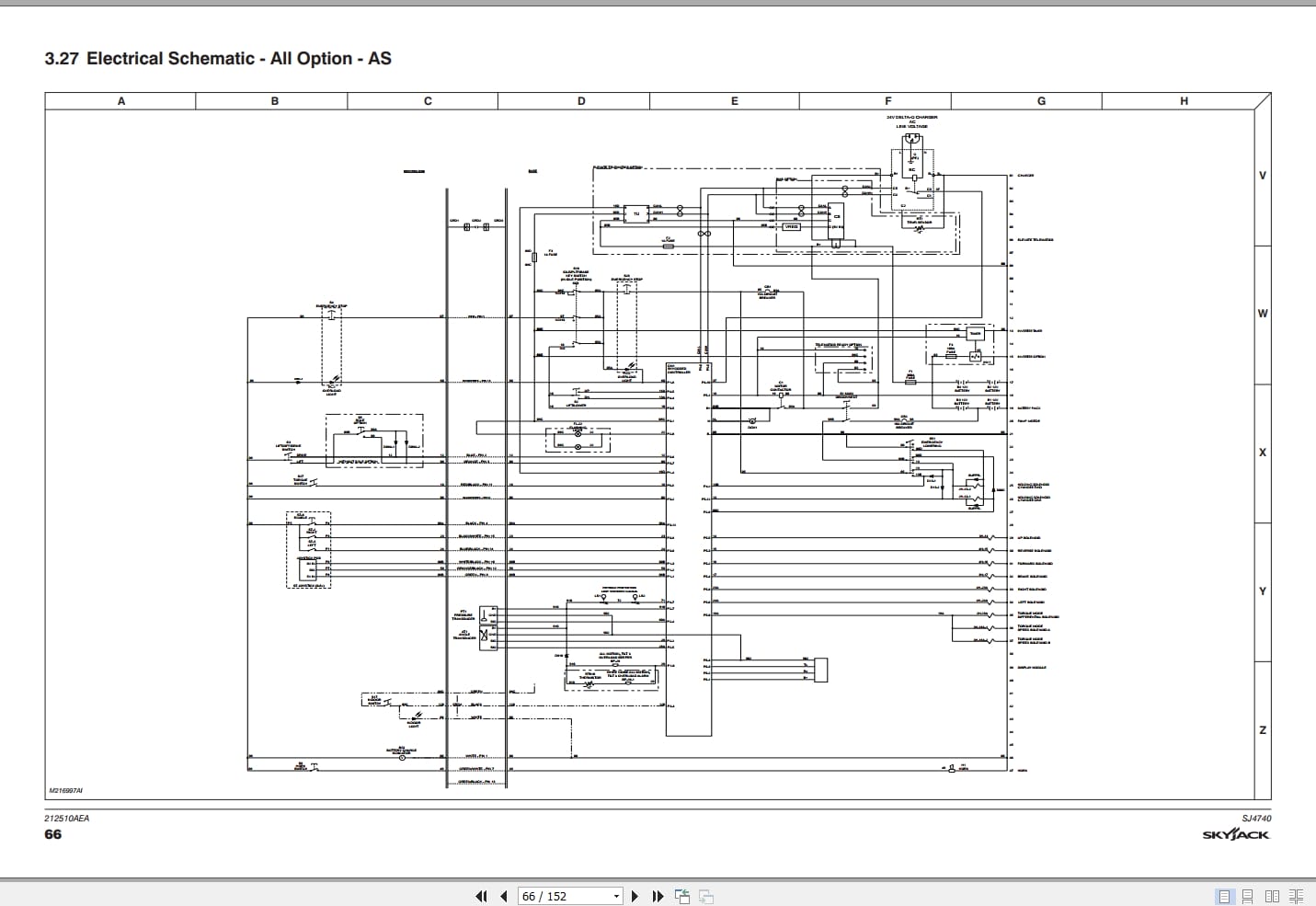

3.25 Electrical Schematic – All Option – ANSI/CSA
3.26 Electrical Schematics – All Options – CE
3.27 Electrical Schematic – All Option – AS
3.28 Electrical Schematics – All Options – KC
Section 4 – Troubleshooting Information
4.1 Introduction
4.2 Electrical System
4.3 Hydraulic System
Section 5 – Procedures
5.1 General
5.2 Platform
5.3 Base
5.4 Battery and Charger
5.5 Skycoded Module
5.6 Flash the controller
