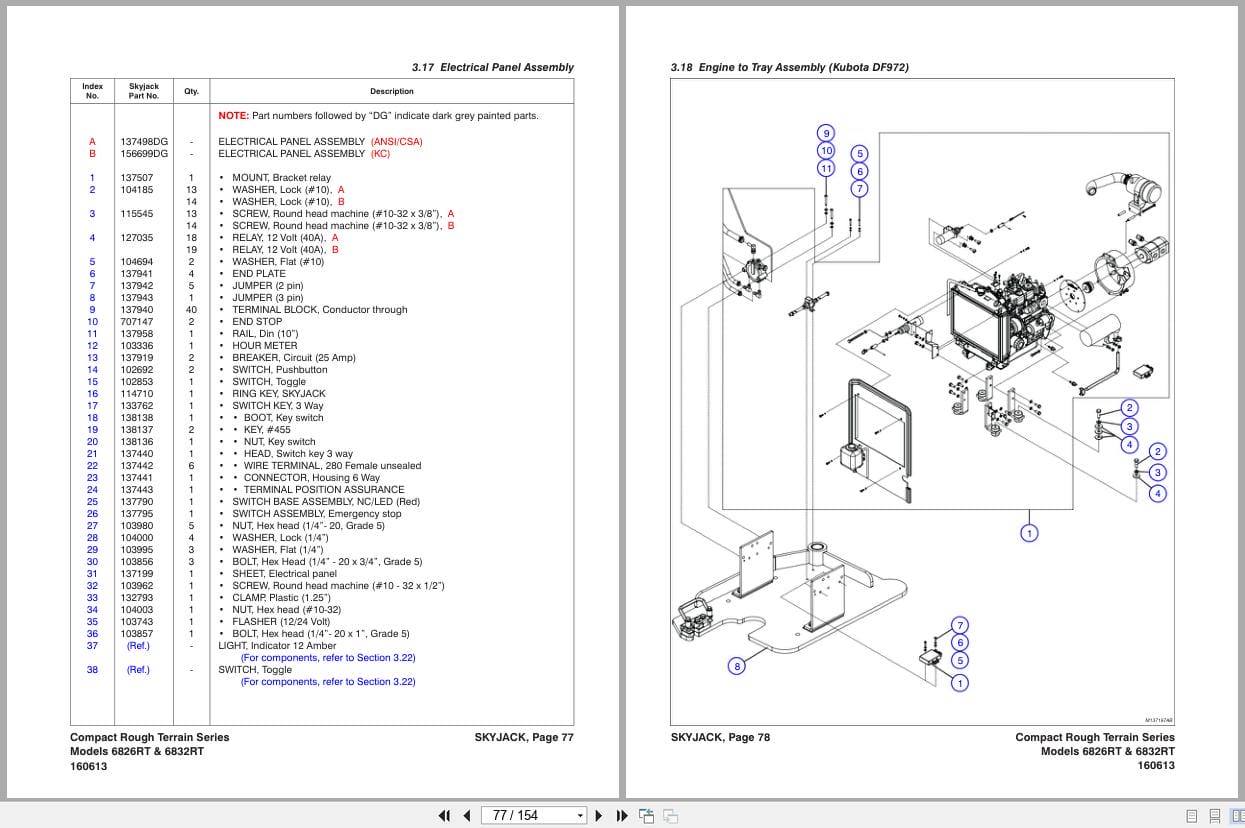

Skyjack Rough Terrain Scissors SJ6826RT SJ6832RT Parts Manual 160613AJ 2023 (1)

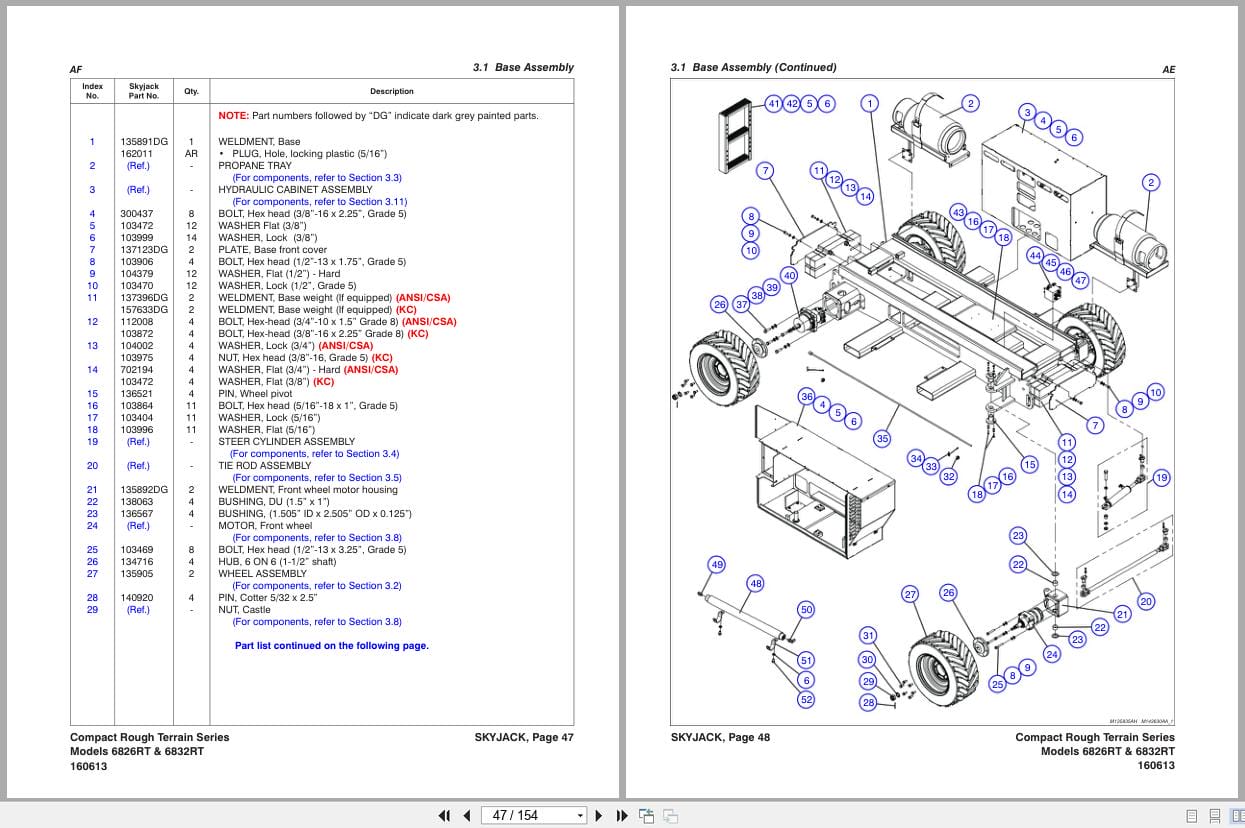

Skyjack Rough Terrain Scissors SJ6826RT SJ6832RT Parts Manual 160613AJ 2023 (2)

Skyjack Rough Terrain Scissors SJ6826RT SJ6832RT Parts Manual 160613AJ 2023 (3)

✓

Expert Support

✓

Full Speed

✓

100% Working

Skyjack Rough Terrain Scissors SJ6826RT SJ6832RT Parts Manual 160613AJ 2023

Size: 11.42 MB

Format: PDF

Language: English

Brand: Skyjack

Type of Machine: Rough Terrain Scissors

Type of Manual: Parts Manual

Model: Skyjack SJ6826RT, SJ6832RT Rough Terrain Scissors

Serial Number: SJ68XXRT 37003411, 37003469 to 37004634

Part Number: 160613AJ

Publication Date: 2023

Number of Pages: 154 Pages

15 USD

Tags: SJ6826RT, Skyjack Parts Manual, Skyjack Rough Terrain Scissors Manual

Description

Description

Contents:
1.0 Platform Related Parts
1.1 Gate Assembly
1.2 Platform Railing Assembly
1.3 Extension Deck Railing Assembly
1.4 Main and Extension Platform Assembly
1.5 Gate Latch Assembly
1.6 Quick Release Pins
1.7 Platform AC Outlet Assembly
1.8 Control Box Assembly with Rotary Switches
1.9 Control Box Assembly with Toggle Switches
1.10 Drive/Steer Controller Assembly
2.0 Scissor Related Parts
2.1 Scissor Assembly (Model 6826RT)
2.2 Scissor Assembly (Model 6832RT)
2.3 Scissor Assembly – Mounting Hardware
2.4 Scissor Assembly – Connecting Hardware
2.5 Scissor Arm Control Cable Assembly
2.6 Limit Switch Assembly
2.7 Lift Cylinder Assembly and Mounting Hardware
2.8 Holding Valve Assembly
2.9 Light and Beeper Assembly
3.0 Base Related Parts
3.1 Base Assembly
3.2 Tire Assemblies
3.3 Propane Tray Assembly (ANSI/CSA)
3.4 Steer Cylinder Assembly
3.5 Tie Rod Assembly
3.6 Splitter Manifold Assembly
3.7 Hydraulic Hose Connections – Splitter Manifold
3.8 Wheel Motor Assembly (Front)
3.9 Wheel Motor Assembly (Rear)
3.10 Hydraulic Hose Connections – Main Manifold
3.11 Hydraulic Cabinet Assembly
3.12 Oil Tank Assembly
3.13 Fuel Tank Assembly
3.14 Main Manifold Assembly
3.15 Hydraulic Cabinet Door Assembly
3.16 Engine Cabinet Assembly
3.17 Electrical Panel Assembly
3.18 Engine to Tray Assembly (Kubota DF972)
3.19 Engine to Tray Assembly (Kubota D902)
3.20 Engine Tray Assembly
3.21 Engine Cabinet Door Assembly
3.22 Engine and Main Manifold Harnesses
3.23 Electrical Panel Harnesses
4.0 Engine Related Parts
4.1 Engine Assembly (Kubota DF972)
4.2 Air Cleaner Assembly (Kubota DF972)
4.3 Exhaust Assembly (Kubota DF972)
4.4 Fuel Line Connections – Single Propane Tank (Kubota DF972)
4.5 Fuel Line Connections – Dual Propane Tank (Kubota DF972)
4.6 Engine Assembly (Kubota D902)
4.7 Air Cleaner Assembly Kit (Kubota D902)
4.8 Exhaust Assembly (Kubota D902)
4.9 Fuel Line Connections (Kubota D902)
4.10 Hydraulic Pump Assembly (Kubota DF972 / D902)
4.11 Radiator Kit (Kubota DF972 / D902)
5.0 Optional Equipment
5.1 Outrigger/Generator Control Box Assembly
5.2 Electrical Harness Connections – Outriggers
5.3 GP-108 Controller
5.4 Flashing Light Relay Harness
5.5 Front and Rear Outrigger Assembly
5.6 Outrigger Assembly
5.7 Outrigger Cylinder Assembly
5.8 Hydraulic Hose Connections – Outriggers
5.9 Outrigger Manifold Assembly
5.10 800W Inverter Option
5.11 Hydraulic Generator Option
5.12 Hydraulic Hose Connections – Hydraulic Generator
5.13 Hydraulic Generator Relay Assembly
5.14 Air Hose to Platform Assembly
5.15 Work Light Option
5.16 Cold Weather Start Option
6.0 Labels
6.1 Label Kit
6.2 Labels – Left and Rear
6.3 Labels – Right and Front
6.4 Labels – Top
6.5 Labels – Miscellaneous
7.0 Tables
7.1 Fluid Tables
