Skyjack Telehandler SJ1044TH to SJ1256THS Service Manual 230790ABA 2023

Size: 25.94 MB
Format: PDF
Language: English
Brand: Skyjack
Type of Machine: Telehandler
Type of Manual: Service Manual, Hydraulic Schematic, Electrical SChematic
Model: Skyjack SJ1044TH, SJ1044THS, SJ1056TH, SJ1056THS, SJ1256THS Telehandler
Serial Number:
SJ1044TH/THS 87210168 & Above
SJ1056TH/THS 87312009 & Above
SJ1256THS 87410638 & Above
Part Number: 230790ABA
Publication Date: 2023
Number of Pages: 208 Pages

20 USD

Tags: , ,
  • Description

Description

Contents:
Section 1 – Scheduled Maintenance
1.1 Read and Heed
1.2 Maintenance and Inspection Schedule
1.3 Hydraulic System & Component Maintenance and Repair
1.4 About this Section
1.5 Scheduled Maintenance Inspections
1.6 Function Tests
Section 2 – Maintenance Tables
2.1 Standard and Optional Equipment
2.2 Specifications and Features
2.3 Recommended Fluids/Lubrications
2.4 Tire/Wheel Specifications
2.5 Pressure Settings
2.6 Standard Hose Numbering System
2.7 Torque Specifications for Fasteners (US)
2.8 Torque Specifications for Fasteners (Metric)
2.9 Torque Specifications for Hydraulic Couplings & Hoses
2.10 Air Conditioner Temperature/Pressure Chart
2.11 Floor loading pressure
Section 3 – System Component Identification and Schematics
3.1 Electrical Symbol Chart
3.2 Hydraulic Symbol Chart
3.3 Electrical Components Parts List
3.4 Hydraulic Components Parts List
3.5 Hydraulic Pump and Return Filter Ports Identification
3.6 Steering Control Unit Ports Identification
3.7 Service Brake Actuator (Brake Pedal) Ports Identification
3.8 Auxiliary Block Ports Identification
3.9 Joystick Port Identifications
3.10 Premium Joystick Port Identifications
3.11 Premium Joystick Manifold Port Identifications
3.12 Rear Axle Stabilization Manifold Port Identification
3.13 Outrigger Manifold Port Identifications
3.14 Anti-Cavitation Relief Valve (SJ1256 THS Only)
3.15 Major Components Identification and Location
3.16 Main Manifold Port Identification
3.17 Enclosed Cab Harness & Wiring Diagram
3.18 Glow Plug Harness & Wiring Diagram
3.19 Road Lights Harness & Wiring Diagram
3.20 Work Lights Harness & Wiring Diagram
3.21 Boom Lights Harness & Wiring Diagram
3.22 Beacon Light Harness & Wiring Diagram
3.23 RAS System Schematic and Wiring
3.24 Elevate Telematics Harness
3.25 A/C Harness
3.26 Transmission Electrical Connections
3.27 Console Harness and Layout 74 HP
3.28 Console Harness Wiring Diagram 74HP
3.29 Console Harness and Layout 107 HP – THS Models
3.30 Console Harness Wiring Diagram 107 HP – THS Models
3.31 Engine Harness 74 HP
3.32 Engine Harness 74 HP Wiring Diagram
3.33 Engine Harness Diagram 107 HP – THS Models
3.34 Engine Harness Wiring Diagram 107 HP
3.35 Chassis Harness
3.36 Chassis Harness Wiring Diagram

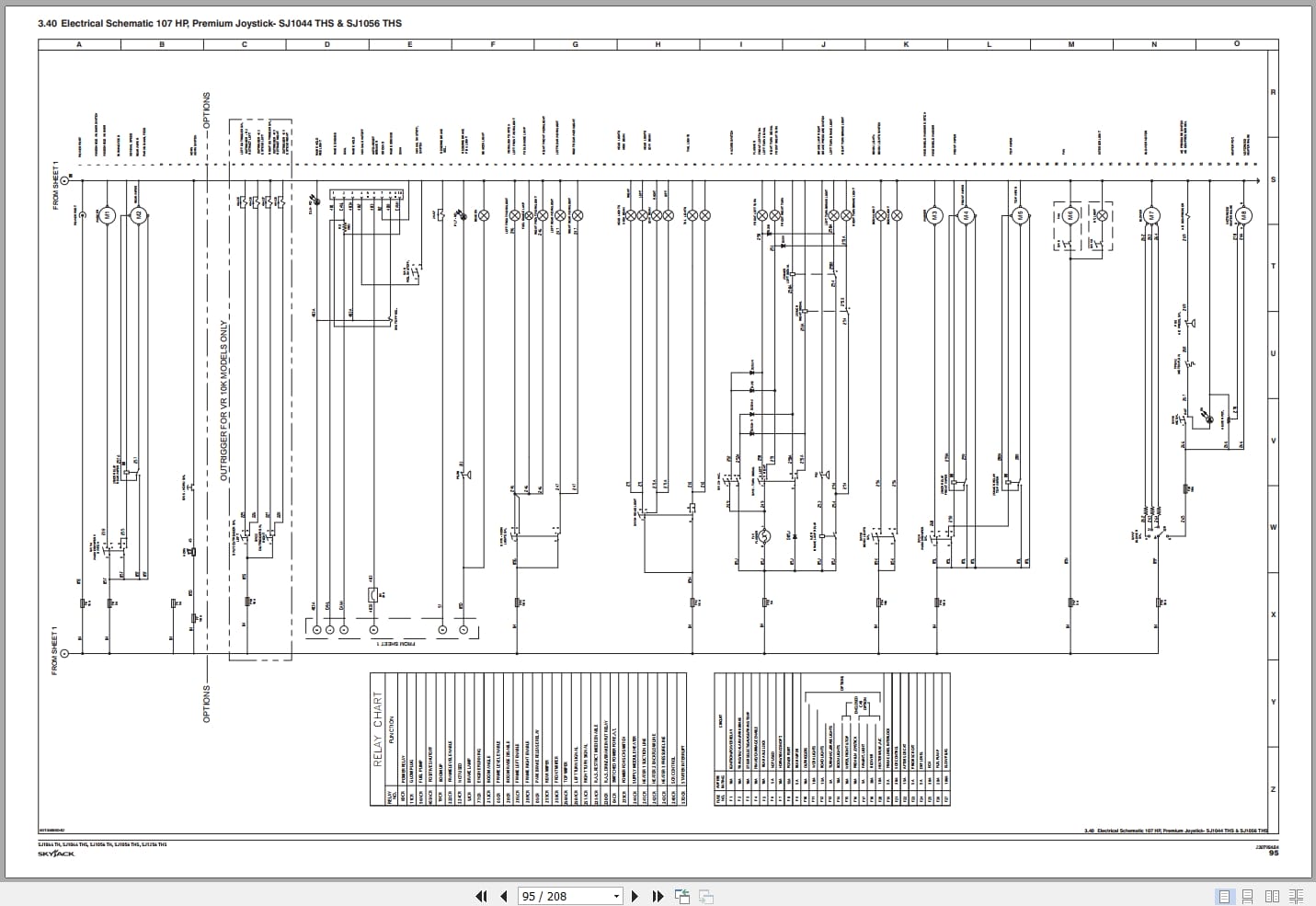

3.37 Electrical Schematic 74 HP – SJ1044 TH & SJ1056 TH
3.38 Electrical Schematic 74 HP Premium Joystick – SJ1044 TH & SJ1056 TH
3.39 Electrical Schematic 107 HP – SJ1044 THS & SJ1056 THS
3.40 Electrical Schematic 107 HP, Premium Joystick- SJ1044 THS & SJ1056 THS
3.41 Electrical Schematic – SJ1256 THS
3.42 Hydraulic Schematic – SJ1044 TH/THS & SJ1056 TH/THS
3.43 Hydraulic Schematic, Premium Joystick – SJ1044 TH/THS & SJ1056 TH/THS

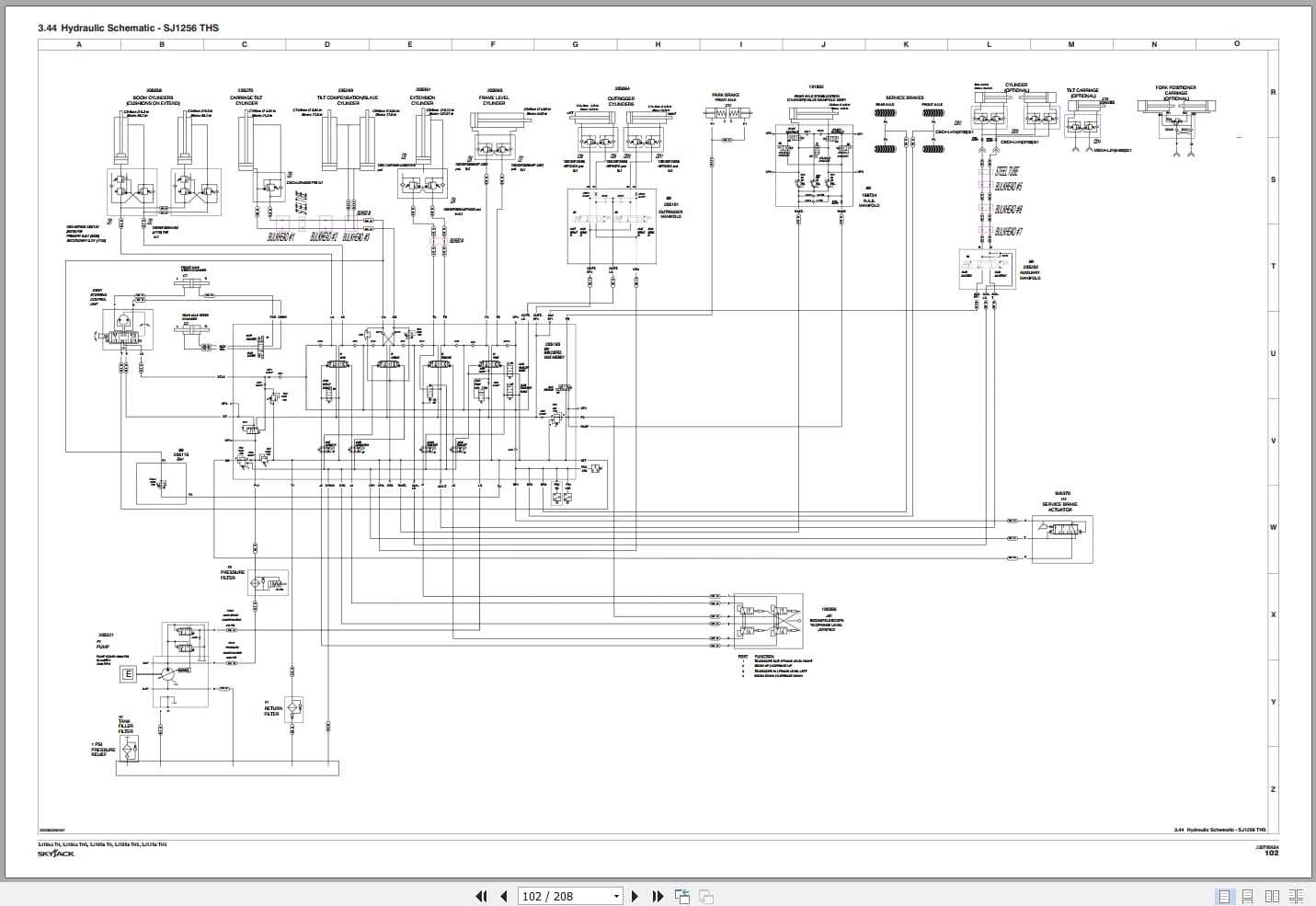

3.44 Hydraulic Schematic – SJ1256 THS
3.45 Hydraulic Schematic for Premium Joystick- SJ1256 THS
Section 4 – Troubleshooting Information
4.1 Introduction
4.2 Electrical System
4.3 Hydraulic System
Section 5 – Procedures
5.1 General
5.2 10 Hour or Daily Routine Maintenance
5.3 50 Hour or Weekly Routine Maintenance

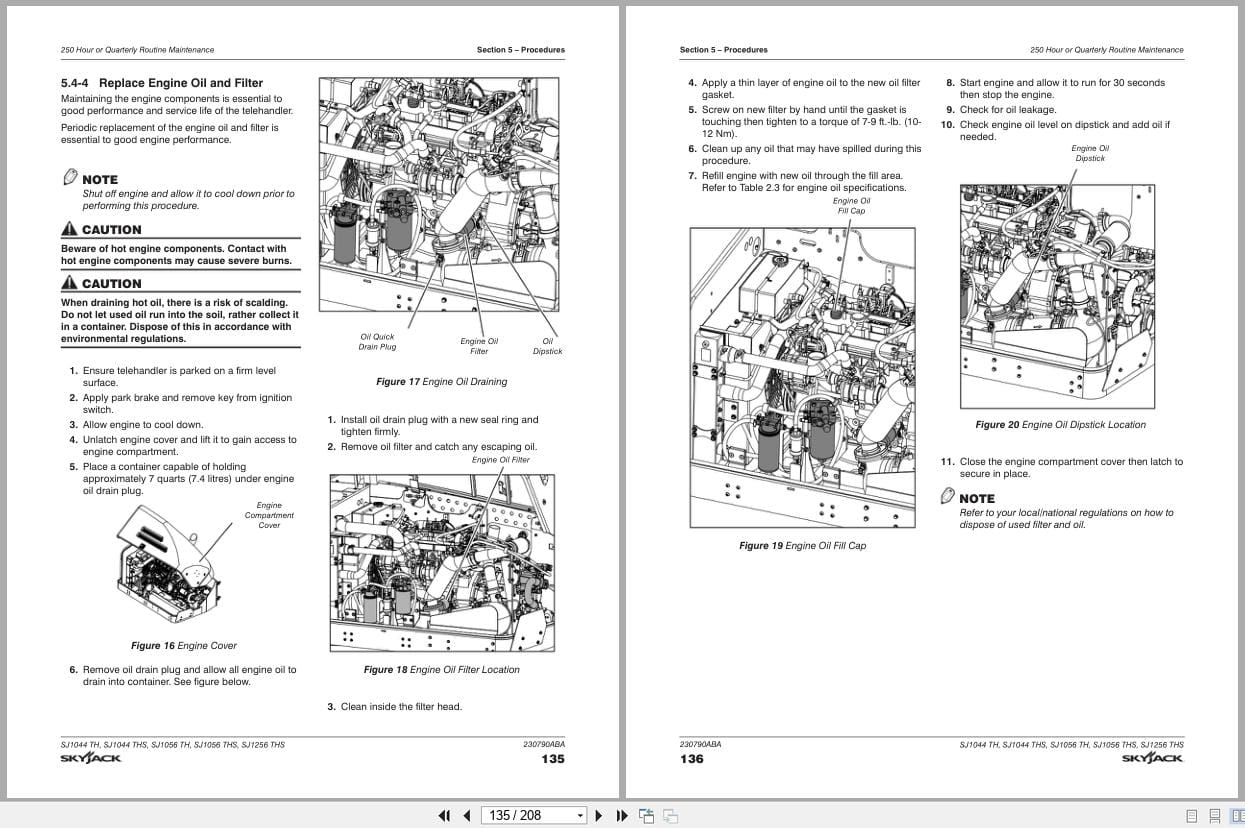

5.4 250 Hour or Quarterly Routine Maintenance
5.5 1000 Hour or Annual Routine Maintenance
5.6 Non-Routine Maintenance
5.7 Electronic Tilt Switch Setup Procedure
5.8 Park Brake Release
5.9 Bearing Installation
5.10 A/C Diagram
