XCMG Roller XSM218 XSM220 Parts Manual EN ZH

Size: 20.36 MB
Format: PDF
Language: English, Chinese
Brand: XCMG
Type of Machine: Roller
Type of Manual: Parts Manual
Model: XCMG XSM218 XSM220 Roller
Number of Pages: 97 Pages

15 USD

Tags: , , ,
  • Description

Description

Contents:
Fig.1 – Drum Frame
Fig.2 – Articulate Device
Fig.3 – Rear Frame
Fig.3A – Rear Frame
Fig.4 – Vibratory Drum
Fig.5 – Eccentric Shaft
Fig.6 – Engine Assemble
Fig.6A – Exhaust System
Fig.7 – Radiator and Water Pipe

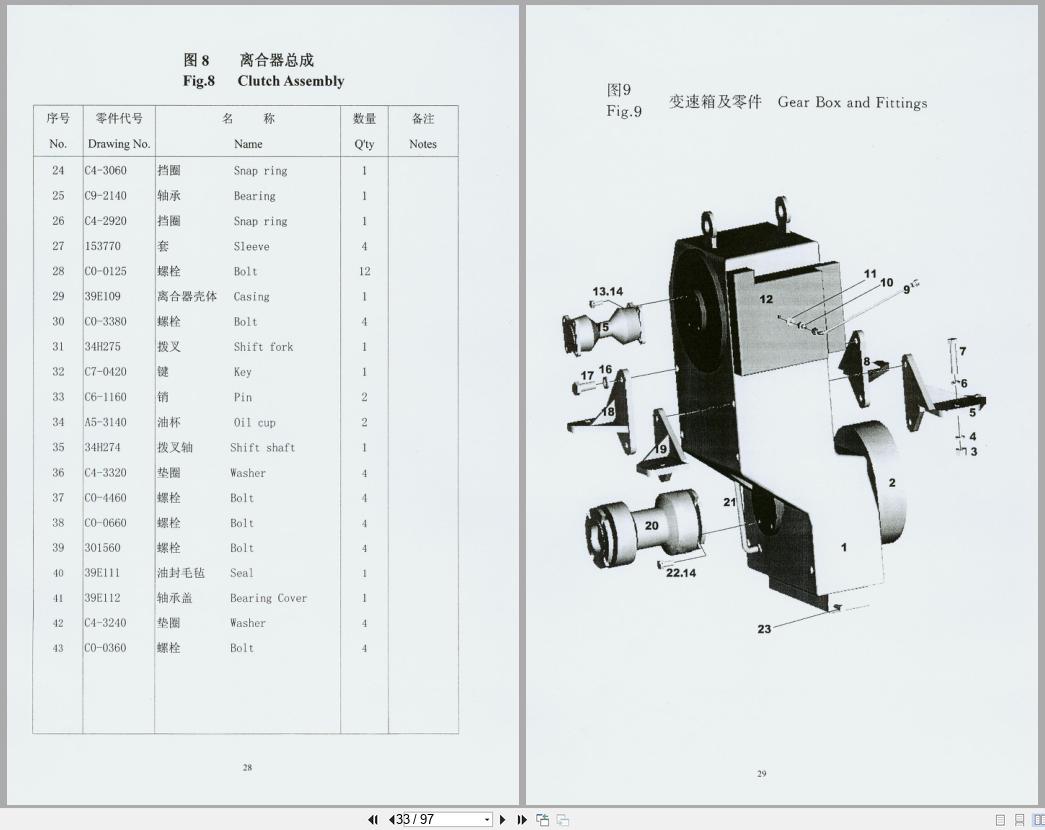

Fig.8 – Clutch Assembly
Fig.9 – Gear Box and Fittings
Fig.10 – Drive Bridge, Tyre and Rim
Fig.11 – Foot Brake System
Fig.12 – Engine Stop Control Device and Shift Control
Fig.13 – Clutch Control Mechanism
Fig.14 – Shift System
Fig.15A – SAUER Steering System
Fig.15B – REXTHOR Steering System
Fig.16 – Steering Control
Fig.17 – Steering Cylinder
Fig.18A – SAUER Hy-Vibration System
Fig.18B – REXTHOR Hy-Vibration System
Fig.19 – Control Console and Instruments
Fig.20 – Electric System
Fig.21 – CAB
Fig.21A – CAB
Fig.22 – Tool Box and Seat
Fig.23 – Operator Box
Fig.24 – Hydraulic Oil Box
Fig.25 – Tractor Upper Section
Fig.26 – Air-Condition System
Fig.27 – Tools Kit
Fig.28 – Spare Parts
