Name: Cushman Sprayer SprayTek DS-175 84066 Parts Maintenance Manual 4241722-B
SKU: 646046
Availability: InStock

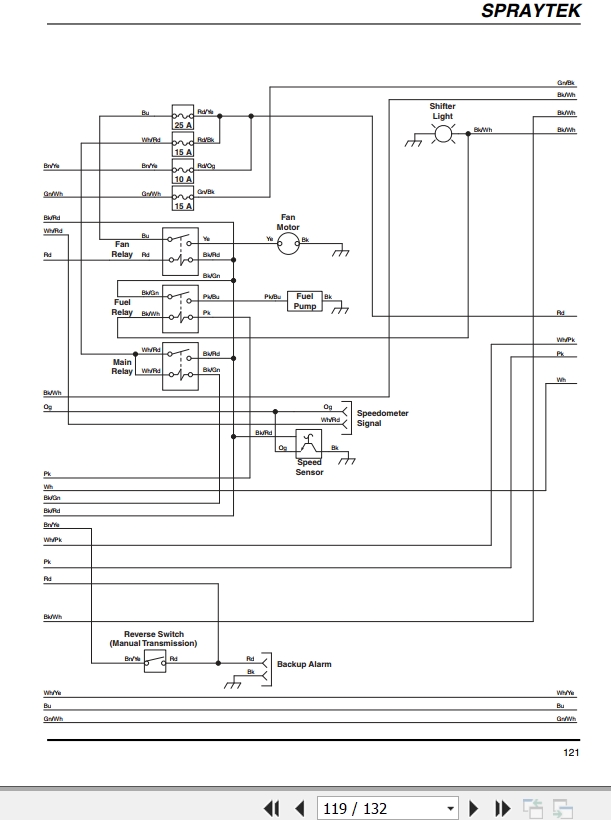

Cushman Sprayer SprayTek DS 175 84066 Parts Maintenance Manual 4241722 B (1)

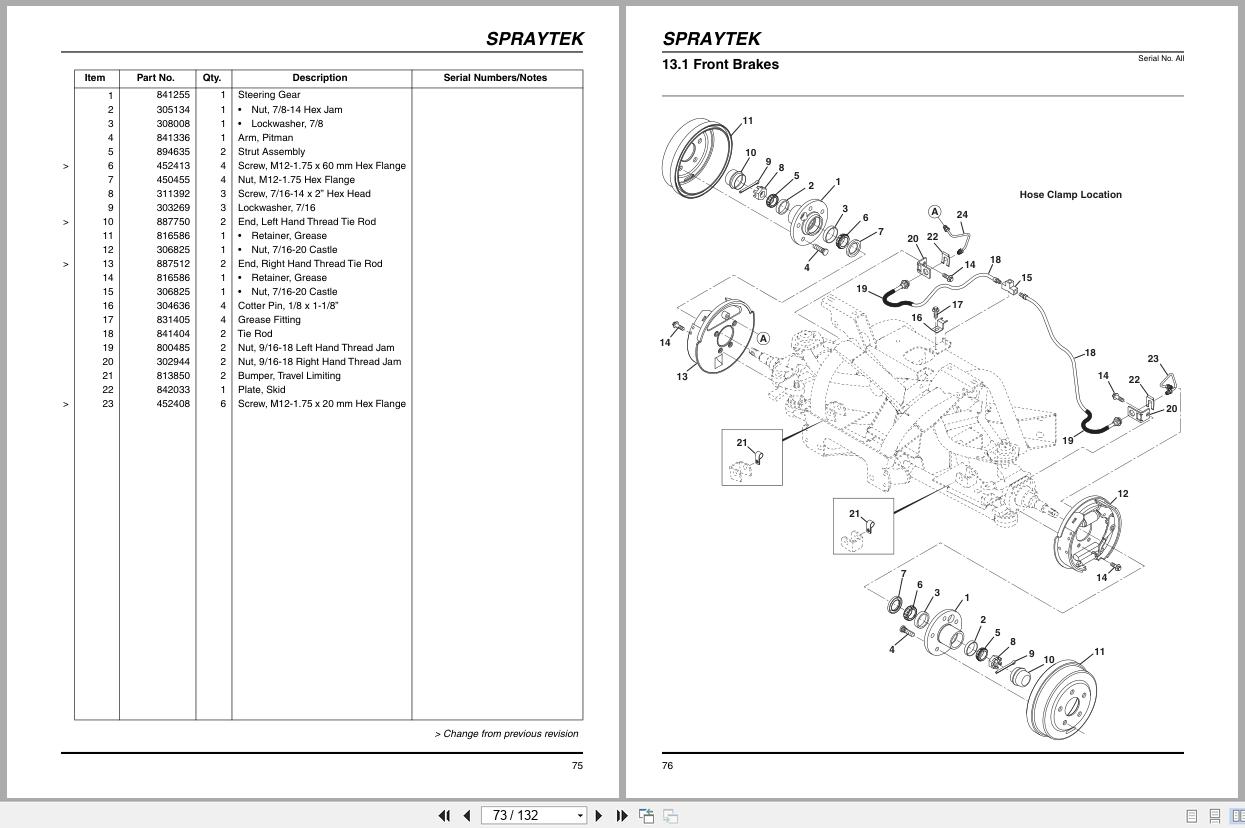

Cushman Sprayer SprayTek DS 175 84066 Parts Maintenance Manual 4241722 B (2)

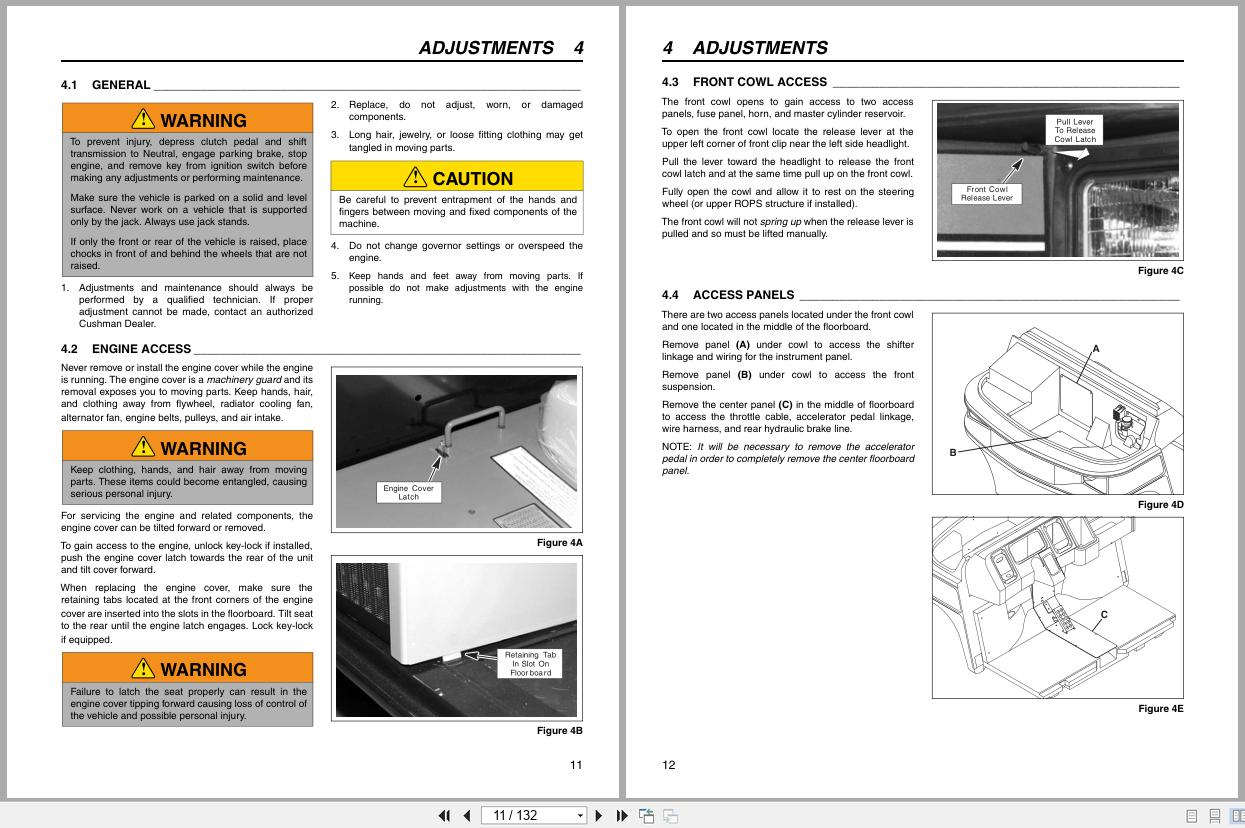

Cushman Sprayer SprayTek DS 175 84066 Parts Maintenance Manual 4241722 B (3)

Cushman Sprayer SprayTek DS 175 84066 Parts Maintenance Manual 4241722 B (4)

✓

Expert Support

✓

Full Speed

✓

100% Working

Cushman Sprayer SprayTek DS-175 84066 Parts Maintenance Manual 4241722-B

Size: 7.26 MB

Format: PDF

Language: English

Brand: Cushman

Type of Machine: Sprayer

Type of Manual: Parts Manual, Maintenance Manual, Wiring Diagram

Model: Cushman SprayTek DS-175 With Four Post ROPS Sprayer

84066 – Suzuki K6 Gas Engine, MT

Part Number: 4241722-B

Publication Date: 2013

Number of Pages: 132 Pages

10 USD

Tags: Cushman Parts Maintenance Manual, Cushman Sprayer Manual, SprayTek DS-175 84066

Description

Description

Contents:
Safety
1.1 Operating Safety
1.2 Important Safety Notes
1.3 Chemical Handling, Use and Storage
1.4 Recommended Safety Equipment
1.5 Work Area Safety Recommendations
Vehicle Identification Numbers
2.1 Vehicle Identification Number
2.2 Engine Identification Numbers
2.3 SDI Sprayer Tank Identification Numbers
Specifications
3.1 Product Identification
3.2 Engine
3.3 vehicle
3.4 Gear Ratios
3.5 Weights and Dimensions
3.6 Accessories & Support Literature
Adjustments
4.1 General
4.2 Engine Access
4.3 Front Cowl Access
4.4 Access Panels
4.5 Gas Engine Power Steering-Alternator Belt
4.6 Gas Engine Governor Pump Belt
4.7 Sprayer Pump Belt
4.8 Parking Brake Cable
4.9 Torque Specification
Maintenance
5.1 General
5.2 Engine
5.3 Engine Oil
5.4 Power Steering Reservoir
5.5 Muffler and Exhaust
5.6 Engine Overheat Procedure
5.7 Cooling System
5.8 Air Filter
5.9 Jump Starting
5.10 Battery
5.11 Charging Battery
5.12 Fuel
5.13 Fuel System
5.14 Tire Pressure
5.15 Tire Removal and Installation
5.16 Raising the vehicle
5.17 Towing the Vehicle
5.18 Governor Oil Level
5.19 Hydraulic Brakes
5.20 Differential Fluid
5.21 Manual Transmission
5.22 Electrical System
5.23 Dash Panel
5.24 Headlight Replacement
5.25 Tail Light Replacement
5.26 EFI Diagnostic Check
5.27 Care and Cleaning
5.28 Sprayer Cleaning
5.29 Storage
SDI Sprayer Maintenance
6.1 Spray System Components
6.2 Control Valves
6.3 System Dynamics
6.4 Sprayer System Check
6.5 Control Pressure Adjustment
6.6 Boom Spray Tip Overlap Check
6.7 Sprayer Tank additives
6.8 cALIBRATION
6.9 Measuring Ground Speed
6.10 Nozzle Tip Size
6.11 Determining Amount of Chemicals Required
6.12 Adding water to tank.
6.13 Mixing Chemicals
Troubleshooting
7.1 General
Maintenance & Lubrication Charts
8.1 General
8.2 Lubrication Chart
8.3 Maintenance Charts
8.4 Common Replacement Parts
Parts Catalog
9.1 How To Use The Parts Catalog
9.2 To Order Parts
9.3 Table Of Contents
