Name: Gradall Wheeled Excavator XL4300IICE Operators Service Manual 31200155 2006
SKU: 659850
Availability: InStock

Gradall Wheeled Excavator XL4300IICE Operators Service Manual 31200155 2006 (1)

Gradall Wheeled Excavator XL4300IICE Operators Service Manual 31200155 2006 (2)

Gradall Wheeled Excavator XL4300IICE Operators Service Manual 31200155 2006 (3)

Gradall Wheeled Excavator XL4300IICE Operators Service Manual 31200155 2006 (4)

✓

Expert Support

✓

Full Speed

✓

100% Working

Gradall Wheeled Excavator XL4300IICE Operators Service Manual 31200155 2006

Size: 130.81 MB

Format: PDF

Language: English

Brand: Gradall

Type of Machine: Rough-terrain Wheeled Excavator

Type of Manual: Combined Service Manual, Operators Manual, Hydraulic Schematic, Electrical Schematic

Model: Gradall XL4300IICE 31200155, XL4300IICE 31200154 Rough-terrain Wheeled Excavator

Serial Number: 0210017803

Part Number: XL4300IICE 31200155, XL4300IICE 31200154

Publication Date: 31200155 – 2006, 31200154 – 2005

Number of Pages: 953 Pages

30 USD

Tags: Gradall Operators Service Manual, Gradall Wheeled Excavator Manual, XL4300IICE

Description

Description

List of Files:
OPERATOR INSTRUCTION
31200154 XL4300II CE Owner/Operator Manual
SCHEDULED MAINTENANCE
8090-9017 Critical Item Check List
HYDRAULIC SYSTEM OPERATION
All Terrain Hydraulic System

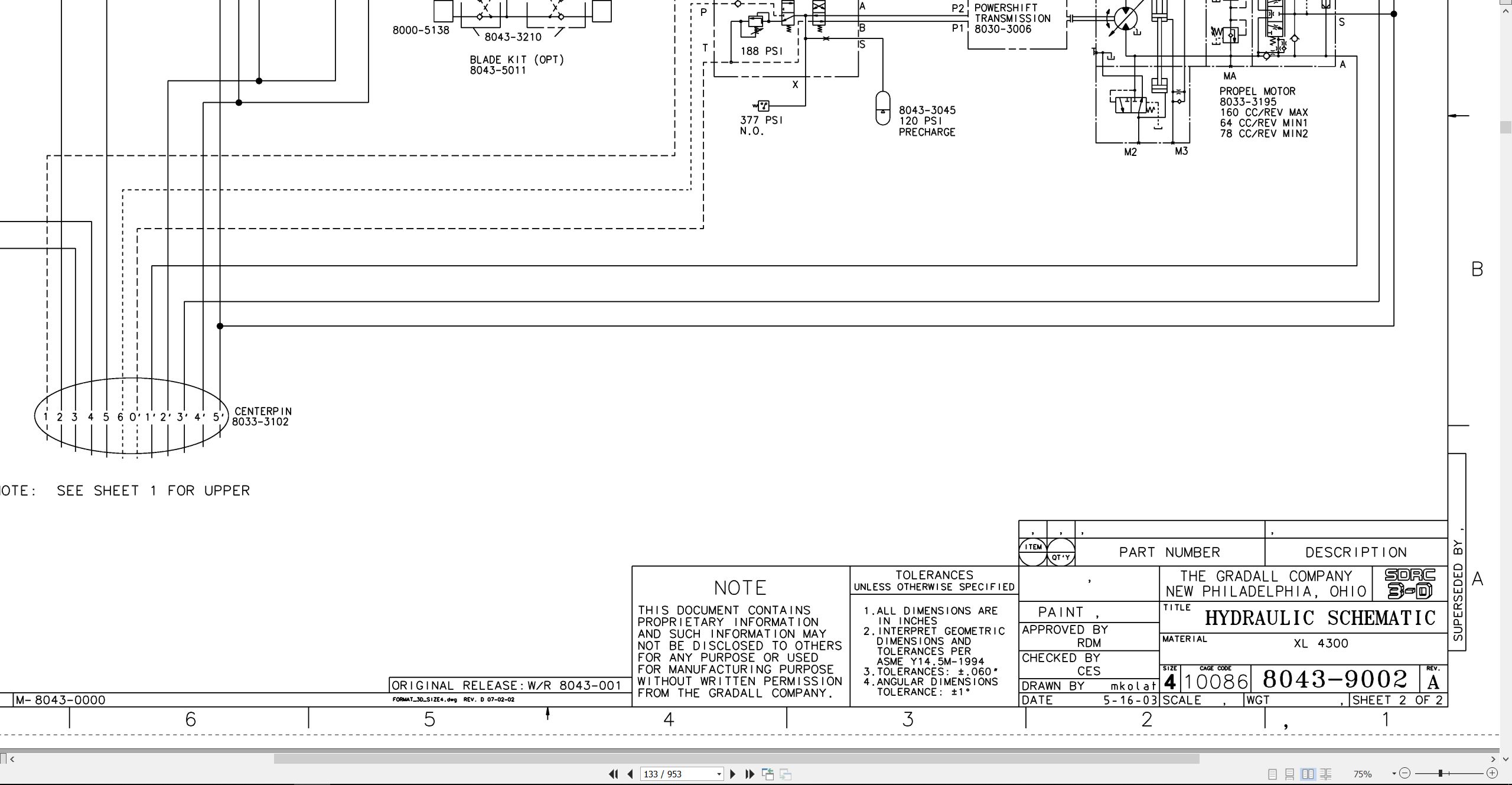

8043-9002 Hydraulic Schematic
8043-9006 Start-Up Procedure
RDE 92500-06-R Rexroth Main Pump Repair
RA64-555 Rexroth Joystick
RA 10 097-S Rexroth Gear Pump
HYDRAULIC TEST & ADJUSTMENT
8043-9003 Final Test Report
MECHANICAL ADJUSTMENTS
1512-003 Parker Low Speed, High Torque Hydraulic Motors
75580 Ausco Brake Technical Page

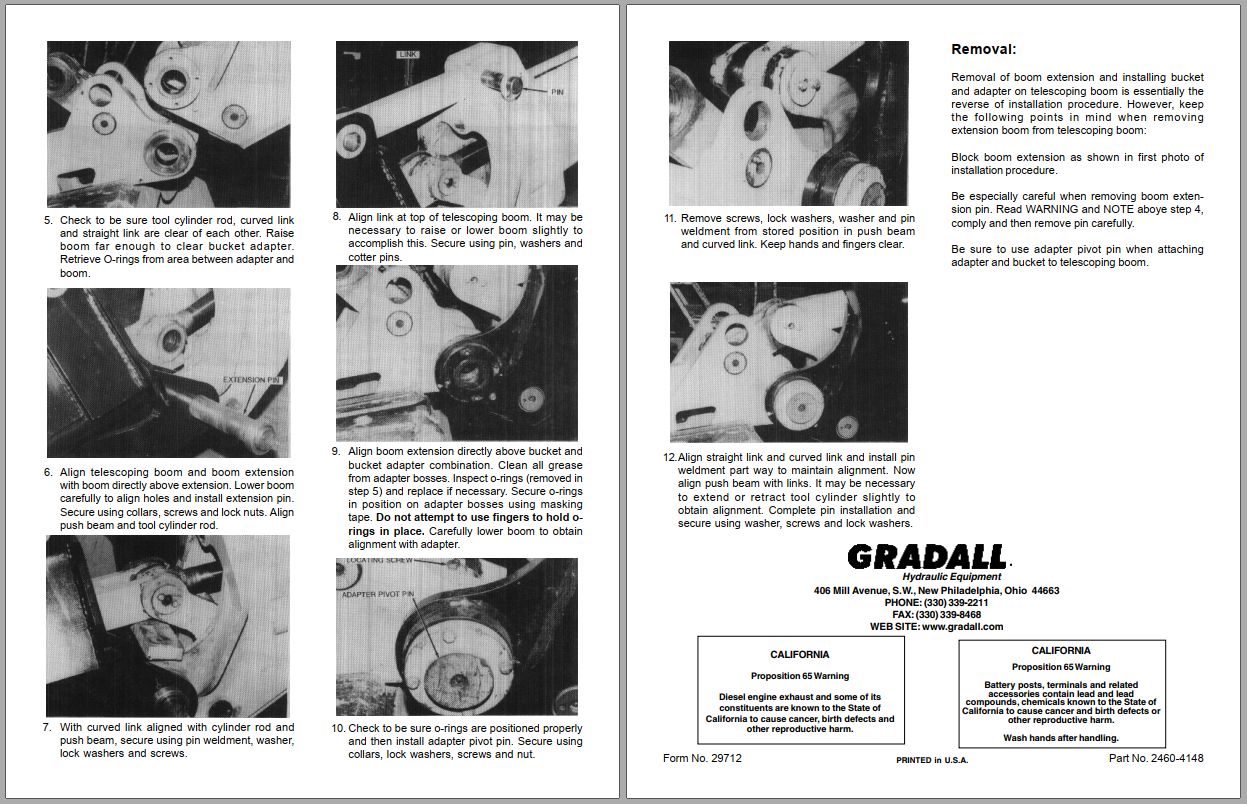

29712 Boom Extension Installation Manual
ELECTRICAL

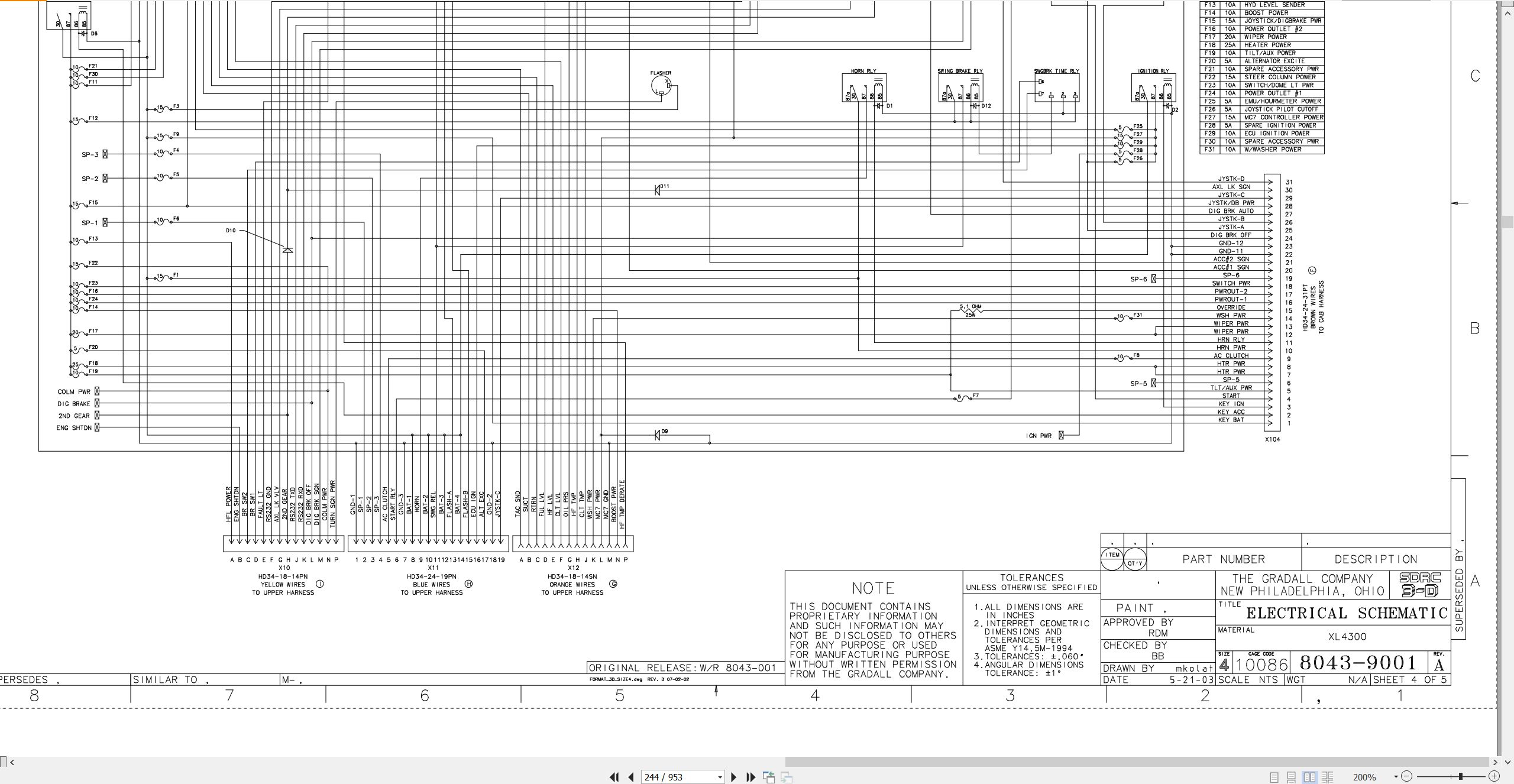

8043-9001 Electrical Schematic
1M-128 Delco Remy 28-MT Cranking Motor Service Manual
8046-3004 Upper Harness
8046-3113 Engine Harness
8046-3056 Cab Harness
8046-5002 Console Assembly
8046-3036 John Deere EMU
8046-3008 Upper VEC
8046-3012 RT Relay VEC
8046-3013 VEC PWR/GND Harness
DCMB Trojan Deep Cycle Battery Maintenance
BCI-II edition Trojan Battery Service Manual
125-189 Leece-Neville Alternators for Electronic Charging Systems
DRIVE AXLE
AP(L)-B 765/775 ZF-Planetary Axle w/Wet-Type Multiple-Disk Brakes Service
APL-B 765 ZF-Planetary Steering Axle Parts Manual
AP-B 765 ZF-Rear Axle Parts Manual
2 HL 100 ZF-Transfer Case Service Manual
2 HL 100 ZF-Hydrostatic Powershift Transmission Technical Manual
2 HL 100 ZF-Axle Transfer Case Parts Manual
WHEEL & RIM
0009 Rim & Wheel Safety Manual
MISCELLANEOUS
20013 Gradall Safety Manual
HE92-2 EMI Hydraulic Excavator Safety Manual
8060-9016 Hydraulic Fitting Torque Chart
